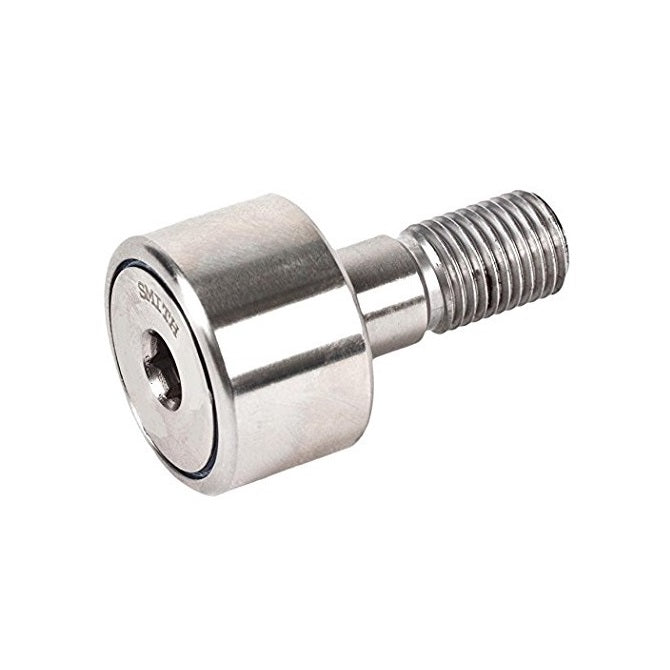

CF3-FBUU
Cam - 10 mm x 17 mm M3x0.50
MBA
Out Of Stock
Order 50 or more for $46.27 AUD Each
Couldn't load pickup availability
Base Category: Cam Followers - Roller Type
Top Level Category: Cam Followers - Roller Type - Stainless Steel
Product Details:Diameter (D): 10.00mm
Stainless Steel
- Overall Length (B1): 17.00mm
- Thread Type: M3x0.50
- Stud Length (B2): 9.00mm
- Roller Width (C): 7.00mm
- Seals: Sealed
- Basic Static Load (Co): 784N
- Max Allowable Load: 382N
Brand: MBA
Country of Origin: DE
Alternatives: CF-3FBUU
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
