Single Coil R Clips - 1.8x38 mm - Zinc Plated

RCL-018-038-Z (10 Pcs)

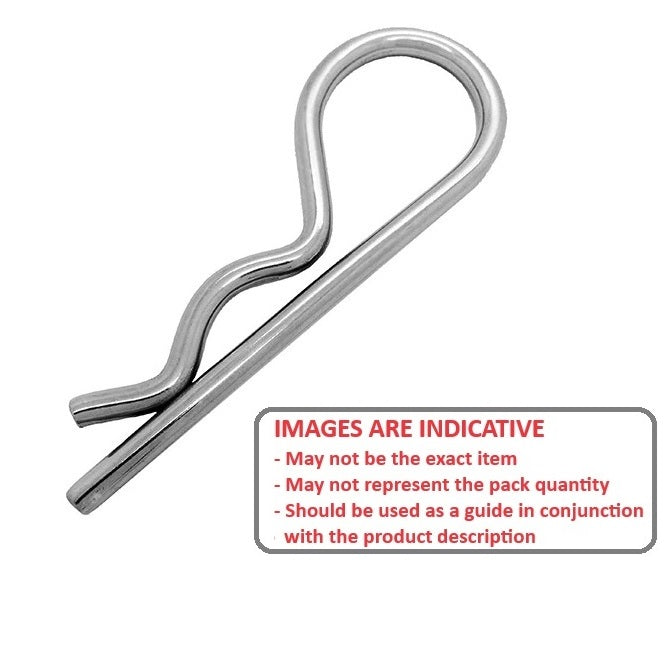

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Coil R Clips - 1.8x38 mm - Zinc Plated
1 4

MBA

Additional resources:
Assortment Kits
Split Pins
Price:
$8.00 AUD
$15.20 AUD $8.00 AUD
per 10
Qty: 5 available now (50 pcs)
Only 5 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: R Clips - Single Coil

Top Level Category: R Clips - Single Coil - Steel

Product Details:

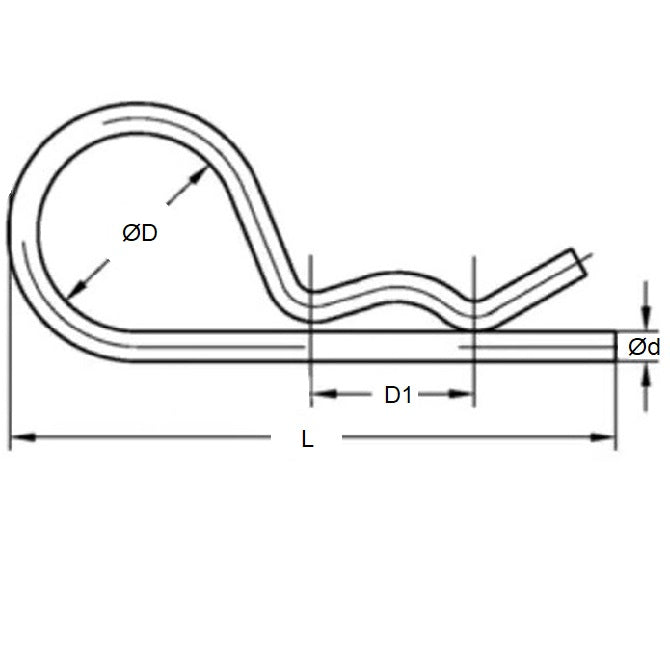

Wire Thickness (d): 1.80mm
(1.80mm is 0.071 in.)

Spring Steel Zinc Plated
  • Length (L): 38.0mm
    (38.0mm is 1.496 in.)
  • Material: Zinc Plated
  • Drill Hole Size: 2.20mm
  • Inside Eye Diameter (D): 7.50mm
  • Shaft Size Range: 8.00 to 13.00mm
  • Approx. Bridge Length (D1): 12mm

Brand: MBA
Country of Origin: DE

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Alternative Parts Include: RPS1832, RPS1.8-32

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
