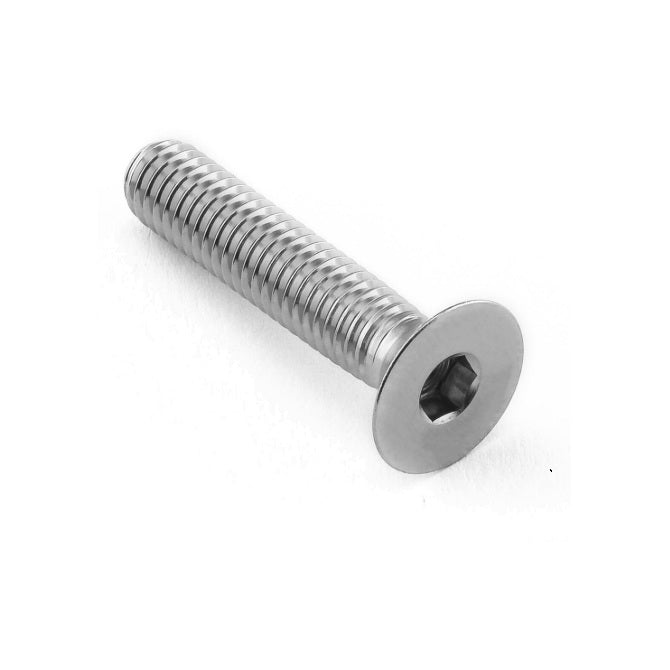

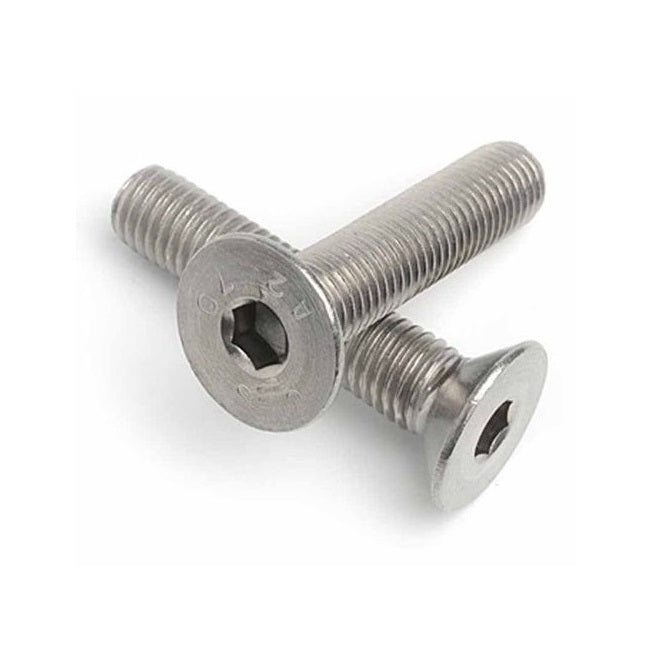

Countersunk Screws - 1-72 UNF -1.85mm- 6.4 mm - 304 Stainless

SK019F-006-SK-S4 (10 Pcs)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
PDF Screws Catalogue
Washers
Nuts
Price:
$8.00 AUD
$15.20 AUD $8.00 AUD
per 10
Qty: 7 available now (70 pcs)
Only 7 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Screws - Countersunk

Top Level Category: Screws - Countersunk - Socket - 304 Stainless

Product Details:

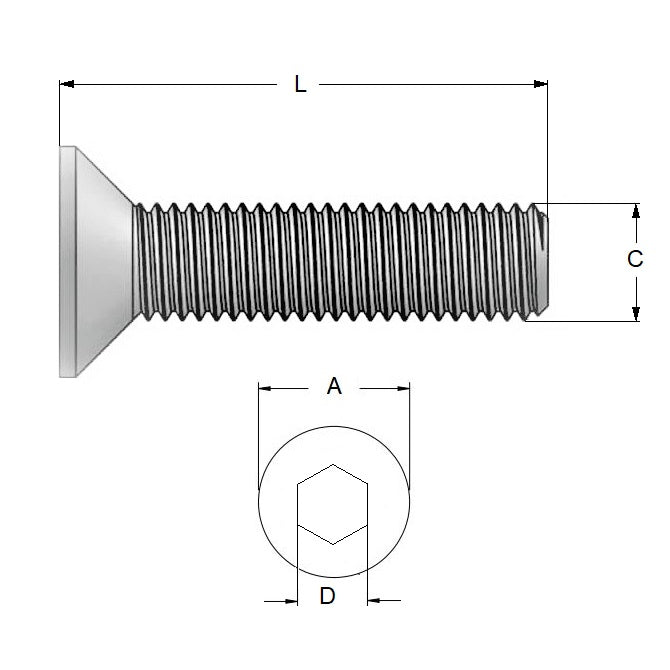

Thread Size (C): 1-72 UNF (1.85mm)
Stainless Steel 304 (Similar to A2, 18-8) HRB80
  • Overall Length (L): 6.4mm
    + 0.0 / - 0.76
  • Material: 304 Stainless
  • Head Diameter (A): 4.3mm
  • Max Head Height: 1.4mm
  • Minimum Thread Length (l): Not Specifiedmm
  • Hex Key (s): 1.27 (0.05in.)mm
  • Countersunk Angle: 82°
  • Pitch: 0.353mm
  • Threads Per Inch: 72TPI

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Alternative Parts Include: 92210A018, SFS0104, ALTPART, MicroFast

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
