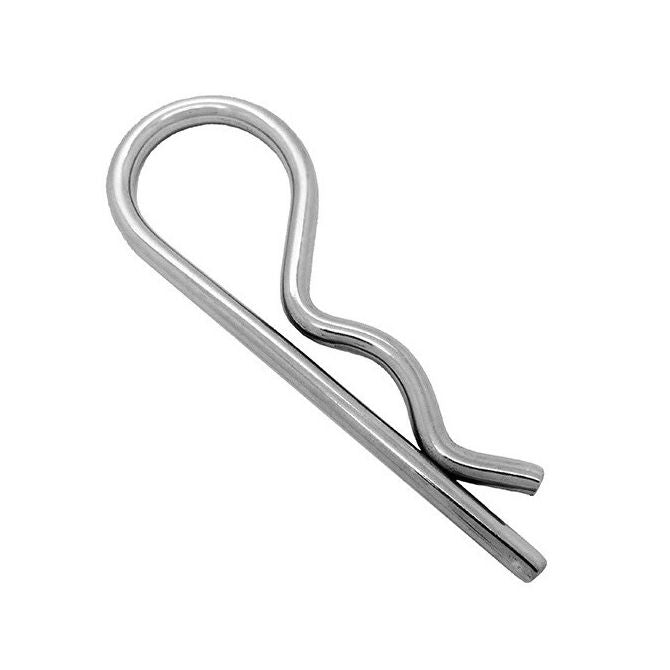

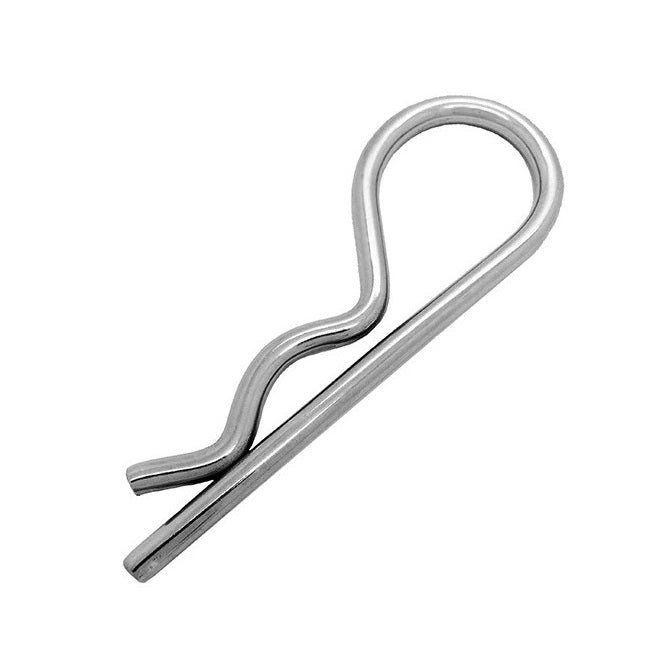

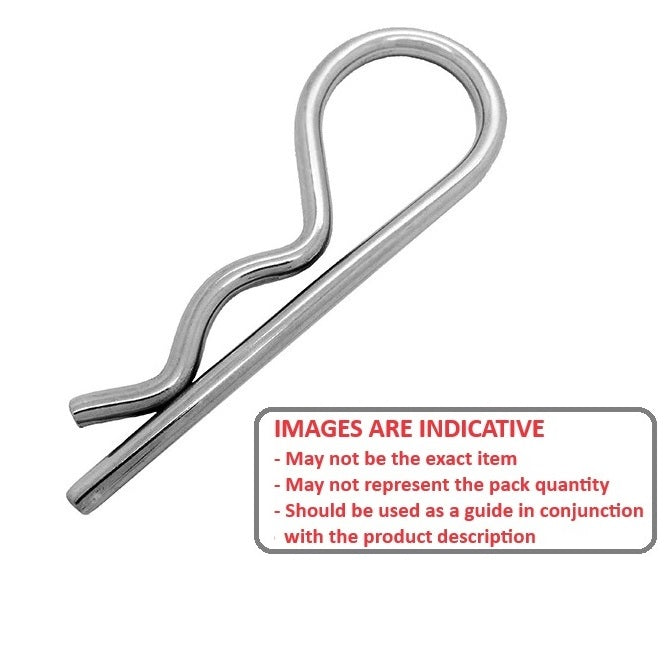

RCL-016-033-Z (50 Pcs)
R - 1.6 mm x 33 mm
MBA
Split Pins
Qty: 11 available now (550 pcs)
Couldn't load pickup availability
Base Category: R Clips - Single Coil
Top Level Category: R Clips - Single Coil - Steel

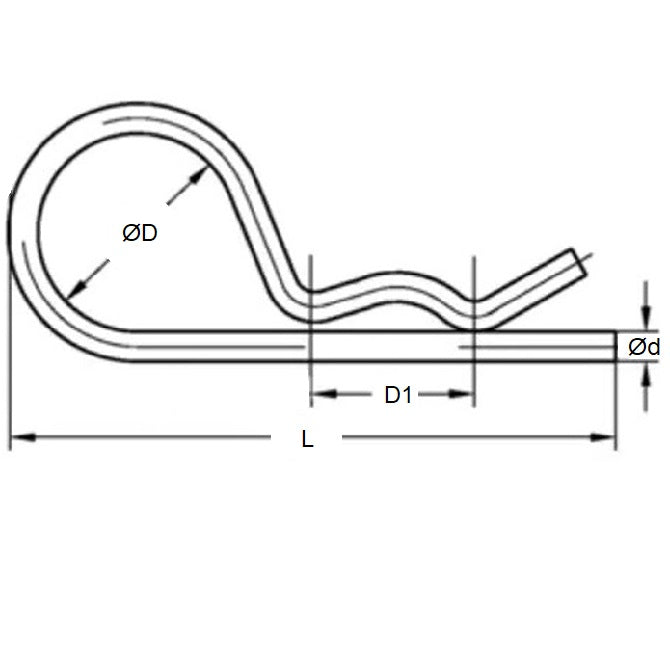

Product Details:Wire Thickness (d): 1.60mm
Spring Wire, Oil-Tempered Zinc Plated
- Length (L): 33.0mm
- Material: Spring Wire, Oil-Tempered
- Drill Hole Size: 1.98mm
- Inside Eye Diameter (D): 7.94mm
- Shaft Size Range: 6.35 to 12.70mm
- Approx. Bridge Length (D1): 10mm
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Alternatives: A9Q34-22, MSHPZP16
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
