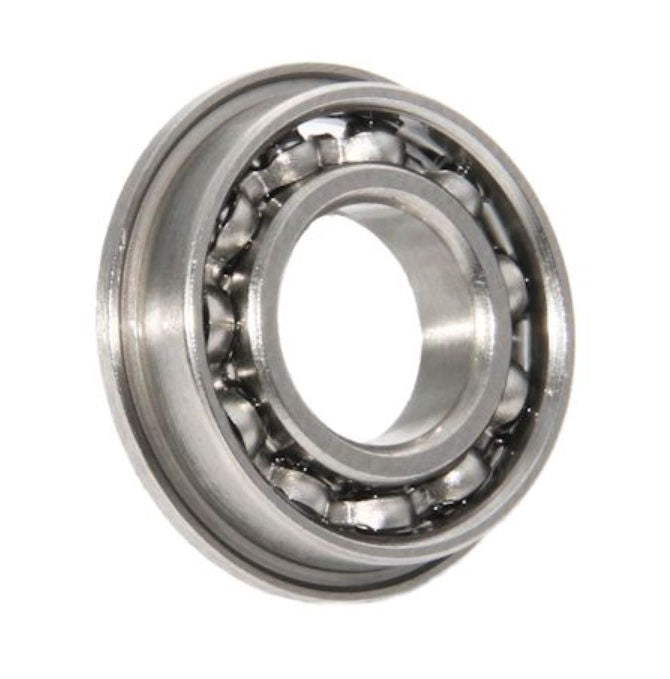

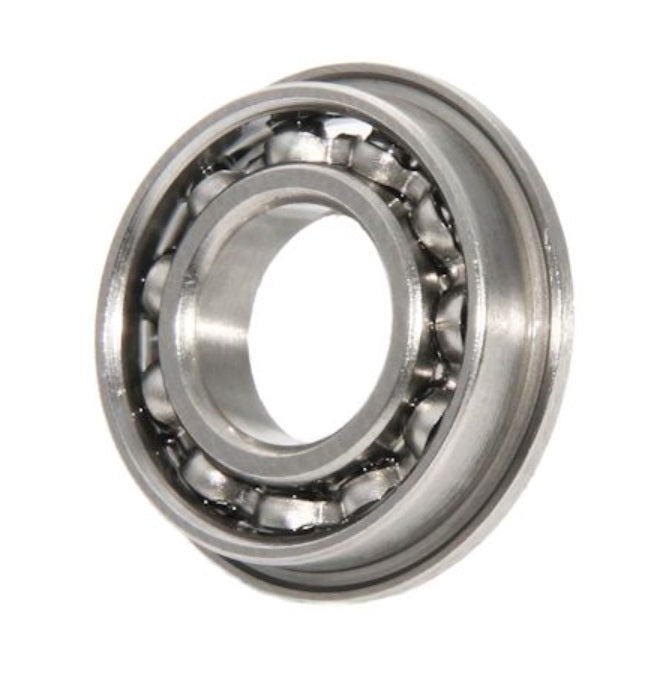

Single Row Ball Bearings - 1.5x4x1.2 mm - Stainless Steel AISI 440C

SF681X-MC34-GR7-R-L23

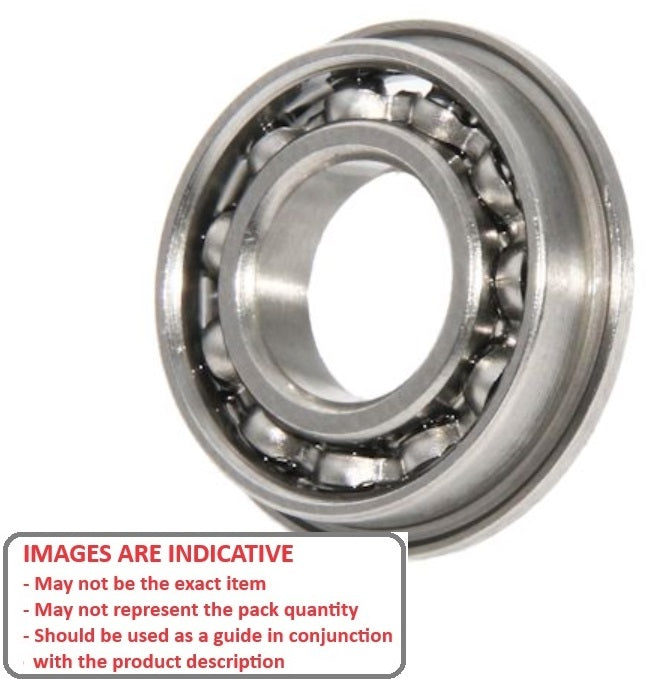

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 1.5x4x1.2 mm - Stainless Steel AISI 440C
1 4

Myonic

Additional resources:
Tolerances
High Precision Bearings Catalogue PDF
Shafting
Price:
$32.44 AUD
$76.61 AUD $32.44 AUD
Each
Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - High Precision - Standard

Product Details:

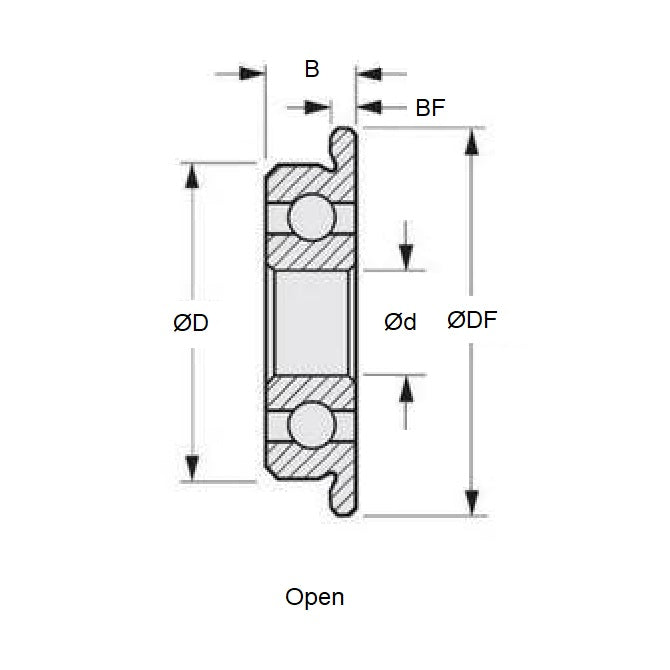

ID (d): 1.500mm
+ 0.000 / - 0.004
(1.500mm is 0.059 in.)

Stainless Steel AISI 440C
  • OD (D): 4.000mm
    + 0.000 / - 0.005
    (4.000mm is 0.157 in.)
  • Width (B): 1.200mm
    + 0.000 / - 0.040
    (1.200mm is 0.047 in.)
  • Flange Diameter (DF): 5.000mm
  • Flange Width (BF): 0.400mm
  • Precision Grade: Abec 7
  • Closure Type: Open
  • Bearing Type: Radial Flanged
  • Lubricant: Windsorlube L245X - L23 Oil

Brand: Myonic
Country of Origin: DE

Alternative Parts Include: ULK154XA7P, ULK-154X-48-A7P-6/15-L23, ULK154X-A7P, ULK154XA7PL23, ULK154X-A7P-L23, ULK154X48A7P6/15L23, SF681XMC3GR7L23, SF68-1.5-P4, SF681XRGR7MC34L23, SF6815P4, P4-F68-1.5, P4SF6815, P4-SF68-1.5, P4F6815, F6815P4, F68-1.5-P4, F681X, GRW, F681XBASIC
