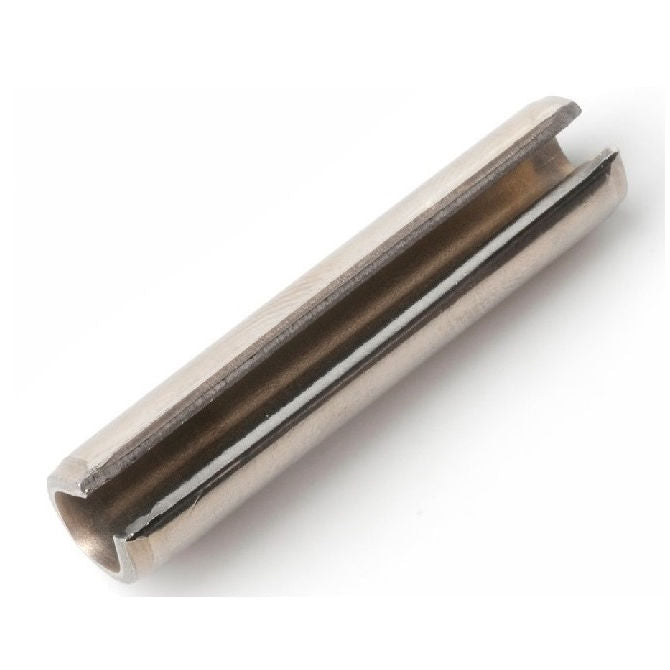

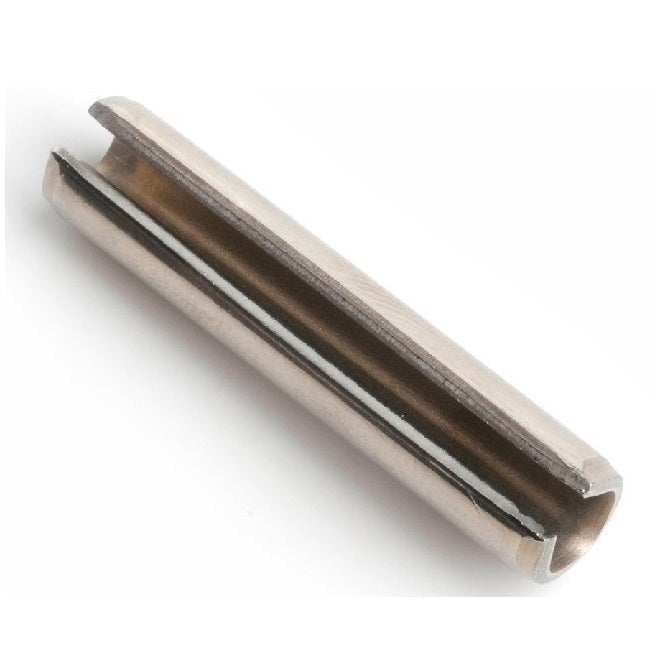

Roll Pins - 1.5x10x1.65 mm - Stainless Steel AISI 420C Rc 46-52

RP015-0100-420 (100 Pcs)

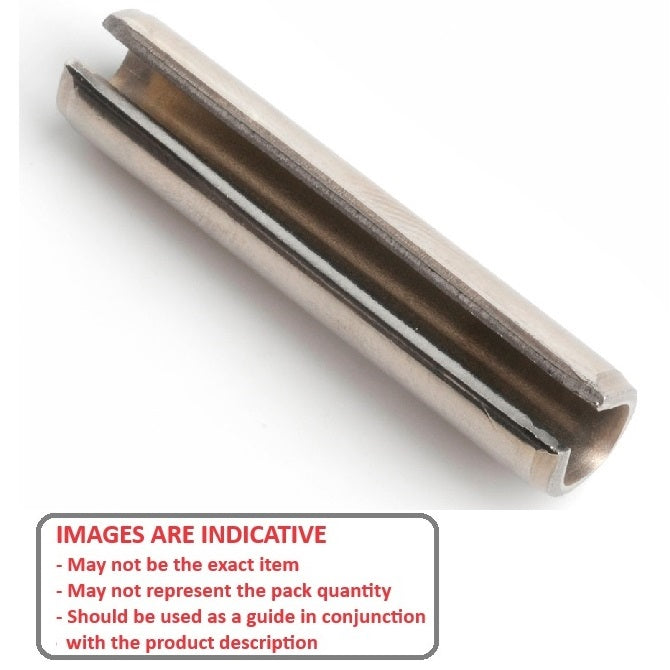

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Roll Pins - 1.5x10x1.65 mm - Stainless Steel AISI 420C Rc 46-52
1 4

MBA

Additional resources:
Master Pins Catalogue PDF
Roll Pins Catalogue PDF
Coiled Pins
Price:
$11.95 AUD
$11.95 AUD
per 100
Qty: 3 available now (300 pcs)
Order 50 or more (5000 pcs) for $10.76 AUD per 100
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 20, 2025

Base Category: Pins - Roll

Top Level Category: Pins - Roll - Stainless Steel - 420 Grade

Product Details:

Additional stock available from USA subject to Prior Sale = 3731


Nominal Diameter (D): 1.50mm
(1.50mm is 0.059 in.)

Stainless Steel AISI 420C Rc 46-52
  • Length (L): 10.00mm
    (10.00mm is 0.394 in.)
  • Free Diameter: 1.65mm
    (1.65mm is 0.065 in.)
  • Thickness (S): 0.35mm
  • Chamfer Length (cL): 0.15-0.70mm
  • Chamfer Diameter (cD): 1.4mm
  • Standard: ASME B18.8.4M Type B
  • Type: Standard

Brand: MBA
Country of Origin: US

Alternative Parts Include: SPMSP-015-010-A, SPMSP015010A, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
