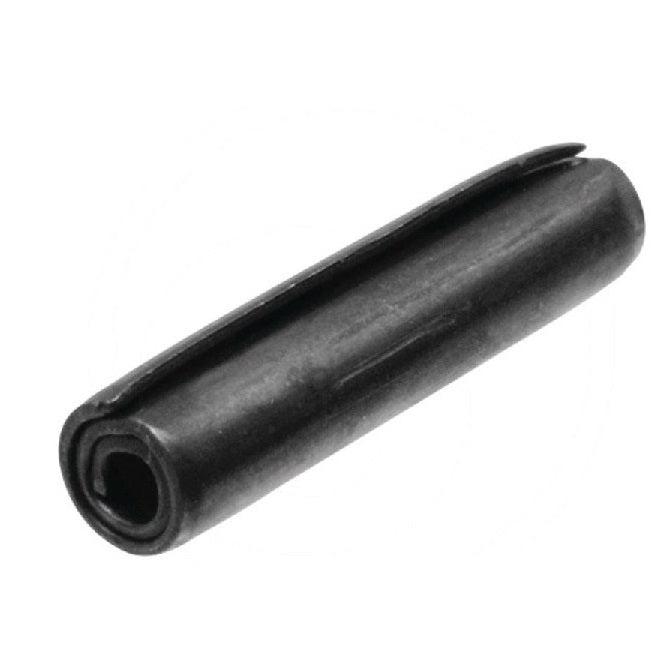

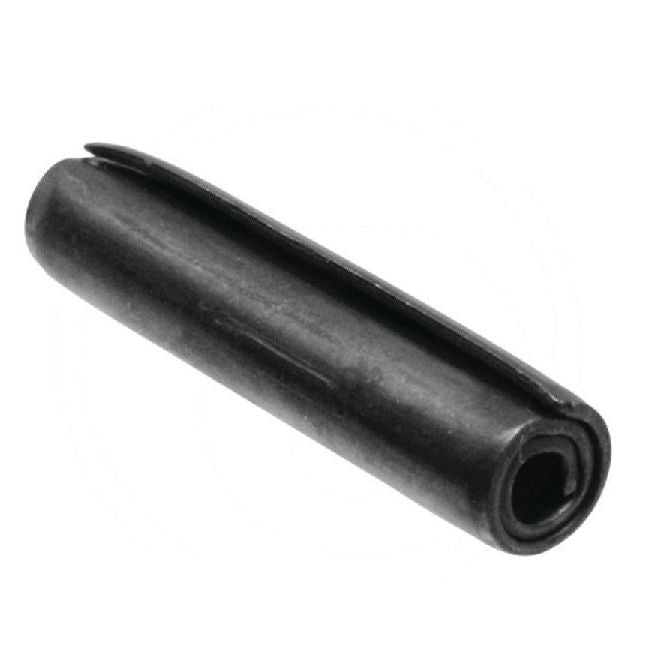

Coiled Pins - 1.59x23.83 - 1.59 - 1.65 - Carbon Steel - High Carbon

PSP-016-024-C (10 Pcs)

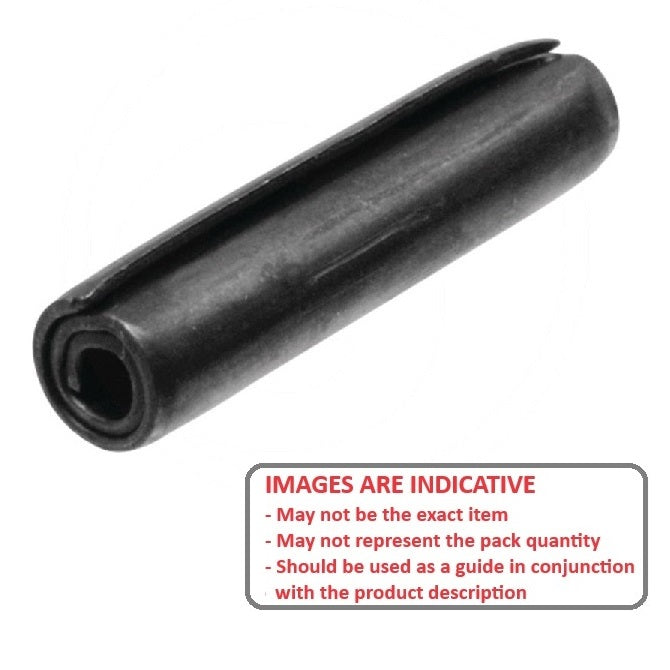

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Coiled Pins - 1.59x23.83 - 1.59 - 1.65 - Carbon Steel - High Carbon
1 4

MBA

Additional resources:
Master Pins Catalogue PDF
Roll Pins
Price:
$8.00 AUD
$15.20 AUD $8.00 AUD
per 10
Qty: 9 available now (90 pcs)
Only 9 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Pins - Coiled

Top Level Category: Pins - Coiled - Steel - Standard Duty

Product Details:

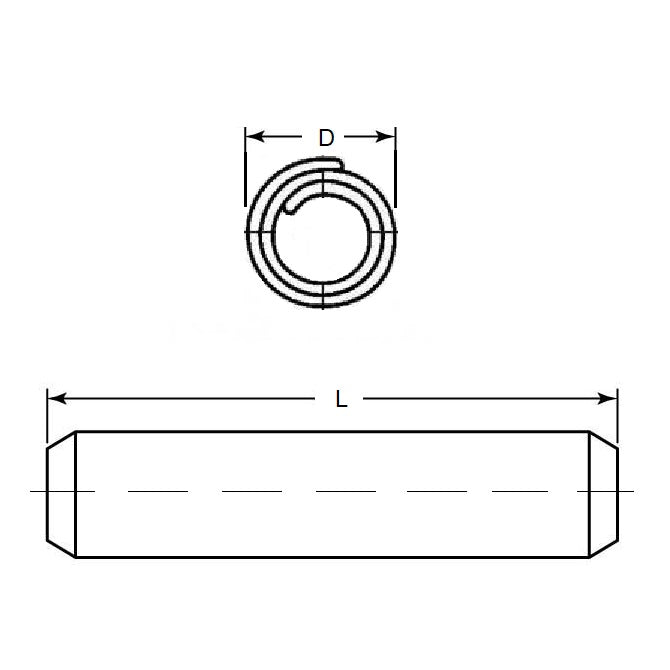

Nom. Hole Diameter: 1.59mm
(1.59mm is 0.063 in.)

Carbon Steel - High Carbon
  • Length: 23.83mm
    +/- 0.50
    (23.83mm is 0.938 in.)
  • Drill Size: 1.59 - 1.65mm
    (1.59 - 1.65mm is 0.063 in.)
  • Loose Diameter: 1.70 - 1.83mm
  • ISO: Standard Duty ASME B18.8.2
  • Hardness: RC 46-53 (HV 420 to 545)
  • Double Shear Strength Min.: 1Kn

Brand: MBA
Country of Origin: US

Alternative Parts Include: A9Q360230, A9Q36-0230

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
