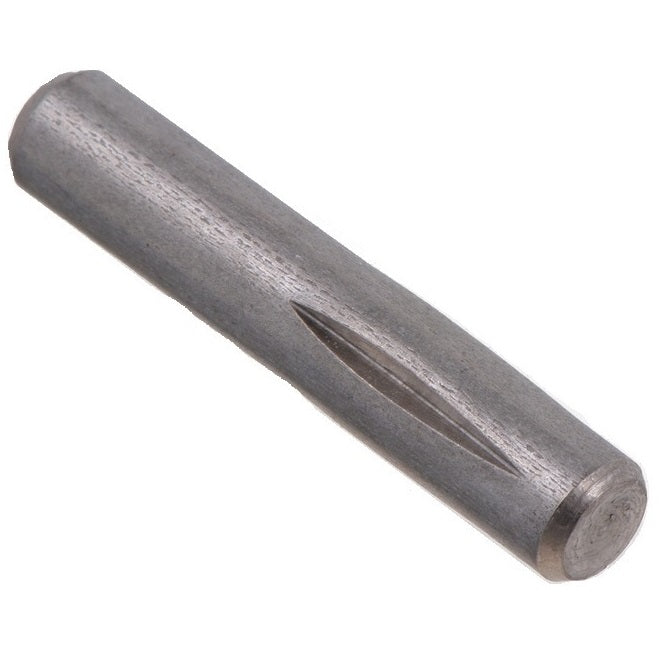

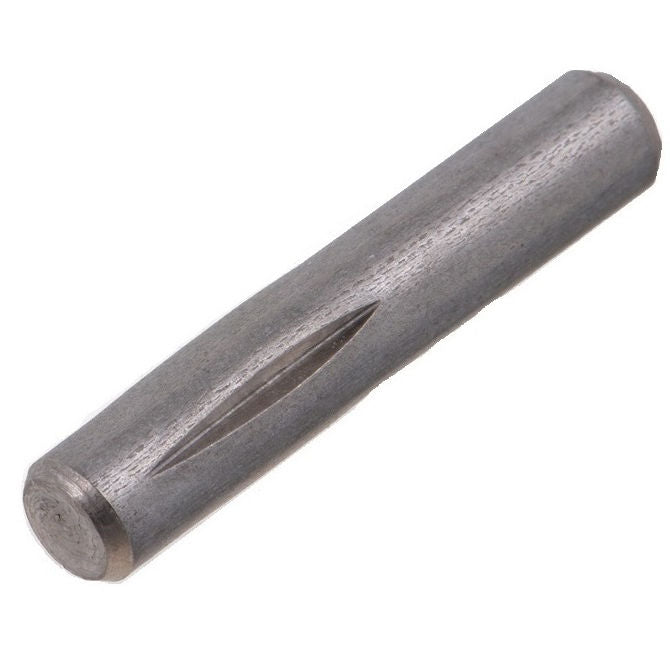

Groove Pins - 1.588x9.53 - 1.651 / 1.701 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

GPT-0159-0953-3 (45 Pcs)

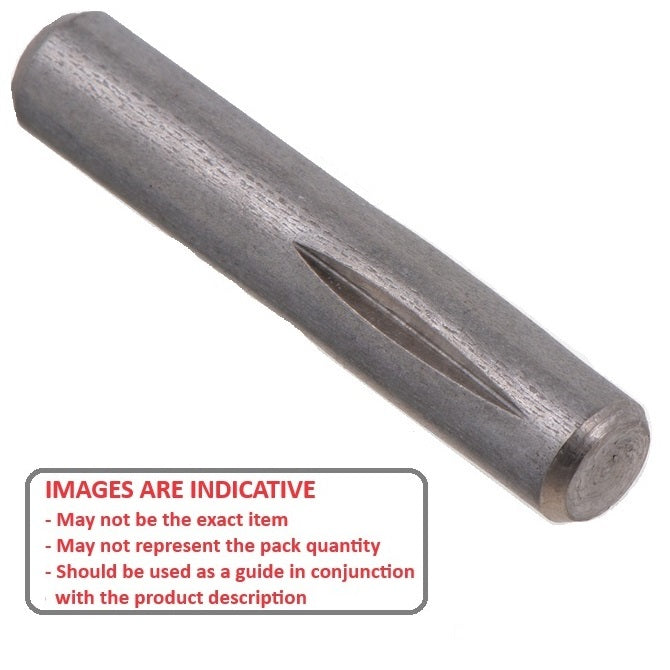

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Groove Pins - 1.588x9.53 - 1.651 / 1.701 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
1 4

MBA

Category: Pins - Groove
Additional resources:
Master Pins Catalogue PDF
Price:
$9.40 AUD
$17.86 AUD $9.40 AUD
per 45
Qty: 1 available now (45 pcs)
Only 1 pack may be ordered online. If you need a large quantity, please contact us.

Base Category: Pins - Groove

Top Level Category: Pins - Groove

Product Details:

Nom. Diameter (D): 1.588mm
(1.588mm is 0.063 in.)

Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
  • Length (L): 9.53mm
    (9.53mm is 0.375 in.)
  • Expanded. Dia [min / max] (Dx): 1.651 / 1.701mm
    (1.651 / 1.701mm is 0.065 in.)

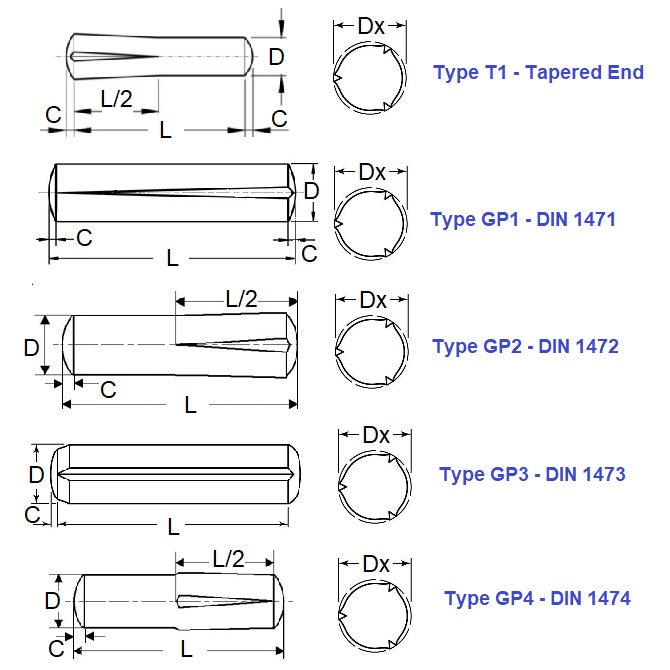

  • Type: T1 Tapered End

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Alternative Parts Include: S7210Y06212, S7210Y-06212, 140-408910, 140408910, EPSF14, EPS-F1-4, ATA

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
