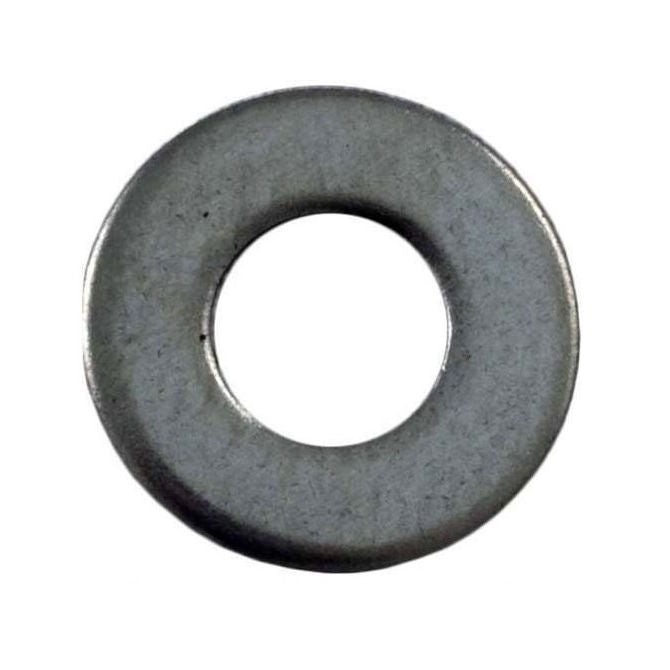

Flat Washers - 1.19x4.2x0.53 mm Commercial - Stainless Steel 302/304 Similar to A2, 18-8 Washer

Name: 1036720 | W0012-F-004-005-S2 (PK-50) --- Flat Washers - 1.19x4.2x0.53 mm Commercial - Stainless Steel 302/304 Similar to A2, 18-8 Washer
Rating: 5.0 (1 reviews)

W0012-F-004-005-S2 (PK-50)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Washers - Flat - Commercial - Stainless Steel - 304

Additional resources:
Washers and Spacers PDF Catalogue
Round Through Bore Spacers
Screws

Price:

$8.00 AUD

~~$15.20 AUD~~ $8.00 AUD

Priced, Stocked and Sold Per 50 Units

Excludes GST and overseas Taxes & Duties

Qty: 8 packs (400 pcs) available now

Product Details

Deleted Item. Available while stocks last.

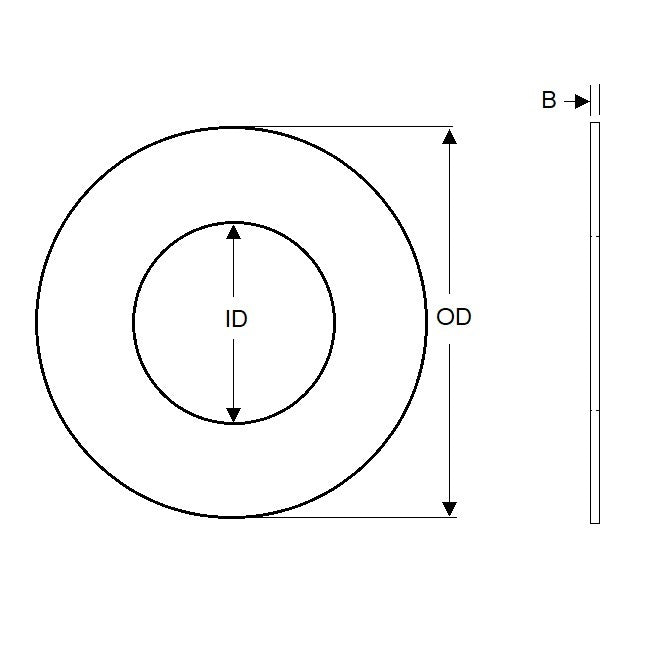

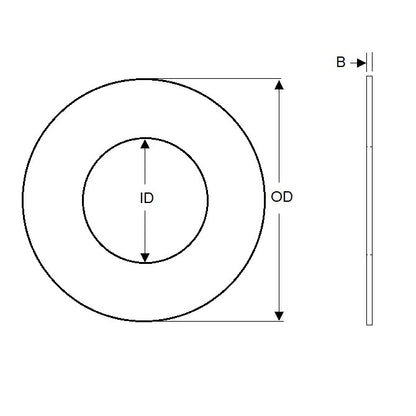

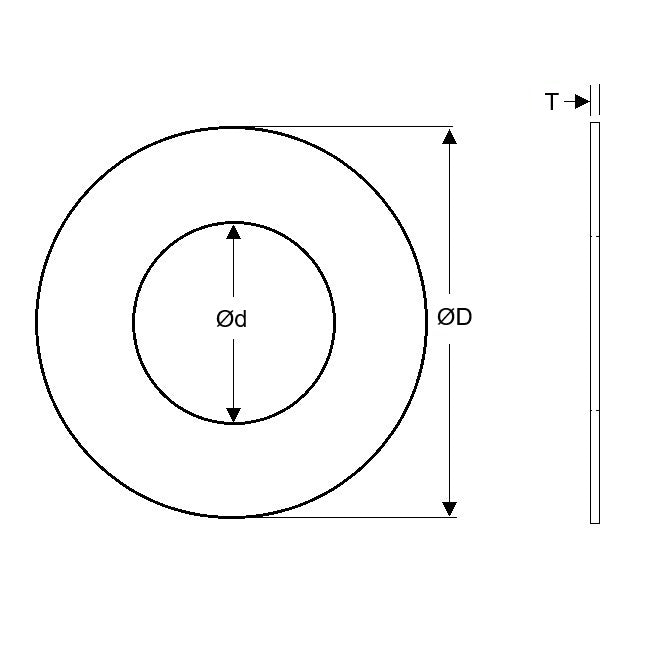

Nominal Inside Diameter (d): 1.19mm
_{ASME / ANSI B18.22.1}
_{(1.19mm is 0.047 in.)}

Stainless Steel 302/304 (Similar to A2, 18-8)

Nominal Inside Diameter (d): 1.19mm
_{ASME / ANSI B18.22.1}
_{(1.19mm is 0.047 in.)}
Nominal Outside Diameter (D): 4.20mm
_{ASME / ANSI B18.22.1}
_{(4.20mm is 0.165 in.)}
Thickness (T): 0.53mm
_{ASME / ANSI B18.22.1}
_{(0.53mm is 0.021 in.)}
Other: To Suit 00 UN Screw
Actual ID (Ref): 1.52mm

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

ALTPART
93475A165
MicroFast® FWS00

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
