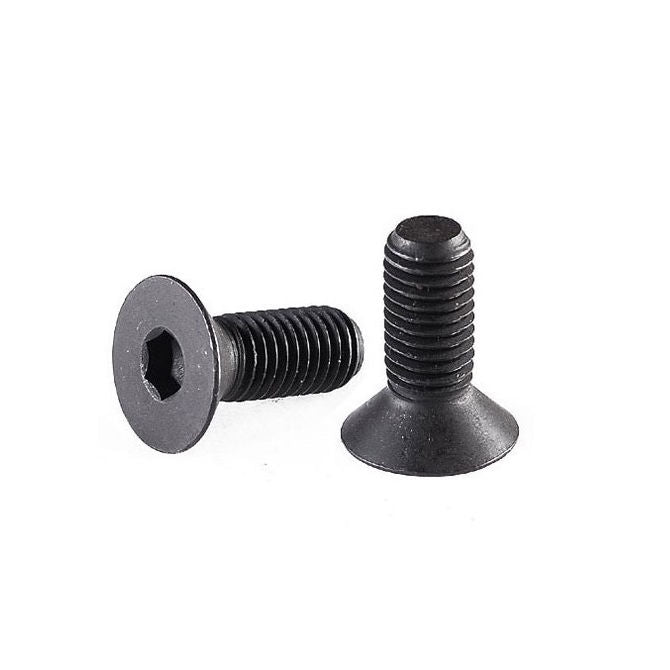

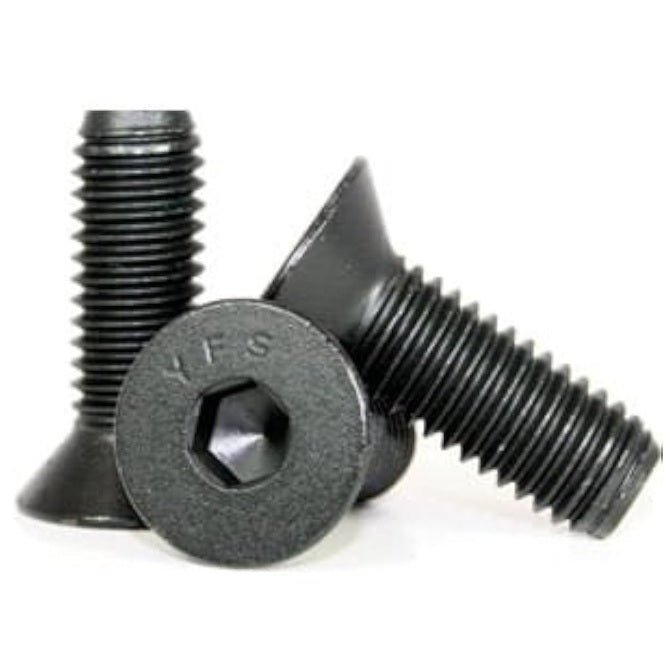

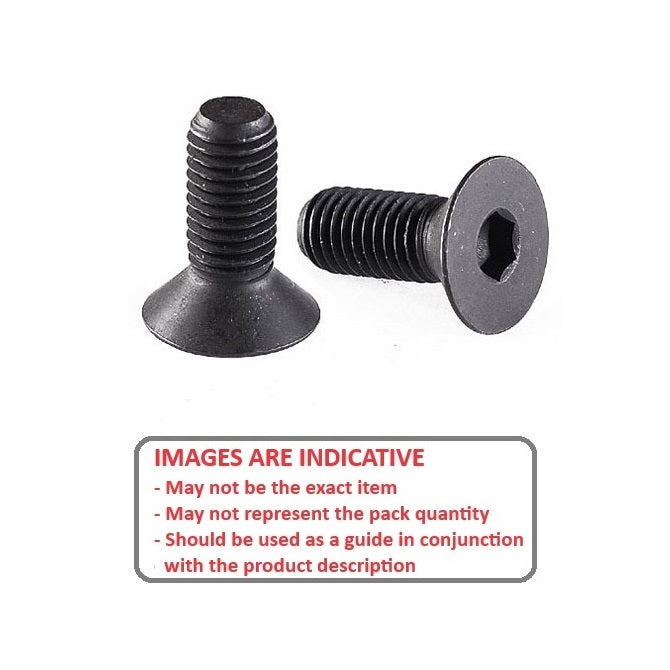

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

SK015F-003-SK-C (50 Pcs)
Screw - 0-80 UNF (1.524mm) x 3.2 mm

MBA

Additional resources:
PDF Screws Catalogue
Washers
Nuts
Price:
$8.00 AUD
$0.00 AUD $8.00 AUD
per 50
Qty: 13 available now (650 pcs)
Only 13 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Screws - Countersunk

Top Level Category: Screws - Countersunk - Socket - Steel - Standard

Product Details:

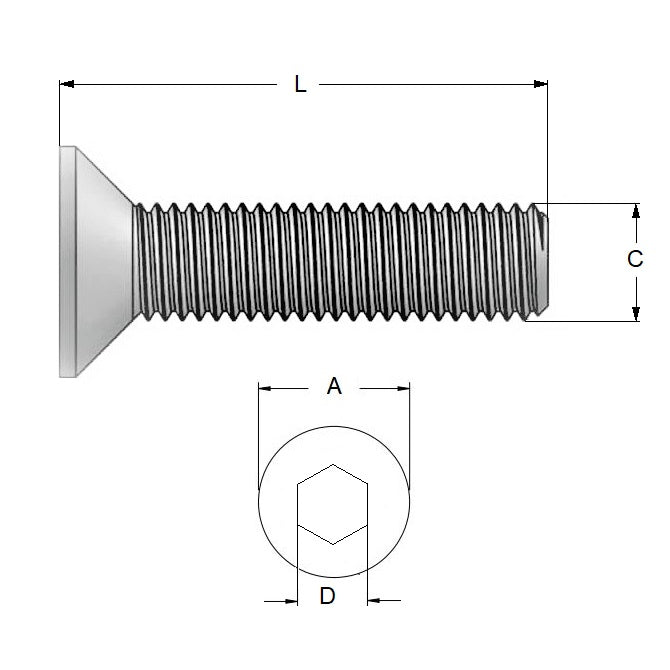

Thread Size (C): 0-80 UNF (1.524mm)
High Tensile Steel Black Oxide
  • Overall Length (L): 3.2mm
    +0.0/-0.76
  • Material: High Tensile Steel / Black Oxide
  • Max Head Diameter: 3.5mm
  • Max Head Height: 1.1mm
  • Minimum Thread Length (l): Not Specifiedmm
  • Hex Key (s): 0.89 (0.035in.)mm
  • Countersunk Angle: 82Deg
  • Pitch: 0.318mm
  • Threads Per Inch: 80TPI

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Alternatives: 91253A029, SFA0002

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
