Collection: Washers - Self Aligning

Washers -> Self Aligning

There are 18 products in the sub-categories of Washers - Self Aligning. Browse the Washers - Self Aligning products table. To narrow down the selection, please choose a sub-category from the links below.

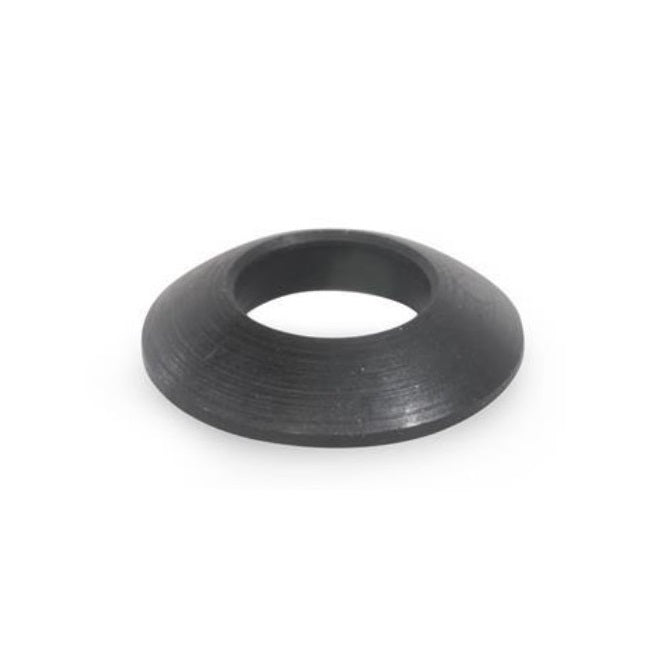

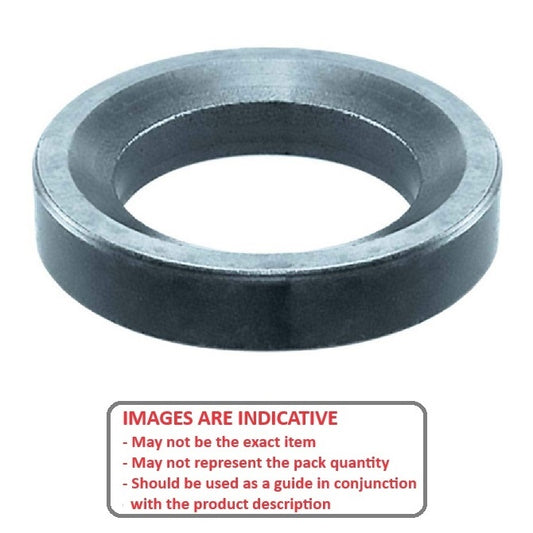

Self Aligning Washers - 8x8.4x17 mm - Carbon Steel - Hardened

Washers - Self Aligning - Components

This category includes various types of self aligning washers. Self-aligning washers are...

Washers - Self Aligning - Components

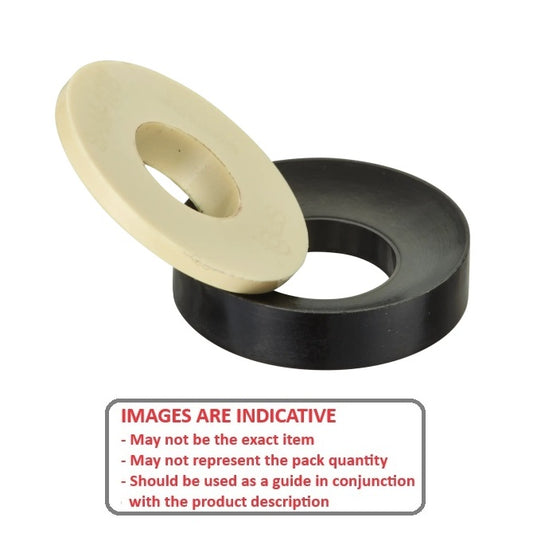

Washers - Self Aligning - Sets

This category includes various types of self aligning washers. Self-aligning washers are...

Washers - Self Aligning - Sets

Category Details

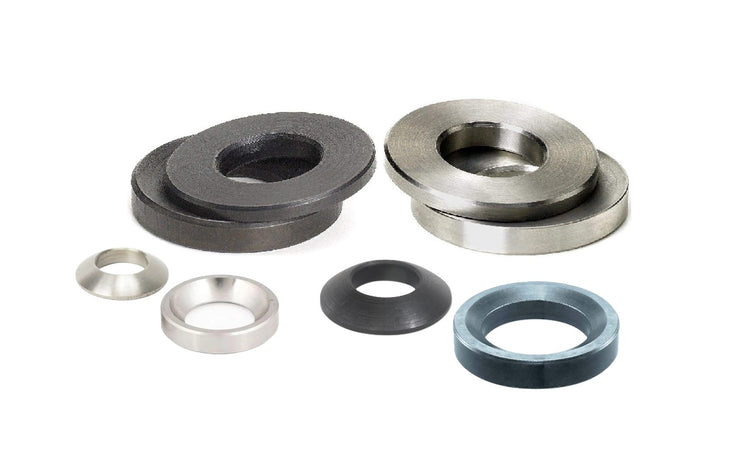

This category includes various types of self aligning washers.

Self-aligning washers are designed to compensate for misalignment between connected parts. An expanded range may be available on special order. Please enquire.
Consists of a convex and concave washer that swivel slightly when nested, allowing them to adapt to slight angles and uneven surfaces. This helps to distribute load evenly and reduce stress on the connection.

Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found in the Washers - Self Aligning category on the MBA Minibearings main store.

Nominal Inside Diameter (B)	Housing Pad Bore (d3)	OD (d2)	Ball socket (h1)	Spherical Disk (h2)	Overall Height (H)
Nominal Inside Diameter (B) 5.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.197 in.)	Housing Pad Bore (d3) 7.00 mm (Equiv. 0.276 in.)	OD (d2) 15.00 mm (Equiv. 0.591 in.)	Ball socket (h1) 3.00 mm	Spherical Disk (h2) 3.50 mm	Overall Height (H) 4.70 mm
Material: Carbon Spring Steel Self Finish Radius (R): 15.00 mm Compensation angle: 3 ° Category: Washers - Self Aligning - Sets

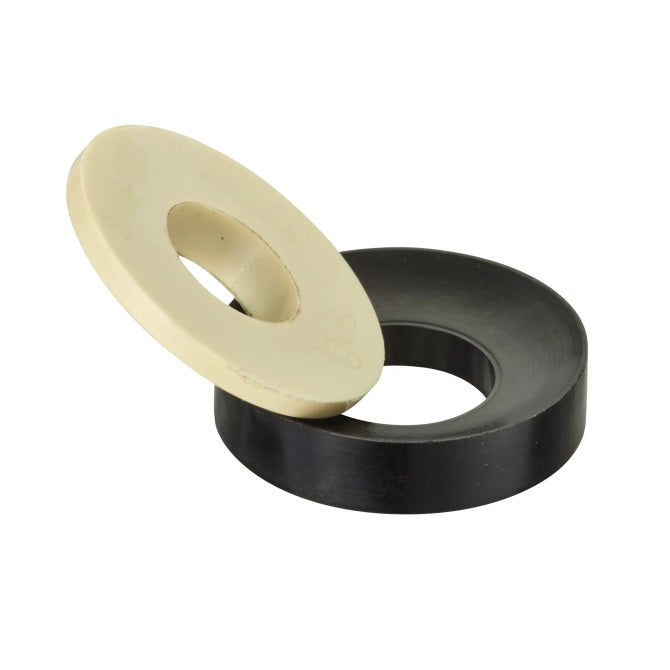

Part Number: W0050-ALN-W-SET (PK-10) Self Aligning Washers - 5x7x15 mm Sets - Carbon Spring Steel Self Finish Washer Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jan 20, 2026 Regular price $173.50 AUD Regular price Sale price $173.50 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (B)	Housing Pad Bore (d3)	OD (d2)	Ball socket (h1)	Indicative Image
Nominal Inside Diameter (B) 5.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.197 in.)	Housing Pad Bore (d3) 7.00 mm (Equiv. 0.276 in.)	OD (d2) 15.00 mm (Equiv. 0.591 in.)	Ball socket (h1) 3.00 mm
Material: Carbon Spring Steel Self Finish Spherical Disk (h2): 3.50 mm Overall Height (H): 4.70 mm Radius (R): 15.00 mm Compensation angle: 3 ° Category: Washers - Self Aligning - Sets
Part Number: W0050-ALN-W-SET (PK-10) Self Aligning Washers - 5x7x15 mm Sets - Carbon Spring Steel Self Finish Washer Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jan 20, 2026 Regular price $173.50 AUD Regular price Sale price $173.50 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0050-ALN-W-SET (PK-10) --- Self Aligning Washers - 5x7x15 mm Sets - Carbon Spring Steel Self Finish Washer W0050-ALN-W-SET (PK-10) --- Self Aligning Washers - 5x7x15 mm Sets - Carbon Spring Steel Self Finish Washer Regular price $173.50 AUD Regular price Sale price $173.50 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Nominal Inside Diameter (B) 6.35 mm (Equiv. 0.25 in.)	Housing Pad Bore (d3) 7.137 mm _{+/- 0.38} (Equiv. 0.281 in.)	OD (d2) 15.88 mm _{+ /- 0.38} (Equiv. 0.625 in.)	Ball socket (h1) 4.750 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0064-ALN-C-SET (Each) Self Aligning Washers - 6.35x7.137x15.88 mm Sets - Carbon Steel Hardened Washer 5 Available Now \| Further orders can be expected around Mon, Dec 29, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 5 Available Now. Backorder if more than 5.
Nominal Inside Diameter (B) 6.35 mm (Equiv. 0.25 in.)	Housing Pad Bore (d3) 7.137 mm _{+/- 0.38} (Equiv. 0.281 in.)	OD (d2) 15.88 mm _{+ /- 0.38} (Equiv. 0.625 in.)	Ball socket (h1) 4.750 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0064-ALN-C-SET (Each) Self Aligning Washers - 6.35x7.137x15.88 mm Sets - Carbon Steel Hardened Washer 5 Available Now \| Further orders can be expected around Mon, Dec 29, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 5 Available Now. Backorder if more than 5.
W0064-ALN-C-SET (Each) --- Self Aligning Washers - 6.35x7.137x15.88 mm Sets - Carbon Steel Hardened Washer W0064-ALN-C-SET (Each) --- Self Aligning Washers - 6.35x7.137x15.88 mm Sets - Carbon Steel Hardened Washer Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 5 Available Now
Nominal Inside Diameter (B) 8.00 mm (Equiv. 0.315 in.)	Housing Pad Bore (d3) 8.4 mm (Equiv. 0.331 in.)	OD (d2) 17.00 mm (Equiv. 0.669 in.)	Ball socket (h1) 3.2 mm	Spherical Disk (h2) 5.0 mm	Overall Height (H) 12.0 mm
Material: Carbon Steel - Hardened Compensation angle: 17 ° Category: Washers - Self Aligning - Components Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Part Number: W0080-ALN-CA (Each) Self Aligning Washers - 8x8.4x17 mm Components - Carbon Steel - Hardened Washer 6 Available Now \| Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 6 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B) 8.00 mm (Equiv. 0.315 in.)	Housing Pad Bore (d3) 8.4 mm (Equiv. 0.331 in.)	OD (d2) 17.00 mm (Equiv. 0.669 in.)	Ball socket (h1) 3.2 mm
Material: Carbon Steel - Hardened Spherical Disk (h2): 5.0 mm Overall Height (H): 12.0 mm Compensation angle: 17 ° Category: Washers - Self Aligning - Components Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Part Number: W0080-ALN-CA (Each) Self Aligning Washers - 8x8.4x17 mm Components - Carbon Steel - Hardened Washer 6 Available Now \| Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 6 Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0080-ALN-CA (Each) --- Self Aligning Washers - 8x8.4x17 mm Components - Carbon Steel - Hardened Washer Sale W0080-ALN-CA (Each) --- Self Aligning Washers - 8x8.4x17 mm Components - Carbon Steel - Hardened Washer Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 6 Available Now Sale
Nominal Inside Diameter (B) 8.00 mm (Equiv. 0.315 in.)	Housing Pad Bore (d3) 9.6 mm (Equiv. 0.378 in.)	OD (d2) 17.00 mm (Equiv. 0.669 in.)	Ball socket (h1) 3.5 mm	Spherical Disk (h2) 5.0 mm
Material: Carbon Steel - Hardened Compensation angle: 17 ° Category: Washers - Self Aligning - Components Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Part Number: W0080-ALN-CB (Each) Self Aligning Washers - 8x9.6x17 mm Components - Carbon Steel - Hardened Washer 10 Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 10 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B) 8.00 mm (Equiv. 0.315 in.)	Housing Pad Bore (d3) 9.6 mm (Equiv. 0.378 in.)	OD (d2) 17.00 mm (Equiv. 0.669 in.)	Ball socket (h1) 3.5 mm
Material: Carbon Steel - Hardened Spherical Disk (h2): 5.0 mm Compensation angle: 17 ° Category: Washers - Self Aligning - Components Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Part Number: W0080-ALN-CB (Each) Self Aligning Washers - 8x9.6x17 mm Components - Carbon Steel - Hardened Washer 10 Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 10 Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0080-ALN-CB (Each) --- Self Aligning Washers - 8x9.6x17 mm Components - Carbon Steel - Hardened Washer Sale W0080-ALN-CB (Each) --- Self Aligning Washers - 8x9.6x17 mm Components - Carbon Steel - Hardened Washer Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 10 Available Now Sale
Nominal Inside Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Housing Pad Bore (d3) 10.319 mm _{+/- 0.38} (Equiv. 0.406 in.)	OD (d2) 22.23 mm _{+ /- 0.38} (Equiv. 0.875 in.)	Ball socket (h1) 6.350 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0095-ALN-C-SET (Each) Self Aligning Washers - 9.53x10.319x22.23 mm Sets - Carbon Steel Hardened Washer Out of Stock \| Backorder Now \| Orders can be expected around Mon, Dec 29, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Housing Pad Bore (d3) 10.319 mm _{+/- 0.38} (Equiv. 0.406 in.)	OD (d2) 22.23 mm _{+ /- 0.38} (Equiv. 0.875 in.)	Ball socket (h1) 6.350 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0095-ALN-C-SET (Each) Self Aligning Washers - 9.53x10.319x22.23 mm Sets - Carbon Steel Hardened Washer Out of Stock \| Backorder Now \| Orders can be expected around Mon, Dec 29, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0095-ALN-C-SET (Each) --- Self Aligning Washers - 9.53x10.319x22.23 mm Sets - Carbon Steel Hardened Washer W0095-ALN-C-SET (Each) --- Self Aligning Washers - 9.53x10.319x22.23 mm Sets - Carbon Steel Hardened Washer Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Nominal Inside Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Housing Pad Bore (d3) 13.494 mm _{+/- 0.38} (Equiv. 0.531 in.)	OD (d2) 28.58 mm _{+ /- 0.38} (Equiv. 1.125 in.)	Ball socket (h1) 7.925 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0127-ALN-C-SET (Each) Self Aligning Washers - 12.7x13.494x28.58 mm Sets - Carbon Steel Hardened Washer 3 Available Now \| Further orders can be expected around Mon, Dec 29, 2025 Regular price $18.86 AUD Regular price Sale price $18.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 3 Available Now. Backorder if more than 3.
Nominal Inside Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Housing Pad Bore (d3) 13.494 mm _{+/- 0.38} (Equiv. 0.531 in.)	OD (d2) 28.58 mm _{+ /- 0.38} (Equiv. 1.125 in.)	Ball socket (h1) 7.925 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0127-ALN-C-SET (Each) Self Aligning Washers - 12.7x13.494x28.58 mm Sets - Carbon Steel Hardened Washer 3 Available Now \| Further orders can be expected around Mon, Dec 29, 2025 Regular price $18.86 AUD Regular price Sale price $18.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 3 Available Now. Backorder if more than 3.
W0127-ALN-C-SET (Each) --- Self Aligning Washers - 12.7x13.494x28.58 mm Sets - Carbon Steel Hardened Washer W0127-ALN-C-SET (Each) --- Self Aligning Washers - 12.7x13.494x28.58 mm Sets - Carbon Steel Hardened Washer Regular price $18.86 AUD Regular price Sale price $18.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 3 Available Now
Nominal Inside Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Housing Pad Bore (d3) 13.494 mm _{+/- 0.38} (Equiv. 0.531 in.)	OD (d2) 28.58 mm _{+ /- 0.38} (Equiv. 1.125 in.)	Ball socket (h1) 7.925 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets

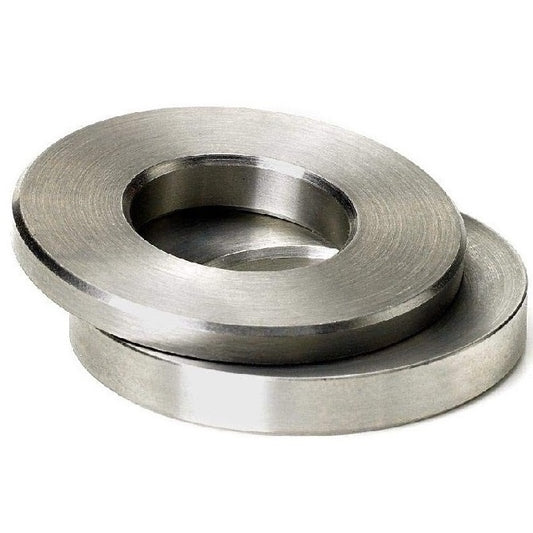

Part Number: W0127-ALN-SS-SET (Each) Self Aligning Washers - 12.7x13.494x28.58 mm Sets - Stainless Steel Washer 3 Available Now \| Further orders can be expected around Mon, Dec 29, 2025 Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 3 Available Now. Backorder if more than 3.
Nominal Inside Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Housing Pad Bore (d3) 13.494 mm _{+/- 0.38} (Equiv. 0.531 in.)	OD (d2) 28.58 mm _{+ /- 0.38} (Equiv. 1.125 in.)	Ball socket (h1) 7.925 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0127-ALN-SS-SET (Each) Self Aligning Washers - 12.7x13.494x28.58 mm Sets - Stainless Steel Washer 3 Available Now \| Further orders can be expected around Mon, Dec 29, 2025 Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 3 Available Now. Backorder if more than 3.
W0127-ALN-SS-SET (Each) --- Self Aligning Washers - 12.7x13.494x28.58 mm Sets - Stainless Steel Washer W0127-ALN-SS-SET (Each) --- Self Aligning Washers - 12.7x13.494x28.58 mm Sets - Stainless Steel Washer Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 3 Available Now
Nominal Inside Diameter (B) 15.88 mm (Equiv. 0.625 in.)	Housing Pad Bore (d3) 16.662 mm _{+/- 0.38} (Equiv. 0.656 in.)	OD (d2) 34.93 mm _{+ /- 0.38} (Equiv. 1.375 in.)	Ball socket (h1) 7.925 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0159-ALN-SS-SET (Each) Self Aligning Washers - 15.88x16.662x34.93 mm Sets - Stainless Steel Washer Out of Stock \| Backorder Now \| Orders can be expected around Mon, Dec 29, 2025 Regular price $26.05 AUD Regular price Sale price $26.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (B) 15.88 mm (Equiv. 0.625 in.)	Housing Pad Bore (d3) 16.662 mm _{+/- 0.38} (Equiv. 0.656 in.)	OD (d2) 34.93 mm _{+ /- 0.38} (Equiv. 1.375 in.)	Ball socket (h1) 7.925 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0159-ALN-SS-SET (Each) Self Aligning Washers - 15.88x16.662x34.93 mm Sets - Stainless Steel Washer Out of Stock \| Backorder Now \| Orders can be expected around Mon, Dec 29, 2025 Regular price $26.05 AUD Regular price Sale price $26.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0159-ALN-SS-SET (Each) --- Self Aligning Washers - 15.88x16.662x34.93 mm Sets - Stainless Steel Washer W0159-ALN-SS-SET (Each) --- Self Aligning Washers - 15.88x16.662x34.93 mm Sets - Stainless Steel Washer Regular price $26.05 AUD Regular price Sale price $26.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Nominal Inside Diameter (B) 20.00 mm (Equiv. 0.787 in.)	Housing Pad Bore (d3) 21 mm (Equiv. 0.827 in.)	OD (d2) 36.00 mm (Equiv. 1.417 in.)	Ball socket (h1) 6.3 mm	Spherical Disk (h2) 11.5 mm	Overall Height (H) 27.0 mm
Material: Carbon Steel - Hardened Compensation angle: 117 ° Category: Washers - Self Aligning - Components Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Part Number: W0200-ALN-CA (Each) Self Aligning Washers - 20x21x36 mm Components - Carbon Steel - Hardened Washer 5 Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.88 AUD Regular price ~~$9.28 AUD~~ Sale price $4.88 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B) 20.00 mm (Equiv. 0.787 in.)	Housing Pad Bore (d3) 21 mm (Equiv. 0.827 in.)	OD (d2) 36.00 mm (Equiv. 1.417 in.)	Ball socket (h1) 6.3 mm
Material: Carbon Steel - Hardened Spherical Disk (h2): 11.5 mm Overall Height (H): 27.0 mm Compensation angle: 117 ° Category: Washers - Self Aligning - Components Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Part Number: W0200-ALN-CA (Each) Self Aligning Washers - 20x21x36 mm Components - Carbon Steel - Hardened Washer 5 Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.88 AUD Regular price ~~$9.28 AUD~~ Sale price $4.88 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0200-ALN-CA (Each) --- Self Aligning Washers - 20x21x36 mm Components - Carbon Steel - Hardened Washer Sale W0200-ALN-CA (Each) --- Self Aligning Washers - 20x21x36 mm Components - Carbon Steel - Hardened Washer Regular price $4.88 AUD Regular price ~~$9.28 AUD~~ Sale price $4.88 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 5 Available Now Sale
Nominal Inside Diameter (B) 20.00 mm (Equiv. 0.787 in.)	Housing Pad Bore (d3) 23.2 mm (Equiv. 0.913 in.)	OD (d2) 36.00 mm (Equiv. 1.417 in.)	Ball socket (h1) 7.5 mm	Spherical Disk (h2) 11.5 mm
Material: Carbon Steel - Hardened Compensation angle: 117 ° Category: Washers - Self Aligning - Components Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Part Number: W0200-ALN-CB (Each) Self Aligning Washers - 20x23.2x36 mm Components - Carbon Steel - Hardened Washer 5 Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $5.10 AUD Regular price ~~$9.69 AUD~~ Sale price $5.10 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B) 20.00 mm (Equiv. 0.787 in.)	Housing Pad Bore (d3) 23.2 mm (Equiv. 0.913 in.)	OD (d2) 36.00 mm (Equiv. 1.417 in.)	Ball socket (h1) 7.5 mm
Material: Carbon Steel - Hardened Spherical Disk (h2): 11.5 mm Compensation angle: 117 ° Category: Washers - Self Aligning - Components Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Part Number: W0200-ALN-CB (Each) Self Aligning Washers - 20x23.2x36 mm Components - Carbon Steel - Hardened Washer 5 Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $5.10 AUD Regular price ~~$9.69 AUD~~ Sale price $5.10 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0200-ALN-CB (Each) --- Self Aligning Washers - 20x23.2x36 mm Components - Carbon Steel - Hardened Washer Sale W0200-ALN-CB (Each) --- Self Aligning Washers - 20x23.2x36 mm Components - Carbon Steel - Hardened Washer Regular price $5.10 AUD Regular price ~~$9.69 AUD~~ Sale price $5.10 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 5 Available Now Sale
Nominal Inside Diameter (B) 22.23 mm (Equiv. 0.875 in.)	Housing Pad Bore (d3) 23.813 mm _{+/- 0.38} (Equiv. 0.938 in.)	OD (d2) 44.45 mm _{+ /- 0.38} (Equiv. 1.75 in.)	Ball socket (h1) 9.525 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0222-ALN-C-SET (Each) Self Aligning Washers - 22.23x23.813x44.45 mm Sets - Carbon Steel Hardened Washer 2 Available Now \| Further orders can be expected around Mon, Dec 29, 2025 Regular price $18.14 AUD Regular price ~~$21.76 AUD~~ Sale price $18.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 2 Available Now. Backorder if more than 2.
Nominal Inside Diameter (B) 22.23 mm (Equiv. 0.875 in.)	Housing Pad Bore (d3) 23.813 mm _{+/- 0.38} (Equiv. 0.938 in.)	OD (d2) 44.45 mm _{+ /- 0.38} (Equiv. 1.75 in.)	Ball socket (h1) 9.525 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0222-ALN-C-SET (Each) Self Aligning Washers - 22.23x23.813x44.45 mm Sets - Carbon Steel Hardened Washer 2 Available Now \| Further orders can be expected around Mon, Dec 29, 2025 Regular price $18.14 AUD Regular price ~~$21.76 AUD~~ Sale price $18.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 2 Available Now. Backorder if more than 2.
W0222-ALN-C-SET (Each) --- Self Aligning Washers - 22.23x23.813x44.45 mm Sets - Carbon Steel Hardened Washer Sale W0222-ALN-C-SET (Each) --- Self Aligning Washers - 22.23x23.813x44.45 mm Sets - Carbon Steel Hardened Washer Regular price $18.14 AUD Regular price ~~$21.76 AUD~~ Sale price $18.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 2 Available Now Sale
Nominal Inside Diameter (B) 24.00 mm (Equiv. 0.945 in.)	Housing Pad Bore (d3) 25 mm (Equiv. 0.984 in.)	OD (d2) 44.00 mm (Equiv. 1.732 in.)	Ball socket (h1) 8.2 mm	Spherical Disk (h2) 15.0 mm	Overall Height (H) 32.0 mm
Material: Carbon Steel - Hardened Compensation angle: 168 ° Category: Washers - Self Aligning - Components Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Part Number: W0240-ALN-CA (Each) Self Aligning Washers - 24x25x44 mm Components - Carbon Steel - Hardened Washer 3 Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 3 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B) 24.00 mm (Equiv. 0.945 in.)	Housing Pad Bore (d3) 25 mm (Equiv. 0.984 in.)	OD (d2) 44.00 mm (Equiv. 1.732 in.)	Ball socket (h1) 8.2 mm
Material: Carbon Steel - Hardened Spherical Disk (h2): 15.0 mm Overall Height (H): 32.0 mm Compensation angle: 168 ° Category: Washers - Self Aligning - Components Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Part Number: W0240-ALN-CA (Each) Self Aligning Washers - 24x25x44 mm Components - Carbon Steel - Hardened Washer 3 Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 3 Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0240-ALN-CA (Each) --- Self Aligning Washers - 24x25x44 mm Components - Carbon Steel - Hardened Washer Sale W0240-ALN-CA (Each) --- Self Aligning Washers - 24x25x44 mm Components - Carbon Steel - Hardened Washer Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 3 Available Now Sale
Nominal Inside Diameter (B) 24.00 mm (Equiv. 0.945 in.)	Housing Pad Bore (d3) 28 mm (Equiv. 1.102 in.)	OD (d2) 44.00 mm (Equiv. 1.732 in.)	Ball socket (h1) 9.5 mm	Spherical Disk (h2) 15.0 mm
Material: Carbon Steel - Hardened Compensation angle: 168 ° Category: Washers - Self Aligning - Components Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Part Number: W0240-ALN-CB (Each) Self Aligning Washers - 24x28x44 mm Components - Carbon Steel - Hardened Washer 3 Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 3 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B) 24.00 mm (Equiv. 0.945 in.)	Housing Pad Bore (d3) 28 mm (Equiv. 1.102 in.)	OD (d2) 44.00 mm (Equiv. 1.732 in.)	Ball socket (h1) 9.5 mm
Material: Carbon Steel - Hardened Spherical Disk (h2): 15.0 mm Compensation angle: 168 ° Category: Washers - Self Aligning - Components Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Part Number: W0240-ALN-CB (Each) Self Aligning Washers - 24x28x44 mm Components - Carbon Steel - Hardened Washer 3 Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 3 Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0240-ALN-CB (Each) --- Self Aligning Washers - 24x28x44 mm Components - Carbon Steel - Hardened Washer Sale W0240-ALN-CB (Each) --- Self Aligning Washers - 24x28x44 mm Components - Carbon Steel - Hardened Washer Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 3 Available Now Sale
Nominal Inside Diameter (B) 25.40 mm (Equiv. 1 in.)	Housing Pad Bore (d3) 26.975 mm _{+/- 0.38} (Equiv. 1.062 in.)	OD (d2) 50.80 mm _{+ /- 0.38} (Equiv. 2 in.)	Ball socket (h1) 12.70 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0254-ALN-C-SET (Each) Self Aligning Washers - 25.4x26.975x50.8 mm Sets - Carbon Steel Hardened Washer 12 Available Now \| Further orders can be expected around Mon, Dec 29, 2025 Regular price $36.59 AUD Regular price Sale price $36.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 12 Available Now. Backorder if more than 12.
Nominal Inside Diameter (B) 25.40 mm (Equiv. 1 in.)	Housing Pad Bore (d3) 26.975 mm _{+/- 0.38} (Equiv. 1.062 in.)	OD (d2) 50.80 mm _{+ /- 0.38} (Equiv. 2 in.)	Ball socket (h1) 12.70 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0254-ALN-C-SET (Each) Self Aligning Washers - 25.4x26.975x50.8 mm Sets - Carbon Steel Hardened Washer 12 Available Now \| Further orders can be expected around Mon, Dec 29, 2025 Regular price $36.59 AUD Regular price Sale price $36.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 12 Available Now. Backorder if more than 12.
W0254-ALN-C-SET (Each) --- Self Aligning Washers - 25.4x26.975x50.8 mm Sets - Carbon Steel Hardened Washer W0254-ALN-C-SET (Each) --- Self Aligning Washers - 25.4x26.975x50.8 mm Sets - Carbon Steel Hardened Washer Regular price $36.59 AUD Regular price Sale price $36.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 12 Available Now
Nominal Inside Diameter (B) 31.75 mm (Equiv. 1.25 in.)	Housing Pad Bore (d3) 33.325 mm _{+/- 0.38} (Equiv. 1.312 in.)	OD (d2) 66.68 mm _{+ /- 0.38} (Equiv. 2.625 in.)	Ball socket (h1) 12.70 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets

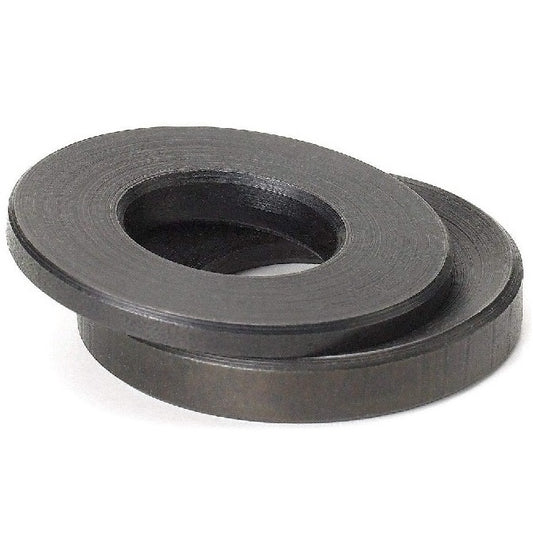

Part Number: W0318-ALN-C-SET (Each) Self Aligning Washers - 31.75x33.325x66.68 mm Sets - Carbon Steel Hardened Washer 1 Available Now \| Further orders can be expected around Mon, Dec 29, 2025 Regular price $68.59 AUD Regular price Sale price $68.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. Backorder if more than 1.
Nominal Inside Diameter (B) 31.75 mm (Equiv. 1.25 in.)	Housing Pad Bore (d3) 33.325 mm _{+/- 0.38} (Equiv. 1.312 in.)	OD (d2) 66.68 mm _{+ /- 0.38} (Equiv. 2.625 in.)	Ball socket (h1) 12.70 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0318-ALN-C-SET (Each) Self Aligning Washers - 31.75x33.325x66.68 mm Sets - Carbon Steel Hardened Washer 1 Available Now \| Further orders can be expected around Mon, Dec 29, 2025 Regular price $68.59 AUD Regular price Sale price $68.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. Backorder if more than 1.
W0318-ALN-C-SET (Each) --- Self Aligning Washers - 31.75x33.325x66.68 mm Sets - Carbon Steel Hardened Washer W0318-ALN-C-SET (Each) --- Self Aligning Washers - 31.75x33.325x66.68 mm Sets - Carbon Steel Hardened Washer Regular price $68.59 AUD Regular price Sale price $68.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 1 Available Now
Nominal Inside Diameter (B) 36.00 mm (Equiv. 1.417 in.)	Housing Pad Bore (d3) 37 mm (Equiv. 1.457 in.)	OD (d2) 68.00 mm (Equiv. 2.677 in.)	Ball socket (h1) 14.0 mm	Spherical Disk (h2) 23.0 mm	Overall Height (H) 50.0 mm
Material: Carbon Steel - Hardened Compensation angle: 394 ° Category: Washers - Self Aligning - Components Deleted Item. Available while stocks last.
Part Number: W0360-ALN-CA (PK-5) Self Aligning Washers - 36x37x68 mm Components - Carbon Steel - Hardened Washer 1 pack (5 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $63.34 AUD Regular price ~~$120.34 AUD~~ Sale price $63.34 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 1 pack (5 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B) 36.00 mm (Equiv. 1.417 in.)	Housing Pad Bore (d3) 37 mm (Equiv. 1.457 in.)	OD (d2) 68.00 mm (Equiv. 2.677 in.)	Ball socket (h1) 14.0 mm
Material: Carbon Steel - Hardened Spherical Disk (h2): 23.0 mm Overall Height (H): 50.0 mm Compensation angle: 394 ° Category: Washers - Self Aligning - Components Deleted Item. Available while stocks last.
Part Number: W0360-ALN-CA (PK-5) Self Aligning Washers - 36x37x68 mm Components - Carbon Steel - Hardened Washer 1 pack (5 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $63.34 AUD Regular price ~~$120.34 AUD~~ Sale price $63.34 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 1 pack (5 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0360-ALN-CA (PK-5) --- Self Aligning Washers - 36x37x68 mm Components - Carbon Steel - Hardened Washer Sale W0360-ALN-CA (PK-5) --- Self Aligning Washers - 36x37x68 mm Components - Carbon Steel - Hardened Washer Regular price $63.34 AUD Regular price ~~$120.34 AUD~~ Sale price $63.34 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 1 Available Now Sale
Nominal Inside Diameter (B) 42.00 mm (Equiv. 1.654 in.)	Housing Pad Bore (d3) 43 mm (Equiv. 1.693 in.)	OD (d2) 78.00 mm (Equiv. 3.071 in.)	Ball socket (h1) 17.0 mm	Spherical Disk (h2) 29.0 mm	Overall Height (H) 58.0 mm
Material: Carbon Steel - Hardened Compensation angle: 542 ° Category: Washers - Self Aligning - Components Deleted Item. Available while stocks last.
Part Number: W0420-ALN-CA (Each) Self Aligning Washers - 42x43x78 mm Components - Carbon Steel - Hardened Washer 2 Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $42.00 AUD Regular price ~~$79.80 AUD~~ Sale price $42.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B) 42.00 mm (Equiv. 1.654 in.)	Housing Pad Bore (d3) 43 mm (Equiv. 1.693 in.)	OD (d2) 78.00 mm (Equiv. 3.071 in.)	Ball socket (h1) 17.0 mm
Material: Carbon Steel - Hardened Spherical Disk (h2): 29.0 mm Overall Height (H): 58.0 mm Compensation angle: 542 ° Category: Washers - Self Aligning - Components Deleted Item. Available while stocks last.
Part Number: W0420-ALN-CA (Each) Self Aligning Washers - 42x43x78 mm Components - Carbon Steel - Hardened Washer 2 Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $42.00 AUD Regular price ~~$79.80 AUD~~ Sale price $42.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0420-ALN-CA (Each) --- Self Aligning Washers - 42x43x78 mm Components - Carbon Steel - Hardened Washer Sale W0420-ALN-CA (Each) --- Self Aligning Washers - 42x43x78 mm Components - Carbon Steel - Hardened Washer Regular price $42.00 AUD Regular price ~~$79.80 AUD~~ Sale price $42.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 2 Available Now Sale
Nominal Inside Diameter (B) 42.00 mm (Equiv. 1.654 in.)	Housing Pad Bore (d3) 49 mm (Equiv. 1.929 in.)	OD (d2) 78.00 mm (Equiv. 3.071 in.)	Ball socket (h1) 18.0 mm	Spherical Disk (h2) 29.0 mm
Material: Carbon Steel - Hardened Compensation angle: 542 ° Category: Washers - Self Aligning - Components Deleted Item. Available while stocks last.

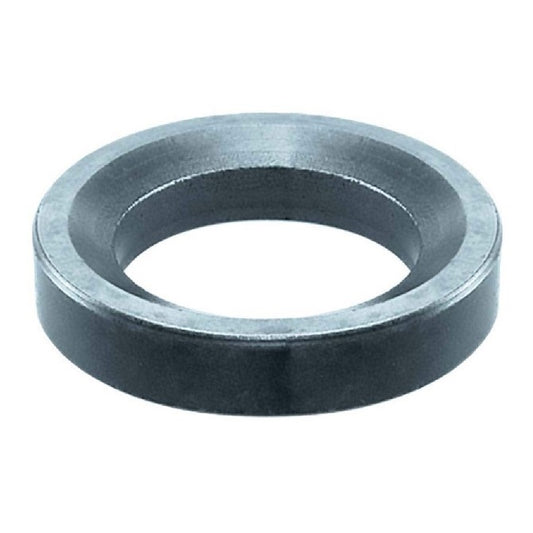

Part Number: W0420-ALN-CB (Each) Self Aligning Washers - 42x49x78 mm Components - Carbon Steel - Hardened Washer 2 Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $42.00 AUD Regular price ~~$79.80 AUD~~ Sale price $42.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (B) 42.00 mm (Equiv. 1.654 in.)	Housing Pad Bore (d3) 49 mm (Equiv. 1.929 in.)	OD (d2) 78.00 mm (Equiv. 3.071 in.)	Ball socket (h1) 18.0 mm
Material: Carbon Steel - Hardened Spherical Disk (h2): 29.0 mm Compensation angle: 542 ° Category: Washers - Self Aligning - Components Deleted Item. Available while stocks last.
Part Number: W0420-ALN-CB (Each) Self Aligning Washers - 42x49x78 mm Components - Carbon Steel - Hardened Washer 2 Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $42.00 AUD Regular price ~~$79.80 AUD~~ Sale price $42.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0420-ALN-CB (Each) --- Self Aligning Washers - 42x49x78 mm Components - Carbon Steel - Hardened Washer Sale W0420-ALN-CB (Each) --- Self Aligning Washers - 42x49x78 mm Components - Carbon Steel - Hardened Washer Regular price $42.00 AUD Regular price ~~$79.80 AUD~~ Sale price $42.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 2 Available Now Sale
