Collection: Springs - Die - Imperial - Medium Duty
Springs -> Die -> Imperial -> Medium DutyThere are 3 products in the sub-categories of Springs - Die - Imperial - Medium Duty. Browse the Springs - Die - Imperial - Medium Duty products table. To narrow down the selection, please choose a sub-category from the links below.
Springs - Die - Imperial - Medium Duty - Chrome Silicon
A selection of Chrome Silicon Medium Duty Imperial Die Springs. Colour coded...
Springs - Die - Imperial - Medium Duty - Standard
A selection of Standard Medium Duty Imperial Die Springs. Colour coded blue....
Category Details
This category includes various types of die springs.
- Heavy duty, high-stress compression springs designed to handle large loads and high temperatures in demanding applications like metalworking dies and production tooling.
- Unlike standard compression springs, die springs are typically made from rectangular or square wire, offering greater strength and deflection capabilities.
- Many die springs are colour-coded to indicate their load capacity, allowing for easy identification and selection. An expanded range may be available on special order. Please enquire.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Springs - Die - Imperial - Medium Duty category on the MBA Minibearings main store.
| Hole Diameter (B) | Rod Diameter (A) | Length (L) | Optimum Deflection | Optimum Deflection | Load at Optimal |
Indicative Image |
|---|---|---|---|---|---|---|
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
50.800
mm (Equiv. 2 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
12.7
mm |
Load at Optimal
68.6
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 40 Percent
Maximum Deflection: 20.3 mm
Load at Maximum: 109.6 N
Spring Rate: 5.4 N/mm
Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon |
||||||
|
Part Number: DS-095-051-MDS (Each)
Die Springs - 9.53x4.763x50.8 mm Imperial - Chrome Silicon Spring 2 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$15.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Hole Diameter (B) | Rod Diameter (A) | Length (L) | Optimum Deflection |
Indicative Image |
||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
50.800
mm (Equiv. 2 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 12.7 mm
Load at Optimal: 68.6 N
Maximum Deflection: 40 Percent
Maximum Deflection: 20.3 mm
Load at Maximum: 109.6 N
Spring Rate: 5.4 N/mm
Category: Springs - Die - Imperial - Medium Duty - Chrome Silicon |
||||||
|
Part Number: DS-095-051-MDS (Each)
Die Springs - 9.53x4.763x50.8 mm Imperial - Chrome Silicon Spring 2 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$15.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
63.500
mm (Equiv. 2.5 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
15.9
mm |
Load at Optimal
73.1
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 40 Percent
Maximum Deflection: 25.4 mm
Load at Maximum: 116.8 N
Spring Rate: 4.6 N/mm
Category: Springs - Die - Imperial - Medium Duty - Standard |
||||||
|
Part Number: DS-095-064-MD (Each)

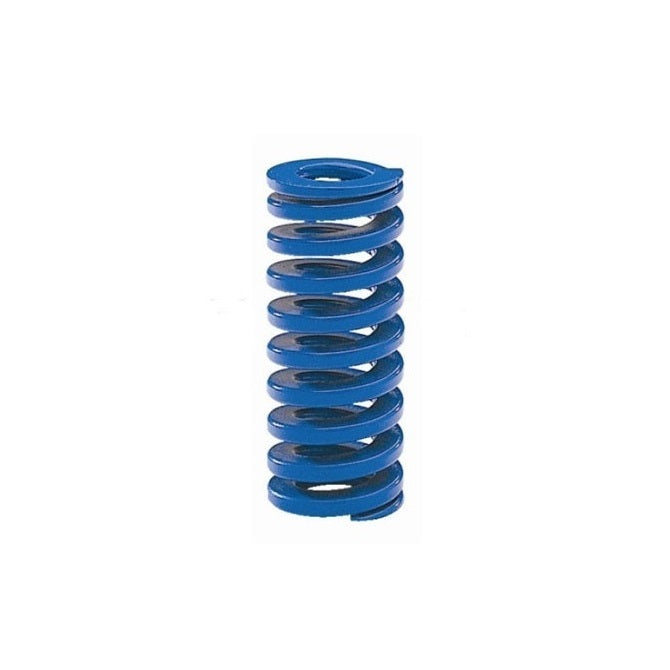

Die Springs - 9.53x4.763x63.5 mm Imperial - Carbon Spring Steel 3 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$9.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
63.500
mm (Equiv. 2.5 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 15.9 mm
Load at Optimal: 73.1 N
Maximum Deflection: 40 Percent
Maximum Deflection: 25.4 mm
Load at Maximum: 116.8 N
Spring Rate: 4.6 N/mm
Category: Springs - Die - Imperial - Medium Duty - Standard |
||||||
|
Part Number: DS-095-064-MD (Each)
Die Springs - 9.53x4.763x63.5 mm Imperial - Carbon Spring Steel 3 Available Now | Further orders can be expected around Mon, Dec 29, 2025 Regular price
$9.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Hole Diameter (B)
25.40
mm (Equiv. 1 in.) |
Rod Diameter (A)
12.700
mm (Equiv. 0.5 in.) |
Length (L)
44.450
mm (Equiv. 1.75 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
11.1
mm |
Load at Optimal
621.6
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 40 Percent
Maximum Deflection: 17.8 mm
Load at Maximum: 996.8 N
Spring Rate: 56.0 N/mm
Category: Springs - Die - Imperial - Medium Duty - Standard |
||||||
|
Part Number: DS-254-044-MD (Each)
Die Springs - 25.4x12.7x44.45 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025 Regular price
$25.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Hole Diameter (B)
25.40
mm (Equiv. 1 in.) |
Rod Diameter (A)
12.700
mm (Equiv. 0.5 in.) |
Length (L)
44.450
mm (Equiv. 1.75 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 11.1 mm
Load at Optimal: 621.6 N
Maximum Deflection: 40 Percent
Maximum Deflection: 17.8 mm
Load at Maximum: 996.8 N
Spring Rate: 56.0 N/mm
Category: Springs - Die - Imperial - Medium Duty - Standard |
||||||
|
Part Number: DS-254-044-MD (Each)
Die Springs - 25.4x12.7x44.45 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025 Regular price
$25.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
