Collection: Retaining Rings - Internal - Circlips - Standard

Retaining Rings (With Images)

Internal

Circlips

Tabbed

510 Products in this selection

This is a combined category of products from Standard Circlips Internal Retaining Rings. Use the filters in the table below, or the category tree to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)
18.00 mm	1.00 mm +0.13/-0.00	19.00 mm +0.00/-0.06	19.50 mm +0.42/-0.13		1.10 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 9.40 mm Clearance in Groove (C1): 10.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01800-S15 (50 Pcs) Circlips - 18 mm x 1 mm x 19 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $91.50 AUD Regular price Sale price $91.50 AUD Unit price per Per 50 View the product page first if you are unsure.
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
18.00 mm	1.00 mm +0.13/-0.00	19.00 mm +0.00/-0.06	19.50 mm +0.42/-0.13
Material: Stainless PH15-7 Mo Groove Width (W): 1.10 mm +0.08/-0.00 Clearance in Bore (C): 9.40 mm Clearance in Groove (C1): 10.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01800-S15 (50 Pcs) Circlips - 18 mm x 1 mm x 19 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $91.50 AUD Regular price Sale price $91.50 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-01800-S15 (50 Pcs) --- Circlips - 18 mm x 1 mm x 19 mm Stainless PH15-7 Mo CCI-01800-S15 (50 Pcs) --- Circlips - 18 mm x 1 mm x 19 mm Stainless PH15-7 Mo Regular price $91.50 AUD Regular price Sale price $91.50 AUD Unit price per Out of stock! Backorder Now
18.00 mm	1.00 mm +0.13/-0.00	19.00 mm +0.00/-0.06	19.50 mm +0.42/-0.13		1.10 mm +0.08/-0.00
Material: Carbon Steel Clearance in Bore (C): 9.40 mm Clearance in Groove (C1): 10.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01800-C (20 Pcs) Circlips - 18 mm x 1 mm x 19 mm / Retaining Rings 3 units (60 pcs) Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Per 20 View the product page first if you are unsure.
18.00 mm	1.00 mm +0.13/-0.00	19.00 mm +0.00/-0.06	19.50 mm +0.42/-0.13
Material: Carbon Steel Groove Width (W): 1.10 mm +0.08/-0.00 Clearance in Bore (C): 9.40 mm Clearance in Groove (C1): 10.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01800-C (20 Pcs) Circlips - 18 mm x 1 mm x 19 mm / Retaining Rings 3 units (60 pcs) Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Per 20 View the product page first if you are unsure.
CCI-01800-C (20 Pcs) --- Circlips - 18 mm x 1 mm x 19 mm Carbon Steel CCI-01800-C (20 Pcs) --- Circlips - 18 mm x 1 mm x 19 mm Carbon Steel Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per 3 Available Now
19.00 mm	1.00 mm +0.13/-0.00	20.00 mm +0.00/-0.06	20.50 mm +0.42/-0.13		1.10 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 10.40 mm Clearance in Groove (C1): 11.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01900-S15 (4 Pcs) Circlips - 19 mm x 1 mm x 20 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Per 4 View the product page first if you are unsure.
19.00 mm	1.00 mm +0.13/-0.00	20.00 mm +0.00/-0.06	20.50 mm +0.42/-0.13
Material: Stainless PH15-7 Mo Groove Width (W): 1.10 mm +0.08/-0.00 Clearance in Bore (C): 10.40 mm Clearance in Groove (C1): 11.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01900-S15 (4 Pcs) Circlips - 19 mm x 1 mm x 20 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Per 4 View the product page first if you are unsure.
CCI-01900-S15 (4 Pcs) --- Circlips - 19 mm x 1 mm x 20 mm Stainless PH15-7 Mo CCI-01900-S15 (4 Pcs) --- Circlips - 19 mm x 1 mm x 20 mm Stainless PH15-7 Mo Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Out of stock! Backorder Now
19.00 mm	1.00 mm +0.13/-0.00	20.00 mm +0.00/-0.06	20.50 mm +0.42/-0.13		1.10 mm +0.08/-0.00
Material: Carbon Steel Clearance in Bore (C): 10.40 mm Clearance in Groove (C1): 11.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01900-C (100 Pcs) Circlips - 19 mm x 1 mm x 20 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $31.50 AUD Regular price Sale price $31.50 AUD Unit price per Per 100 View the product page first if you are unsure.
19.00 mm	1.00 mm +0.13/-0.00	20.00 mm +0.00/-0.06	20.50 mm +0.42/-0.13
Material: Carbon Steel Groove Width (W): 1.10 mm +0.08/-0.00 Clearance in Bore (C): 10.40 mm Clearance in Groove (C1): 11.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01900-C (100 Pcs) Circlips - 19 mm x 1 mm x 20 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $31.50 AUD Regular price Sale price $31.50 AUD Unit price per Per 100 View the product page first if you are unsure.
CCI-01900-C (100 Pcs) --- Circlips - 19 mm x 1 mm x 20 mm Carbon Steel CCI-01900-C (100 Pcs) --- Circlips - 19 mm x 1 mm x 20 mm Carbon Steel Regular price $31.50 AUD Regular price Sale price $31.50 AUD Unit price per Out of stock! Backorder Now
19.05 mm	0.89 mm +/-0.050	20.22 mm +0.00/-0.06	21.11 mm +0.25/-0.13		0.99 mm +0.08/-0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01905-CZY (5 Pcs) Circlips - 19.05 mm x 0.89 mm x 20.22 mm / Retaining Rings 60 units (300 pcs) Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 5 View the product page first if you are unsure.
19.05 mm	0.89 mm +/-0.050	20.22 mm +0.00/-0.06	21.11 mm +0.25/-0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm +0.08/-0.00 Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01905-CZY (5 Pcs) Circlips - 19.05 mm x 0.89 mm x 20.22 mm / Retaining Rings 60 units (300 pcs) Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01905-CZY (5 Pcs) --- Circlips - 19.05 mm x 0.89 mm x 20.22 mm Carbon Steel Zinc Plated CCI-01905-CZY (5 Pcs) --- Circlips - 19.05 mm x 0.89 mm x 20.22 mm Carbon Steel Zinc Plated Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 60 Available Now
19.05 mm	0.89 mm +/-0.050	20.22 mm +0.00/-0.06	21.11 mm +0.25/-0.13		0.99 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01905-S15 (5 Pcs) Circlips - 19.05 mm x 0.89 mm x 20.22 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Per 5 View the product page first if you are unsure.
19.05 mm	0.89 mm +/-0.050	20.22 mm +0.00/-0.06	21.11 mm +0.25/-0.13
Material: Stainless PH15-7 Mo Groove Width (W): 0.99 mm +0.08/-0.00 Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01905-S15 (5 Pcs) Circlips - 19.05 mm x 0.89 mm x 20.22 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01905-S15 (5 Pcs) --- Circlips - 19.05 mm x 0.89 mm x 20.22 mm Stainless PH15-7 Mo CCI-01905-S15 (5 Pcs) --- Circlips - 19.05 mm x 0.89 mm x 20.22 mm Stainless PH15-7 Mo Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Out of stock! Backorder Now
19.05 mm	0.89 mm +/-0.050	20.22 mm +0.00/-0.06	21.11 mm +0.25/-0.13		0.99 mm +0.08/-0.00
Material: Carbon Steel Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01905-C (10 Pcs) Circlips - 19.05 mm x 0.89 mm x 20.22 mm / Retaining Rings 6 units (60 pcs) Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Per 10 View the product page first if you are unsure.
19.05 mm	0.89 mm +/-0.050	20.22 mm +0.00/-0.06	21.11 mm +0.25/-0.13
Material: Carbon Steel Groove Width (W): 0.99 mm +0.08/-0.00 Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01905-C (10 Pcs) Circlips - 19.05 mm x 0.89 mm x 20.22 mm / Retaining Rings 6 units (60 pcs) Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Per 10 View the product page first if you are unsure.
CCI-01905-C (10 Pcs) --- Circlips - 19.05 mm x 0.89 mm x 20.22 mm Carbon Steel CCI-01905-C (10 Pcs) --- Circlips - 19.05 mm x 0.89 mm x 20.22 mm Carbon Steel Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per 6 Available Now
19.74 mm	1.07 mm +/-0.075	20.96 mm +0.00/-0.06	21.82 mm +0.25/-0.13		1.17 mm +0.08/-0.00
Material: Carbon Steel Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01974-C (10 Pcs) Circlips - 19.74 mm x 1.07 mm x 20.96 mm / Retaining Rings 10 units (100 pcs) Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 10 View the product page first if you are unsure.
19.74 mm	1.07 mm +/-0.075	20.96 mm +0.00/-0.06	21.82 mm +0.25/-0.13
Material: Carbon Steel Groove Width (W): 1.17 mm +0.08/-0.00 Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01974-C (10 Pcs) Circlips - 19.74 mm x 1.07 mm x 20.96 mm / Retaining Rings 10 units (100 pcs) Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 10 View the product page first if you are unsure.
CCI-01974-C (10 Pcs) --- Circlips - 19.74 mm x 1.07 mm x 20.96 mm Carbon Steel CCI-01974-C (10 Pcs) --- Circlips - 19.74 mm x 1.07 mm x 20.96 mm Carbon Steel Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per 10 Available Now
19.74 mm	1.07 mm +/-0.075	20.96 mm +0.00/-0.06	21.82 mm +0.25/-0.13		1.17 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01974-S15 (4 Pcs) Circlips - 19.74 mm x 1.07 mm x 20.96 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $20.14 AUD Regular price Sale price $20.14 AUD Unit price per Per 4 View the product page first if you are unsure.
19.74 mm	1.07 mm +/-0.075	20.96 mm +0.00/-0.06	21.82 mm +0.25/-0.13
Material: Stainless PH15-7 Mo Groove Width (W): 1.17 mm +0.08/-0.00 Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01974-S15 (4 Pcs) Circlips - 19.74 mm x 1.07 mm x 20.96 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $20.14 AUD Regular price Sale price $20.14 AUD Unit price per Per 4 View the product page first if you are unsure.
CCI-01974-S15 (4 Pcs) --- Circlips - 19.74 mm x 1.07 mm x 20.96 mm Stainless PH15-7 Mo CCI-01974-S15 (4 Pcs) --- Circlips - 19.74 mm x 1.07 mm x 20.96 mm Stainless PH15-7 Mo Regular price $20.14 AUD Regular price Sale price $20.14 AUD Unit price per Out of stock! Backorder Now
19.74 mm	1.07 mm +/-0.075	20.96 mm +0.00/-0.06	21.82 mm +0.25/-0.13		1.17 mm +0.08/-0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01974-CZY (50 Pcs) Circlips - 19.74 mm x 1.07 mm x 20.96 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $47.50 AUD Regular price Sale price $47.50 AUD Unit price per Per 50 View the product page first if you are unsure.
19.74 mm	1.07 mm +/-0.075	20.96 mm +0.00/-0.06	21.82 mm +0.25/-0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm +0.08/-0.00 Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01974-CZY (50 Pcs) Circlips - 19.74 mm x 1.07 mm x 20.96 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $47.50 AUD Regular price Sale price $47.50 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-01974-CZY (50 Pcs) --- Circlips - 19.74 mm x 1.07 mm x 20.96 mm Carbon Steel Zinc Plated CCI-01974-CZY (50 Pcs) --- Circlips - 19.74 mm x 1.07 mm x 20.96 mm Carbon Steel Zinc Plated Regular price $47.50 AUD Regular price Sale price $47.50 AUD Unit price per Out of stock! Backorder Now
20.00 mm	1.00 mm +0.13/-0.00	21.00 mm +0.00/-0.06	21.50 mm +0.42/-0.13		1.10 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 11.20 mm Clearance in Groove (C1): 12.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02000-S15 (4 Pcs) Circlips - 20 mm x 1 mm x 21 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $21.23 AUD Regular price Sale price $21.23 AUD Unit price per Per 4 View the product page first if you are unsure.
20.00 mm	1.00 mm +0.13/-0.00	21.00 mm +0.00/-0.06	21.50 mm +0.42/-0.13
Material: Stainless PH15-7 Mo Groove Width (W): 1.10 mm +0.08/-0.00 Clearance in Bore (C): 11.20 mm Clearance in Groove (C1): 12.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02000-S15 (4 Pcs) Circlips - 20 mm x 1 mm x 21 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $21.23 AUD Regular price Sale price $21.23 AUD Unit price per Per 4 View the product page first if you are unsure.
CCI-02000-S15 (4 Pcs) --- Circlips - 20 mm x 1 mm x 21 mm Stainless PH15-7 Mo CCI-02000-S15 (4 Pcs) --- Circlips - 20 mm x 1 mm x 21 mm Stainless PH15-7 Mo Regular price $21.23 AUD Regular price Sale price $21.23 AUD Unit price per Out of stock! Backorder Now
20.00 mm	1.00 mm +0.13/-0.00	21.00 mm +0.00/-0.06	21.50 mm +0.42/-0.13		1.10 mm +0.08/-0.00
Material: Carbon Steel Clearance in Bore (C): 11.20 mm Clearance in Groove (C1): 12.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02000-C (20 Pcs) Circlips - 20 mm x 1 mm x 21 mm / Retaining Rings 38 units (760 pcs) Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 20 View the product page first if you are unsure.
20.00 mm	1.00 mm +0.13/-0.00	21.00 mm +0.00/-0.06	21.50 mm +0.42/-0.13
Material: Carbon Steel Groove Width (W): 1.10 mm +0.08/-0.00 Clearance in Bore (C): 11.20 mm Clearance in Groove (C1): 12.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02000-C (20 Pcs) Circlips - 20 mm x 1 mm x 21 mm / Retaining Rings 38 units (760 pcs) Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 20 View the product page first if you are unsure.
CCI-02000-C (20 Pcs) --- Circlips - 20 mm x 1 mm x 21 mm Carbon Steel CCI-02000-C (20 Pcs) --- Circlips - 20 mm x 1 mm x 21 mm Carbon Steel Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per 38 Available Now
20.00 mm	1.50 mm +0.15/-0.00	21.00 mm +0.00/-0.06	21.50 mm +0.42/-0.13		1.60 mm +0.08/-0.00
Material: Carbon Spring Steel Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02000H-C Circlips - 20 mm x 1.5 mm x 21 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
20.00 mm	1.50 mm +0.15/-0.00	21.00 mm +0.00/-0.06	21.50 mm +0.42/-0.13
Material: Carbon Spring Steel Groove Width (W): 1.60 mm +0.08/-0.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02000H-C Circlips - 20 mm x 1.5 mm x 21 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
20.64 mm	1.07 mm +/-0.075	21.89 mm +0.00/-0.06	22.89 mm +0.38/-0.25		1.17 mm +0.08/-0.00
Material: Carbon Steel Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02064-C (100 Pcs) Circlips - 20.64 mm x 1.07 mm x 21.89 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 100 View the product page first if you are unsure.
20.64 mm	1.07 mm +/-0.075	21.89 mm +0.00/-0.06	22.89 mm +0.38/-0.25
Material: Carbon Steel Groove Width (W): 1.17 mm +0.08/-0.00 Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02064-C (100 Pcs) Circlips - 20.64 mm x 1.07 mm x 21.89 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 100 View the product page first if you are unsure.
CCI-02064-C (100 Pcs) --- Circlips - 20.64 mm x 1.07 mm x 21.89 mm Carbon Steel CCI-02064-C (100 Pcs) --- Circlips - 20.64 mm x 1.07 mm x 21.89 mm Carbon Steel Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Out of stock! Backorder Now
20.64 mm	1.07 mm +/-0.075	21.89 mm +0.00/-0.06	22.89 mm +0.38/-0.25		1.17 mm +0.08/-0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-02064-CZY (250 Pcs) Circlips - 20.64 mm x 1.07 mm x 21.89 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Wed, Apr 23, 2025 Regular price $223.14 AUD Regular price Sale price $223.14 AUD Unit price per Per 250 View the product page first if you are unsure.
20.64 mm	1.07 mm +/-0.075	21.89 mm +0.00/-0.06	22.89 mm +0.38/-0.25
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm +0.08/-0.00 Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-02064-CZY (250 Pcs) Circlips - 20.64 mm x 1.07 mm x 21.89 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Wed, Apr 23, 2025 Regular price $223.14 AUD Regular price Sale price $223.14 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-02064-CZY (250 Pcs) --- Circlips - 20.64 mm x 1.07 mm x 21.89 mm Carbon Steel Zinc Plated CCI-02064-CZY (250 Pcs) --- Circlips - 20.64 mm x 1.07 mm x 21.89 mm Carbon Steel Zinc Plated Regular price $223.14 AUD Regular price Sale price $223.14 AUD Unit price per Out of stock! Backorder Now
20.64 mm	1.07 mm +/-0.075	21.89 mm +0.00/-0.06	22.89 mm +0.38/-0.25		1.17 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02064-S15 (4 Pcs) Circlips - 20.64 mm x 1.07 mm x 21.89 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Per 4 View the product page first if you are unsure.
20.64 mm	1.07 mm +/-0.075	21.89 mm +0.00/-0.06	22.89 mm +0.38/-0.25
Material: Stainless PH15-7 Mo Groove Width (W): 1.17 mm +0.08/-0.00 Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02064-S15 (4 Pcs) Circlips - 20.64 mm x 1.07 mm x 21.89 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Per 4 View the product page first if you are unsure.
CCI-02064-S15 (4 Pcs) --- Circlips - 20.64 mm x 1.07 mm x 21.89 mm Stainless PH15-7 Mo CCI-02064-S15 (4 Pcs) --- Circlips - 20.64 mm x 1.07 mm x 21.89 mm Stainless PH15-7 Mo Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Out of stock! Backorder Now
21.00 mm	1.00 mm +0.13/-0.00	22.00 mm +0.00/-0.06	22.50 mm +0.42/-0.13		1.10 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 12.20 mm Clearance in Groove (C1): 13.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02100-S15 (50 Pcs) Circlips - 21 mm x 1 mm x 22 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $103.14 AUD Regular price Sale price $103.14 AUD Unit price per Per 50 View the product page first if you are unsure.
21.00 mm	1.00 mm +0.13/-0.00	22.00 mm +0.00/-0.06	22.50 mm +0.42/-0.13
Material: Stainless PH15-7 Mo Groove Width (W): 1.10 mm +0.08/-0.00 Clearance in Bore (C): 12.20 mm Clearance in Groove (C1): 13.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02100-S15 (50 Pcs) Circlips - 21 mm x 1 mm x 22 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $103.14 AUD Regular price Sale price $103.14 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-02100-S15 (50 Pcs) --- Circlips - 21 mm x 1 mm x 22 mm Stainless PH15-7 Mo CCI-02100-S15 (50 Pcs) --- Circlips - 21 mm x 1 mm x 22 mm Stainless PH15-7 Mo Regular price $103.14 AUD Regular price Sale price $103.14 AUD Unit price per Out of stock! Backorder Now
21.00 mm	1.00 mm +0.13/-0.00	22.00 mm +0.00/-0.06	22.50 mm +0.42/-0.13		1.10 mm +0.08/-0.00
Material: Carbon Steel Clearance in Bore (C): 12.20 mm Clearance in Groove (C1): 13.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02100-C (20 Pcs) Circlips - 21 mm x 1 mm x 22 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Per 20 View the product page first if you are unsure.
21.00 mm	1.00 mm +0.13/-0.00	22.00 mm +0.00/-0.06	22.50 mm +0.42/-0.13
Material: Carbon Steel Groove Width (W): 1.10 mm +0.08/-0.00 Clearance in Bore (C): 12.20 mm Clearance in Groove (C1): 13.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02100-C (20 Pcs) Circlips - 21 mm x 1 mm x 22 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Per 20 View the product page first if you are unsure.
CCI-02100-C (20 Pcs) --- Circlips - 21 mm x 1 mm x 22 mm Carbon Steel CCI-02100-C (20 Pcs) --- Circlips - 21 mm x 1 mm x 22 mm Carbon Steel Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Out of stock! Backorder Now
22.00 mm	1.00 mm +/-0.075	23.00 mm +0.00/-0.06	23.50 mm +0.38/-0.25		1.17 mm +0.08/-0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-02200N-CZY (50 Pcs) Circlips - 22 mm x 1 mm x 23 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $49.95 AUD Regular price Sale price $49.95 AUD Unit price per Per 50 View the product page first if you are unsure.
22.00 mm	1.00 mm +/-0.075	23.00 mm +0.00/-0.06	23.50 mm +0.38/-0.25
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm +0.08/-0.00 Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-02200N-CZY (50 Pcs) Circlips - 22 mm x 1 mm x 23 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $49.95 AUD Regular price Sale price $49.95 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-02200N-CZY (50 Pcs) --- Circlips - 22 mm x 1 mm x 23 mm Carbon Steel Zinc Plated CCI-02200N-CZY (50 Pcs) --- Circlips - 22 mm x 1 mm x 23 mm Carbon Steel Zinc Plated Regular price $49.95 AUD Regular price Sale price $49.95 AUD Unit price per Out of stock! Backorder Now
22.00 mm	1.00 mm +/-0.075	23.00 mm +0.00/-0.06	23.50 mm +0.38/-0.25		1.17 mm +0.08/-0.00
Material: Carbon Steel Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02200N-C (10 Pcs) Circlips - 22 mm x 1 mm x 23 mm / Retaining Rings 7 units (70 pcs) Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Per 10 View the product page first if you are unsure.
22.00 mm	1.00 mm +/-0.075	23.00 mm +0.00/-0.06	23.50 mm +0.38/-0.25
Material: Carbon Steel Groove Width (W): 1.17 mm +0.08/-0.00 Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02200N-C (10 Pcs) Circlips - 22 mm x 1 mm x 23 mm / Retaining Rings 7 units (70 pcs) Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Per 10 View the product page first if you are unsure.
CCI-02200N-C (10 Pcs) --- Circlips - 22 mm x 1 mm x 23 mm Carbon Steel CCI-02200N-C (10 Pcs) --- Circlips - 22 mm x 1 mm x 23 mm Carbon Steel Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per 7 Available Now
22.00 mm	1.00 mm +/-0.075	23.00 mm +0.00/-0.06	23.50 mm +0.38/-0.25		1.17 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02200N-S15 Circlips - 22 mm x 1 mm x 23 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Each View the product page first if you are unsure.
22.00 mm	1.00 mm +/-0.075	23.00 mm +0.00/-0.06	23.50 mm +0.38/-0.25
Material: Stainless PH15-7 Mo Groove Width (W): 1.17 mm +0.08/-0.00 Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02200N-S15 Circlips - 22 mm x 1 mm x 23 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Each View the product page first if you are unsure.
CCI-02200N-S15 --- Circlips - 22 mm x 1 mm x 23 mm Stainless PH15-7 Mo CCI-02200N-S15 --- Circlips - 22 mm x 1 mm x 23 mm Stainless PH15-7 Mo Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Out of stock! Backorder Now
22.00 mm	1.07 mm +0.13/-0.00	23.37 mm +0.00/-0.06	24.41 mm +0.42/-0.13		1.10 mm +0.08/-0.00
Material: Carbon Steel Clearance in Bore (C): 13.72 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.06 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02200-C (20 Pcs) Circlips - 22 mm x 1.07 mm x 23.37 mm / Retaining Rings 1 pack (20 pcs) Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Per 20 View the product page first if you are unsure.
22.00 mm	1.07 mm +0.13/-0.00	23.37 mm +0.00/-0.06	24.41 mm +0.42/-0.13
Material: Carbon Steel Groove Width (W): 1.10 mm +0.08/-0.00 Clearance in Bore (C): 13.72 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.06 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02200-C (20 Pcs) Circlips - 22 mm x 1.07 mm x 23.37 mm / Retaining Rings 1 pack (20 pcs) Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Per 20 View the product page first if you are unsure.
CCI-02200-C (20 Pcs) --- Circlips - 22 mm x 1.07 mm x 23.37 mm Carbon Steel CCI-02200-C (20 Pcs) --- Circlips - 22 mm x 1.07 mm x 23.37 mm Carbon Steel Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per 1 Available Now
22.00 mm	1.07 mm +0.13/-0.00	23.37 mm +0.00/-0.06	24.41 mm +0.42/-0.13		1.10 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 13.72 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.06 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02200-S15 (50 Pcs) Circlips - 22 mm x 1.07 mm x 23.37 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $106.50 AUD Regular price Sale price $106.50 AUD Unit price per Per 50 View the product page first if you are unsure.
22.00 mm	1.07 mm +0.13/-0.00	23.37 mm +0.00/-0.06	24.41 mm +0.42/-0.13
Material: Stainless PH15-7 Mo Groove Width (W): 1.10 mm +0.08/-0.00 Clearance in Bore (C): 13.72 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.06 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02200-S15 (50 Pcs) Circlips - 22 mm x 1.07 mm x 23.37 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $106.50 AUD Regular price Sale price $106.50 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-02200-S15 (50 Pcs) --- Circlips - 22 mm x 1.07 mm x 23.37 mm Stainless PH15-7 Mo CCI-02200-S15 (50 Pcs) --- Circlips - 22 mm x 1.07 mm x 23.37 mm Stainless PH15-7 Mo Regular price $106.50 AUD Regular price Sale price $106.50 AUD Unit price per Out of stock! Backorder Now
22.00 mm	1.50 mm +0.15/-0.00	23.00 mm +0.00/-0.06	24.41 mm +0.42/-0.13		1.60 mm +0.08/-0.00
Material: Carbon Spring Steel Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

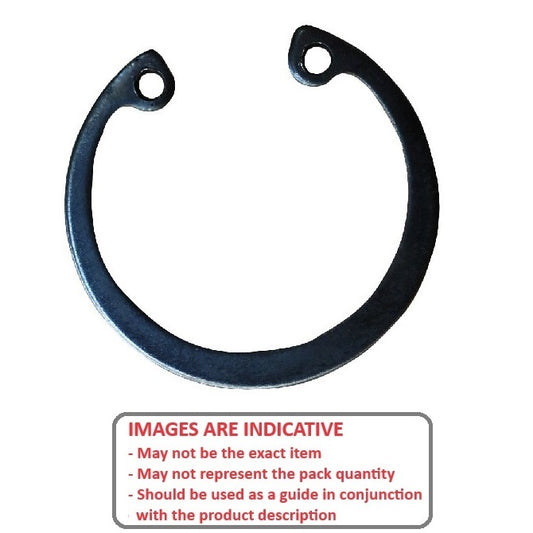

Part Number: CCI-02200H-C Circlips - 22 mm x 1.5 mm x 23 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity
22.00 mm	1.50 mm +0.15/-0.00	23.00 mm +0.00/-0.06	24.41 mm +0.42/-0.13
Material: Carbon Spring Steel Groove Width (W): 1.60 mm +0.08/-0.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02200H-C Circlips - 22 mm x 1.5 mm x 23 mm / Retaining Rings Contact Us Item Discontinued - Please contact us if you need a large quantity \|
