130 Products in this selection

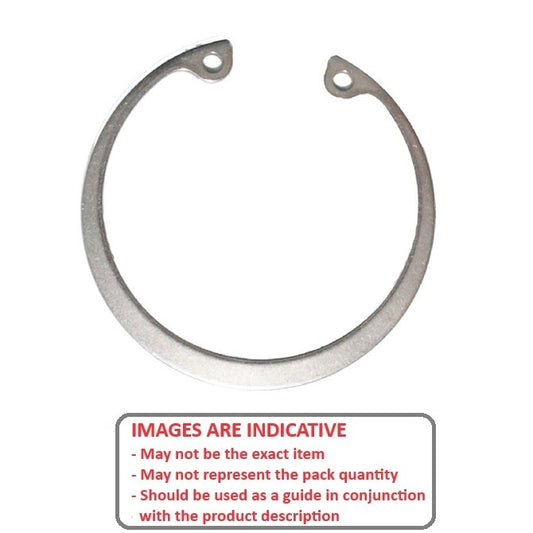

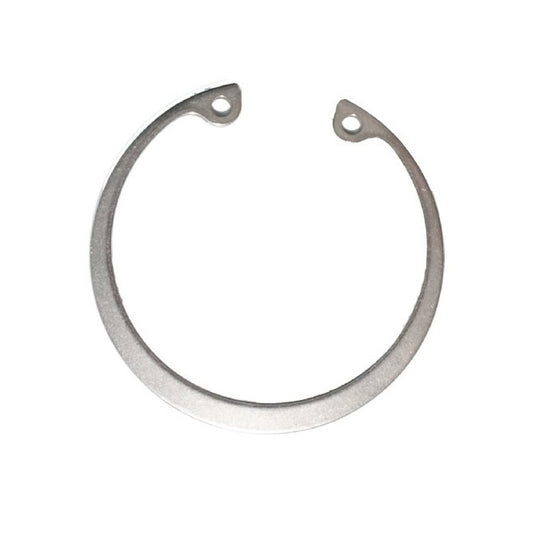

Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
PH15-7 Mo Stainless Steel.
Tolerances on request.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)
20.64 mm	1.07 mm +/-0.075	21.89 mm +0.00/-0.06	22.89 mm +0.38/-0.25		1.17 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Standard: MIL-16625
Part Number: CCI-02064-S15 (4 Pcs) Circlips - 20.64 mm x 1.07 mm x 21.89 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Per 4 View the product page first if you are unsure.
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
20.64 mm	1.07 mm +/-0.075	21.89 mm +0.00/-0.06	22.89 mm +0.38/-0.25
Material: Stainless PH15-7 Mo Groove Width (W): 1.17 mm +0.08/-0.00 Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Standard: MIL-16625
Part Number: CCI-02064-S15 (4 Pcs) Circlips - 20.64 mm x 1.07 mm x 21.89 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Per 4 View the product page first if you are unsure.
CCI-02064-S15 (4 Pcs) --- Circlips - 20.64 mm x 1.07 mm x 21.89 mm Stainless PH15-7 Mo CCI-02064-S15 (4 Pcs) --- Circlips - 20.64 mm x 1.07 mm x 21.89 mm Stainless PH15-7 Mo Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Out of stock! Backorder Now
21.00 mm	1.00 mm +0.13/-0.00	22.00 mm +0.00/-0.06	22.50 mm +0.42/-0.13		1.10 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 12.20 mm Clearance in Groove (C1): 13.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: DIN472
Part Number: CCI-02100-S15 (50 Pcs) Circlips - 21 mm x 1 mm x 22 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $103.14 AUD Regular price Sale price $103.14 AUD Unit price per Per 50 View the product page first if you are unsure.
21.00 mm	1.00 mm +0.13/-0.00	22.00 mm +0.00/-0.06	22.50 mm +0.42/-0.13
Material: Stainless PH15-7 Mo Groove Width (W): 1.10 mm +0.08/-0.00 Clearance in Bore (C): 12.20 mm Clearance in Groove (C1): 13.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: DIN472
Part Number: CCI-02100-S15 (50 Pcs) Circlips - 21 mm x 1 mm x 22 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $103.14 AUD Regular price Sale price $103.14 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-02100-S15 (50 Pcs) --- Circlips - 21 mm x 1 mm x 22 mm Stainless PH15-7 Mo CCI-02100-S15 (50 Pcs) --- Circlips - 21 mm x 1 mm x 22 mm Stainless PH15-7 Mo Regular price $103.14 AUD Regular price Sale price $103.14 AUD Unit price per Out of stock! Backorder Now
22.00 mm	1.00 mm +/-0.075	23.00 mm +0.00/-0.06	23.50 mm +0.38/-0.25		1.17 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: MIL-16625
Part Number: CCI-02200N-S15 Circlips - 22 mm x 1 mm x 23 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Each View the product page first if you are unsure.
22.00 mm	1.00 mm +/-0.075	23.00 mm +0.00/-0.06	23.50 mm +0.38/-0.25
Material: Stainless PH15-7 Mo Groove Width (W): 1.17 mm +0.08/-0.00 Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: MIL-16625
Part Number: CCI-02200N-S15 Circlips - 22 mm x 1 mm x 23 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Each View the product page first if you are unsure.
CCI-02200N-S15 --- Circlips - 22 mm x 1 mm x 23 mm Stainless PH15-7 Mo CCI-02200N-S15 --- Circlips - 22 mm x 1 mm x 23 mm Stainless PH15-7 Mo Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Out of stock! Backorder Now
22.00 mm	1.07 mm +0.13/-0.00	23.37 mm +0.00/-0.06	24.41 mm +0.42/-0.13		1.10 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 13.72 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.06 Standard: DIN472
Part Number: CCI-02200-S15 (50 Pcs) Circlips - 22 mm x 1.07 mm x 23.37 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $106.50 AUD Regular price Sale price $106.50 AUD Unit price per Per 50 View the product page first if you are unsure.
22.00 mm	1.07 mm +0.13/-0.00	23.37 mm +0.00/-0.06	24.41 mm +0.42/-0.13
Material: Stainless PH15-7 Mo Groove Width (W): 1.10 mm +0.08/-0.00 Clearance in Bore (C): 13.72 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.06 Standard: DIN472
Part Number: CCI-02200-S15 (50 Pcs) Circlips - 22 mm x 1.07 mm x 23.37 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $106.50 AUD Regular price Sale price $106.50 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-02200-S15 (50 Pcs) --- Circlips - 22 mm x 1.07 mm x 23.37 mm Stainless PH15-7 Mo CCI-02200-S15 (50 Pcs) --- Circlips - 22 mm x 1.07 mm x 23.37 mm Stainless PH15-7 Mo Regular price $106.50 AUD Regular price Sale price $106.50 AUD Unit price per Out of stock! Backorder Now
22.23 mm	1.07 mm +/-0.075	23.65 mm +0.00/-0.06	24.66 mm +0.38/-0.25		1.17 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 13.97 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.13 Standard: MIL-16625
Part Number: CCI-02223-S15 Circlips - 22.23 mm x 1.07 mm x 23.65 mm / Retaining Rings 18 Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Each View the product page first if you are unsure.
22.23 mm	1.07 mm +/-0.075	23.65 mm +0.00/-0.06	24.66 mm +0.38/-0.25
Material: Stainless PH15-7 Mo Groove Width (W): 1.17 mm +0.08/-0.00 Clearance in Bore (C): 13.97 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.13 Standard: MIL-16625
Part Number: CCI-02223-S15 Circlips - 22.23 mm x 1.07 mm x 23.65 mm / Retaining Rings 18 Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Each View the product page first if you are unsure.
CCI-02223-S15 --- Circlips - 22.23 mm x 1.07 mm x 23.65 mm Stainless PH15-7 Mo CCI-02223-S15 --- Circlips - 22.23 mm x 1.07 mm x 23.65 mm Stainless PH15-7 Mo Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per 18 Available Now
22.89 mm	1.07 mm +/-0.075	24.36 mm +0.00/-0.06	25.40 mm +0.38/-0.25		1.17 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 14.73 mm Clearance in Groove (C1): 16.00 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.21 Standard: MIL-16625
Part Number: CCI-02289-S15 (250 Pcs) Circlips - 22.89 mm x 1.07 mm x 24.36 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Fri, Mar 21, 2025 Regular price $2,018.41 AUD Regular price Sale price $2,018.41 AUD Unit price per Per 250 View the product page first if you are unsure.
22.89 mm	1.07 mm +/-0.075	24.36 mm +0.00/-0.06	25.40 mm +0.38/-0.25
Material: Stainless PH15-7 Mo Groove Width (W): 1.17 mm +0.08/-0.00 Clearance in Bore (C): 14.73 mm Clearance in Groove (C1): 16.00 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.21 Standard: MIL-16625
Part Number: CCI-02289-S15 (250 Pcs) Circlips - 22.89 mm x 1.07 mm x 24.36 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Fri, Mar 21, 2025 Regular price $2,018.41 AUD Regular price Sale price $2,018.41 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-02289-S15 (250 Pcs) --- Circlips - 22.89 mm x 1.07 mm x 24.36 mm Stainless PH15-7 Mo CCI-02289-S15 (250 Pcs) --- Circlips - 22.89 mm x 1.07 mm x 24.36 mm Stainless PH15-7 Mo Regular price $2,018.41 AUD Regular price Sale price $2,018.41 AUD Unit price per Out of stock! Backorder Now
23.00 mm	1.20 mm +0.21/-0.00	24.10 mm +0.00/-0.06	24.60 mm +0.42/-0.21		1.30 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 14.20 mm Clearance in Groove (C1): 15.70 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.70 Standard: DIN472
Part Number: CCI-02300-S15 Circlips - 23 mm x 1.2 mm x 24.1 mm / Retaining Rings 44 Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Each View the product page first if you are unsure.
23.00 mm	1.20 mm +0.21/-0.00	24.10 mm +0.00/-0.06	24.60 mm +0.42/-0.21
Material: Stainless PH15-7 Mo Groove Width (W): 1.30 mm +0.08/-0.00 Clearance in Bore (C): 14.20 mm Clearance in Groove (C1): 15.70 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.70 Standard: DIN472
Part Number: CCI-02300-S15 Circlips - 23 mm x 1.2 mm x 24.1 mm / Retaining Rings 44 Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Each View the product page first if you are unsure.
CCI-02300-S15 --- Circlips - 23 mm x 1.2 mm x 24.1 mm Stainless PH15-7 Mo CCI-02300-S15 --- Circlips - 23 mm x 1.2 mm x 24.1 mm Stainless PH15-7 Mo Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per 44 Available Now
23.81 mm	1.07 mm +/-0.075	25.40 mm +0.00/-0.06	26.44 mm +0.38/-0.25		1.17 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 15.49 mm Clearance in Groove (C1): 17.02 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.36 Standard: MIL-16625
Part Number: CCI-02381-S15 Circlips - 23.81 mm x 1.07 mm x 25.4 mm / Retaining Rings 2 Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each View the product page first if you are unsure.
23.81 mm	1.07 mm +/-0.075	25.40 mm +0.00/-0.06	26.44 mm +0.38/-0.25
Material: Stainless PH15-7 Mo Groove Width (W): 1.17 mm +0.08/-0.00 Clearance in Bore (C): 15.49 mm Clearance in Groove (C1): 17.02 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.36 Standard: MIL-16625
Part Number: CCI-02381-S15 Circlips - 23.81 mm x 1.07 mm x 25.4 mm / Retaining Rings 2 Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each View the product page first if you are unsure.
CCI-02381-S15 --- Circlips - 23.81 mm x 1.07 mm x 25.4 mm Stainless PH15-7 Mo CCI-02381-S15 --- Circlips - 23.81 mm x 1.07 mm x 25.4 mm Stainless PH15-7 Mo Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per 2 Available Now
24.00 mm	1.20 mm +0.21/-0.00	25.20 mm +0.00/-0.06	25.90 mm +0.42/-0.21		1.30 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 14.80 mm Clearance in Groove (C1): 16.40 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472
Part Number: CCI-02400-S15 (3 Pcs) Circlips - 24 mm x 1.2 mm x 25.2 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $23.05 AUD Regular price Sale price $23.05 AUD Unit price per Per 3 View the product page first if you are unsure.
24.00 mm	1.20 mm +0.21/-0.00	25.20 mm +0.00/-0.06	25.90 mm +0.42/-0.21
Material: Stainless PH15-7 Mo Groove Width (W): 1.30 mm +0.08/-0.00 Clearance in Bore (C): 14.80 mm Clearance in Groove (C1): 16.40 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472
Part Number: CCI-02400-S15 (3 Pcs) Circlips - 24 mm x 1.2 mm x 25.2 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $23.05 AUD Regular price Sale price $23.05 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-02400-S15 (3 Pcs) --- Circlips - 24 mm x 1.2 mm x 25.2 mm Stainless PH15-7 Mo CCI-02400-S15 (3 Pcs) --- Circlips - 24 mm x 1.2 mm x 25.2 mm Stainless PH15-7 Mo Regular price $23.05 AUD Regular price Sale price $23.05 AUD Unit price per Out of stock! Backorder Now
25.00 mm	1.20 mm +0.21/-0.00	26.20 mm +0.00/-0.06	26.90 mm +0.42/-0.21		1.30 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 15.50 mm Clearance in Groove (C1): 17.20 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472
Part Number: CCI-02500-S15 Circlips - 25 mm x 1.2 mm x 26.2 mm / Retaining Rings 4 Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
25.00 mm	1.20 mm +0.21/-0.00	26.20 mm +0.00/-0.06	26.90 mm +0.42/-0.21
Material: Stainless PH15-7 Mo Groove Width (W): 1.30 mm +0.08/-0.00 Clearance in Bore (C): 15.50 mm Clearance in Groove (C1): 17.20 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472
Part Number: CCI-02500-S15 Circlips - 25 mm x 1.2 mm x 26.2 mm / Retaining Rings 4 Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
CCI-02500-S15 --- Circlips - 25 mm x 1.2 mm x 26.2 mm Stainless PH15-7 Mo CCI-02500-S15 --- Circlips - 25 mm x 1.2 mm x 26.2 mm Stainless PH15-7 Mo Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per 4 Available Now
25.40 mm	1.07 mm +/-0.075	27.08 mm +0.00/-0.06	28.22 mm +0.38/-0.25		1.17 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 17.27 mm Clearance in Groove (C1): 18.80 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.51 Standard: MIL-16625
Part Number: CCI-02540-S15 Circlips - 25.4 mm x 1.07 mm x 27.08 mm / Retaining Rings 2 Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Each View the product page first if you are unsure.
25.40 mm	1.07 mm +/-0.075	27.08 mm +0.00/-0.06	28.22 mm +0.38/-0.25
Material: Stainless PH15-7 Mo Groove Width (W): 1.17 mm +0.08/-0.00 Clearance in Bore (C): 17.27 mm Clearance in Groove (C1): 18.80 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.51 Standard: MIL-16625
Part Number: CCI-02540-S15 Circlips - 25.4 mm x 1.07 mm x 27.08 mm / Retaining Rings 2 Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Each View the product page first if you are unsure.
CCI-02540-S15 --- Circlips - 25.4 mm x 1.07 mm x 27.08 mm Stainless PH15-7 Mo CCI-02540-S15 --- Circlips - 25.4 mm x 1.07 mm x 27.08 mm Stainless PH15-7 Mo Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per 2 Available Now
25.98 mm	1.07 mm +/-0.075	27.71 mm +0.00/-0.06	28.85 mm +0.38/-0.25		1.17 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 17.78 mm Clearance in Groove (C1): 19.30 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.59 Standard: MIL-16625
Part Number: CCI-02598-S15 (3 Pcs) Circlips - 25.98 mm x 1.07 mm x 27.71 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Per 3 View the product page first if you are unsure.
25.98 mm	1.07 mm +/-0.075	27.71 mm +0.00/-0.06	28.85 mm +0.38/-0.25
Material: Stainless PH15-7 Mo Groove Width (W): 1.17 mm +0.08/-0.00 Clearance in Bore (C): 17.78 mm Clearance in Groove (C1): 19.30 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.59 Standard: MIL-16625
Part Number: CCI-02598-S15 (3 Pcs) Circlips - 25.98 mm x 1.07 mm x 27.71 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-02598-S15 (3 Pcs) --- Circlips - 25.98 mm x 1.07 mm x 27.71 mm Stainless PH15-7 Mo CCI-02598-S15 (3 Pcs) --- Circlips - 25.98 mm x 1.07 mm x 27.71 mm Stainless PH15-7 Mo Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Out of stock! Backorder Now
26.00 mm	1.20 mm +0.21/-0.00	27.20 mm +0.00/-0.06	27.90 mm +0.42/-0.21		1.30 mm +0.08/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 16.10 mm Clearance in Groove (C1): 17.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472
Part Number: CCI-02600-S15 (3 Pcs) Circlips - 26 mm x 1.2 mm x 27.2 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Per 3 View the product page first if you are unsure.
26.00 mm	1.20 mm +0.21/-0.00	27.20 mm +0.00/-0.06	27.90 mm +0.42/-0.21
Material: Stainless PH15-7 Mo Groove Width (W): 1.30 mm +0.08/-0.00 Clearance in Bore (C): 16.10 mm Clearance in Groove (C1): 17.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472
Part Number: CCI-02600-S15 (3 Pcs) Circlips - 26 mm x 1.2 mm x 27.2 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-02600-S15 (3 Pcs) --- Circlips - 26 mm x 1.2 mm x 27.2 mm Stainless PH15-7 Mo CCI-02600-S15 (3 Pcs) --- Circlips - 26 mm x 1.2 mm x 27.2 mm Stainless PH15-7 Mo Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Out of stock! Backorder Now
26.99 mm	1.27 mm +/-0.102	28.70 mm +0.00/-0.06	29.97 mm +0.64/-0.38		1.42 mm +0.10/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 17.53 mm Clearance in Groove (C1): 19.05 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.59 Standard: MIL-16625
Part Number: CCI-02699-S15 (3 Pcs) Circlips - 26.99 mm x 1.27 mm x 28.7 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $27.68 AUD Regular price Sale price $27.68 AUD Unit price per Per 3 View the product page first if you are unsure.
26.99 mm	1.27 mm +/-0.102	28.70 mm +0.00/-0.06	29.97 mm +0.64/-0.38
Material: Stainless PH15-7 Mo Groove Width (W): 1.42 mm +0.10/-0.00 Clearance in Bore (C): 17.53 mm Clearance in Groove (C1): 19.05 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.59 Standard: MIL-16625
Part Number: CCI-02699-S15 (3 Pcs) Circlips - 26.99 mm x 1.27 mm x 28.7 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $27.68 AUD Regular price Sale price $27.68 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-02699-S15 (3 Pcs) --- Circlips - 26.99 mm x 1.27 mm x 28.7 mm Stainless PH15-7 Mo CCI-02699-S15 (3 Pcs) --- Circlips - 26.99 mm x 1.27 mm x 28.7 mm Stainless PH15-7 Mo Regular price $27.68 AUD Regular price Sale price $27.68 AUD Unit price per Out of stock! Backorder Now
27.00 mm	1.20 mm +0.21/-0.00	28.40 mm +0.00/-0.06	29.10 mm +0.50/-0.25		1.30 mm +0.10/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 17.10 mm Clearance in Groove (C1): 19.00 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472
Part Number: CCI-02700-S15 (5 Pcs) Circlips - 27 mm x 1.2 mm x 28.4 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $19.86 AUD Regular price Sale price $19.86 AUD Unit price per Per 5 View the product page first if you are unsure.
27.00 mm	1.20 mm +0.21/-0.00	28.40 mm +0.00/-0.06	29.10 mm +0.50/-0.25
Material: Stainless PH15-7 Mo Groove Width (W): 1.30 mm +0.10/-0.00 Clearance in Bore (C): 17.10 mm Clearance in Groove (C1): 19.00 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472
Part Number: CCI-02700-S15 (5 Pcs) Circlips - 27 mm x 1.2 mm x 28.4 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $19.86 AUD Regular price Sale price $19.86 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-02700-S15 (5 Pcs) --- Circlips - 27 mm x 1.2 mm x 28.4 mm Stainless PH15-7 Mo CCI-02700-S15 (5 Pcs) --- Circlips - 27 mm x 1.2 mm x 28.4 mm Stainless PH15-7 Mo Regular price $19.86 AUD Regular price Sale price $19.86 AUD Unit price per Out of stock! Backorder Now
28.00 mm	1.20 mm +0.21/-0.00	29.40 mm +0.00/-0.06	30.10 mm +0.50/-0.25		1.30 mm +0.10/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 17.90 mm Clearance in Groove (C1): 19.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472
Part Number: CCI-02800-S15 (5 Pcs) Circlips - 28 mm x 1.2 mm x 29.4 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $20.50 AUD Regular price Sale price $20.50 AUD Unit price per Per 5 View the product page first if you are unsure.
28.00 mm	1.20 mm +0.21/-0.00	29.40 mm +0.00/-0.06	30.10 mm +0.50/-0.25
Material: Stainless PH15-7 Mo Groove Width (W): 1.30 mm +0.10/-0.00 Clearance in Bore (C): 17.90 mm Clearance in Groove (C1): 19.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472
Part Number: CCI-02800-S15 (5 Pcs) Circlips - 28 mm x 1.2 mm x 29.4 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $20.50 AUD Regular price Sale price $20.50 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-02800-S15 (5 Pcs) --- Circlips - 28 mm x 1.2 mm x 29.4 mm Stainless PH15-7 Mo CCI-02800-S15 (5 Pcs) --- Circlips - 28 mm x 1.2 mm x 29.4 mm Stainless PH15-7 Mo Regular price $20.50 AUD Regular price Sale price $20.50 AUD Unit price per Out of stock! Backorder Now
28.58 mm	1.27 mm +/-0.102	30.40 mm +0.00/-0.06	31.72 mm +0.64/-0.38		1.42 mm +0.10/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 19.05 mm Clearance in Groove (C1): 20.83 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.74 Standard: MIL-16625
Part Number: CCI-02858-S15 (3 Pcs) Circlips - 28.58 mm x 1.27 mm x 30.4 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Per 3 View the product page first if you are unsure.
28.58 mm	1.27 mm +/-0.102	30.40 mm +0.00/-0.06	31.72 mm +0.64/-0.38
Material: Stainless PH15-7 Mo Groove Width (W): 1.42 mm +0.10/-0.00 Clearance in Bore (C): 19.05 mm Clearance in Groove (C1): 20.83 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.74 Standard: MIL-16625
Part Number: CCI-02858-S15 (3 Pcs) Circlips - 28.58 mm x 1.27 mm x 30.4 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-02858-S15 (3 Pcs) --- Circlips - 28.58 mm x 1.27 mm x 30.4 mm Stainless PH15-7 Mo CCI-02858-S15 (3 Pcs) --- Circlips - 28.58 mm x 1.27 mm x 30.4 mm Stainless PH15-7 Mo Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Out of stock! Backorder Now
29.00 mm	1.20 mm +0.25/-0.00	30.40 mm +0.00/-0.06	31.10 mm +0.50/-0.25		1.30 mm +0.10/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 18.90 mm Clearance in Groove (C1): 20.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472
Part Number: CCI-02900-S15 (3 Pcs) Circlips - 29 mm x 1.2 mm x 30.4 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $24.23 AUD Regular price Sale price $24.23 AUD Unit price per Per 3 View the product page first if you are unsure.
29.00 mm	1.20 mm +0.25/-0.00	30.40 mm +0.00/-0.06	31.10 mm +0.50/-0.25
Material: Stainless PH15-7 Mo Groove Width (W): 1.30 mm +0.10/-0.00 Clearance in Bore (C): 18.90 mm Clearance in Groove (C1): 20.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472
Part Number: CCI-02900-S15 (3 Pcs) Circlips - 29 mm x 1.2 mm x 30.4 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $24.23 AUD Regular price Sale price $24.23 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-02900-S15 (3 Pcs) --- Circlips - 29 mm x 1.2 mm x 30.4 mm Stainless PH15-7 Mo CCI-02900-S15 (3 Pcs) --- Circlips - 29 mm x 1.2 mm x 30.4 mm Stainless PH15-7 Mo Regular price $24.23 AUD Regular price Sale price $24.23 AUD Unit price per Out of stock! Backorder Now
30.00 mm	1.20 mm +0.25/-0.00	31.40 mm +0.00/-0.06	32.10 mm +0.50/-0.25		1.30 mm +0.10/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 19.90 mm Clearance in Groove (C1): 21.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472
Part Number: CCI-03000-S15 (3 Pcs) Circlips - 30 mm x 1.2 mm x 31.4 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Per 3 View the product page first if you are unsure.
30.00 mm	1.20 mm +0.25/-0.00	31.40 mm +0.00/-0.06	32.10 mm +0.50/-0.25
Material: Stainless PH15-7 Mo Groove Width (W): 1.30 mm +0.10/-0.00 Clearance in Bore (C): 19.90 mm Clearance in Groove (C1): 21.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472
Part Number: CCI-03000-S15 (3 Pcs) Circlips - 30 mm x 1.2 mm x 31.4 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-03000-S15 (3 Pcs) --- Circlips - 30 mm x 1.2 mm x 31.4 mm Stainless PH15-7 Mo CCI-03000-S15 (3 Pcs) --- Circlips - 30 mm x 1.2 mm x 31.4 mm Stainless PH15-7 Mo Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Out of stock! Backorder Now
30.16 mm	1.27 mm +/-0.102	32.05 mm +0.00/-0.06	33.50 mm +0.64/-0.38		1.42 mm +0.10/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 20.57 mm Clearance in Groove (C1): 22.35 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.82 Standard: MIL-16625
Part Number: CCI-03016-S15 (50 Pcs) Circlips - 30.16 mm x 1.27 mm x 32.05 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 26, 2025 Regular price $554.41 AUD Regular price Sale price $554.41 AUD Unit price per Per 50 View the product page first if you are unsure.
30.16 mm	1.27 mm +/-0.102	32.05 mm +0.00/-0.06	33.50 mm +0.64/-0.38
Material: Stainless PH15-7 Mo Groove Width (W): 1.42 mm +0.10/-0.00 Clearance in Bore (C): 20.57 mm Clearance in Groove (C1): 22.35 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.82 Standard: MIL-16625
Part Number: CCI-03016-S15 (50 Pcs) Circlips - 30.16 mm x 1.27 mm x 32.05 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 26, 2025 Regular price $554.41 AUD Regular price Sale price $554.41 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-03016-S15 (50 Pcs) --- Circlips - 30.16 mm x 1.27 mm x 32.05 mm Stainless PH15-7 Mo CCI-03016-S15 (50 Pcs) --- Circlips - 30.16 mm x 1.27 mm x 32.05 mm Stainless PH15-7 Mo Regular price $554.41 AUD Regular price Sale price $554.41 AUD Unit price per Out of stock! Backorder Now
31.00 mm	1.20 mm +0.25/-0.00	32.70 mm +0.00/-0.06	33.40 mm +0.50/-0.25		1.30 mm +0.10/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 20.00 mm Clearance in Groove (C1): 22.30 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Standard: DIN472
Part Number: CCI-03100-S15 (3 Pcs) Circlips - 31 mm x 1.2 mm x 32.7 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $23.68 AUD Regular price Sale price $23.68 AUD Unit price per Per 3 View the product page first if you are unsure.
31.00 mm	1.20 mm +0.25/-0.00	32.70 mm +0.00/-0.06	33.40 mm +0.50/-0.25
Material: Stainless PH15-7 Mo Groove Width (W): 1.30 mm +0.10/-0.00 Clearance in Bore (C): 20.00 mm Clearance in Groove (C1): 22.30 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Standard: DIN472
Part Number: CCI-03100-S15 (3 Pcs) Circlips - 31 mm x 1.2 mm x 32.7 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $23.68 AUD Regular price Sale price $23.68 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-03100-S15 (3 Pcs) --- Circlips - 31 mm x 1.2 mm x 32.7 mm Stainless PH15-7 Mo CCI-03100-S15 (3 Pcs) --- Circlips - 31 mm x 1.2 mm x 32.7 mm Stainless PH15-7 Mo Regular price $23.68 AUD Regular price Sale price $23.68 AUD Unit price per Out of stock! Backorder Now
31.75 mm	1.27 mm +/-0.102	33.72 mm +0.00/-0.06	35.26 mm +0.64/-0.38		1.42 mm +0.10/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 22.35 mm Clearance in Groove (C1): 24.13 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.05 Standard: MIL-16625
Part Number: CCI-03175-S15 Circlips - 31.75 mm x 1.27 mm x 33.72 mm / Retaining Rings 13 Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Each View the product page first if you are unsure.
31.75 mm	1.27 mm +/-0.102	33.72 mm +0.00/-0.06	35.26 mm +0.64/-0.38
Material: Stainless PH15-7 Mo Groove Width (W): 1.42 mm +0.10/-0.00 Clearance in Bore (C): 22.35 mm Clearance in Groove (C1): 24.13 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.05 Standard: MIL-16625
Part Number: CCI-03175-S15 Circlips - 31.75 mm x 1.27 mm x 33.72 mm / Retaining Rings 13 Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Each View the product page first if you are unsure.
CCI-03175-S15 --- Circlips - 31.75 mm x 1.27 mm x 33.72 mm Stainless PH15-7 Mo CCI-03175-S15 --- Circlips - 31.75 mm x 1.27 mm x 33.72 mm Stainless PH15-7 Mo Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per 13 Available Now
32.00 mm	1.20 mm +0.25/-0.00	33.71 mm +0.00/-0.06	34.40 mm +0.50/-0.25		1.30 mm +0.10/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 20.60 mm Clearance in Groove (C1): 22.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Standard: DIN472
Part Number: CCI-03200-S15 (5 Pcs) Circlips - 32 mm x 1.2 mm x 33.71 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $23.68 AUD Regular price Sale price $23.68 AUD Unit price per Per 5 View the product page first if you are unsure.
32.00 mm	1.20 mm +0.25/-0.00	33.71 mm +0.00/-0.06	34.40 mm +0.50/-0.25
Material: Stainless PH15-7 Mo Groove Width (W): 1.30 mm +0.10/-0.00 Clearance in Bore (C): 20.60 mm Clearance in Groove (C1): 22.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Standard: DIN472
Part Number: CCI-03200-S15 (5 Pcs) Circlips - 32 mm x 1.2 mm x 33.71 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $23.68 AUD Regular price Sale price $23.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-03200-S15 (5 Pcs) --- Circlips - 32 mm x 1.2 mm x 33.71 mm Stainless PH15-7 Mo CCI-03200-S15 (5 Pcs) --- Circlips - 32 mm x 1.2 mm x 33.71 mm Stainless PH15-7 Mo Regular price $23.68 AUD Regular price Sale price $23.68 AUD Unit price per Out of stock! Backorder Now
33.00 mm	1.20 mm +0.25/-0.00	34.78 mm +0.00/-0.06	35.50 mm +0.50/-0.25		1.30 mm +0.10/-0.00
Material: Stainless PH15-7 Mo Clearance in Bore (C): 21.60 mm Clearance in Groove (C1): 23.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Standard: DIN472
Part Number: CCI-03300-S15 (250 Pcs) Circlips - 33 mm x 1.2 mm x 34.78 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Fri, Mar 21, 2025 Regular price $2,145.41 AUD Regular price Sale price $2,145.41 AUD Unit price per Per 250 View the product page first if you are unsure.
33.00 mm	1.20 mm +0.25/-0.00	34.78 mm +0.00/-0.06	35.50 mm +0.50/-0.25
Material: Stainless PH15-7 Mo Groove Width (W): 1.30 mm +0.10/-0.00 Clearance in Bore (C): 21.60 mm Clearance in Groove (C1): 23.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Standard: DIN472
Part Number: CCI-03300-S15 (250 Pcs) Circlips - 33 mm x 1.2 mm x 34.78 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Fri, Mar 21, 2025 Regular price $2,145.41 AUD Regular price Sale price $2,145.41 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-03300-S15 (250 Pcs) --- Circlips - 33 mm x 1.2 mm x 34.78 mm Stainless PH15-7 Mo CCI-03300-S15 (250 Pcs) --- Circlips - 33 mm x 1.2 mm x 34.78 mm Stainless PH15-7 Mo Regular price $2,145.41 AUD Regular price Sale price $2,145.41 AUD Unit price per Out of stock! Backorder Now
