Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide

6 Products in this selection
This category includes various types of metric timing pulleys.
  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
Small Parts & Bearings

Additional resources:
Timing Pulleys Catalogue PDF
3mm GT Timing Belts

A more comprehensive listing may be found on the MBA Minibearings main store at Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide.
Number of Teeth Max Belt Width Bore (d) Bore Type Locking Type Indicative
Number of Teeth
18
Max Belt Width
9.00
mm
Bore (d)
6.000
mm
Bore Type
Finished
Locking Type
EZ-Lock Hub
Metric Timing Pulleys - 18 tooth - 9x6 mm - Aluminium
Material: Aluminium    Type: 1    Pitch Dia. (PD): 17.18 mm    Flange Diameter (FD): 20.0 mm    Overall Length: 20.6 mm
Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-018-090FH-AL-E-060 (Each) Metric Timing Pulleys - 18 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley
6 Available Now | Further orders can be expected around Mon, Aug 17, 2026
$43.14 AUD
$51.76 AUD $43.14 AUD
Each
Number of Teeth Max Belt Width Bore (d) Bore Type Indicative
Number of Teeth
18
Max Belt Width
9.00
mm
Bore (d)
6.000
mm
Bore Type
Finished
Metric Timing Pulleys - 18 tooth - 9x6 mm - Aluminium
Material: Aluminium    Locking Type: EZ-Lock Hub    Type: 1    Pitch Dia. (PD): 17.18 mm    Flange Diameter (FD): 20.0 mm    Overall Length: 20.6 mm
Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-018-090FH-AL-E-060 (Each) Metric Timing Pulleys - 18 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley
6 Available Now | Further orders can be expected around Mon, Aug 17, 2026
$43.14 AUD
$51.76 AUD $43.14 AUD
Each
View the product page first if you are unsure.
Number of Teeth
22
Max Belt Width
9.00
mm
Bore (d)
6.000
mm
Bore Type
Finished
Locking Type
EZ-Lock Hub
Metric Timing Pulleys - 22 tooth - 9x6 mm - Aluminium
Material: Aluminium    Type: 2    Pitch Dia. (PD): 21.00 mm    Flange Diameter (FD): 24.0 mm    Overall Length: 20.6 mm
Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-022-090FF-AL-E-060 (Each) Metric Timing Pulleys - 22 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley
10 Available Now | Further orders can be expected around Mon, Aug 17, 2026
$39.77 AUD
$47.73 AUD $39.77 AUD
Each
Number of Teeth
22
Max Belt Width
9.00
mm
Bore (d)
6.000
mm
Bore Type
Finished
Metric Timing Pulleys - 22 tooth - 9x6 mm - Aluminium
Material: Aluminium    Locking Type: EZ-Lock Hub    Type: 2    Pitch Dia. (PD): 21.00 mm    Flange Diameter (FD): 24.0 mm    Overall Length: 20.6 mm
Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-022-090FF-AL-E-060 (Each) Metric Timing Pulleys - 22 tooth - 9x6 mm 3mm Pitch - Aluminium Pulley
10 Available Now | Further orders can be expected around Mon, Aug 17, 2026
$39.77 AUD
$47.73 AUD $39.77 AUD
Each
View the product page first if you are unsure.
Number of Teeth
25
Max Belt Width
9.00
mm
Bore (d)
6.350
mm
Bore Type
Finished
Locking Type
Set Screw

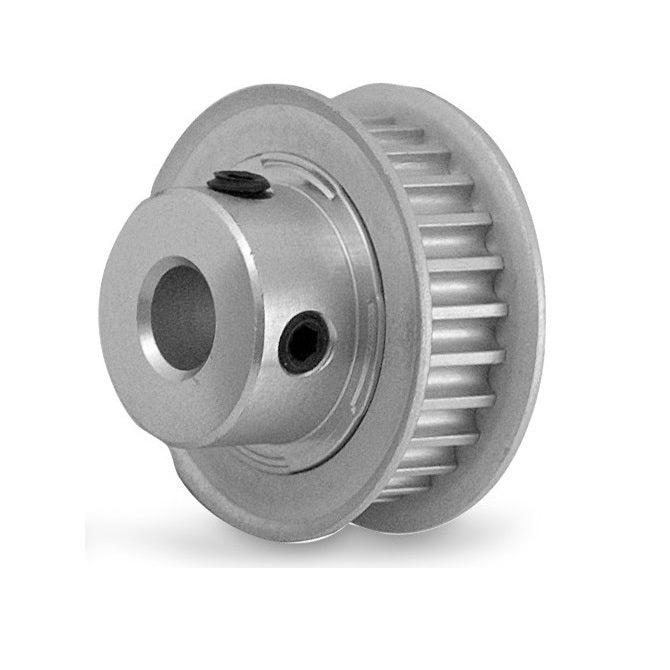

Metric Timing Pulleys - 25 tooth - 9x6.35 mm - Aluminium
Material: Aluminium    Type: 2    Pitch Dia. (PD): 23.86 mm    Flange Diameter (FD): 26.9 mm    Overall Length: 20.6 mm
Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-025-090FF-AL-G-064 (Each) Metric Timing Pulleys - 25 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
1 Available Now | Further orders can be expected around Mon, Aug 17, 2026
$23.50 AUD
$28.20 AUD $23.50 AUD
Each
Number of Teeth
25
Max Belt Width
9.00
mm
Bore (d)
6.350
mm
Bore Type
Finished
Metric Timing Pulleys - 25 tooth - 9x6.35 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 2    Pitch Dia. (PD): 23.86 mm    Flange Diameter (FD): 26.9 mm    Overall Length: 20.6 mm
Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-025-090FF-AL-G-064 (Each) Metric Timing Pulleys - 25 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley
1 Available Now | Further orders can be expected around Mon, Aug 17, 2026
$23.50 AUD
$28.20 AUD $23.50 AUD
Each
View the product page first if you are unsure.
Number of Teeth
28
Max Belt Width
9.00
mm
Bore (d)
8.000
mm
Locking Type
Set Screw, Aluminium Insert

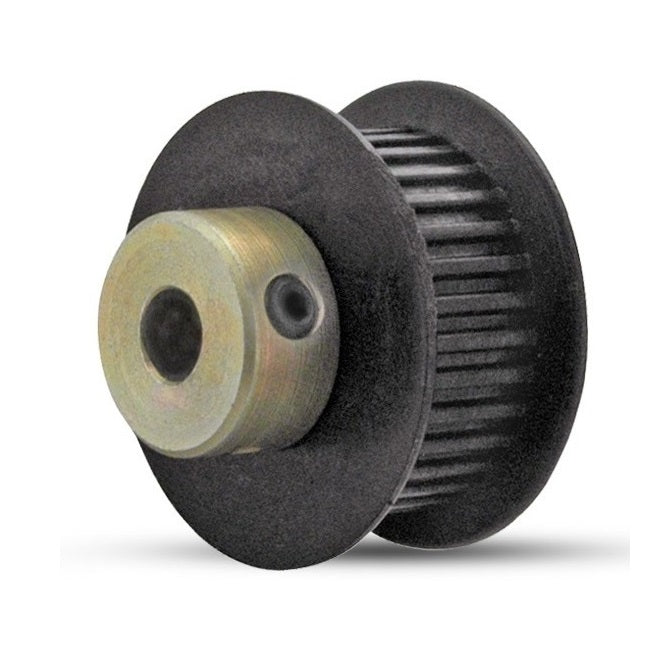

Metric Timing Pulleys - 28 tooth - 9x8 mm - Plastic
Material: Plastic    Type: Fig 8    Pitch Dia. (PD): 26.73 mm    Flange Diameter (FD): 32.0 mm    Overall Length: 20.6 mm
Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Plastic Insert
Part Number: P-030G-028-090FF-PP-GAI-080 (Each) Metric Timing Pulleys - 28 tooth - 9x8 mm 3mm Pitch - Plastic Pulley
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$14.24 AUD
$27.05 AUD $14.24 AUD
Each
Number of Teeth
28
Max Belt Width
9.00
mm
Bore (d)
8.000
mm
Metric Timing Pulleys - 28 tooth - 9x8 mm - Plastic
Material: Plastic    Locking Type: Set Screw, Aluminium Insert    Type: Fig 8    Pitch Dia. (PD): 26.73 mm    Flange Diameter (FD): 32.0 mm    Overall Length: 20.6 mm
Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Plastic Insert
Part Number: P-030G-028-090FF-PP-GAI-080 (Each) Metric Timing Pulleys - 28 tooth - 9x8 mm 3mm Pitch - Plastic Pulley
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$14.24 AUD
$27.05 AUD $14.24 AUD
Each
Number of Teeth
40
Max Belt Width
9.00
mm
Bore (d)
6.000
mm
Locking Type
No Locking Device

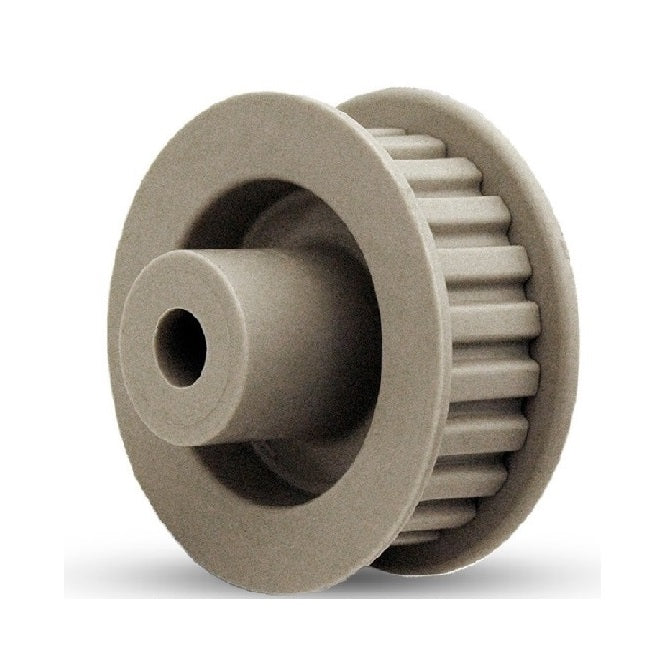

Metric Timing Pulleys - 40 tooth - 9x6 mm - Plastic
Material: Plastic    Type: Fig 2    Pitch Dia. (PD): 38.18 mm    Flange Diameter (FD): 45.0 mm    Overall Length: 20.6 mm
Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Plastic Plain
Part Number: P-030G-040-090FF-PP-N-060 (Each) Metric Timing Pulleys - 40 tooth - 9x6 mm 3mm Pitch - Plastic Pulley
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$7.45 AUD
$14.16 AUD $7.45 AUD
Each
Number of Teeth
40
Max Belt Width
9.00
mm
Bore (d)
6.000
mm
Metric Timing Pulleys - 40 tooth - 9x6 mm - Plastic
Material: Plastic    Locking Type: No Locking Device    Type: Fig 2    Pitch Dia. (PD): 38.18 mm    Flange Diameter (FD): 45.0 mm    Overall Length: 20.6 mm
Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Plastic Plain
Part Number: P-030G-040-090FF-PP-N-060 (Each) Metric Timing Pulleys - 40 tooth - 9x6 mm 3mm Pitch - Plastic Pulley
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$7.45 AUD
$14.16 AUD $7.45 AUD
Each
Number of Teeth
100
Max Belt Width
9.00
mm
Bore (d)
7.938
mm
Bore Type
Finished
Locking Type
Set Screw

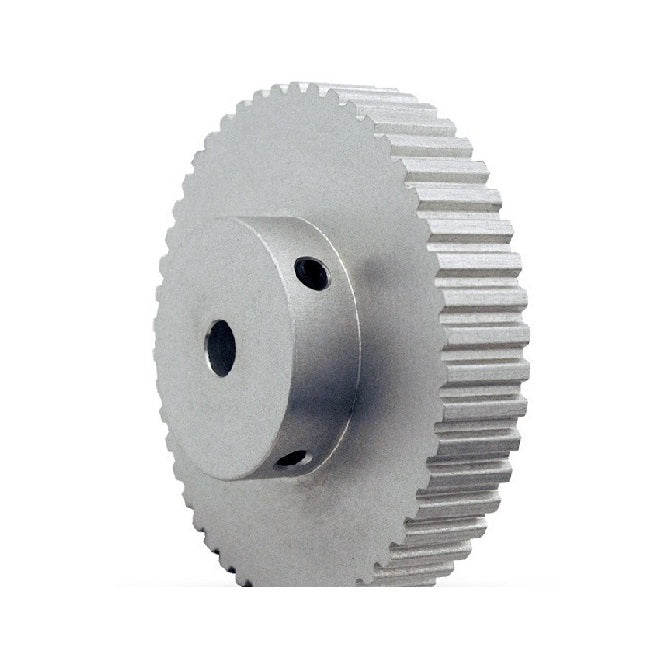

1189348 | P-030G-100-090P-AL-G-079 (Each) --- Metric Timing Pulleys - 100 tooth - 9x7.938 mm 3mm Pitch - Aluminium Pulley
Material: Aluminium    Type: 3    Pitch Dia. (PD): 95.45 mm    Overall Length: 22.2 mm
Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-100-090P-AL-G-079 (Each) Metric Timing Pulleys - 100 tooth - 9x7.938 mm 3mm Pitch - Aluminium Pulley
Out of Stock | Backorder Now | Orders can be expected around Mon, Aug 17, 2026
$101.59 AUD
$121.91 AUD $101.59 AUD
Each
Number of Teeth
100
Max Belt Width
9.00
mm
Bore (d)
7.938
mm
Bore Type
Finished
1189348 | P-030G-100-090P-AL-G-079 (Each) --- Metric Timing Pulleys - 100 tooth - 9x7.938 mm 3mm Pitch - Aluminium Pulley
Material: Aluminium    Locking Type: Set Screw    Type: 3    Pitch Dia. (PD): 95.45 mm    Overall Length: 22.2 mm
Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic
Part Number: P-030G-100-090P-AL-G-079 (Each) Metric Timing Pulleys - 100 tooth - 9x7.938 mm 3mm Pitch - Aluminium Pulley
Out of Stock | Backorder Now | Orders can be expected around Mon, Aug 17, 2026
$101.59 AUD
$121.91 AUD $101.59 AUD
Each
View the product page first if you are unsure.
