Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Plastic Plain

1 Item Available

A selection of Plastic Plain 9mm Wide GT 3.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit GT 3.000mm Pitch Timing Belts 9mm Wide. No locking device. Use with GT2 or GT3 type belts.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Use with GT2 or GT3 type belts.
Small Parts & Bearings

Additional resources:
Timing Pulleys Catalogue PDF
3mm GT Timing Belts

A more comprehensive listing may be found on the MBA Minibearings main store at Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Plastic Plain.
Number of Teeth Max Belt Width Bore (d) Bore Type Locking Type Indicative
Number of Teeth
40
Max Belt Width
9.00
mm
Bore (d)
6.000
mm
Locking Type
No Locking Device

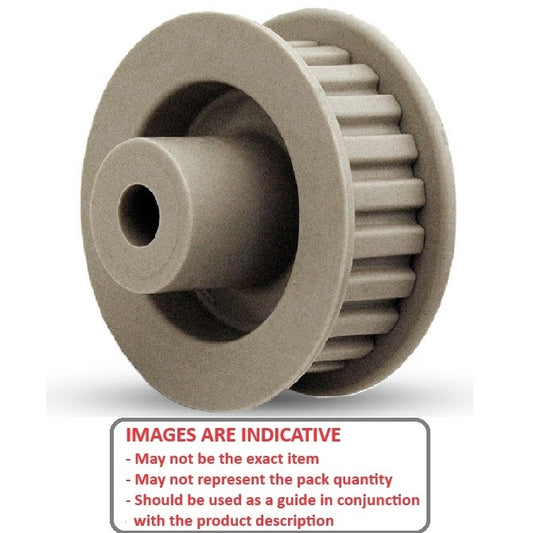

Metric Timing Pulleys - 40 tooth - 9x6 mm - Plastic
Material: Plastic    Type (See Diagram): Fig 2 mm    Pitch Diameter (PD): 38.18 mm    Flange Diameter (FD): 45.0 mm    Overall Length: 20.6 mm    Hub Diameter (HD): 22.0 mm
Part Number: P-030G-040-090FF-PP-N-060 (Each) Metric Timing Pulleys - 40 tooth - 9x6 mm 3mm Pitch - Plastic Pulley
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$7.45 AUD
$14.16 AUD $7.45 AUD
Each
Number of Teeth Max Belt Width Bore (d) Bore Type Indicative
Number of Teeth
40
Max Belt Width
9.00
mm
Bore (d)
6.000
mm

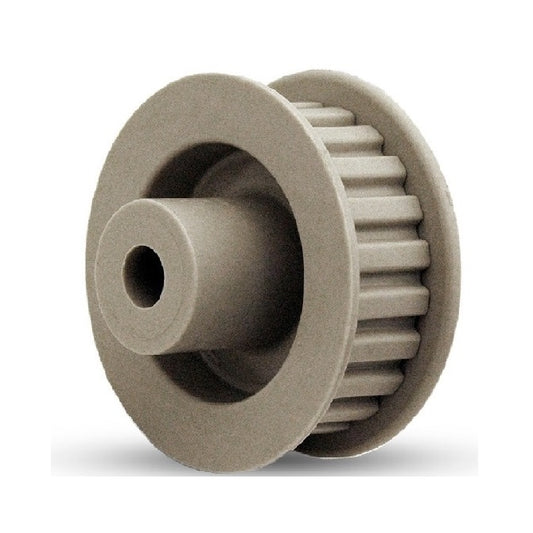

Metric Timing Pulleys - 40 tooth - 9x6 mm - Plastic
Material: Plastic    Locking Type: No Locking Device    Type (See Diagram): Fig 2 mm    Pitch Diameter (PD): 38.18 mm    Flange Diameter (FD): 45.0 mm    Overall Length: 20.6 mm    Hub Diameter (HD): 22.0 mm
Part Number: P-030G-040-090FF-PP-N-060 (Each) Metric Timing Pulleys - 40 tooth - 9x6 mm 3mm Pitch - Plastic Pulley
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$7.45 AUD
$14.16 AUD $7.45 AUD
Each
