Collection: Plungers - Spring Threaded Adapter - Locking
Plungers -> Spring Threaded Adapter -> LockingThere are 2 products in the sub-categories of Plungers - Spring Threaded Adapter - Locking. Browse the Plungers - Spring Threaded Adapter - Locking products table. To narrow down the selection, please choose a sub-category from the links below.
Plungers - Spring Threaded Adapter - Locking - Stainless
A selection of Stainless Locking Spring Threaded Adapter Plungers. Use your own...
Plungers - Spring Threaded Adapter - Locking - Steel
A selection of Steel Locking Spring Threaded Adapter Plungers. Use your own...
Category Details
This category includes various types of spring threaded adapter plungers.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Plungers - Spring Threaded Adapter - Locking category on the MBA Minibearings main store.
| Body Thread Size (A) | Body Thread Length (B) | Initial Pressure (F1) | Final Pressure (F2) | Tip Diameter (D) | Tip Length (C) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Body Thread Size (A)
10-32 UNF (4.76mm)
|
Body Thread Length (B)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
1.0
N |
Final Pressure (F2)
3.0
N |
Tip Diameter (D)
2.6
mm |
Tip Length (C)
2.4
mm |
|
|
Material: Stainless Steel
Category: Plungers - Spring Threaded Adapter - Locking - Stainless |
||||||
|
Part Number: PLST-048F-103-TASL-003 (Each)
Spring Threaded Adapter Plungers - 10-32 UNF - 4.76mm - 10.3 mm - 1 N Locking - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$55.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Body Thread Size (A) | Body Thread Length (B) | Initial Pressure (F1) | Final Pressure (F2) |
Indicative Image |
||
|
Body Thread Size (A)
10-32 UNF (4.76mm)
|
Body Thread Length (B)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
1.0
N |
Final Pressure (F2)
3.0
N |
|
||
|
Material: Stainless Steel
Tip Diameter (D): 2.6 mm
Tip Length (C): 2.4 mm
Category: Plungers - Spring Threaded Adapter - Locking - Stainless |
||||||
|
Part Number: PLST-048F-103-TASL-003 (Each)
Spring Threaded Adapter Plungers - 10-32 UNF - 4.76mm - 10.3 mm - 1 N Locking - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$55.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Body Thread Size (A)
10-32 UNF (4.76mm)
|
Body Thread Length (B)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
2.2
N |
Final Pressure (F2)
6.7
N |
Tip Diameter (D)
2.6
mm |
Tip Length (C)
2.4
mm |
|
|
Material: Steel
Category: Plungers - Spring Threaded Adapter - Locking - Steel |
||||||
|
Part Number: PLST-048F-103-TACL-007 (Each)

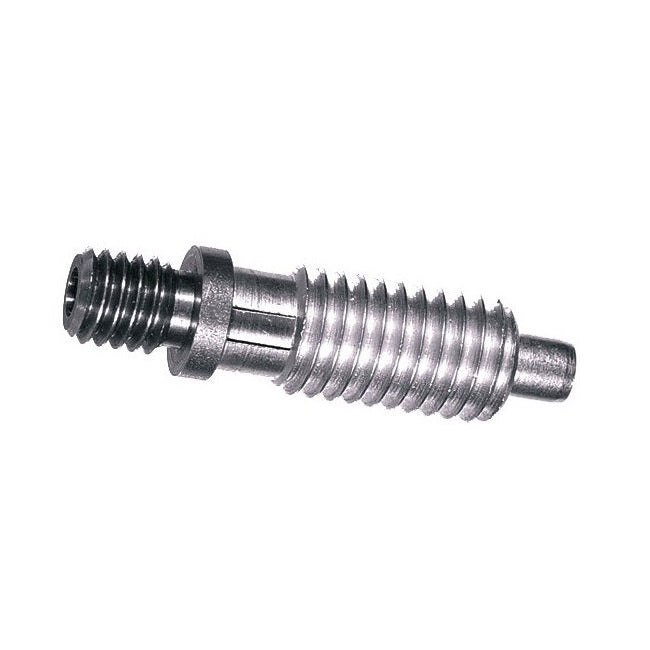

Spring Threaded Adapter Plungers - 10-32 UNF - 4.76mm - 10.3 mm - 2.2 N Locking - Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$43.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Body Thread Size (A)
10-32 UNF (4.76mm)
|
Body Thread Length (B)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
2.2
N |
Final Pressure (F2)
6.7
N |
|
||
|
Material: Steel
Tip Diameter (D): 2.6 mm
Tip Length (C): 2.4 mm
Category: Plungers - Spring Threaded Adapter - Locking - Steel |
||||||
|
Part Number: PLST-048F-103-TACL-007 (Each)
Spring Threaded Adapter Plungers - 10-32 UNF - 4.76mm - 10.3 mm - 2.2 N Locking - Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$43.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
