Plungers - Spring - No Handle - Steel - Acetal Nose

Plungers -> Spring -> No Handle -> Steel -> Acetal Nose

There is only 1 product in the sub-categories of Plungers - Spring - No Handle - Steel - Acetal Nose. Browse the Plungers - Spring - No Handle - Steel - Acetal Nose products table.

Category Details

A selection of Acetal Nose Steel No Handle Spring Plungers. Steel body and acetal nose

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Plungers - Spring - No Handle - Steel - Acetal Nose category on the MBA Minibearings main store.
Thread Size (A) Thread Length (B) Initial Pressure (F1) Final Pressure (F2) Tip Diameter (D) Tip Length (C) Indicative
Thread Size (A)
M8 (8x1.25mm)

Thread Length (B)
22.0
mm

(Equiv. 0.866 in.)
Initial Pressure (F1)
35.00
N
Final Pressure (F2)
22.00
N
Tip Diameter (D)
3.00
mm
Tip Length (C)
3.50
mm

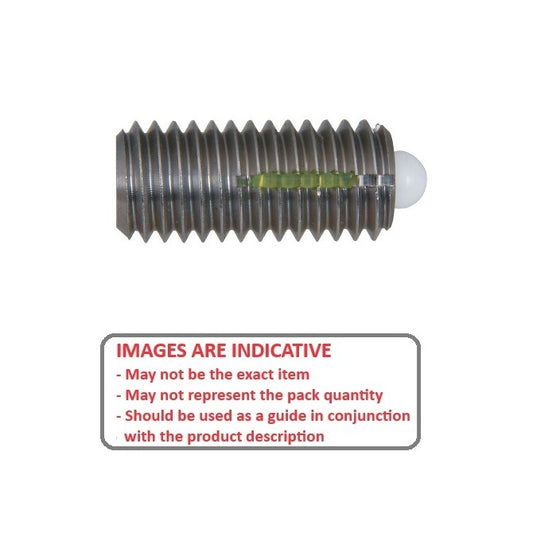

Spring Plungers - M8 - 8x1.25mm - 22 mm - 35 N No Handle - Steel Body with Acetal Nose
Material: Steel Body with Acetal Nose    Body Length (B): 9.00 mm
Deleted Item. Available while stocks last.
Part Number: PLST-080M-220-AC-035 (PK-5)
Spring Plungers - M8 - 8x1.25mm - 22 mm - 35 N No Handle - Steel Body with Acetal Nose Plunger
1 pack (5 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$25.00 AUD
$47.50 AUD $25.00 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (5 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Thread Size (A) Thread Length (B) Initial Pressure (F1) Final Pressure (F2) Indicative
Thread Size (A)
M8 (8x1.25mm)

Thread Length (B)
22.0
mm

(Equiv. 0.866 in.)
Initial Pressure (F1)
35.00
N
Final Pressure (F2)
22.00
N
Spring Plungers - M8 - 8x1.25mm - 22 mm - 35 N No Handle - Steel Body with Acetal Nose
Material: Steel Body with Acetal Nose    Tip Diameter (D): 3.00 mm    Tip Length (C): 3.50 mm    Body Length (B): 9.00 mm
Deleted Item. Available while stocks last.
Part Number: PLST-080M-220-AC-035 (PK-5)
Spring Plungers - M8 - 8x1.25mm - 22 mm - 35 N No Handle - Steel Body with Acetal Nose Plunger
1 pack (5 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$25.00 AUD
$47.50 AUD $25.00 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (5 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
