Collection: Plungers - Spring - No Handle - Stainless
Plungers -> Spring -> No Handle -> StainlessThere are 11 products in the sub-categories of Plungers - Spring - No Handle - Stainless. Browse the Plungers - Spring - No Handle - Stainless products table. To narrow down the selection, please choose a sub-category from the links below.
Plungers - Spring - No Handle - Stainless - Acetal Nose
A selection of Acetal Nose Stainless No Handle Spring Plungers. 303 Stainless...
Plungers - Spring - No Handle - Stainless - Hex Nose
A selection of Hex Nose Stainless No Handle Spring Plungers. Stainless Steel...
Plungers - Spring - No Handle - Stainless - Plastic Nose
A selection of Plastic Nose Stainless No Handle Spring Plungers. 303 Stainless...
Plungers - Spring - No Handle - Stainless - Stainless Nose
A selection of Stainless Nose Stainless No Handle Spring Plungers. 303 Stainless...
Category Details
This category includes various types of spring plungers.
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Plungers - Spring - No Handle - Stainless category on the MBA Minibearings main store.
| Thread Size (A) | Thread Length (B) | Initial Pressure (F1) | Final Pressure (F2) | Tip Diameter (D) | Tip Length (C) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Thread Size (A)
M3 (3x0.5mm)
|
Thread Length (B)
10.0
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
1.000
N |
Final Pressure (F2)
2.00
N |
Tip Diameter (D)
1.20
mm |
Tip Length (C)
1.00
mm |
|
|
Material: Stainless Steel
Body Length (B): 10 mm
Category: Plungers - Spring - No Handle - Stainless - Stainless Nose |
||||||
|
Part Number: PLST-030M-100-S3-002 (Each)
Spring Plungers - M3 - 3x0.5mm - 10 mm - 1 N No Handle - Stainless Steel Plunger 10 Available Now | Further orders can be expected around Wed, Jan 14, 2026 Regular price
$6.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Thread Size (A) | Thread Length (B) | Initial Pressure (F1) | Final Pressure (F2) |
Indicative Image |
||
|
Thread Size (A)
M3 (3x0.5mm)
|
Thread Length (B)
10.0
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
1.000
N |
Final Pressure (F2)
2.00
N |
|
||
|
Material: Stainless Steel
Tip Diameter (D): 1.20 mm
Tip Length (C): 1.00 mm
Body Length (B): 10 mm
Category: Plungers - Spring - No Handle - Stainless - Stainless Nose |
||||||
|
Part Number: PLST-030M-100-S3-002 (Each)
Spring Plungers - M3 - 3x0.5mm - 10 mm - 1 N No Handle - Stainless Steel Plunger 10 Available Now | Further orders can be expected around Wed, Jan 14, 2026 Regular price
$6.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
M3 (3x0.5mm)
|
Thread Length (B)
10.0
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
2.000
N |
Final Pressure (F2)
5.00
N |
Tip Diameter (D)
1.00
mm |
Tip Length (C)
2.00
mm |
|
|
Material: Stainless Steel
Body Length (B): 10 mm
Category: Plungers - Spring - No Handle - Stainless - Stainless Nose |
||||||
|
Part Number: PLST-030M-010-S3-005 (Each)
Spring Plungers - M3 - 3x0.5mm - 10 mm - 2 N No Handle - Stainless Steel Plunger 17 Available Now | Further orders can be expected around Wed, Jan 14, 2026 Regular price
$5.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
M3 (3x0.5mm)
|
Thread Length (B)
10.0
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
2.000
N |
Final Pressure (F2)
5.00
N |
|
||
|
Material: Stainless Steel
Tip Diameter (D): 1.00 mm
Tip Length (C): 2.00 mm
Body Length (B): 10 mm
Category: Plungers - Spring - No Handle - Stainless - Stainless Nose |
||||||
|
Part Number: PLST-030M-010-S3-005 (Each)
Spring Plungers - M3 - 3x0.5mm - 10 mm - 2 N No Handle - Stainless Steel Plunger 17 Available Now | Further orders can be expected around Wed, Jan 14, 2026 Regular price
$5.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|

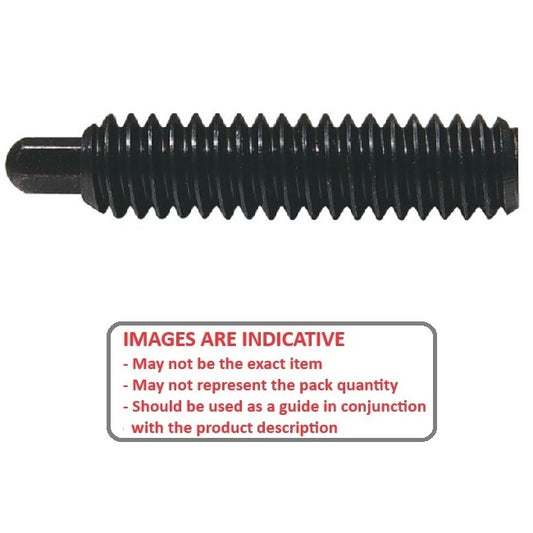

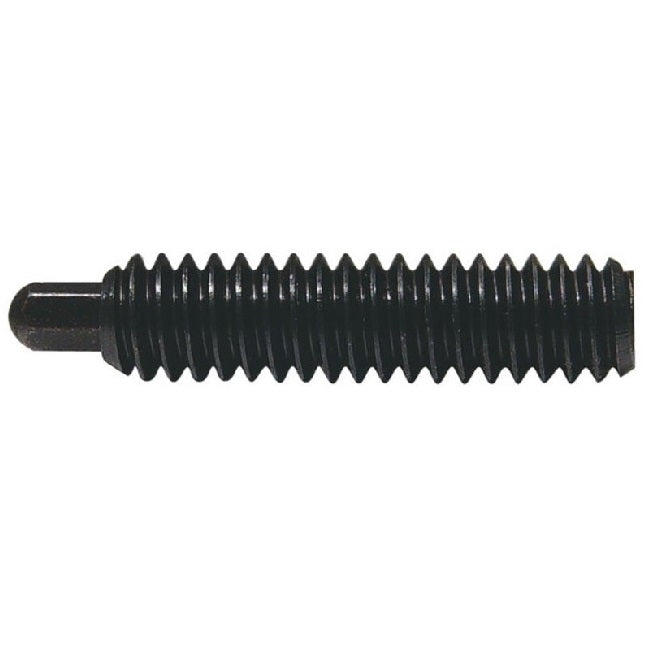

Thread Size (A)
6-32 UNC (3.5mm)
|
Thread Length (B)
12.7
mm (Equiv. 0.5 in.) |
Initial Pressure (F1)
4.5
N |
Final Pressure (F2)
7.1
N |
Tip Diameter (D)
1.1
mm |
Tip Length (C)
1.6
mm |
|
|
Material: Stainless Steel
Body Length (B): 12.7 mm
Category: Plungers - Spring - No Handle - Stainless - Hex Nose |
||||||
|
Part Number: PLST-035C-127-S3HX-007 (Each)
Spring Plungers - 6-32 UNC - 3.5mm - 12.7 mm - 4.5 N No Handle - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$16.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
6-32 UNC (3.5mm)
|
Thread Length (B)
12.7
mm (Equiv. 0.5 in.) |
Initial Pressure (F1)
4.5
N |
Final Pressure (F2)
7.1
N |
|
||
|
Material: Stainless Steel
Tip Diameter (D): 1.1 mm
Tip Length (C): 1.6 mm
Body Length (B): 12.7 mm
Category: Plungers - Spring - No Handle - Stainless - Hex Nose |
||||||
|
Part Number: PLST-035C-127-S3HX-007 (Each)
Spring Plungers - 6-32 UNC - 3.5mm - 12.7 mm - 4.5 N No Handle - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$16.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
M4 (4x0.7mm)
|
Thread Length (B)
9.0
mm (Equiv. 0.354 in.) |
Initial Pressure (F1)
2.0
N |
Final Pressure (F2)
7.0
N |
Tip Diameter (D)
1.8
mm |
Tip Length (C)
1.5
mm |
|
|
Material: Stainless Steel
Body Length (B): 9.0 mm
Category: Plungers - Spring - No Handle - Stainless - Stainless Nose |
||||||
|
Part Number: PLST-040M-090-S3-007 (Each)
Spring Plungers - M4 - 4x0.7mm - 9 mm - 2 N No Handle - Stainless Steel Plunger 1 Available Now | Further orders can be expected around Wed, Dec 31, 2025 Regular price
$10.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
M4 (4x0.7mm)
|
Thread Length (B)
9.0
mm (Equiv. 0.354 in.) |
Initial Pressure (F1)
2.0
N |
Final Pressure (F2)
7.0
N |
|
||
|
Material: Stainless Steel
Tip Diameter (D): 1.8 mm
Tip Length (C): 1.5 mm
Body Length (B): 9.0 mm
Category: Plungers - Spring - No Handle - Stainless - Stainless Nose |
||||||
|
Part Number: PLST-040M-090-S3-007 (Each)
Spring Plungers - M4 - 4x0.7mm - 9 mm - 2 N No Handle - Stainless Steel Plunger 1 Available Now | Further orders can be expected around Wed, Dec 31, 2025 Regular price
$10.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|

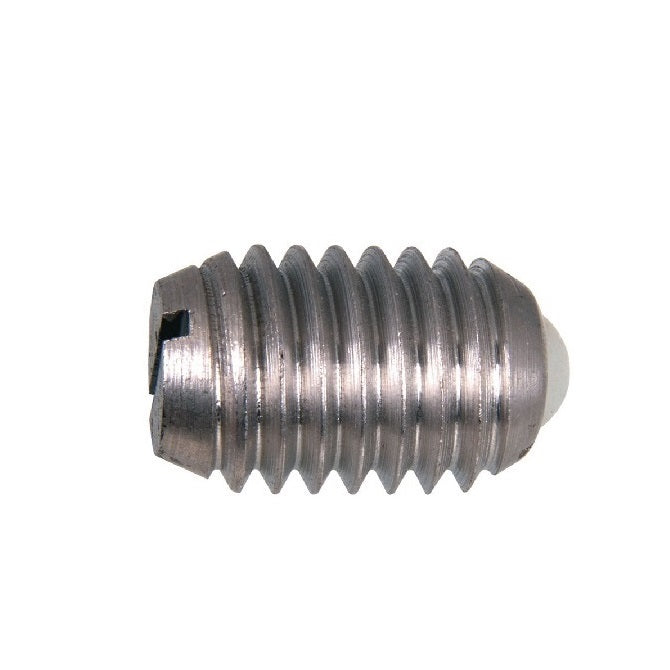

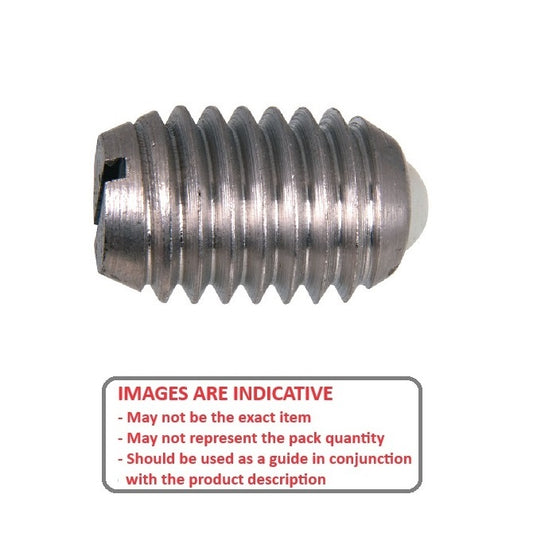

Thread Size (A)
8-32 UNC (4.17mm)
|
Thread Length (B)
11.1
mm (Equiv. 0.437 in.) |
Initial Pressure (F1)
2.2
N |
Final Pressure (F2)
6.7
N |
Tip Diameter (D)
1.8
mm |
Tip Length (C)
1.3
mm |
|
|
Material: Stainless Steel Body with Acetal
Body Length (B): 11.1 mm
Category: Plungers - Spring - No Handle - Stainless - Acetal Nose |
||||||
|
Part Number: PLST-042C-111-AS-007 (Each)
Spring Plungers - 8-32 UNC - 4.17mm - 11.1 mm - 2.2 N No Handle - Stainless Steel Body with Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$20.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
8-32 UNC (4.17mm)
|
Thread Length (B)
11.1
mm (Equiv. 0.437 in.) |
Initial Pressure (F1)
2.2
N |
Final Pressure (F2)
6.7
N |
|
||
|
Material: Stainless Steel Body with Acetal
Tip Diameter (D): 1.8 mm
Tip Length (C): 1.3 mm
Body Length (B): 11.1 mm
Category: Plungers - Spring - No Handle - Stainless - Acetal Nose |
||||||
|
Part Number: PLST-042C-111-AS-007 (Each)
Spring Plungers - 8-32 UNC - 4.17mm - 11.1 mm - 2.2 N No Handle - Stainless Steel Body with Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$20.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|

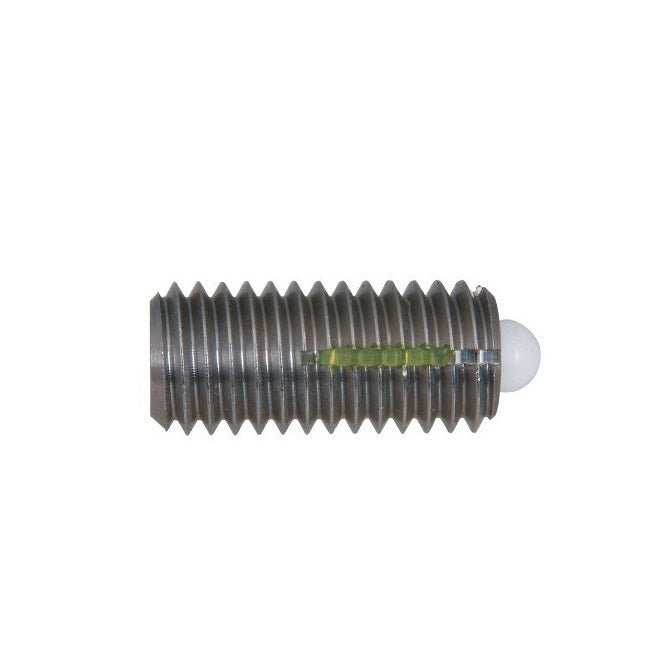

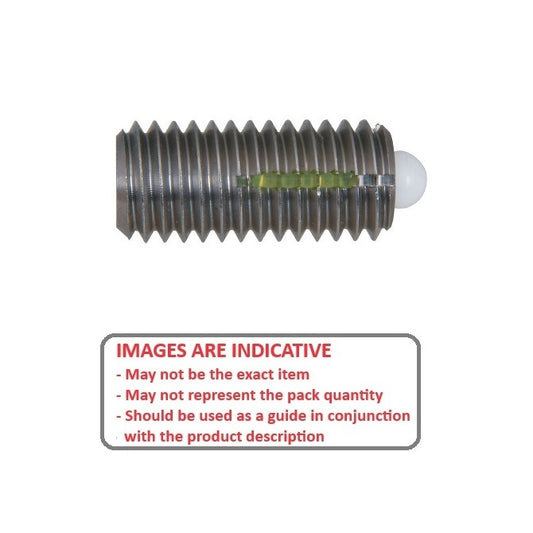

Thread Size (A)
10-32 UNF (4.76mm)
|
Thread Length (B)
18.0
mm (Equiv. 0.709 in.) |
Initial Pressure (F1)
5.0
N |
Final Pressure (F2)
17.0
N |
Tip Diameter (D)
22.9
mm |
Tip Length (C)
2.3
mm |
|
|
Material: Stainless Steel Body with Plastic
Body Length (B): 18.0 mm
Category: Plungers - Spring - No Handle - Stainless - Plastic Nose |
||||||
|
Part Number: PLST-048F-180-PS-017 (PK-5)
Spring Plungers - 10-32 UNF - 4.76mm - 18 mm - 5 N No Handle - Stainless Steel Body with Plastic Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$136.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
10-32 UNF (4.76mm)
|
Thread Length (B)
18.0
mm (Equiv. 0.709 in.) |
Initial Pressure (F1)
5.0
N |
Final Pressure (F2)
17.0
N |
|
||
|
Material: Stainless Steel Body with Plastic
Tip Diameter (D): 22.9 mm
Tip Length (C): 2.3 mm
Body Length (B): 18.0 mm
Category: Plungers - Spring - No Handle - Stainless - Plastic Nose |
||||||
|
Part Number: PLST-048F-180-PS-017 (PK-5)
Spring Plungers - 10-32 UNF - 4.76mm - 18 mm - 5 N No Handle - Stainless Steel Body with Plastic Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$136.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
1/4-20 UNC (6.35mm)
|
Thread Length (B)
13.5
mm (Equiv. 0.531 in.) |
Initial Pressure (F1)
13.4
N |
Final Pressure (F2)
46.7
N |
Tip Diameter (D)
3.0
mm |
Tip Length (C)
2.0
mm |
|
|
Material: Stainless Steel
Body Length (B): 13.5 mm
Category: Plungers - Spring - No Handle - Stainless - Stainless Nose |
||||||
|
Part Number: PLST-064C-135-S3-047 (Each)
Spring Plungers - 1/4-20 UNC - 6.35mm - 13.5 mm - 13.4 N No Handle - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$14.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
1/4-20 UNC (6.35mm)
|
Thread Length (B)
13.5
mm (Equiv. 0.531 in.) |
Initial Pressure (F1)
13.4
N |
Final Pressure (F2)
46.7
N |
|
||
|
Material: Stainless Steel
Tip Diameter (D): 3.0 mm
Tip Length (C): 2.0 mm
Body Length (B): 13.5 mm
Category: Plungers - Spring - No Handle - Stainless - Stainless Nose |
||||||
|
Part Number: PLST-064C-135-S3-047 (Each)
Spring Plungers - 1/4-20 UNC - 6.35mm - 13.5 mm - 13.4 N No Handle - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$14.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
5/16-18 UNC (7.94mm)
|
Thread Length (B)
25.4
mm (Equiv. 1 in.) |
Initial Pressure (F1)
6.7
N |
Final Pressure (F2)
20.0
N |
Tip Diameter (D)
3.4
mm |
Tip Length (C)
4.8
mm |
|
|
Material: Stainless Steel
Body Length (B): 25.4 mm
Category: Plungers - Spring - No Handle - Stainless - Stainless Nose |
||||||
|
Part Number: PLST-079C-254-S3-020 (Each)
Spring Plungers - 5/16-18 UNC - 7.94mm - 25.4 mm - 6.7 N No Handle - Stainless Steel Plunger 24 Available Now | Further orders can be expected around Wed, Dec 31, 2025 Regular price
$31.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
5/16-18 UNC (7.94mm)
|
Thread Length (B)
25.4
mm (Equiv. 1 in.) |
Initial Pressure (F1)
6.7
N |
Final Pressure (F2)
20.0
N |
|
||
|
Material: Stainless Steel
Tip Diameter (D): 3.4 mm
Tip Length (C): 4.8 mm
Body Length (B): 25.4 mm
Category: Plungers - Spring - No Handle - Stainless - Stainless Nose |
||||||
|
Part Number: PLST-079C-254-S3-020 (Each)
Spring Plungers - 5/16-18 UNC - 7.94mm - 25.4 mm - 6.7 N No Handle - Stainless Steel Plunger 24 Available Now | Further orders can be expected around Wed, Dec 31, 2025 Regular price
$31.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
M8 (8x1.25mm)
|
Thread Length (B)
22.0
mm (Equiv. 0.866 in.) |
Initial Pressure (F1)
7.0
N |
Final Pressure (F2)
29.0
N |
Tip Diameter (D)
3.5
mm |
Tip Length (C)
3.0
mm |
|
|
Material: Stainless Steel
Body Length (B): 22.0 mm
Category: Plungers - Spring - No Handle - Stainless - Stainless Nose |
||||||
|
Part Number: PLST-080M-220-S3-029 (Each)
Spring Plungers - M8 - 8x1.25mm - 22 mm - 7 N No Handle - Stainless Steel Plunger 1 Available Now | Further orders can be expected around Wed, Dec 31, 2025 Regular price
$18.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
M8 (8x1.25mm)
|
Thread Length (B)
22.0
mm (Equiv. 0.866 in.) |
Initial Pressure (F1)
7.0
N |
Final Pressure (F2)
29.0
N |
|
||
|
Material: Stainless Steel
Tip Diameter (D): 3.5 mm
Tip Length (C): 3.0 mm
Body Length (B): 22.0 mm
Category: Plungers - Spring - No Handle - Stainless - Stainless Nose |
||||||
|
Part Number: PLST-080M-220-S3-029 (Each)
Spring Plungers - M8 - 8x1.25mm - 22 mm - 7 N No Handle - Stainless Steel Plunger 1 Available Now | Further orders can be expected around Wed, Dec 31, 2025 Regular price
$18.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
3/8-16 UNC (9.53mm)
|
Thread Length (B)
28.6
mm (Equiv. 1.126 in.) |
Initial Pressure (F1)
12.5
N |
Final Pressure (F2)
32.0
N |
Tip Diameter (D)
4.7
mm |
Tip Length (C)
4.8
mm |
|
|
Material: Stainless Steel
Body Length (B): 28.6 mm
Category: Plungers - Spring - No Handle - Stainless - Stainless Nose |
||||||
|
Part Number: PLST-095C-286-S3-032 (Each)
Spring Plungers - 3/8-16 UNC - 9.53mm - 28.6 mm - 12.5 N No Handle - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$36.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
3/8-16 UNC (9.53mm)
|
Thread Length (B)
28.6
mm (Equiv. 1.126 in.) |
Initial Pressure (F1)
12.5
N |
Final Pressure (F2)
32.0
N |
|
||
|
Material: Stainless Steel
Tip Diameter (D): 4.7 mm
Tip Length (C): 4.8 mm
Body Length (B): 28.6 mm
Category: Plungers - Spring - No Handle - Stainless - Stainless Nose |
||||||
|
Part Number: PLST-095C-286-S3-032 (Each)
Spring Plungers - 3/8-16 UNC - 9.53mm - 28.6 mm - 12.5 N No Handle - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 31, 2025 Regular price
$36.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
M10 (10x1.5mm)
|
Thread Length (B)
22.0
mm (Equiv. 0.866 in.) |
Initial Pressure (F1)
8.0
N |
Final Pressure (F2)
31.0
N |
Tip Diameter (D)
4.0
mm |
Tip Length (C)
3.0
mm |
|
|
Material: Stainless Steel
Body Length (B): 22.0 mm
Category: Plungers - Spring - No Handle - Stainless - Stainless Nose |
||||||
|
Part Number: PLST-100M-220-S3-031 (Each)
Spring Plungers - M10 - 10x1.5mm - 22 mm - 8 N No Handle - Stainless Steel Plunger 1 Available Now | Further orders can be expected around Wed, Dec 31, 2025 Regular price
$22.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
M10 (10x1.5mm)
|
Thread Length (B)
22.0
mm (Equiv. 0.866 in.) |
Initial Pressure (F1)
8.0
N |
Final Pressure (F2)
31.0
N |
|
||
|
Material: Stainless Steel
Tip Diameter (D): 4.0 mm
Tip Length (C): 3.0 mm
Body Length (B): 22.0 mm
Category: Plungers - Spring - No Handle - Stainless - Stainless Nose |
||||||
|
Part Number: PLST-100M-220-S3-031 (Each)
Spring Plungers - M10 - 10x1.5mm - 22 mm - 8 N No Handle - Stainless Steel Plunger 1 Available Now | Further orders can be expected around Wed, Dec 31, 2025 Regular price
$22.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
