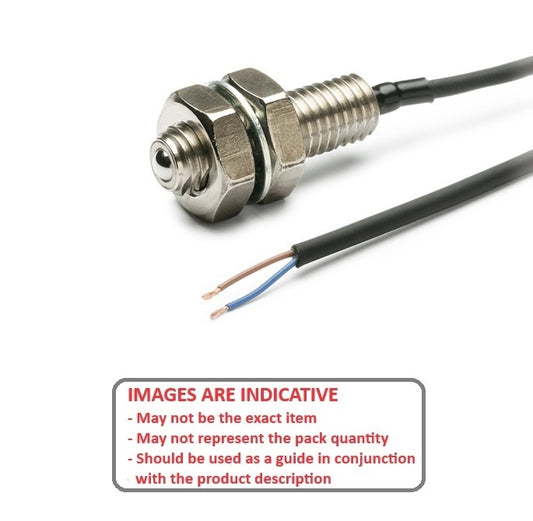

Plungers - Ball Threaded - With Limit Switch

6 Products in this selection
  • Suitable for locking and releasing a device by using a built-in electrical switch. Stainless steel spring, nickel plated body, hardened steel ball.
  • Supply Cable : Grey for normally open contacts, black for normally closed. Oil resistant. Max tensile load 20N.
  • Working Temperature: -10 deg C to 80 deg C.
  • Electrical Supply : 20 mA DC Max. Switching load recommended 5-10 mA.
  • Voltage : 12-24V Supply Cable 3mm - 2 Phase, 2 metres long.
  • Safety Standard : IP40 Average Switch Life Span : 3 milliion switchings
Additional resources:
Spring Plungers
Push Fit Ball Plungers
Thread Size (d) Body Length (l) Initial Pressure (F1) Final Pressure (F2) Tip Diameter (d1) Tip Length (l3) Indicative
M6 (6x1mm)
 27.0
mm 		6.0
N 		13.0
N 		3.0
mm 		0.8
mm 		1069512 | PLBT-060M-200-LO-013 --- Ball Threaded Plungers - M6 (6x1mm) x 27 mm x 6 N
Material: Steel Nickel Plated    Contact: Normally Open    Contact Distance (l2): 0.3
Part Number: PLBT-060M-200-LO-013 Ball Threaded Plungers - M6 (6x1mm) x 27 mm x 6 N
Out of Stock | Backorder Now | Backorders for more can be expected around Sat, Feb 08, 2025
$229.50 AUD
$229.50 AUD
Each
View the product page first if you are unsure ->
Thread Size (d) Body Length (l) Initial Pressure (F1) Final Pressure (F2) Indicative
M6 (6x1mm)
 27.0
mm 		6.0
N 		13.0
N 		1069512 | PLBT-060M-200-LO-013 --- Ball Threaded Plungers - M6 (6x1mm) x 27 mm x 6 N
Material: Steel Nickel Plated    Tip Diameter (d1): 3.0 mm    Tip Length (l3): 0.8 mm    Contact: Normally Open    Contact Distance (l2): 0.3
Part Number: PLBT-060M-200-LO-013 Ball Threaded Plungers - M6 (6x1mm) x 27 mm x 6 N
Out of Stock | Backorder Now | Backorders for more can be expected around Sat, Feb 08, 2025
$229.50 AUD
$229.50 AUD
Each
View the product page first if you are unsure.
M6 (6x1mm)
 27.0
mm 		6.0
N 		13.0
N 		3.0
mm 		0.8
mm 		1069513 | PLBT-060M-200-LC-013 --- Ball Threaded Plungers - M6 (6x1mm) x 27 mm x 6 N
Material: Steel Nickel Plated    Contact: Normally Closed    Contact Distance (l2): 0.3
Part Number: PLBT-060M-200-LC-013 Ball Threaded Plungers - M6 (6x1mm) x 27 mm x 6 N
Out of Stock | Backorder Now | Backorders for more can be expected around Sat, Feb 08, 2025
$228.86 AUD
$228.86 AUD
Each
View the product page first if you are unsure ->
M6 (6x1mm)
 27.0
mm 		6.0
N 		13.0
N 		1069513 | PLBT-060M-200-LC-013 --- Ball Threaded Plungers - M6 (6x1mm) x 27 mm x 6 N
Material: Steel Nickel Plated    Tip Diameter (d1): 3.0 mm    Tip Length (l3): 0.8 mm    Contact: Normally Closed    Contact Distance (l2): 0.3
Part Number: PLBT-060M-200-LC-013 Ball Threaded Plungers - M6 (6x1mm) x 27 mm x 6 N
Out of Stock | Backorder Now | Backorders for more can be expected around Sat, Feb 08, 2025
$228.86 AUD
$228.86 AUD
Each
View the product page first if you are unsure.
M8x1.25
 30.0
mm 		8.0
N 		16.0
N 		4.0
mm 		1.0
mm 		1083421 | PLBT-080M-230-LO-016 --- Ball Threaded Plungers - M8x1.25 x 30 mm x 8 N
Material: Steel Nickel Plated    Contact: Normally Open    Contact Distance (l2): 0.5
Part Number: PLBT-080M-230-LO-016 Ball Threaded Plungers - M8x1.25 x 30 mm x 8 N
Out of Stock | Backorder Now | Backorders for more can be expected around Sat, Feb 08, 2025
$229.59 AUD
$229.59 AUD
Each
View the product page first if you are unsure ->
M8x1.25
 30.0
mm 		8.0
N 		16.0
N 		1083421 | PLBT-080M-230-LO-016 --- Ball Threaded Plungers - M8x1.25 x 30 mm x 8 N
Material: Steel Nickel Plated    Tip Diameter (d1): 4.0 mm    Tip Length (l3): 1.0 mm    Contact: Normally Open    Contact Distance (l2): 0.5
Part Number: PLBT-080M-230-LO-016 Ball Threaded Plungers - M8x1.25 x 30 mm x 8 N
Out of Stock | Backorder Now | Backorders for more can be expected around Sat, Feb 08, 2025
$229.59 AUD
$229.59 AUD
Each
View the product page first if you are unsure.
M8x1.25
 30.0
mm 		8.0
N 		16.0
N 		4.0
mm 		1.0
mm 		1083422 | PLBT-080M-230-LC-016 --- Ball Threaded Plungers - M8x1.25 x 30 mm x 8 N
Material: Steel Nickel Plated    Contact: Normally Closed    Contact Distance (l2): 0.5
Part Number: PLBT-080M-230-LC-016 Ball Threaded Plungers - M8x1.25 x 30 mm x 8 N
Out of Stock | Backorder Now | Backorders for more can be expected around Sat, Feb 08, 2025
$230.32 AUD
$230.32 AUD
Each
View the product page first if you are unsure ->
M8x1.25
 30.0
mm 		8.0
N 		16.0
N 		1083422 | PLBT-080M-230-LC-016 --- Ball Threaded Plungers - M8x1.25 x 30 mm x 8 N
Material: Steel Nickel Plated    Tip Diameter (d1): 4.0 mm    Tip Length (l3): 1.0 mm    Contact: Normally Closed    Contact Distance (l2): 0.5
Part Number: PLBT-080M-230-LC-016 Ball Threaded Plungers - M8x1.25 x 30 mm x 8 N
Out of Stock | Backorder Now | Backorders for more can be expected around Sat, Feb 08, 2025
$230.32 AUD
$230.32 AUD
Each
View the product page first if you are unsure.
M10 (10x1.5mm)
 33.0
mm 		10.0
N 		20.0
N 		5.0
mm 		1.2
mm 		1093781 | PLBT-100M-270-LO-020 --- Ball Threaded Plungers - M10 (10x1.5mm) x 33 mm x 10 N
Material: Steel Nickel Plated    Contact: Normally Open    Contact Distance (l2): 0.7
Part Number: PLBT-100M-270-LO-020 Ball Threaded Plungers - M10 (10x1.5mm) x 33 mm x 10 N
Out of Stock | Backorder Now | Backorders for more can be expected around Sat, Feb 08, 2025
$242.32 AUD
$242.32 AUD
Each
View the product page first if you are unsure ->
M10 (10x1.5mm)
 33.0
mm 		10.0
N 		20.0
N 		1093781 | PLBT-100M-270-LO-020 --- Ball Threaded Plungers - M10 (10x1.5mm) x 33 mm x 10 N
Material: Steel Nickel Plated    Tip Diameter (d1): 5.0 mm    Tip Length (l3): 1.2 mm    Contact: Normally Open    Contact Distance (l2): 0.7
Part Number: PLBT-100M-270-LO-020 Ball Threaded Plungers - M10 (10x1.5mm) x 33 mm x 10 N
Out of Stock | Backorder Now | Backorders for more can be expected around Sat, Feb 08, 2025
$242.32 AUD
$242.32 AUD
Each
View the product page first if you are unsure.
M10 (10x1.5mm)
 33.0
mm 		10.0
N 		20.0
N 		5.0
mm 		1.2
mm 		1093782 | PLBT-100M-270-LC-020 --- Ball Threaded Plungers - M10 (10x1.5mm) x 33 mm x 10 N
Material: Steel Nickel Plated    Contact: Normally Closed    Contact Distance (l2): 0.7
Part Number: PLBT-100M-270-LC-020 Ball Threaded Plungers - M10 (10x1.5mm) x 33 mm x 10 N
Out of Stock | Backorder Now | Backorders for more can be expected around Sat, Feb 08, 2025
$242.32 AUD
$242.32 AUD
Each
View the product page first if you are unsure ->
M10 (10x1.5mm)
 33.0
mm 		10.0
N 		20.0
N 		1093782 | PLBT-100M-270-LC-020 --- Ball Threaded Plungers - M10 (10x1.5mm) x 33 mm x 10 N
Material: Steel Nickel Plated    Tip Diameter (d1): 5.0 mm    Tip Length (l3): 1.2 mm    Contact: Normally Closed    Contact Distance (l2): 0.7
Part Number: PLBT-100M-270-LC-020 Ball Threaded Plungers - M10 (10x1.5mm) x 33 mm x 10 N
Out of Stock | Backorder Now | Backorders for more can be expected around Sat, Feb 08, 2025
$242.32 AUD
$242.32 AUD
Each
View the product page first if you are unsure.
