Collection: Plungers - Ball Threaded - Steel Body
Plungers -> Ball Threaded -> Steel BodyThere is only 1 product in the sub-categories of Plungers - Ball Threaded - Steel Body. Browse the Plungers - Ball Threaded - Steel Body products table. To narrow down the selection, please choose a sub-category from the links below.
Plungers - Ball Threaded - Steel Body - Nylon Ball
A selection of Nylon Ball Steel Body Ball Threaded Plungers. Items shown...
Category Details
This category includes various types of ball threaded plungers.
- Spring-loaded mechanical component with a threaded body, used for locating, securing, or applying pressure.
- When pressure is applied to the ball, it compresses the internal spring and can be temporarily pushed into the body, allowing parts to be moved, and then it springs back to its original position to hold them in place.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Plungers - Ball Threaded - Steel Body category on the MBA Minibearings main store.
| Thread Size (D) | Body Length (L) | Initial Pressure (F1) | Final Pressure (F2) | Ball Diameter (D1) | Ball Height (H) |

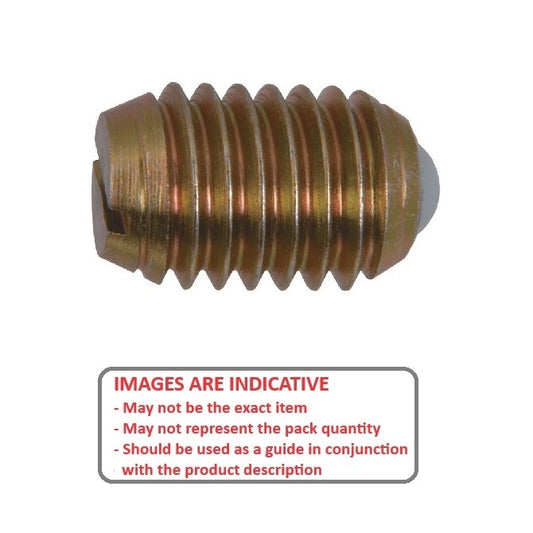

Indicative Image |
|---|---|---|---|---|---|---|
|
Thread Size (D)
1/4-20 UNC (6.35mm)
|
Body Length (L)
13.5
mm (Equiv. 0.531 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
17.8
N |
Ball Diameter (D1)
3.2
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Steel Body with Nylon Ball
Category: Plungers - Ball Threaded - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBT-064C-135-CN-018 (Each)

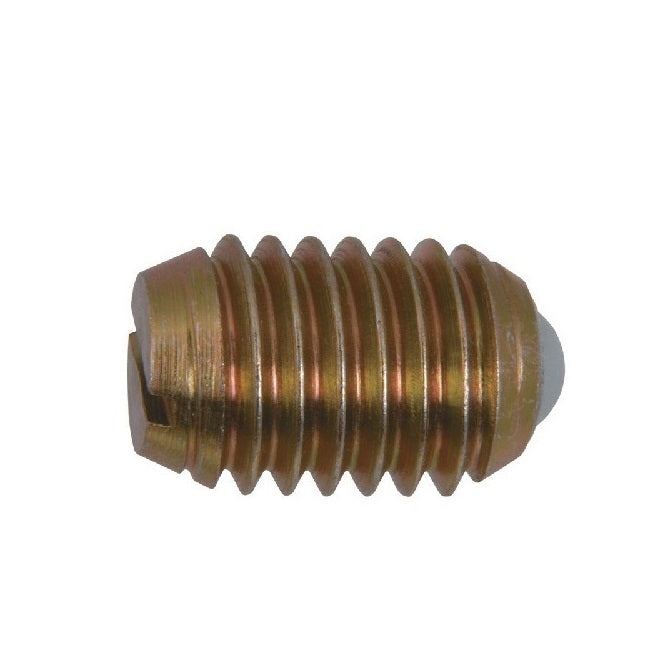

Ball Threaded Plungers - 1/4-20 UNC - 6.35mm - 13.5 mm - 8.9 N - Steel Body with Nylon Ball Plunger 12 Available Now | Item Discontinued - Up to 12 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$5.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Thread Size (D) | Body Length (L) | Initial Pressure (F1) | Final Pressure (F2) |
Indicative Image |
||
|
Thread Size (D)
1/4-20 UNC (6.35mm)
|
Body Length (L)
13.5
mm (Equiv. 0.531 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
17.8
N |
|
||
|
Material: Steel Body with Nylon Ball
Ball Diameter (D1): 3.2 mm
Ball Height (H): 0.9 mm
Category: Plungers - Ball Threaded - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBT-064C-135-CN-018 (Each)
Ball Threaded Plungers - 1/4-20 UNC - 6.35mm - 13.5 mm - 8.9 N - Steel Body with Nylon Ball Plunger 12 Available Now | Item Discontinued - Up to 12 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$5.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
