Plungers - Ball Threaded - Stainless Body and Ball with Threadlock

Plungers -> Ball Threaded -> Stainless Body and Ball with Threadlock

There are 6 products in the sub-categories of Plungers - Ball Threaded - Stainless Body and Ball with Threadlock. Browse the Plungers - Ball Threaded - Stainless Body and Ball with Threadlock products table.

Category Details

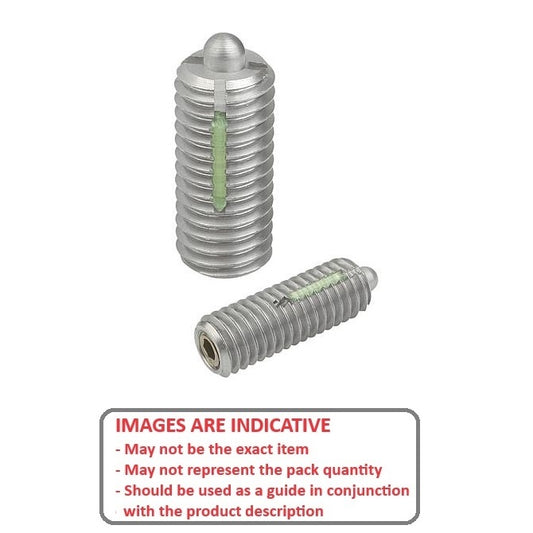

A selection of Stainless Body and Ball with Threadlock Ball Threaded Plungers. With Long-Lok thread locking compound to prevent loosening

  • Spring-loaded mechanical component with a threaded body, used for locating, securing, or applying pressure.
  • When pressure is applied to the ball, it compresses the internal spring and can be temporarily pushed into the body, allowing parts to be moved, and then it springs back to its original position to hold them in place.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Plungers - Ball Threaded - Stainless Body and Ball with Threadlock category on the MBA Minibearings main store.
Thread Size (D) Body Length (L) Initial Pressure (F1) Final Pressure (F2) Ball Diameter (D1) Ball Height (H) Indicative
Thread Size (D)
M6 (6x1mm)

Body Length (L)
14.0
mm

(Equiv. 0.551 in.)
Initial Pressure (F1)
9.0
N
Final Pressure (F2)
13.0
N
Ball Diameter (D1)
3.5
mm
Ball Height (H)
1.0
mm
Ball Threaded Plungers - M6 - 6x1mm - 14 mm - 9 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: 1mm Slotted Drive
Part Number: PLBT-060M-140-S3LK-013 (Each)
Ball Threaded Plungers - M6 - 6x1mm - 14 mm - 9 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
2 Available Now | Further orders can be expected around Tue, Dec 30, 2025
$11.68 AUD
$14.02 AUD $11.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Thread Size (D) Body Length (L) Initial Pressure (F1) Final Pressure (F2) Indicative
Thread Size (D)
M6 (6x1mm)

Body Length (L)
14.0
mm

(Equiv. 0.551 in.)
Initial Pressure (F1)
9.0
N
Final Pressure (F2)
13.0
N
Ball Threaded Plungers - M6 - 6x1mm - 14 mm - 9 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 3.5 mm    Ball Height (H): 1.0 mm    Drive: 1mm Slotted Drive
Part Number: PLBT-060M-140-S3LK-013 (Each)
Ball Threaded Plungers - M6 - 6x1mm - 14 mm - 9 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
2 Available Now | Further orders can be expected around Tue, Dec 30, 2025
$11.68 AUD
$14.02 AUD $11.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Thread Size (D)
1/4-20 UNC (6.35mm)

Body Length (L)
14.0
mm

(Equiv. 0.551 in.)
Initial Pressure (F1)
2.9
N
Final Pressure (F2)
40.0
N
Ball Diameter (D1)
3.6
mm
Ball Height (H)
1.0
mm
Ball Threaded Plungers - 1/4-20 UNC - 6.35mm - 14 mm - 2.9 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: Slotted
Part Number: PLBT-064C-140-S3LK-040 (Each)
Ball Threaded Plungers - 1/4-20 UNC - 6.35mm - 14 mm - 2.9 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
5 Available Now | Further orders can be expected around Tue, Dec 30, 2025
$17.59 AUD
$17.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

5 Available Now. Backorder if more than 5.
Thread Size (D)
1/4-20 UNC (6.35mm)

Body Length (L)
14.0
mm

(Equiv. 0.551 in.)
Initial Pressure (F1)
2.9
N
Final Pressure (F2)
40.0
N
Ball Threaded Plungers - 1/4-20 UNC - 6.35mm - 14 mm - 2.9 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 3.6 mm    Ball Height (H): 1.0 mm    Drive: Slotted
Part Number: PLBT-064C-140-S3LK-040 (Each)
Ball Threaded Plungers - 1/4-20 UNC - 6.35mm - 14 mm - 2.9 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
5 Available Now | Further orders can be expected around Tue, Dec 30, 2025
$17.59 AUD
$17.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

5 Available Now. Backorder if more than 5.
Thread Size (D)
M8 (8x1.25mm)

Body Length (L)
16.0
mm

(Equiv. 0.63 in.)
Initial Pressure (F1)
15.0
N
Final Pressure (F2)
30.0
N
Ball Diameter (D1)
5.0
mm
Ball Height (H)
1.5
mm
Ball Threaded Plungers - M8 - 8x1.25mm - 16 mm - 15 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: 1.2mm Slotted Drive
Part Number: PLBT-080M-160-S3LK-030 (Each)
Ball Threaded Plungers - M8 - 8x1.25mm - 16 mm - 15 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
1 Available Now | Further orders can be expected around Tue, Dec 30, 2025
$14.50 AUD
$17.40 AUD $14.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Thread Size (D)
M8 (8x1.25mm)

Body Length (L)
16.0
mm

(Equiv. 0.63 in.)
Initial Pressure (F1)
15.0
N
Final Pressure (F2)
30.0
N
Ball Threaded Plungers - M8 - 8x1.25mm - 16 mm - 15 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 5.0 mm    Ball Height (H): 1.5 mm    Drive: 1.2mm Slotted Drive
Part Number: PLBT-080M-160-S3LK-030 (Each)
Ball Threaded Plungers - M8 - 8x1.25mm - 16 mm - 15 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
1 Available Now | Further orders can be expected around Tue, Dec 30, 2025
$14.50 AUD
$17.40 AUD $14.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Thread Size (D)
M10 (10x1.5mm)

Body Length (L)
23.0
mm

(Equiv. 0.906 in.)
Initial Pressure (F1)
20.0
N
Final Pressure (F2)
35.0
N
Ball Diameter (D1)
6.0
mm
Ball Height (H)
2.0
mm
Ball Threaded Plungers - M10 - 10x1.5mm - 23 mm - 20 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: Socketed
Part Number: PLBT-100M-230-S3LK-035 (Each)
Ball Threaded Plungers - M10 - 10x1.5mm - 23 mm - 20 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
4 Available Now | Further orders can be expected around Tue, Dec 30, 2025
$19.68 AUD
$23.62 AUD $19.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. Backorder if more than 4.
Thread Size (D)
M10 (10x1.5mm)

Body Length (L)
23.0
mm

(Equiv. 0.906 in.)
Initial Pressure (F1)
20.0
N
Final Pressure (F2)
35.0
N
Ball Threaded Plungers - M10 - 10x1.5mm - 23 mm - 20 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 6.0 mm    Ball Height (H): 2.0 mm    Drive: Socketed
Part Number: PLBT-100M-230-S3LK-035 (Each)
Ball Threaded Plungers - M10 - 10x1.5mm - 23 mm - 20 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
4 Available Now | Further orders can be expected around Tue, Dec 30, 2025
$19.68 AUD
$23.62 AUD $19.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. Backorder if more than 4.
Thread Size (D)
M12 (12x1.75mm)

Body Length (L)
22.0
mm

(Equiv. 0.866 in.)
Initial Pressure (F1)
30.0
N
Final Pressure (F2)
55.0
N
Ball Diameter (D1)
8.0
mm
Ball Height (H)
2.5
mm

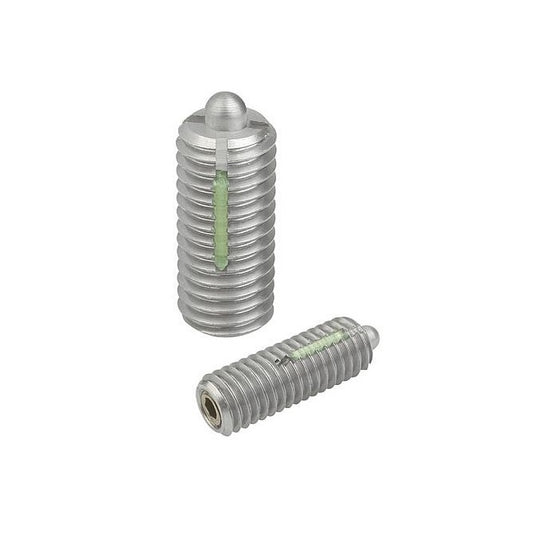

Ball Threaded Plungers - M12 - 12x1.75mm - 22 mm - 30 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: 2mm Slotted Drive
Part Number: PLBT-120M-220-S3LK-055 (Each)
Ball Threaded Plungers - M12 - 12x1.75mm - 22 mm - 30 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
1 Available Now | Further orders can be expected around Tue, Dec 30, 2025
$24.50 AUD
$29.40 AUD $24.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Thread Size (D)
M12 (12x1.75mm)

Body Length (L)
22.0
mm

(Equiv. 0.866 in.)
Initial Pressure (F1)
30.0
N
Final Pressure (F2)
55.0
N
Ball Threaded Plungers - M12 - 12x1.75mm - 22 mm - 30 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 8.0 mm    Ball Height (H): 2.5 mm    Drive: 2mm Slotted Drive
Part Number: PLBT-120M-220-S3LK-055 (Each)
Ball Threaded Plungers - M12 - 12x1.75mm - 22 mm - 30 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
1 Available Now | Further orders can be expected around Tue, Dec 30, 2025
$24.50 AUD
$29.40 AUD $24.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Thread Size (D)
M16 (16x2mm)

Body Length (L)
24.0
mm

(Equiv. 0.945 in.)
Initial Pressure (F1)
29.4
N
Final Pressure (F2)
98.0
N
Ball Diameter (D1)
10.0
mm
Ball Height (H)
3.5
mm
Ball Threaded Plungers - M16 - 16x2mm - 24 mm - 29.4 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Part Number: PLBT-160M-240-S3LK-098 (Each)
Ball Threaded Plungers - M16 - 16x2mm - 24 mm - 29.4 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$14.00 AUD
$26.60 AUD $14.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Thread Size (D)
M16 (16x2mm)

Body Length (L)
24.0
mm

(Equiv. 0.945 in.)
Initial Pressure (F1)
29.4
N
Final Pressure (F2)
98.0
N
Ball Threaded Plungers - M16 - 16x2mm - 24 mm - 29.4 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 10.0 mm    Ball Height (H): 3.5 mm
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Part Number: PLBT-160M-240-S3LK-098 (Each)
Ball Threaded Plungers - M16 - 16x2mm - 24 mm - 29.4 N Stainless Body and Ball with Threadlock - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$14.00 AUD
$26.60 AUD $14.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
