Collection: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Pins -> Dowel -> Stepped -> Chamfered Ends -> ExtractableThere are 2 products in the sub-categories of Pins - Dowel - Stepped - Chamfered Ends - Extractable. Browse the Pins - Dowel - Stepped - Chamfered Ends - Extractable products table. To narrow down the selection, please choose a sub-category from the links below.
Pins - Dowel - Stepped - Chamfered Ends - Extractable - 440 Stainless Steel
A selection of 440 Stainless Steel Extractable Chamfered Ends Stepped Dowel Pins....

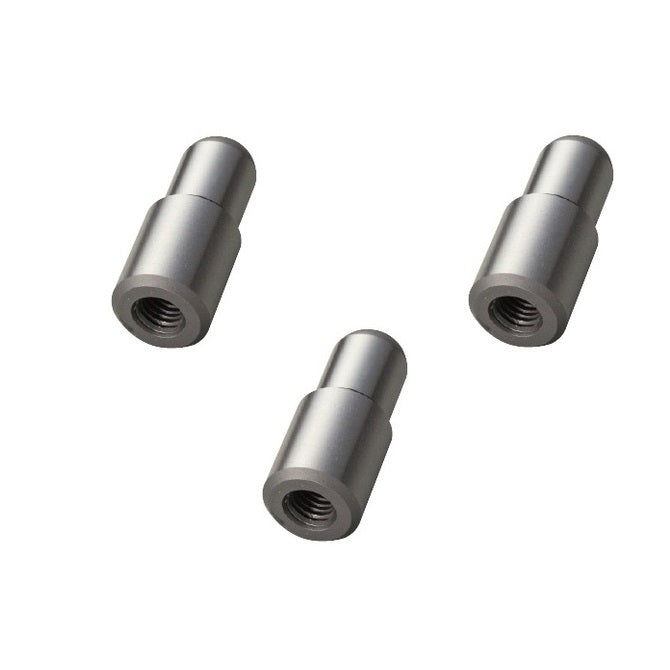

Pins - Dowel - Stepped - Chamfered Ends - Extractable - Carbon Steel
A selection of Carbon Steel Extractable Chamfered Ends Stepped Dowel Pins. Precision...
Category Details
This category includes various types of dowel pins.
- Also known as parallel pins.
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Pins - Dowel - Stepped - Chamfered Ends - Extractable category on the MBA Minibearings main store.
| Diameter (D) | Length (L) | Approx. Overall Length | Type |
Indicative Image |
|---|---|---|---|---|
| Dowel Pins - 6x30 Stepped - Carbon Steel Pin | ||||
|
Diameter (D)
6.000
mm + 0.005 / + 0.010
(Equiv. 0.236 in.) |
Length (L)
30.00
mm + 0.005 / + 0.010 (Equiv. 1.181 in.) |
Approx. Overall Length
30.00
mm (Equiv. 1.181 in.) |
Type
2 (Chamfer Both Ends)
|
|
|
Material: Carbon Steel
Step Diameter (d): 5.000 mm
Thread Size: M3 (3x0.5mm)
Step Length (L1): 15.00 mm
Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable - Carbon Steel |
||||
|
Part Number: DPS060-030-CH-1-E (Each)
Out of Stock | Backorder Now | Orders can be expected around Sat, Mar 21, 2026 Regular price
$31.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
| Diameter (D) | Length (L) | Approx. Overall Length |
Indicative Image |
|
| Dowel Pins - 6x30 Stepped - Carbon Steel Pin | ||||
|
Diameter (D)
6.000
mm + 0.005 / + 0.010 (Equiv. 0.236 in.) |
Length (L)
30.00
mm + 0.005 / + 0.010 (Equiv. 1.181 in.) |
Approx. Overall Length
30.00
mm (Equiv. 1.181 in.) |
|
|
|
Material: Carbon Steel
Type: 2 (Chamfer Both Ends)
Step Diameter (d): 5.000 mm
Thread Size: M3 (3x0.5mm)
Step Length (L1): 15.00 mm
Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable - Carbon Steel |
||||
|
Part Number: DPS060-030-CH-1-E (Each)
Out of Stock | Backorder Now | Orders can be expected around Sat, Mar 21, 2026 Regular price
$31.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
|
||||
| Dowel Pins - 6x30 Stepped - Stainless Steel AISI 440C Pin | ||||
|
Diameter (D)
6.000
mm + 0.005 / + 0.010
(Equiv. 0.236 in.) |
Length (L)
30.00
mm + 0.005 / + 0.010 (Equiv. 1.181 in.) |
Approx. Overall Length
30.00
mm (Equiv. 1.181 in.) |
Type
2 (Chamfer Both Ends)
|
|
|
Material: Stainless Steel AISI 440C
Step Diameter (d): 5.000 mm
Thread Size: M3 (3x0.5mm)
Step Length (L1): 15.00 mm
Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable - 440 Stainless Steel |
||||
|
Part Number: DPS060-030-440-1-E (Each)
Out of Stock | Backorder Now | Orders can be expected around Sat, Mar 21, 2026 Regular price
$32.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
| Dowel Pins - 6x30 Stepped - Stainless Steel AISI 440C Pin | ||||
|
Diameter (D)
6.000
mm + 0.005 / + 0.010 (Equiv. 0.236 in.) |
Length (L)
30.00
mm + 0.005 / + 0.010 (Equiv. 1.181 in.) |
Approx. Overall Length
30.00
mm (Equiv. 1.181 in.) |
|
|
|
Material: Stainless Steel AISI 440C
Type: 2 (Chamfer Both Ends)
Step Diameter (d): 5.000 mm
Thread Size: M3 (3x0.5mm)
Step Length (L1): 15.00 mm
Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable - 440 Stainless Steel |
||||
|
Part Number: DPS060-030-440-1-E (Each)
Out of Stock | Backorder Now | Orders can be expected around Sat, Mar 21, 2026 Regular price
$32.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||
|
||||
