Pins - Dowel - Standard - Rounded Ends - Unhardened Steel

2 Products in this selection
  • Also known as parallel pins
  • Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
  • Precision Dowel Pins - Based on DIN7
  • Rounded end dowel pins are measured from the start of the edge rounding. This allows the pin to completely fill the hole after you grind off the rounded end.
  • Diameter tolerances are m6 unless otherwise listed
Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

A more comprehensive listing may be found on the MBA Minibearings main store at Pins - Dowel - Standard - Rounded Ends - Unhardened Steel.
Diameter (D) Length (L) Approx. Overall Length Type Indicative
2.000
mm
+ 0.002 / + 0.008 		8.00
mm
+/- 0.254 		8.60
mm
+/ - 0.254 		3 (Rounded Ends)

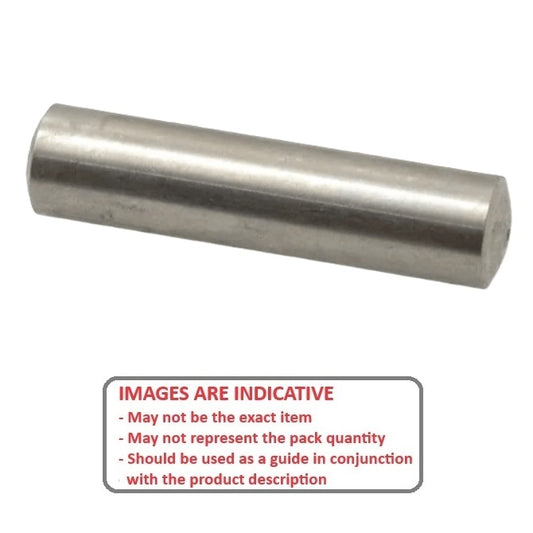

1041216 | DP020-008-C-3 (5 Pcs) --- Dowel Pins - 2x8x8.6 mm - Carbon Steel Unhardened
Material: Carbon Steel Unhardened    Standard: Based on DIN 7
Part Number: DP020-008-C-3 (5 Pcs) Dowel Pins - 2x8x8.6 mm - Carbon Steel Unhardened
92 units (460 pcs) Available Now | Further orders can be expected around Wed, May 14, 2025
$6.77 AUD
$6.77 AUD
Per 5
Diameter (D) Length (L) Approx. Overall Length Indicative
2.000
mm
+ 0.002 / + 0.008 		8.00
mm
+/- 0.254 		8.60
mm
+/ - 0.254 		1041216 | DP020-008-C-3 (5 Pcs) --- Dowel Pins - 2x8x8.6 mm - Carbon Steel Unhardened
Material: Carbon Steel Unhardened    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP020-008-C-3 (5 Pcs) Dowel Pins - 2x8x8.6 mm - Carbon Steel Unhardened
92 units (460 pcs) Available Now | Further orders can be expected around Wed, May 14, 2025
$6.77 AUD
$6.77 AUD
Per 5
View the product page first if you are unsure.
6.000
mm
+ 0.006 / + 0.015 		12.00
mm
+/- 0.350 		13.80
mm
+/ - 0.350 		3 (Rounded Ends)

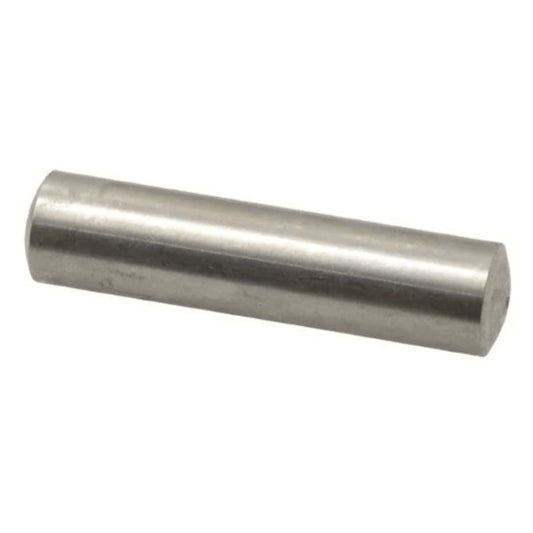

1068085 | DP060-012-C-3 (5 Pcs) --- Dowel Pins - 6x12x13.8 mm - Carbon Steel Unhardened
Material: Carbon Steel Unhardened    Standard: Based on DIN 7
Part Number: DP060-012-C-3 (5 Pcs) Dowel Pins - 6x12x13.8 mm - Carbon Steel Unhardened
140 units (700 pcs) Available Now | Further orders can be expected around Wed, May 14, 2025
$8.32 AUD
$8.32 AUD
Per 5
6.000
mm
+ 0.006 / + 0.015 		12.00
mm
+/- 0.350 		13.80
mm
+/ - 0.350 		1068085 | DP060-012-C-3 (5 Pcs) --- Dowel Pins - 6x12x13.8 mm - Carbon Steel Unhardened
Material: Carbon Steel Unhardened    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP060-012-C-3 (5 Pcs) Dowel Pins - 6x12x13.8 mm - Carbon Steel Unhardened
140 units (700 pcs) Available Now | Further orders can be expected around Wed, May 14, 2025
$8.32 AUD
$8.32 AUD
Per 5
View the product page first if you are unsure.
