Pins - Dowel - Standard - Rounded Ends - 420 Stainless

1 Item Available
  • Also known as parallel pins
  • Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
  • Precision Dowel Pins - 420 Grade - Based on DIN7
  • Rounded end dowel pins are measured from the start of the edge rounding. This allows the pin to completely fill the hole after you grind off the rounded end.
  • Diameter tolerances are m6 unless otherwise listed
Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

A more comprehensive listing may be found on the MBA Minibearings main store at Pins - Dowel - Standard - Rounded Ends - 420 Stainless.
Diameter (D) Length (L) Approx. Overall Length Type Indicative
3.000
mm
+ 0.004 / + 0.012 		17.00
mm
+/- 0.420 		20.00
mm
+/ - 0.420 		3 (Rounded Ends)

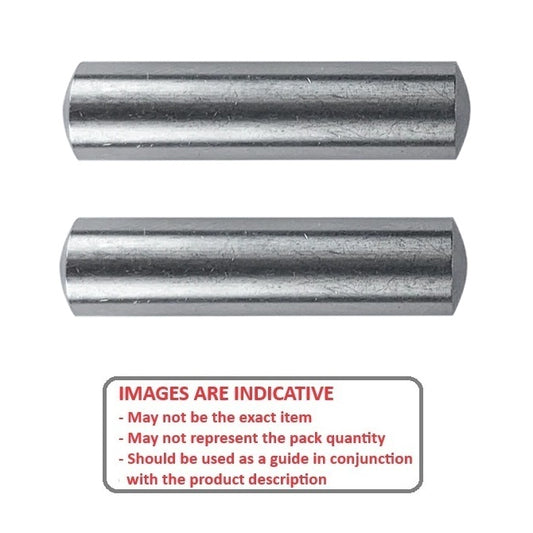

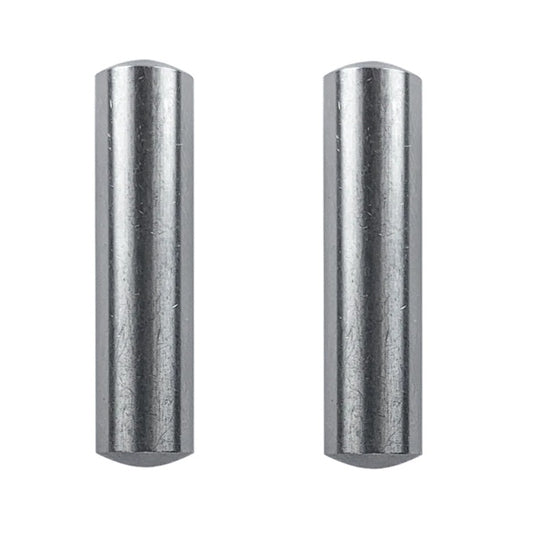

Dowel Pins - 3 mm x 17 mm x 20 mm
Material: Stainless Steel 400 Series Unhardened    Notes: End radius 1.5mm    Standard: Based on DIN 7 with Special Radius
Part Number: DP030-017-420-3-L20 (10 Pcs) Dowel Pins - 3x17x20 mm - Stainless Steel 400 Series Unhardened
200 units (2000 pcs) Available Now | Further orders can be expected around Sat, Jun 07, 2025
$13.14 AUD
$13.14 AUD
Per 10
Diameter (D) Length (L) Approx. Overall Length Indicative
3.000
mm
+ 0.004 / + 0.012 		17.00
mm
+/- 0.420 		20.00
mm
+/ - 0.420 		Dowel Pins - 3 mm x 17 mm x 20 mm
Material: Stainless Steel 400 Series Unhardened    Type: 3 (Rounded Ends)    Notes: End radius 1.5mm    Standard: Based on DIN 7 with Special Radius
Part Number: DP030-017-420-3-L20 (10 Pcs) Dowel Pins - 3x17x20 mm - Stainless Steel 400 Series Unhardened
200 units (2000 pcs) Available Now | Further orders can be expected around Sat, Jun 07, 2025
$13.14 AUD
$13.14 AUD
Per 10
View the product page first if you are unsure.
