Collection: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless

Pins (With Images)

Dowel

Standard

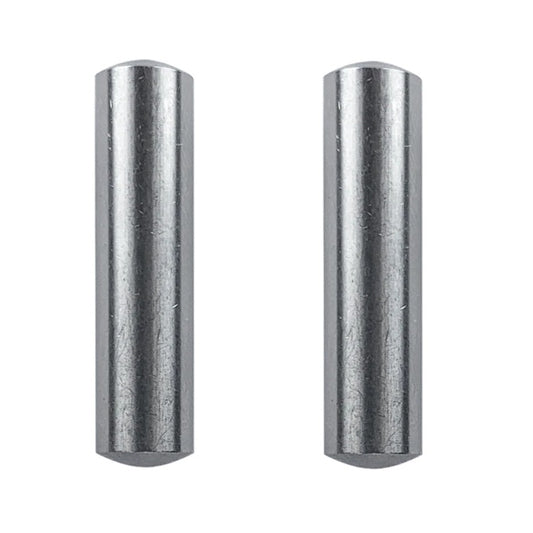

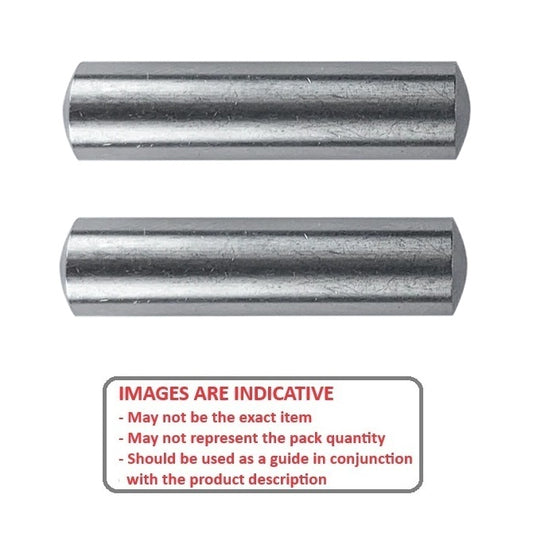

Rounded Ends

42 Products in this selection

Also known as parallel pins
Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
Precision Dowel Pins - 303/304 Grade Stainless- Based on DIN7
Rounded end dowel pins are measured from the start of the edge rounding. This allows the pin to completely fill the hole after you grind off the rounded end.
Diameter tolerances are m6 unless otherwise listed

Small Parts & Bearings

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

A more comprehensive listing may be found on the MBA Minibearings main store at Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless.

Diameter (D)	Length (L)	Approx. Overall Length	Type	Indicative Image
Diameter (D) 1.500 mm + 0.002 / + 0.008 _{(0.059 in.)}	Length (L) 8.00 mm +/- 0.254 _{(0.315 in.)}	Approx. Overall Length 8.46 mm +/- 0.254 _{(0.333 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP015-008-303-3 (20 Pcs) Dowel Pins - 1.5x8x8.46 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 126 units (2520 pcs) Available Now \| Item Discontinued - Up to 126 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $5.00 AUD Regular price ~~$9.50 AUD~~ Sale price $5.00 AUD Unit price per Per 20
Diameter (D)	Length (L)	Approx. Overall Length	Indicative Image
Diameter (D) 1.500 mm + 0.002 / + 0.008 _{(0.059 in.)}	Length (L) 8.00 mm +/- 0.254 _{(0.315 in.)}	Approx. Overall Length 8.46 mm +/- 0.254 _{(0.333 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP015-008-303-3 (20 Pcs) Dowel Pins - 1.5x8x8.46 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 126 units (2520 pcs) Available Now \| Item Discontinued - Up to 126 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $5.00 AUD Regular price ~~$9.50 AUD~~ Sale price $5.00 AUD Unit price per Per 20
DP015-008-303-3 (20 Pcs) --- Dowel Pins - 1.5x8x8.46 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Sale DP015-008-303-3 (20 Pcs) --- Dowel Pins - 1.5x8x8.46 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $5.00 AUD Regular price ~~$9.50 AUD~~ Sale price $5.00 AUD Unit price per 126 Available Now Sale
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 4.00 mm +/- 0.254 _{(0.157 in.)}	Approx. Overall Length 4.60 mm +/- 0.254 _{(0.181 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP020-004-303-3 (20 Pcs) Dowel Pins - 2x4x4.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 7 units (140 pcs) Available Now \| Item Discontinued - Up to 7 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 20
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 4.00 mm +/- 0.254 _{(0.157 in.)}	Approx. Overall Length 4.60 mm +/- 0.254 _{(0.181 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP020-004-303-3 (20 Pcs) Dowel Pins - 2x4x4.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 7 units (140 pcs) Available Now \| Item Discontinued - Up to 7 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 20
DP020-004-303-3 (20 Pcs) --- Dowel Pins - 2x4x4.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Sale DP020-004-303-3 (20 Pcs) --- Dowel Pins - 2x4x4.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 7 Available Now Sale
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 5.00 mm +/- 0.254 _{(0.197 in.)}	Approx. Overall Length 5.60 mm +/ - 0.254 _{(0.22 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP020-005-304-3 (100 Pcs) Dowel Pins - 2x5x5.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 65 units (6500 pcs) Available Now \| Item Discontinued - Up to 65 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 100
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 5.00 mm +/- 0.254 _{(0.197 in.)}	Approx. Overall Length 5.60 mm +/ - 0.254 _{(0.22 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP020-005-304-3 (100 Pcs) Dowel Pins - 2x5x5.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 65 units (6500 pcs) Available Now \| Item Discontinued - Up to 65 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 100
DP020-005-304-3 (100 Pcs) --- Dowel Pins - 2x5x5.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Sale DP020-005-304-3 (100 Pcs) --- Dowel Pins - 2x5x5.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 65 Available Now Sale
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 9.00 mm +/- 0.254 _{(0.354 in.)}	Approx. Overall Length 9.60 mm +/ - 0.254 _{(0.378 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP020-009-304-3 (10 Pcs) Dowel Pins - 2x9x9.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 130 units (1300 pcs) Available Now \| Further orders can be expected around Fri, Aug 22, 2025 Regular price $15.77 AUD Regular price Sale price $15.77 AUD Unit price per Per 10
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 9.00 mm +/- 0.254 _{(0.354 in.)}	Approx. Overall Length 9.60 mm +/ - 0.254 _{(0.378 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP020-009-304-3 (10 Pcs) Dowel Pins - 2x9x9.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 130 units (1300 pcs) Available Now \| Further orders can be expected around Fri, Aug 22, 2025 Regular price $15.77 AUD Regular price Sale price $15.77 AUD Unit price per Per 10 View the product page first if you are unsure.
DP020-009-304-3 (10 Pcs) --- Dowel Pins - 2x9x9.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 DP020-009-304-3 (10 Pcs) --- Dowel Pins - 2x9x9.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $15.77 AUD Regular price Sale price $15.77 AUD Unit price per 130 Available Now
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 9.00 mm +/- 0.254 _{(0.354 in.)}	Approx. Overall Length 10.00 mm +/ - 0.254 _{(0.394 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Notes: Special Oversized Overall Length 10mm. DIN7 is 9.60 Standard: Modified
Part Number: DP020-009-304-3-L10 (10 Pcs) Dowel Pins - 2x9x10 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 807 units (8070 pcs) Available Now \| Further orders can be expected around Fri, Aug 22, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 10
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 9.00 mm +/- 0.254 _{(0.354 in.)}	Approx. Overall Length 10.00 mm +/ - 0.254 _{(0.394 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Notes: Special Oversized Overall Length 10mm. DIN7 is 9.60 Standard: Modified
Part Number: DP020-009-304-3-L10 (10 Pcs) Dowel Pins - 2x9x10 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 807 units (8070 pcs) Available Now \| Further orders can be expected around Fri, Aug 22, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 10 View the product page first if you are unsure.
DP020-009-304-3-L10 (10 Pcs) --- Dowel Pins - 2x9x10 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 DP020-009-304-3-L10 (10 Pcs) --- Dowel Pins - 2x9x10 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per 807 Available Now
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 10.00 mm +/- 0.254 _{(0.394 in.)}	Approx. Overall Length 10.60 mm +/ - 0.350 _{(0.417 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP020-010-304-3 (5000 Pcs) Dowel Pins - 2x10x10.6 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 22, 2025 Regular price $1,479.14 AUD Regular price ~~$1,774.96 AUD~~ Sale price $1,479.14 AUD Unit price per Per 5000
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 10.00 mm +/- 0.254 _{(0.394 in.)}	Approx. Overall Length 10.60 mm +/ - 0.350 _{(0.417 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP020-010-304-3 (5000 Pcs) Dowel Pins - 2x10x10.6 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 22, 2025 Regular price $1,479.14 AUD Regular price ~~$1,774.96 AUD~~ Sale price $1,479.14 AUD Unit price per Per 5000 View the product page first if you are unsure.
DP020-010-304-3 (5000 Pcs) --- Dowel Pins - 2x10x10.6 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Sale DP020-010-304-3 (5000 Pcs) --- Dowel Pins - 2x10x10.6 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $1,479.14 AUD Regular price ~~$1,774.96 AUD~~ Sale price $1,479.14 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 11.00 mm +/- 0.350 _{(0.433 in.)}	Approx. Overall Length 11.60 mm +/ - 0.350 _{(0.457 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP020-011-304-3 (20 Pcs) Dowel Pins - 2x11x11.6 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 1 pack (20 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $7.00 AUD Regular price ~~$13.30 AUD~~ Sale price $7.00 AUD Unit price per Per 20
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 11.00 mm +/- 0.350 _{(0.433 in.)}	Approx. Overall Length 11.60 mm +/ - 0.350 _{(0.457 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP020-011-304-3 (20 Pcs) Dowel Pins - 2x11x11.6 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 1 pack (20 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $7.00 AUD Regular price ~~$13.30 AUD~~ Sale price $7.00 AUD Unit price per Per 20
DP020-011-304-3 (20 Pcs) --- Dowel Pins - 2x11x11.6 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Sale DP020-011-304-3 (20 Pcs) --- Dowel Pins - 2x11x11.6 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $7.00 AUD Regular price ~~$13.30 AUD~~ Sale price $7.00 AUD Unit price per 1 Available Now Sale
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 14.00 mm +/- 0.350 _{(0.551 in.)}	Approx. Overall Length 14.60 mm +/ - 0.350 _{(0.575 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP020-014-304-3 (100 Pcs) Dowel Pins - 2x14x14.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 18, 2025 Regular price $12.05 AUD Regular price ~~$14.45 AUD~~ Sale price $12.05 AUD Unit price per Per 100
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 14.00 mm +/- 0.350 _{(0.551 in.)}	Approx. Overall Length 14.60 mm +/ - 0.350 _{(0.575 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP020-014-304-3 (100 Pcs) Dowel Pins - 2x14x14.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 18, 2025 Regular price $12.05 AUD Regular price ~~$14.45 AUD~~ Sale price $12.05 AUD Unit price per Per 100 View the product page first if you are unsure.
DP020-014-304-3 (100 Pcs) --- Dowel Pins - 2x14x14.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Sale DP020-014-304-3 (100 Pcs) --- Dowel Pins - 2x14x14.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $12.05 AUD Regular price ~~$14.45 AUD~~ Sale price $12.05 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 16.00 mm +/- 0.350 _{(0.63 in.)}	Approx. Overall Length 16.60 mm +/ - 0.350 _{(0.654 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP020-016-304-3 (20 Pcs) Dowel Pins - 2x16x16.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 9 units (180 pcs) Available Now \| Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 20
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 16.00 mm +/- 0.350 _{(0.63 in.)}	Approx. Overall Length 16.60 mm +/ - 0.350 _{(0.654 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP020-016-304-3 (20 Pcs) Dowel Pins - 2x16x16.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 9 units (180 pcs) Available Now \| Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 20
DP020-016-304-3 (20 Pcs) --- Dowel Pins - 2x16x16.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Sale DP020-016-304-3 (20 Pcs) --- Dowel Pins - 2x16x16.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 9 Available Now Sale
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 18.00 mm +/- 0.420 _{(0.709 in.)}	Approx. Overall Length 18.60 mm +/ - 0.420 _{(0.732 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP020-018-303-3 (20 Pcs) Dowel Pins - 2x18x18.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 10 units (200 pcs) Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 20
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 18.00 mm +/- 0.420 _{(0.709 in.)}	Approx. Overall Length 18.60 mm +/ - 0.420 _{(0.732 in.)}
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP020-018-303-3 (20 Pcs) Dowel Pins - 2x18x18.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 10 units (200 pcs) Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 20
DP020-018-303-3 (20 Pcs) --- Dowel Pins - 2x18x18.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Sale DP020-018-303-3 (20 Pcs) --- Dowel Pins - 2x18x18.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 10 Available Now Sale
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 19.00 mm +/- 0.420 _{(0.748 in.)}	Approx. Overall Length 19.60 mm +/ - 0.420 _{(0.772 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP020-019-304-3 (50 Pcs) Dowel Pins - 2x19x19.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 7 units (350 pcs) Available Now \| Item Discontinued - Up to 7 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $7.00 AUD Regular price ~~$13.30 AUD~~ Sale price $7.00 AUD Unit price per Per 50
Diameter (D) 2.000 mm + 0.002 / + 0.008 _{(0.079 in.)}	Length (L) 19.00 mm +/- 0.420 _{(0.748 in.)}	Approx. Overall Length 19.60 mm +/ - 0.420 _{(0.772 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP020-019-304-3 (50 Pcs) Dowel Pins - 2x19x19.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 7 units (350 pcs) Available Now \| Item Discontinued - Up to 7 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $7.00 AUD Regular price ~~$13.30 AUD~~ Sale price $7.00 AUD Unit price per Per 50
DP020-019-304-3 (50 Pcs) --- Dowel Pins - 2x19x19.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Sale DP020-019-304-3 (50 Pcs) --- Dowel Pins - 2x19x19.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $7.00 AUD Regular price ~~$13.30 AUD~~ Sale price $7.00 AUD Unit price per 7 Available Now Sale
Diameter (D) 2.500 mm + 0.002 / + 0.008 _{(0.098 in.)}	Length (L) 5.00 mm +/- 0.254 _{(0.197 in.)}	Approx. Overall Length 5.80 mm +/ - 0.254 _{(0.228 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP025-005-304-3 (50 Pcs) Dowel Pins - 2.5x5x5.8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 172 units (8600 pcs) Available Now \| Item Discontinued - Up to 172 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $7.50 AUD Regular price ~~$14.25 AUD~~ Sale price $7.50 AUD Unit price per Per 50
Diameter (D) 2.500 mm + 0.002 / + 0.008 _{(0.098 in.)}	Length (L) 5.00 mm +/- 0.254 _{(0.197 in.)}	Approx. Overall Length 5.80 mm +/ - 0.254 _{(0.228 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP025-005-304-3 (50 Pcs) Dowel Pins - 2.5x5x5.8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 172 units (8600 pcs) Available Now \| Item Discontinued - Up to 172 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $7.50 AUD Regular price ~~$14.25 AUD~~ Sale price $7.50 AUD Unit price per Per 50
DP025-005-304-3 (50 Pcs) --- Dowel Pins - 2.5x5x5.8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Sale DP025-005-304-3 (50 Pcs) --- Dowel Pins - 2.5x5x5.8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $7.50 AUD Regular price ~~$14.25 AUD~~ Sale price $7.50 AUD Unit price per 172 Available Now Sale
Diameter (D) 2.500 mm + 0.002 / + 0.008 _{(0.098 in.)}	Length (L) 6.00 mm +/- 0.254 _{(0.236 in.)}	Approx. Overall Length 6.80 mm +/ - 0.254 _{(0.268 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP025-006-304-3 (20 Pcs) Dowel Pins - 2.5x6x6.8 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 5 units (100 pcs) Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $5.00 AUD Regular price ~~$9.50 AUD~~ Sale price $5.00 AUD Unit price per Per 20
Diameter (D) 2.500 mm + 0.002 / + 0.008 _{(0.098 in.)}	Length (L) 6.00 mm +/- 0.254 _{(0.236 in.)}	Approx. Overall Length 6.80 mm +/ - 0.254 _{(0.268 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP025-006-304-3 (20 Pcs) Dowel Pins - 2.5x6x6.8 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 5 units (100 pcs) Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $5.00 AUD Regular price ~~$9.50 AUD~~ Sale price $5.00 AUD Unit price per Per 20
DP025-006-304-3 (20 Pcs) --- Dowel Pins - 2.5x6x6.8 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Sale DP025-006-304-3 (20 Pcs) --- Dowel Pins - 2.5x6x6.8 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $5.00 AUD Regular price ~~$9.50 AUD~~ Sale price $5.00 AUD Unit price per 5 Available Now Sale
Diameter (D) 2.500 mm + 0.002 / + 0.008 _{(0.098 in.)}	Length (L) 8.00 mm +/- 0.254 _{(0.315 in.)}	Approx. Overall Length 8.80 mm +/ - 0.254 _{(0.346 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP025-008-304-3 (5 Pcs) Dowel Pins - 2.5x8x8.8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 587 units (2935 pcs) Available Now \| Further orders can be expected around Fri, Aug 22, 2025 Regular price $12.77 AUD Regular price Sale price $12.77 AUD Unit price per Per 5
Diameter (D) 2.500 mm + 0.002 / + 0.008 _{(0.098 in.)}	Length (L) 8.00 mm +/- 0.254 _{(0.315 in.)}	Approx. Overall Length 8.80 mm +/ - 0.254 _{(0.346 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP025-008-304-3 (5 Pcs) Dowel Pins - 2.5x8x8.8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 587 units (2935 pcs) Available Now \| Further orders can be expected around Fri, Aug 22, 2025 Regular price $12.77 AUD Regular price Sale price $12.77 AUD Unit price per Per 5 View the product page first if you are unsure.
DP025-008-304-3 (5 Pcs) --- Dowel Pins - 2.5x8x8.8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 DP025-008-304-3 (5 Pcs) --- Dowel Pins - 2.5x8x8.8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $12.77 AUD Regular price Sale price $12.77 AUD Unit price per 587 Available Now
Diameter (D) 3.000 mm + 0.004 / + 0.012 _{(0.118 in.)}	Length (L) 4.00 mm +/- 0.254 _{(0.157 in.)}	Approx. Overall Length 6.00 mm +/ - 0.254 _{(0.236 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Notes: Special Oversized Overall Length 6.00. DIN7 is 4.90 Standard: Modified
Part Number: DP030-004-304-3-L6 (10 Pcs) Dowel Pins - 3x4x6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 430 units (4300 pcs) Available Now \| Further orders can be expected around Fri, Aug 22, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Per 10
Diameter (D) 3.000 mm + 0.004 / + 0.012 _{(0.118 in.)}	Length (L) 4.00 mm +/- 0.254 _{(0.157 in.)}	Approx. Overall Length 6.00 mm +/ - 0.254 _{(0.236 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Notes: Special Oversized Overall Length 6.00. DIN7 is 4.90 Standard: Modified
Part Number: DP030-004-304-3-L6 (10 Pcs) Dowel Pins - 3x4x6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 430 units (4300 pcs) Available Now \| Further orders can be expected around Fri, Aug 22, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Per 10 View the product page first if you are unsure.
DP030-004-304-3-L6 (10 Pcs) --- Dowel Pins - 3x4x6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 DP030-004-304-3-L6 (10 Pcs) --- Dowel Pins - 3x4x6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per 430 Available Now
Diameter (D) 3.000 mm + 0.004 / + 0.012 _{(0.118 in.)}	Length (L) 6.00 mm +/- 0.254 _{(0.236 in.)}	Approx. Overall Length 8.00 mm +/ - 0.254 _{(0.315 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Notes: Special Oversized Overall Length 8.00. DIN7 is 6.90 Standard: Modified
Part Number: DP030-006-304-3-L8 (2 Pcs) Dowel Pins - 3x6x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 4133 units (8266 pcs) Available Now \| Further orders can be expected around Fri, Aug 22, 2025 Regular price $2.77 AUD Regular price Sale price $2.77 AUD Unit price per Per 2
Diameter (D) 3.000 mm + 0.004 / + 0.012 _{(0.118 in.)}	Length (L) 6.00 mm +/- 0.254 _{(0.236 in.)}	Approx. Overall Length 8.00 mm +/ - 0.254 _{(0.315 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Notes: Special Oversized Overall Length 8.00. DIN7 is 6.90 Standard: Modified
Part Number: DP030-006-304-3-L8 (2 Pcs) Dowel Pins - 3x6x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 4133 units (8266 pcs) Available Now \| Further orders can be expected around Fri, Aug 22, 2025 Regular price $2.77 AUD Regular price Sale price $2.77 AUD Unit price per Per 2 View the product page first if you are unsure.
DP030-006-304-3-L8 (2 Pcs) --- Dowel Pins - 3x6x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 DP030-006-304-3-L8 (2 Pcs) --- Dowel Pins - 3x6x8 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $2.77 AUD Regular price Sale price $2.77 AUD Unit price per 4133 Available Now
Diameter (D) 3.000 mm + 0.004 / + 0.012 _{(0.118 in.)}	Length (L) 8.00 mm +/- 0.254 _{(0.315 in.)}	Approx. Overall Length 8.90 mm +/ - 0.254 _{(0.35 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP030-008-304-3 (10 Pcs) Dowel Pins - 3x8x8.9 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 18, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Per 10
Diameter (D) 3.000 mm + 0.004 / + 0.012 _{(0.118 in.)}	Length (L) 8.00 mm +/- 0.254 _{(0.315 in.)}	Approx. Overall Length 8.90 mm +/ - 0.254 _{(0.35 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP030-008-304-3 (10 Pcs) Dowel Pins - 3x8x8.9 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 18, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Per 10 View the product page first if you are unsure.
DP030-008-304-3 (10 Pcs) --- Dowel Pins - 3x8x8.9 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 DP030-008-304-3 (10 Pcs) --- Dowel Pins - 3x8x8.9 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 3.000 mm + 0.004 / + 0.012 _{(0.118 in.)}	Length (L) 12.00 mm +/- 0.350 _{(0.472 in.)}	Approx. Overall Length 12.90 mm +/ - 0.350 _{(0.508 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP030-012-304-3 (100 Pcs) Dowel Pins - 3x12x12.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 18, 2025 Regular price $37.68 AUD Regular price ~~$45.22 AUD~~ Sale price $37.68 AUD Unit price per Per 100
Diameter (D) 3.000 mm + 0.004 / + 0.012 _{(0.118 in.)}	Length (L) 12.00 mm +/- 0.350 _{(0.472 in.)}	Approx. Overall Length 12.90 mm +/ - 0.350 _{(0.508 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP030-012-304-3 (100 Pcs) Dowel Pins - 3x12x12.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 18, 2025 Regular price $37.68 AUD Regular price ~~$45.22 AUD~~ Sale price $37.68 AUD Unit price per Per 100 View the product page first if you are unsure.
DP030-012-304-3 (100 Pcs) --- Dowel Pins - 3x12x12.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Sale DP030-012-304-3 (100 Pcs) --- Dowel Pins - 3x12x12.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $37.68 AUD Regular price ~~$45.22 AUD~~ Sale price $37.68 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 3.000 mm + 0.004 / + 0.012 _{(0.118 in.)}	Length (L) 14.00 mm +/- 0.350 _{(0.551 in.)}	Approx. Overall Length 14.90 mm +/ - 0.350 _{(0.587 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP030-014-304-3 (20 Pcs) Dowel Pins - 3x14x14.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 2 units (40 pcs) Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.00 AUD Regular price ~~$7.60 AUD~~ Sale price $4.00 AUD Unit price per Per 20
Diameter (D) 3.000 mm + 0.004 / + 0.012 _{(0.118 in.)}	Length (L) 14.00 mm +/- 0.350 _{(0.551 in.)}	Approx. Overall Length 14.90 mm +/ - 0.350 _{(0.587 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP030-014-304-3 (20 Pcs) Dowel Pins - 3x14x14.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 2 units (40 pcs) Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.00 AUD Regular price ~~$7.60 AUD~~ Sale price $4.00 AUD Unit price per Per 20
DP030-014-304-3 (20 Pcs) --- Dowel Pins - 3x14x14.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Sale DP030-014-304-3 (20 Pcs) --- Dowel Pins - 3x14x14.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $4.00 AUD Regular price ~~$7.60 AUD~~ Sale price $4.00 AUD Unit price per 2 Available Now Sale
Diameter (D) 3.000 mm + 0.004 / + 0.012 _{(0.118 in.)}	Length (L) 15.00 mm +/- 0.350 _{(0.591 in.)}	Approx. Overall Length 16.25 mm +/ - 0.350 _{(0.64 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Notes: Special Part Modified DIN 7 Standard: Modified End Radius
Part Number: DP030-015-304-3-R2 (10 Pcs) Dowel Pins - 3x15x16.25 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 72 units (720 pcs) Available Now \| Further orders can be expected around Fri, Aug 22, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Per 10
Diameter (D) 3.000 mm + 0.004 / + 0.012 _{(0.118 in.)}	Length (L) 15.00 mm +/- 0.350 _{(0.591 in.)}	Approx. Overall Length 16.25 mm +/ - 0.350 _{(0.64 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Notes: Special Part Modified DIN 7 Standard: Modified End Radius
Part Number: DP030-015-304-3-R2 (10 Pcs) Dowel Pins - 3x15x16.25 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 72 units (720 pcs) Available Now \| Further orders can be expected around Fri, Aug 22, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Per 10 View the product page first if you are unsure.
DP030-015-304-3-R2 (10 Pcs) --- Dowel Pins - 3x15x16.25 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 DP030-015-304-3-R2 (10 Pcs) --- Dowel Pins - 3x15x16.25 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per 72 Available Now
Diameter (D) 3.000 mm + 0.004 / + 0.012 _{(0.118 in.)}	Length (L) 16.00 mm +/- 0.350 _{(0.63 in.)}	Approx. Overall Length 16.90 mm +/ - 0.350 _{(0.665 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP030-016-304-3 (10 Pcs) Dowel Pins - 3x16x16.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 98 units (980 pcs) Available Now \| Item Discontinued - Up to 98 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $5.00 AUD Regular price ~~$6.00 AUD~~ Sale price $5.00 AUD Unit price per Per 10
Diameter (D) 3.000 mm + 0.004 / + 0.012 _{(0.118 in.)}	Length (L) 16.00 mm +/- 0.350 _{(0.63 in.)}	Approx. Overall Length 16.90 mm +/ - 0.350 _{(0.665 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP030-016-304-3 (10 Pcs) Dowel Pins - 3x16x16.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 98 units (980 pcs) Available Now \| Item Discontinued - Up to 98 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $5.00 AUD Regular price ~~$6.00 AUD~~ Sale price $5.00 AUD Unit price per Per 10
DP030-016-304-3 (10 Pcs) --- Dowel Pins - 3x16x16.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Sale DP030-016-304-3 (10 Pcs) --- Dowel Pins - 3x16x16.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $5.00 AUD Regular price ~~$6.00 AUD~~ Sale price $5.00 AUD Unit price per 98 Available Now Sale
Diameter (D) 3.000 mm + 0.004 / + 0.012 _{(0.118 in.)}	Length (L) 20.00 mm +/- 0.420 _{(0.787 in.)}	Approx. Overall Length 20.90 mm +/ - 0.420 _{(0.823 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP030-020-304-3 (5 Pcs) Dowel Pins - 3x20x20.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 471 units (2355 pcs) Available Now \| Further orders can be expected around Fri, Aug 22, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 5
Diameter (D) 3.000 mm + 0.004 / + 0.012 _{(0.118 in.)}	Length (L) 20.00 mm +/- 0.420 _{(0.787 in.)}	Approx. Overall Length 20.90 mm +/ - 0.420 _{(0.823 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP030-020-304-3 (5 Pcs) Dowel Pins - 3x20x20.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 471 units (2355 pcs) Available Now \| Further orders can be expected around Fri, Aug 22, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 5 View the product page first if you are unsure.
DP030-020-304-3 (5 Pcs) --- Dowel Pins - 3x20x20.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 DP030-020-304-3 (5 Pcs) --- Dowel Pins - 3x20x20.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 471 Available Now
Diameter (D) 3.000 mm + 0.004 / + 0.012 _{(0.118 in.)}	Length (L) 24.00 mm +/- 0.420 _{(0.945 in.)}	Approx. Overall Length 24.90 mm +/ - 0.420 _{(0.98 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP030-024-304-3 (5 Pcs) Dowel Pins - 3x24x24.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 378 units (1890 pcs) Available Now \| Further orders can be expected around Mon, Sep 01, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 5
Diameter (D) 3.000 mm + 0.004 / + 0.012 _{(0.118 in.)}	Length (L) 24.00 mm +/- 0.420 _{(0.945 in.)}	Approx. Overall Length 24.90 mm +/ - 0.420 _{(0.98 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP030-024-304-3 (5 Pcs) Dowel Pins - 3x24x24.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 378 units (1890 pcs) Available Now \| Further orders can be expected around Mon, Sep 01, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 5 View the product page first if you are unsure.
DP030-024-304-3 (5 Pcs) --- Dowel Pins - 3x24x24.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 DP030-024-304-3 (5 Pcs) --- Dowel Pins - 3x24x24.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per 378 Available Now
Diameter (D) 4.000 mm + 0.004 / + 0.012 _{(0.157 in.)}	Length (L) 8.00 mm +/- 0.254 _{(0.315 in.)}	Approx. Overall Length 9.20 mm +/ - 0.254 _{(0.362 in.)}	Type 3 (Rounded Ends)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Standard: DIN 7
Part Number: DP040-008-304-3 (5 Pcs) Dowel Pins - 4x8x9.2 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 107 units (535 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Per 5
Diameter (D) 4.000 mm + 0.004 / + 0.012 _{(0.157 in.)}	Length (L) 8.00 mm +/- 0.254 _{(0.315 in.)}	Approx. Overall Length 9.20 mm +/ - 0.254 _{(0.362 in.)}
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Type: 3 (Rounded Ends) Standard: DIN 7
Part Number: DP040-008-304-3 (5 Pcs) Dowel Pins - 4x8x9.2 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 107 units (535 pcs) Available Now \| Further orders can be expected around Fri, Jul 18, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Per 5 View the product page first if you are unsure.
DP040-008-304-3 (5 Pcs) --- Dowel Pins - 4x8x9.2 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 DP040-008-304-3 (5 Pcs) --- Dowel Pins - 4x8x9.2 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per 107 Available Now

Small Parts & Bearings Pty Ltd - 3A / 8 Boyland Avenue, Coopers Plains, Queensland, Australia. (abn: 79 121 865 414)
