Collection: Pins - Dowel - Extractable - Carbon Steel

Pins (With Images)

Dowel

Extractable

Carbon Steel
With Vent

6 Products in this selection

Also known as parallel pins
Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
Hardened and Ground Steel 100 Cr6. Din 7979.

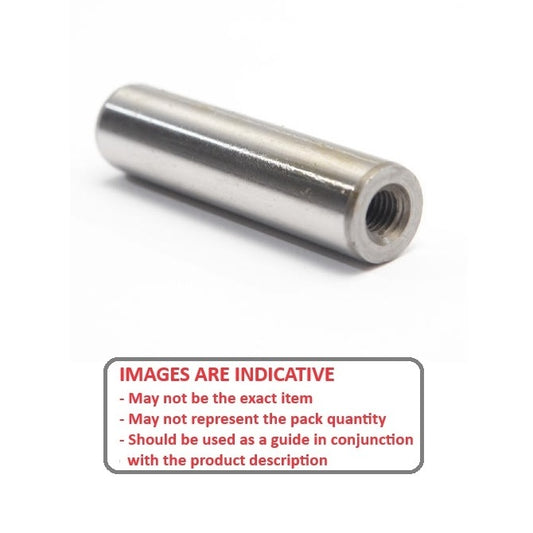

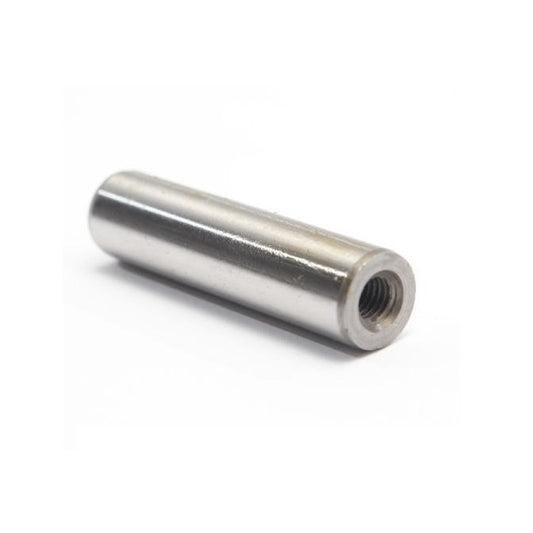

Extractable dowels have a thread tapped in the end to fascilitate removal from blind holes.
Hardness 55-62 HRC, HV550-650
Extractable pins may or may not have a flat to vent pressure when pulling

Small Parts & Bearings

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

A more comprehensive listing may be found on the MBA Minibearings main store at Pins - Dowel - Extractable - Carbon Steel.

Diameter (D)	Length (L)	Approx. Overall Length	Type
Diameter (D) 6.350 mm + 0.006 / + 0.015 _{(0.25 in.)}	Length (L) 12.70 mm +/- 0.350 _{(0.5 in.)}	Approx. Overall Length 12.70 mm +/ - 0.350 _{(0.5 in.)}	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 8-32
Part Number: DP064-013-CH-1E (5 Pcs) Dowel Pins - 6.35x12.7x12.7 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $37.32 AUD Regular price Sale price $37.32 AUD Unit price per Per 5
Diameter (D)	Length (L)	Approx. Overall Length	Indicative Image
Diameter (D) 6.350 mm + 0.006 / + 0.015 _{(0.25 in.)}	Length (L) 12.70 mm +/- 0.350 _{(0.5 in.)}	Approx. Overall Length 12.70 mm +/ - 0.350 _{(0.5 in.)}
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 8-32
Part Number: DP064-013-CH-1E (5 Pcs) Dowel Pins - 6.35x12.7x12.7 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $37.32 AUD Regular price Sale price $37.32 AUD Unit price per Per 5 View the product page first if you are unsure.
DP064-013-CH-1E (5 Pcs) --- Dowel Pins - 6.35x12.7x12.7 mm - Carbon Steel Rc 58-62 DP064-013-CH-1E (5 Pcs) --- Dowel Pins - 6.35x12.7x12.7 mm - Carbon Steel Rc 58-62 Regular price $37.32 AUD Regular price Sale price $37.32 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 7.938 mm + 0.006 / + 0.015 _{(0.313 in.)}	Length (L) 31.75 mm +/- 0.500 _{(1.25 in.)}	Approx. Overall Length 31.75 mm +/ - 0.500 _{(1.25 in.)}	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP079-032-CH-1E (5 Pcs) Dowel Pins - 7.938x31.75x31.75 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $19.86 AUD Regular price ~~$23.84 AUD~~ Sale price $19.86 AUD Unit price per Per 5
Diameter (D) 7.938 mm + 0.006 / + 0.015 _{(0.313 in.)}	Length (L) 31.75 mm +/- 0.500 _{(1.25 in.)}	Approx. Overall Length 31.75 mm +/ - 0.500 _{(1.25 in.)}
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP079-032-CH-1E (5 Pcs) Dowel Pins - 7.938x31.75x31.75 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $19.86 AUD Regular price ~~$23.84 AUD~~ Sale price $19.86 AUD Unit price per Per 5 View the product page first if you are unsure.
DP079-032-CH-1E (5 Pcs) --- Dowel Pins - 7.938x31.75x31.75 mm - Carbon Steel Rc 58-62 Sale DP079-032-CH-1E (5 Pcs) --- Dowel Pins - 7.938x31.75x31.75 mm - Carbon Steel Rc 58-62 Regular price $19.86 AUD Regular price ~~$23.84 AUD~~ Sale price $19.86 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 9.525 mm + 0.006 / + 0.015 _{(0.375 in.)}	Length (L) 63.50 mm +/- 0.600 _{(2.5 in.)}	Approx. Overall Length 63.50 mm +/ - 0.600 _{(2.5 in.)}	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 10-32
Part Number: DP095-064-CH-1E Dowel Pins - 9.525x63.5x63.5 mm - Carbon Steel Rc 58-62 10 Available Now \| Further orders can be expected around Wed, Jul 16, 2025 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Each
Diameter (D) 9.525 mm + 0.006 / + 0.015 _{(0.375 in.)}	Length (L) 63.50 mm +/- 0.600 _{(2.5 in.)}	Approx. Overall Length 63.50 mm +/ - 0.600 _{(2.5 in.)}
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 10-32
Part Number: DP095-064-CH-1E Dowel Pins - 9.525x63.5x63.5 mm - Carbon Steel Rc 58-62 10 Available Now \| Further orders can be expected around Wed, Jul 16, 2025 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Each View the product page first if you are unsure.
DP095-064-CH-1E --- Dowel Pins - 9.525x63.5x63.5 mm - Carbon Steel Rc 58-62 DP095-064-CH-1E --- Dowel Pins - 9.525x63.5x63.5 mm - Carbon Steel Rc 58-62 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per 10 Available Now
Diameter (D) 12.700 mm + 0.007 / + 0.018 _{(0.5 in.)}	Length (L) 25.40 mm +/- 0.420 _{(1 in.)}	Approx. Overall Length 25.40 mm +/ - 0.420 _{(1 in.)}	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 1/4-20
Part Number: DP127-025-CH-1E Dowel Pins - 12.7x25.4x25.4 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 16, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Each
Diameter (D) 12.700 mm + 0.007 / + 0.018 _{(0.5 in.)}	Length (L) 25.40 mm +/- 0.420 _{(1 in.)}	Approx. Overall Length 25.40 mm +/ - 0.420 _{(1 in.)}
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 1/4-20
Part Number: DP127-025-CH-1E Dowel Pins - 12.7x25.4x25.4 mm - Carbon Steel Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 16, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Each View the product page first if you are unsure.
DP127-025-CH-1E --- Dowel Pins - 12.7x25.4x25.4 mm - Carbon Steel Rc 58-62 DP127-025-CH-1E --- Dowel Pins - 12.7x25.4x25.4 mm - Carbon Steel Rc 58-62 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 12.700 mm + 0.007 / + 0.018 _{(0.5 in.)}	Length (L) 44.45 mm +/- 0.500 _{(1.75 in.)}	Approx. Overall Length 44.45 mm +/ - 0.500 _{(1.75 in.)}	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 1/4-20
Part Number: DP127-044-CH-1E Dowel Pins - 12.7x44.45x44.45 mm - Carbon Steel Rc 58-62 8 Available Now \| Further orders can be expected around Mon, Jul 21, 2025 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Each
Diameter (D) 12.700 mm + 0.007 / + 0.018 _{(0.5 in.)}	Length (L) 44.45 mm +/- 0.500 _{(1.75 in.)}	Approx. Overall Length 44.45 mm +/ - 0.500 _{(1.75 in.)}
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 1/4-20
Part Number: DP127-044-CH-1E Dowel Pins - 12.7x44.45x44.45 mm - Carbon Steel Rc 58-62 8 Available Now \| Further orders can be expected around Mon, Jul 21, 2025 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Each View the product page first if you are unsure.
DP127-044-CH-1E --- Dowel Pins - 12.7x44.45x44.45 mm - Carbon Steel Rc 58-62 DP127-044-CH-1E --- Dowel Pins - 12.7x44.45x44.45 mm - Carbon Steel Rc 58-62 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per 8 Available Now
Diameter (D) 15.875 mm + 0.007 / + 0.018 _{(0.625 in.)}	Length (L) 38.10 mm +/- 0.500 _{(1.5 in.)}	Approx. Overall Length 38.10 mm +/ - 0.500 _{(1.5 in.)}	Type 1 (Chamfer One End)
Material: Carbon Steel Rc 58-62 Thread Size: 1/4-20
Part Number: DP159-038-CH-1E Dowel Pins - 15.875x38.1x38.1 mm - Carbon Steel Rc 58-62 5 Available Now \| Further orders can be expected around Mon, Jul 21, 2025 Regular price $4.05 AUD Regular price Sale price $4.05 AUD Unit price per Each
Diameter (D) 15.875 mm + 0.007 / + 0.018 _{(0.625 in.)}	Length (L) 38.10 mm +/- 0.500 _{(1.5 in.)}	Approx. Overall Length 38.10 mm +/ - 0.500 _{(1.5 in.)}
Material: Carbon Steel Rc 58-62 Type: 1 (Chamfer One End) Thread Size: 1/4-20
Part Number: DP159-038-CH-1E Dowel Pins - 15.875x38.1x38.1 mm - Carbon Steel Rc 58-62 5 Available Now \| Further orders can be expected around Mon, Jul 21, 2025 Regular price $4.05 AUD Regular price Sale price $4.05 AUD Unit price per Each View the product page first if you are unsure.
DP159-038-CH-1E --- Dowel Pins - 15.875x38.1x38.1 mm - Carbon Steel Rc 58-62 DP159-038-CH-1E --- Dowel Pins - 15.875x38.1x38.1 mm - Carbon Steel Rc 58-62 Regular price $4.05 AUD Regular price Sale price $4.05 AUD Unit price per 5 Available Now
