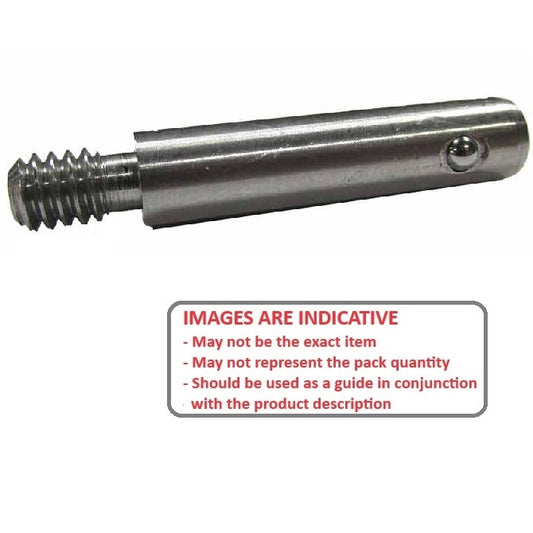

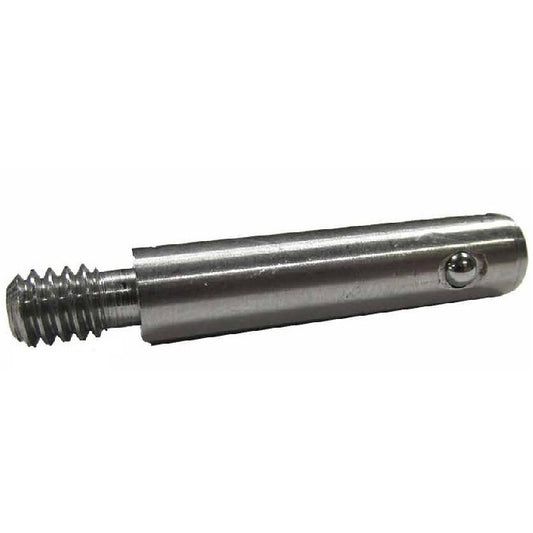

Pins - Ball Lock - Threaded End Stainless Steel

1 Item Available

A selection of Threaded End Stainless Steel Ball Lock Pins. One end threaded so you can attach your own handle or knob. 303 Stainless Steel.

  • Positive lock detent pins.
  • 300 Grade Stainless Components
  • 440C Stainless Balls
Small Parts & Bearings

Additional resources:
Master Pins Catalogue PDF
Knobs
Flanged Receptacles for Ball Lock Pins

A more comprehensive listing may be found on the MBA Minibearings main store at Pins - Ball Lock - Threaded End Stainless Steel.
Nominal Diameter (A) Grip Length (B) Pin Material Grade Locking Ball to End © Open Ball Distance (B) Max. Handle Height (H) Indicative
Nominal Diameter (A)
4.76
mm

(Equiv. 0.187 in.)
Grip Length (B)
12.70
mm

(Equiv. 0.5 in.)
Pin Material Grade
303 Stainless Steel

Ball Lock Pins - 4.76x12.7 mm - 303 Stainless Steel
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Thread Size: 10-32 UNF    Thread Length: 7.93 mm
Part Number: BLP-048-0127-THR-S3 Ball Lock Pins - 4.76x12.7 mm - 303 Stainless Steel Threaded End Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025
$17.77 AUD
$17.77 AUD
Each
Nominal Diameter (A) Grip Length (B) Pin Material Grade Locking Ball to End © Indicative
Nominal Diameter (A)
4.76
mm

(Equiv. 0.187 in.)
Grip Length (B)
12.70
mm

(Equiv. 0.5 in.)
Pin Material Grade
303 Stainless Steel

Ball Lock Pins - 4.76x12.7 mm - 303 Stainless Steel
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Thread Size: 10-32 UNF    Thread Length: 7.93 mm
Part Number: BLP-048-0127-THR-S3 Ball Lock Pins - 4.76x12.7 mm - 303 Stainless Steel Threaded End Stainless Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025
$17.77 AUD
$17.77 AUD
Each
View the product page first if you are unsure.
