Collection: Pins - Ball Lock - Shoulder Type - Tee Handle

Pins (With Images)

Ball Lock

Shoulder Type

Ring Handle
Tee Handle

7 Products in this selection

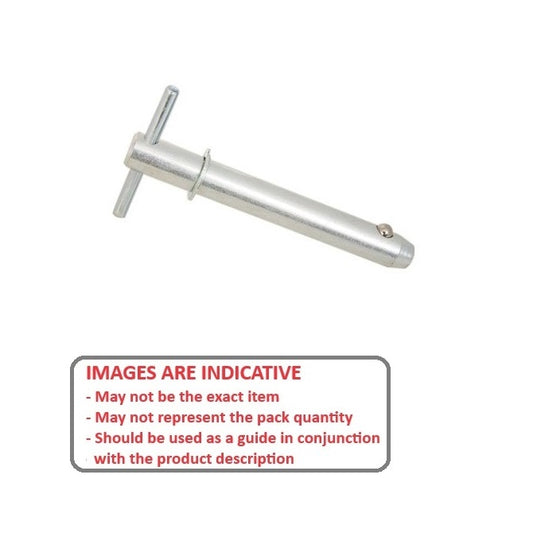

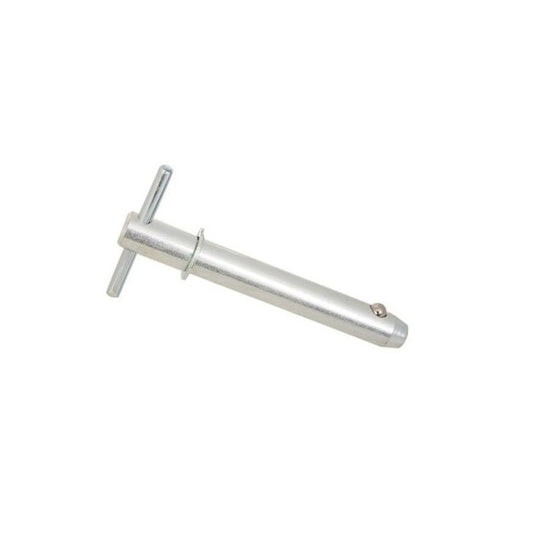

Zinc plated C1144 pins with a shoulder that prevents the pin being inserted all the way to the handle. Tee handle.
Positive lock detent pins.
Carbon steel components

Small Parts & Bearings

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins

A more comprehensive listing may be found on the MBA Minibearings main store at Pins - Ball Lock - Shoulder Type - Tee Handle.

Nominal Diameter	Grip Length (B)	Pin Material Grade	Locking Ball to End (C)	Open Ball Distance (B)
Nominal Diameter 4.76 mm _{(0.187 in.)}	Grip Length (B) 25.40 mm _{(1 in.)}	Pin Material Grade Carbon Steel	Locking Ball to End (C) 5.08 mm	Open Ball Distance (B) 5.18 mm
Material: Carbon Steel Shoulder To End (D): 19.05 mm
Part Number: BLP-048-0254-TSH-C Ball Lock Pins - 4.76x25.4 mm - Carbon Steel 4 Available Now \| Further orders can be expected around Sun, Jul 13, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Each
Nominal Diameter	Grip Length (B)	Pin Material Grade	Locking Ball to End (C)	Indicative Image
Nominal Diameter 4.76 mm _{(0.187 in.)}	Grip Length (B) 25.40 mm _{(1 in.)}	Pin Material Grade Carbon Steel	Locking Ball to End (C) 5.08 mm
Material: Carbon Steel Open Ball Distance (B): 5.18 mm Shoulder To End (D): 19.05 mm
Part Number: BLP-048-0254-TSH-C Ball Lock Pins - 4.76x25.4 mm - Carbon Steel 4 Available Now \| Further orders can be expected around Sun, Jul 13, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Each View the product page first if you are unsure.
BLP-048-0254-TSH-C --- Ball Lock Pins - 4.76x25.4 mm - Carbon Steel BLP-048-0254-TSH-C --- Ball Lock Pins - 4.76x25.4 mm - Carbon Steel Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per 4 Available Now
Nominal Diameter 6.35 mm _{(0.25 in.)}	Grip Length (B) 38.10 mm _{(1.5 in.)}	Pin Material Grade Carbon Steel	Locking Ball to End (C) 7.93 mm	Open Ball Distance (B) 7.26 mm
Material: Carbon Steel Shoulder To End (D): 19.05 mm
Part Number: BLP-064-0381-TSH-C Ball Lock Pins - 6.35x38.1 mm - Carbon Steel 2 Available Now \| Further orders can be expected around Sun, Jul 13, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Each
Nominal Diameter 6.35 mm _{(0.25 in.)}	Grip Length (B) 38.10 mm _{(1.5 in.)}	Pin Material Grade Carbon Steel	Locking Ball to End (C) 7.93 mm
Material: Carbon Steel Open Ball Distance (B): 7.26 mm Shoulder To End (D): 19.05 mm
Part Number: BLP-064-0381-TSH-C Ball Lock Pins - 6.35x38.1 mm - Carbon Steel 2 Available Now \| Further orders can be expected around Sun, Jul 13, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Each View the product page first if you are unsure.
BLP-064-0381-TSH-C --- Ball Lock Pins - 6.35x38.1 mm - Carbon Steel BLP-064-0381-TSH-C --- Ball Lock Pins - 6.35x38.1 mm - Carbon Steel Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per 2 Available Now
Nominal Diameter 12.70 mm _{(0.5 in.)}	Grip Length (B) 25.40 mm _{(1 in.)}	Pin Material Grade Carbon Steel	Locking Ball to End (C) 15.88 mm	Open Ball Distance (B) 14.48 mm
Material: Carbon Steel Shoulder To End (D): 25.70 mm
Part Number: BLP-127-0254-TSH-C Ball Lock Pins - 12.7x25.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jul 13, 2025 Regular price $13.32 AUD Regular price ~~$15.98 AUD~~ Sale price $13.32 AUD Unit price per Each
Nominal Diameter 12.70 mm _{(0.5 in.)}	Grip Length (B) 25.40 mm _{(1 in.)}	Pin Material Grade Carbon Steel	Locking Ball to End (C) 15.88 mm
Material: Carbon Steel Open Ball Distance (B): 14.48 mm Shoulder To End (D): 25.70 mm
Part Number: BLP-127-0254-TSH-C Ball Lock Pins - 12.7x25.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jul 13, 2025 Regular price $13.32 AUD Regular price ~~$15.98 AUD~~ Sale price $13.32 AUD Unit price per Each View the product page first if you are unsure.
BLP-127-0254-TSH-C --- Ball Lock Pins - 12.7x25.4 mm - Carbon Steel Sale BLP-127-0254-TSH-C --- Ball Lock Pins - 12.7x25.4 mm - Carbon Steel Regular price $13.32 AUD Regular price ~~$15.98 AUD~~ Sale price $13.32 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 12.70 mm _{(0.5 in.)}	Grip Length (B) 33.02 mm _{(1.3 in.)}	Pin Material Grade Carbon Steel	Locking Ball to End (C) 15.88 mm	Open Ball Distance (B) 14.48 mm
Material: Carbon Steel Shoulder To End (D): 25.70 mm
Part Number: BLP-127-0330-TSH-C Ball Lock Pins - 12.7x33.02 mm - Carbon Steel 10 Available Now \| Further orders can be expected around Sun, Jul 13, 2025 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Each
Nominal Diameter 12.70 mm _{(0.5 in.)}	Grip Length (B) 33.02 mm _{(1.3 in.)}	Pin Material Grade Carbon Steel	Locking Ball to End (C) 15.88 mm
Material: Carbon Steel Open Ball Distance (B): 14.48 mm Shoulder To End (D): 25.70 mm
Part Number: BLP-127-0330-TSH-C Ball Lock Pins - 12.7x33.02 mm - Carbon Steel 10 Available Now \| Further orders can be expected around Sun, Jul 13, 2025 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Each View the product page first if you are unsure.
BLP-127-0330-TSH-C --- Ball Lock Pins - 12.7x33.02 mm - Carbon Steel BLP-127-0330-TSH-C --- Ball Lock Pins - 12.7x33.02 mm - Carbon Steel Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per 10 Available Now
Nominal Diameter 12.70 mm _{(0.5 in.)}	Grip Length (B) 63.50 mm _{(2.5 in.)}	Pin Material Grade Carbon Steel	Locking Ball to End (C) 15.88 mm	Open Ball Distance (B) 14.48 mm
Material: Carbon Steel Shoulder To End (D): 25.70 mm Approx.
Part Number: BLP-127-0635-TSH-C Ball Lock Pins - 12.7x63.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jul 13, 2025 Regular price $17.41 AUD Regular price ~~$20.89 AUD~~ Sale price $17.41 AUD Unit price per Each
Nominal Diameter 12.70 mm _{(0.5 in.)}	Grip Length (B) 63.50 mm _{(2.5 in.)}	Pin Material Grade Carbon Steel	Locking Ball to End (C) 15.88 mm
Material: Carbon Steel Open Ball Distance (B): 14.48 mm Shoulder To End (D): 25.70 mm Approx.
Part Number: BLP-127-0635-TSH-C Ball Lock Pins - 12.7x63.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jul 13, 2025 Regular price $17.41 AUD Regular price ~~$20.89 AUD~~ Sale price $17.41 AUD Unit price per Each View the product page first if you are unsure.
BLP-127-0635-TSH-C --- Ball Lock Pins - 12.7x63.5 mm - Carbon Steel Sale BLP-127-0635-TSH-C --- Ball Lock Pins - 12.7x63.5 mm - Carbon Steel Regular price $17.41 AUD Regular price ~~$20.89 AUD~~ Sale price $17.41 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 12.70 mm _{(0.5 in.)}	Grip Length (B) 76.20 mm _{(3 in.)}	Pin Material Grade Carbon Steel	Locking Ball to End (C) 15.88 mm	Open Ball Distance (B) 14.48 mm
Material: Carbon Steel Shoulder To End (D): 25.70 mm
Part Number: BLP-127-0762-TSH-C Ball Lock Pins - 12.7x76.2 mm - Carbon Steel 10 Available Now \| Further orders can be expected around Sun, Jul 13, 2025 Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Each
Nominal Diameter 12.70 mm _{(0.5 in.)}	Grip Length (B) 76.20 mm _{(3 in.)}	Pin Material Grade Carbon Steel	Locking Ball to End (C) 15.88 mm
Material: Carbon Steel Open Ball Distance (B): 14.48 mm Shoulder To End (D): 25.70 mm
Part Number: BLP-127-0762-TSH-C Ball Lock Pins - 12.7x76.2 mm - Carbon Steel 10 Available Now \| Further orders can be expected around Sun, Jul 13, 2025 Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Each View the product page first if you are unsure.
BLP-127-0762-TSH-C --- Ball Lock Pins - 12.7x76.2 mm - Carbon Steel BLP-127-0762-TSH-C --- Ball Lock Pins - 12.7x76.2 mm - Carbon Steel Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per 10 Available Now
Nominal Diameter 15.88 mm _{(0.625 in.)}	Grip Length (B) 101.60 mm _{(4 in.)}	Pin Material Grade Carbon Steel	Locking Ball to End (C) 19.05 mm	Open Ball Distance (B) 18.03 mm
Material: Carbon Steel Shoulder To End (D): 28.58 mm
Part Number: BLP-159-1016-TSH-C Ball Lock Pins - 15.88x101.6 mm - Carbon Steel 2 Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $21.59 AUD Regular price ~~$39.24 AUD~~ Sale price $21.59 AUD Unit price per Each
Nominal Diameter 15.88 mm _{(0.625 in.)}	Grip Length (B) 101.60 mm _{(4 in.)}	Pin Material Grade Carbon Steel	Locking Ball to End (C) 19.05 mm
Material: Carbon Steel Open Ball Distance (B): 18.03 mm Shoulder To End (D): 28.58 mm
Part Number: BLP-159-1016-TSH-C Ball Lock Pins - 15.88x101.6 mm - Carbon Steel 2 Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $21.59 AUD Regular price ~~$39.24 AUD~~ Sale price $21.59 AUD Unit price per Each
BLP-159-1016-TSH-C --- Ball Lock Pins - 15.88x101.6 mm - Carbon Steel Sale BLP-159-1016-TSH-C --- Ball Lock Pins - 15.88x101.6 mm - Carbon Steel Regular price $21.59 AUD Regular price ~~$39.24 AUD~~ Sale price $21.59 AUD Unit price per 2 Available Now Sale
