Pins - Ball Lock - Double Acting

1 Item Available
Combined category including various types of Ball Lock Pins.

Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Small Parts & Bearings

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins

A more comprehensive listing may be found on the MBA Minibearings main store at Pins - Ball Lock - Double Acting.
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C) Open Ball Distance (B) Max. Handle Height (H) Indicative
Nominal Diameter
6.35
mm

(Equiv. 0.25 in.)
Grip Length (B)
63.50
mm

(Equiv. 2.5 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
7.37
mm
Open Ball Distance (B)
7.34
mm

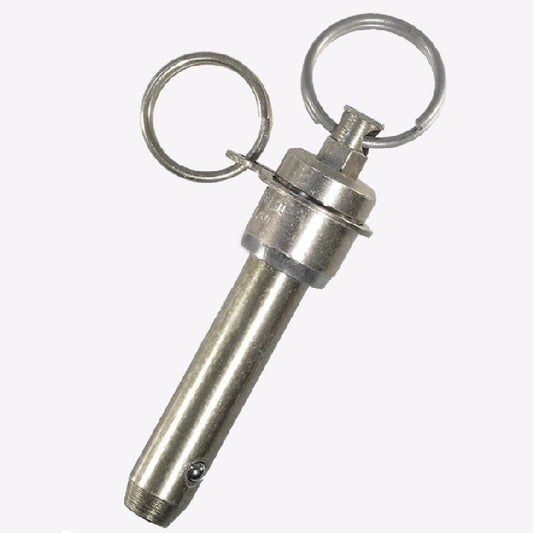

Ball Lock Pins - 6.35x63.5 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH with Aluminium Handle    Ring Height (H): 49.40 mm
Category: Pins - Ball Lock - Double Acting - Ring Handle Stainless Steel
Part Number: BLP-064-0635-DR-S17 Ball Lock Pins - 6.35x63.5 mm - 17-4 PH Stainless Double Acting
Out of Stock | Backorder Now | Orders can be expected around Wed, Aug 06, 2025
$102.05 AUD
$102.05 AUD
Each
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C) Indicative
Nominal Diameter
6.35
mm

(Equiv. 0.25 in.)
Grip Length (B)
63.50
mm

(Equiv. 2.5 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
7.37
mm

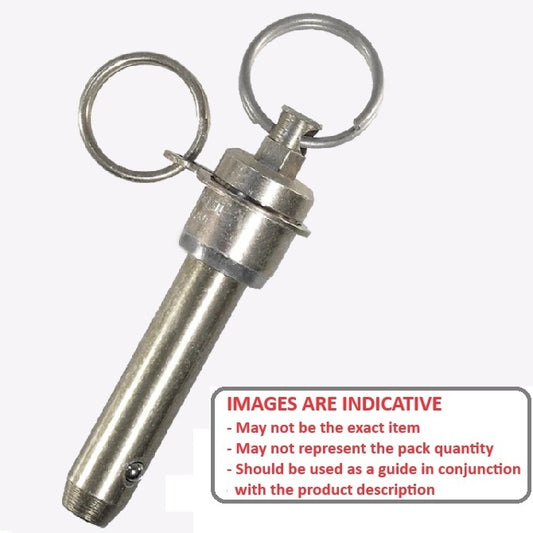

Ball Lock Pins - 6.35x63.5 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH with Aluminium Handle    Open Ball Distance (B): 7.34 mm    Ring Height (H): 49.40 mm
Category: Pins - Ball Lock - Double Acting - Ring Handle Stainless Steel
Part Number: BLP-064-0635-DR-S17 Ball Lock Pins - 6.35x63.5 mm - 17-4 PH Stainless Double Acting
Out of Stock | Backorder Now | Orders can be expected around Wed, Aug 06, 2025
$102.05 AUD
$102.05 AUD
Each
View the product page first if you are unsure.
