Pins - Ball Lock - Button Handle - Industrial Stainless Steel

Pins -> Ball Lock -> Button Handle -> Industrial Stainless Steel

There are 4 products in the sub-categories of Pins - Ball Lock - Button Handle - Industrial Stainless Steel. Browse the Pins - Ball Lock - Button Handle - Industrial Stainless Steel products table.

Category Details

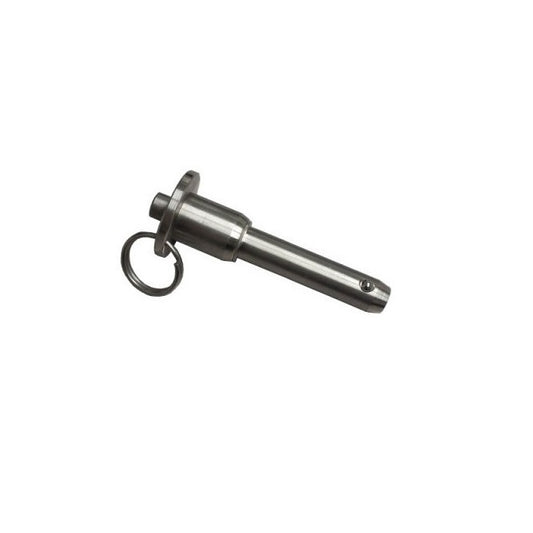

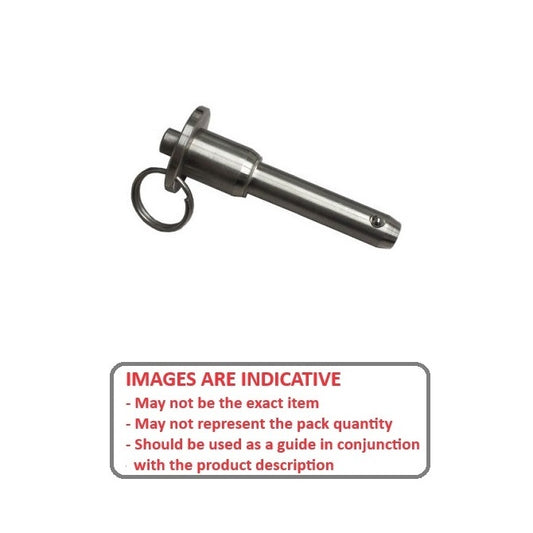

A selection of Industrial Stainless Steel Button Handle Ball Lock Pins. 17-4 PH or PH15-7MO stainless steel spindle and shank. Handles aluminium unless noted otherwise.

  • An expanded range may be available on special order. Please enquire.
  • Positive lock detent pins.
  • Aluminium handles.
  • 300 Grade Stainless Components
  • 440C Stainless Balls

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Pins - Ball Lock - Button Handle - Industrial Stainless Steel category on the MBA Minibearings main store.
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C) Open Ball Distance (B) Max. Handle Height (H) Indicative
Ball Lock Pins - 4.76x76.2 mm - 17-4 PH Stainless / Aluminium Handle Button Handle Pin
Nominal Diameter
4.76
mm

(Equiv. 0.187 in.)
Grip Length (B)
76.20
mm

(Equiv. 3 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
6.60
mm
Open Ball Distance (B)
5.58
mm
Ball Lock Pins - 4.76x76.2 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Ring Diameter (F): 26.92 mm    Handle Length (R): 18.54 mm    Pull Out Strength: 90.00 Kg    Calc. Double Shear Strength: 2330 Kg    Max. Diameter: 4.78 mm    Min. Diameter: 4.76 mm
Part Number: BLP-048-0762-BT-S17 (Each)
1 Available Now | Further orders can be expected around Tue, Jan 20, 2026
$64.59 AUD
$77.51 AUD $64.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 1 available can be backordered.
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C) Indicative
Ball Lock Pins - 4.76x76.2 mm - 17-4 PH Stainless / Aluminium Handle Button Handle Pin
Nominal Diameter
4.76
mm

(Equiv. 0.187 in.)
Grip Length (B)
76.20
mm

(Equiv. 3 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
6.60
mm
Ball Lock Pins - 4.76x76.2 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Open Ball Distance (B): 5.58 mm    Ring Diameter (F): 26.92 mm    Handle Length (R): 18.54 mm    Pull Out Strength: 90.00 Kg    Calc. Double Shear Strength: 2330 Kg    Max. Diameter: 4.78 mm    Min. Diameter: 4.76 mm
Part Number: BLP-048-0762-BT-S17 (Each)
1 Available Now | Further orders can be expected around Tue, Jan 20, 2026
$64.59 AUD
$77.51 AUD $64.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Ball Lock Pins - 6.35x12.7 mm - 17-4 PH Stainless / Aluminium Handle Button Handle Pin
Nominal Diameter
6.35
mm

(Equiv. 0.25 in.)
Grip Length (B)
12.70
mm

(Equiv. 0.5 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
7.36
mm
Open Ball Distance (B)
7.34
mm
Ball Lock Pins - 6.35x12.7 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Ring Diameter (F): 26.92 mm    Handle Length (R): 19.81 mm    Pull Out Strength: 104.00 Kg    Calc. Double Shear Strength: 4163 Kg    Max. Diameter: 6.31 mm    Min. Diameter: 6.27 mm
Part Number: BLP-064-0127-BT-S17 (Each)
1 Available Now | Further orders can be expected around Tue, Jan 20, 2026
$41.50 AUD
$49.80 AUD $41.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 1 available can be backordered.
Ball Lock Pins - 6.35x12.7 mm - 17-4 PH Stainless / Aluminium Handle Button Handle Pin
Nominal Diameter
6.35
mm

(Equiv. 0.25 in.)
Grip Length (B)
12.70
mm

(Equiv. 0.5 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
7.36
mm
Ball Lock Pins - 6.35x12.7 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Open Ball Distance (B): 7.34 mm    Ring Diameter (F): 26.92 mm    Handle Length (R): 19.81 mm    Pull Out Strength: 104.00 Kg    Calc. Double Shear Strength: 4163 Kg    Max. Diameter: 6.31 mm    Min. Diameter: 6.27 mm
Part Number: BLP-064-0127-BT-S17 (Each)
1 Available Now | Further orders can be expected around Tue, Jan 20, 2026
$41.50 AUD
$49.80 AUD $41.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless / Aluminium Handle Button Handle Pin
Nominal Diameter
9.53
mm

(Equiv. 0.375 in.)
Grip Length (B)
76.20
mm

(Equiv. 3 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
9.27
mm
Open Ball Distance (B)
11.17
mm
Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Ring Diameter (F): 26.92 mm    Handle Length (R): 23.88 mm    Pull Out Strength: 260.00 Kg    Calc. Double Shear Strength: 9321 Kg    Max. Diameter: 9.48 mm    Min. Diameter: 9.44 mm
Part Number: BLP-095-0762-BT-S17 (Each)
2 Available Now | Further orders can be expected around Sun, Mar 15, 2026
$108.68 AUD
$108.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless / Aluminium Handle Button Handle Pin
Nominal Diameter
9.53
mm

(Equiv. 0.375 in.)
Grip Length (B)
76.20
mm

(Equiv. 3 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
9.27
mm
Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Open Ball Distance (B): 11.17 mm    Ring Diameter (F): 26.92 mm    Handle Length (R): 23.88 mm    Pull Out Strength: 260.00 Kg    Calc. Double Shear Strength: 9321 Kg    Max. Diameter: 9.48 mm    Min. Diameter: 9.44 mm
Part Number: BLP-095-0762-BT-S17 (Each)
2 Available Now | Further orders can be expected around Sun, Mar 15, 2026
$108.68 AUD
$108.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Ball Lock Pins - 9.53x101.6 mm - 17-4 PH Stainless / Aluminium Handle Button Handle Pin
Nominal Diameter
9.53
mm

(Equiv. 0.375 in.)
Grip Length (B)
101.60
mm

(Equiv. 4 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
9.27
mm
Open Ball Distance (B)
11.17
mm
Ball Lock Pins - 9.53x101.6 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Ring Diameter (F): 26.92 mm    Handle Length (R): 23.88 mm    Pull Out Strength: 260.00 Kg    Calc. Double Shear Strength: 9321 Kg    Max. Diameter: 9.48 mm    Min. Diameter: 9.44 mm
Deleted Item. Available while stocks last.
Part Number: BLP-095-1016-BT-S17 (Each)
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$46.91 AUD
$102.48 AUD $46.91 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Ball Lock Pins - 9.53x101.6 mm - 17-4 PH Stainless / Aluminium Handle Button Handle Pin
Nominal Diameter
9.53
mm

(Equiv. 0.375 in.)
Grip Length (B)
101.60
mm

(Equiv. 4 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
9.27
mm
Ball Lock Pins - 9.53x101.6 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Open Ball Distance (B): 11.17 mm    Ring Diameter (F): 26.92 mm    Handle Length (R): 23.88 mm    Pull Out Strength: 260.00 Kg    Calc. Double Shear Strength: 9321 Kg    Max. Diameter: 9.48 mm    Min. Diameter: 9.44 mm
Deleted Item. Available while stocks last.
Part Number: BLP-095-1016-BT-S17 (Each)
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$46.91 AUD
$102.48 AUD $46.91 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
