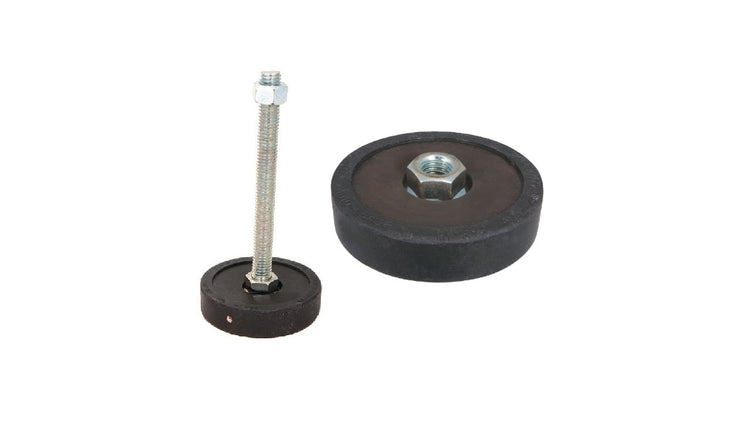

Mounts - Pivotal Levellers

9 Products in this selection

This is a combined category of products from Pivotal Levellers Mounts. Use the filters in the table below, or the category tree to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Cylindrical Bobbin Mounts PDF Quick Guide
Max Load Base Diameter (A) Base Height (B) Thread Size Type Indicative
158.7
Kg 		76.200
mm 		15.875
mm 		1/2-13 UNC (12.70mm)
 Square

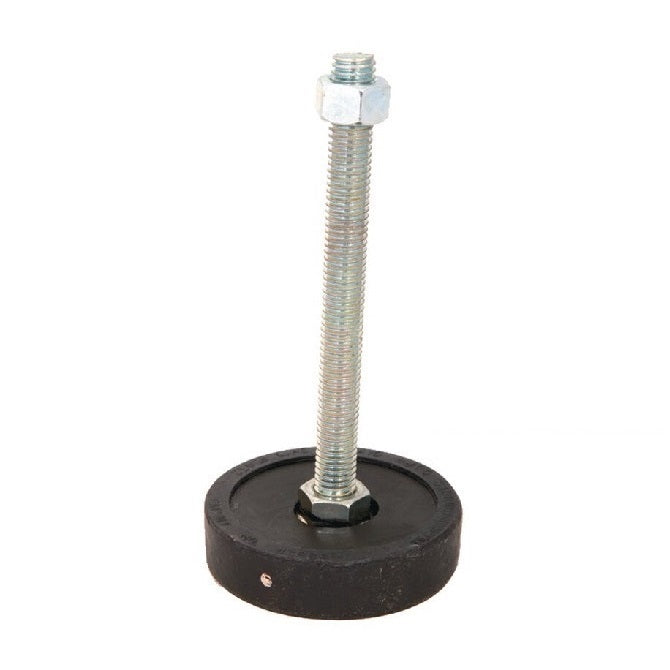

 1202103 | MPL-0159-S --- Mounts - 158.7 Kg x 76.2 mm x 15.875 mm
Material: Neoprene Rubber
Category: Mounts - Pivotal Levellers - With Stud
Part Number: MPL-0159-S Mounts - 158.7 Kg x 76.2 mm x 15.875 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$79.77 AUD
$79.77 AUD
Each
Max Load Base Diameter (A) Base Height (B) Thread Size Indicative
158.7
Kg 		76.200
mm 		15.875
mm 		1/2-13 UNC (12.70mm)
 1202103 | MPL-0159-S --- Mounts - 158.7 Kg x 76.2 mm x 15.875 mm
Material: Neoprene Rubber    Type: Square
Category: Mounts - Pivotal Levellers - With Stud
Part Number: MPL-0159-S Mounts - 158.7 Kg x 76.2 mm x 15.875 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$79.77 AUD
$79.77 AUD
Each
226.8
Kg 		76.200
mm 		19.050
mm 		1/2-13 UNC (12.70mm)
 Round

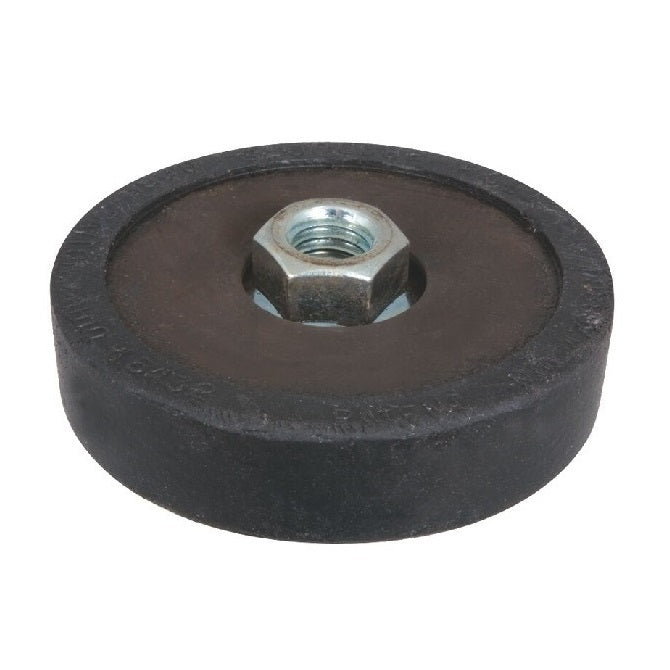

 1210428 | MPL-0227-P --- Mounts - 226.8 Kg x 76.2 mm x 19.05 mm
Material: Neoprene Rubber
Category: Mounts - Pivotal Levellers - Base Without Stud
Part Number: MPL-0227-P Mounts - 226.8 Kg x 76.2 mm x 19.05 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$67.23 AUD
$67.23 AUD
Each
226.8
Kg 		76.200
mm 		19.050
mm 		1/2-13 UNC (12.70mm)
 1210428 | MPL-0227-P --- Mounts - 226.8 Kg x 76.2 mm x 19.05 mm
Material: Neoprene Rubber    Type: Round
Category: Mounts - Pivotal Levellers - Base Without Stud
Part Number: MPL-0227-P Mounts - 226.8 Kg x 76.2 mm x 19.05 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$67.23 AUD
$67.23 AUD
Each
226.8
Kg 		76.200
mm 		19.050
mm 		1/2-13 UNC (12.70mm)
 Round
 1210429 | MPL-0227-S --- Mounts - 226.8 Kg x 76.2 mm x 19.05 mm
Material: Neoprene Rubber
Category: Mounts - Pivotal Levellers - With Stud
Part Number: MPL-0227-S Mounts - 226.8 Kg x 76.2 mm x 19.05 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$112.59 AUD
$112.59 AUD
Each
226.8
Kg 		76.200
mm 		19.050
mm 		1/2-13 UNC (12.70mm)
 1210429 | MPL-0227-S --- Mounts - 226.8 Kg x 76.2 mm x 19.05 mm
Material: Neoprene Rubber    Type: Round
Category: Mounts - Pivotal Levellers - With Stud
Part Number: MPL-0227-S Mounts - 226.8 Kg x 76.2 mm x 19.05 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$112.59 AUD
$112.59 AUD
Each
453.6
Kg 		76.200
mm 		19.050
mm 		1/2-13 UNC (12.70mm)
 Round
 1219186 | MPL-0454-P --- Mounts - 453.6 Kg x 76.2 mm x 19.05 mm
Material: Neoprene Rubber
Category: Mounts - Pivotal Levellers - Base Without Stud
Part Number: MPL-0454-P Mounts - 453.6 Kg x 76.2 mm x 19.05 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$72.68 AUD
$72.68 AUD
Each
453.6
Kg 		76.200
mm 		19.050
mm 		1/2-13 UNC (12.70mm)
 1219186 | MPL-0454-P --- Mounts - 453.6 Kg x 76.2 mm x 19.05 mm
Material: Neoprene Rubber    Type: Round
Category: Mounts - Pivotal Levellers - Base Without Stud
Part Number: MPL-0454-P Mounts - 453.6 Kg x 76.2 mm x 19.05 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$72.68 AUD
$72.68 AUD
Each
453.6
Kg 		76.200
mm 		19.050
mm 		1/2-13 UNC (12.70mm)
 Round
 1219187 | MPL-0454-S --- Mounts - 453.6 Kg x 76.2 mm x 19.05 mm
Material: Neoprene Rubber
Category: Mounts - Pivotal Levellers - With Stud
Part Number: MPL-0454-S Mounts - 453.6 Kg x 76.2 mm x 19.05 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$112.95 AUD
$112.95 AUD
Each
453.6
Kg 		76.200
mm 		19.050
mm 		1/2-13 UNC (12.70mm)
 1219187 | MPL-0454-S --- Mounts - 453.6 Kg x 76.2 mm x 19.05 mm
Material: Neoprene Rubber    Type: Round
Category: Mounts - Pivotal Levellers - With Stud
Part Number: MPL-0454-S Mounts - 453.6 Kg x 76.2 mm x 19.05 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$112.95 AUD
$112.95 AUD
Each
1678.3
Kg 		127.000
mm 		38.100
mm 		3/4-10 UNC (19.05mm)
 Round
 1222689 | MPL-1678-P --- Mounts - 1678.3 Kg x 127 mm x 38.1 mm
Material: Neoprene Rubber
Category: Mounts - Pivotal Levellers - Base Without Stud
Part Number: MPL-1678-P Mounts - 1678.3 Kg x 127 mm x 38.1 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$213.32 AUD
$213.32 AUD
Each
1678.3
Kg 		127.000
mm 		38.100
mm 		3/4-10 UNC (19.05mm)
 1222689 | MPL-1678-P --- Mounts - 1678.3 Kg x 127 mm x 38.1 mm
Material: Neoprene Rubber    Type: Round
Category: Mounts - Pivotal Levellers - Base Without Stud
Part Number: MPL-1678-P Mounts - 1678.3 Kg x 127 mm x 38.1 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$213.32 AUD
$213.32 AUD
Each
1678.3
Kg 		127.000
mm 		38.100
mm 		3/4-10 UNC (19.05mm)
 Round
 1222690 | MPL-1678-S --- Mounts - 1678.3 Kg x 127 mm x 38.1 mm
Material: Neoprene Rubber
Category: Mounts - Pivotal Levellers - With Stud
Part Number: MPL-1678-S Mounts - 1678.3 Kg x 127 mm x 38.1 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$218.86 AUD
$218.86 AUD
Each
1678.3
Kg 		127.000
mm 		38.100
mm 		3/4-10 UNC (19.05mm)
 1222690 | MPL-1678-S --- Mounts - 1678.3 Kg x 127 mm x 38.1 mm
Material: Neoprene Rubber    Type: Round
Category: Mounts - Pivotal Levellers - With Stud
Part Number: MPL-1678-S Mounts - 1678.3 Kg x 127 mm x 38.1 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$218.86 AUD
$218.86 AUD
Each
3628.7
Kg 		127.000
mm 		38.100
mm 		3/4-10 UNC (19.05mm)
 Round
 1223671 | MPL-3629-P --- Mounts - 3628.7 Kg x 127 mm x 38.1 mm
Material: Neoprene Rubber
Category: Mounts - Pivotal Levellers - Base Without Stud
Part Number: MPL-3629-P Mounts - 3628.7 Kg x 127 mm x 38.1 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$150.77 AUD
$150.77 AUD
Each
3628.7
Kg 		127.000
mm 		38.100
mm 		3/4-10 UNC (19.05mm)
 1223671 | MPL-3629-P --- Mounts - 3628.7 Kg x 127 mm x 38.1 mm
Material: Neoprene Rubber    Type: Round
Category: Mounts - Pivotal Levellers - Base Without Stud
Part Number: MPL-3629-P Mounts - 3628.7 Kg x 127 mm x 38.1 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$150.77 AUD
$150.77 AUD
Each
3628.7
Kg 		127.000
mm 		38.100
mm 		3/4-10 UNC (19.05mm)
 Round
 1223672 | MPL-3629-S --- Mounts - 3628.7 Kg x 127 mm x 38.1 mm
Material: Neoprene Rubber
Category: Mounts - Pivotal Levellers - With Stud
Part Number: MPL-3629-S Mounts - 3628.7 Kg x 127 mm x 38.1 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Dec 21, 2024
$223.77 AUD
$223.77 AUD
Each
3628.7
Kg 		127.000
mm 		38.100
mm 		3/4-10 UNC (19.05mm)
 1223672 | MPL-3629-S --- Mounts - 3628.7 Kg x 127 mm x 38.1 mm
Material: Neoprene Rubber    Type: Round
Category: Mounts - Pivotal Levellers - With Stud
Part Number: MPL-3629-S Mounts - 3628.7 Kg x 127 mm x 38.1 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Dec 21, 2024
$223.77 AUD
$223.77 AUD
Each
