Mounts - Pivotal Levellers - With Stud

Mounts -> Pivotal Levellers -> With Stud

There is only 1 product in the sub-categories of Mounts - Pivotal Levellers - With Stud. Browse the Mounts - Pivotal Levellers - With Stud products table.

Category Details

A selection of With Stud Pivotal Levellers Mounts. Tough bonded neoprene. Patented pivotal leveler keeps equipment level and dampens an average 85% of noise. Adjusters.

  • The mounting nut which holds the stud is molded into the pad in a steel bracket and rotates freely permitting at least 6.35mm of leveling.
  • Includes stud epoxied into the base mount.

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Mounts - Pivotal Levellers - With Stud category on the MBA Minibearings main store.
Max Load Base Diameter (A) Base Height (B) Thread Size Thread Length Type Indicative
Pivotal Levellers Mounts - 158.7 Kg - 76.2x15.875 mm With Stud - Neoprene Rubber Mount
Max Load
158.7
Kg
Base Diameter (A)
76.200
mm

(Equiv. 3 in.)
Base Height (B)
15.875
mm

(Equiv. 0.625 in.)
Thread Size
1/2-13 UNC (12.70mm)
Thread Length
122.240
Type
Square

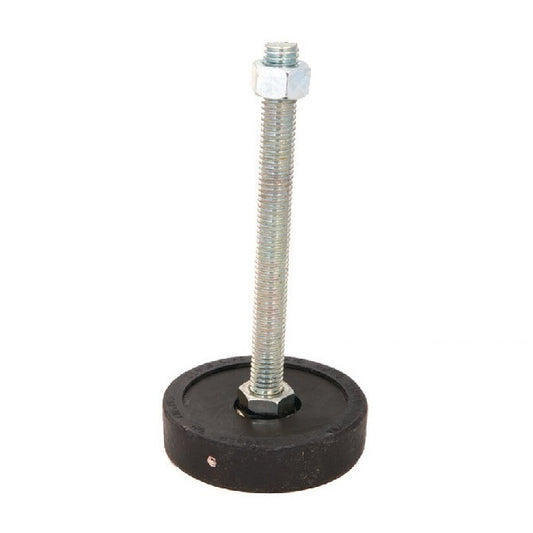

Pivotal Levellers Mounts - 158.7 Kg - 76.2x15.875 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: MPL-0159-S (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$125.14 AUD
$125.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Max Load Base Diameter (A) Base Height (B) Thread Size Indicative
Pivotal Levellers Mounts - 158.7 Kg - 76.2x15.875 mm With Stud - Neoprene Rubber Mount
Max Load
158.7
Kg
Base Diameter (A)
76.200
mm

(Equiv. 3 in.)
Base Height (B)
15.875
mm

(Equiv. 0.625 in.)
Thread Size
1/2-13 UNC (12.70mm)
Pivotal Levellers Mounts - 158.7 Kg - 76.2x15.875 mm - Neoprene Rubber
Material: Neoprene Rubber    Thread Length: 122.240    Type: Square
Part Number: MPL-0159-S (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$125.14 AUD
$125.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
