Collection: Bearings - Single Row Ball - Flanged
Bearings -> Single Row Ball -> FlangedThere are 187 products in the sub-categories of Bearings - Single Row Ball - Flanged. Scroll down or follow the link to Bearings - Single Row Ball - Flanged in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

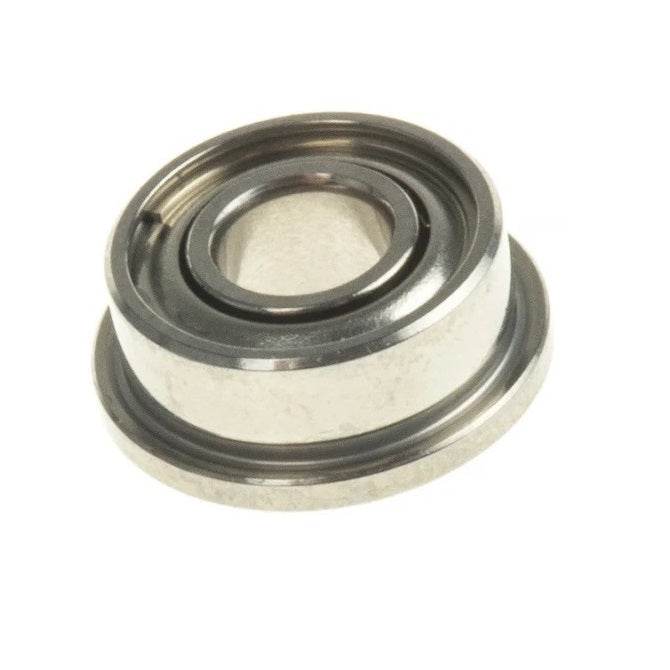

Bearings - Single Row Ball - Flanged - High Precision
This category includes various types of single row ball bearings. Single row...
Bearings - Single Row Ball - Flanged - Precision
This category includes various types of single row ball bearings. Single row...
Category Details
This category includes various types of single row ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Bearings - Single Row Ball - Flanged category on the MBA Minibearings main store.
| ID (d) | OD (D) | Width (B) | Inner Ring Width (Bn) | Flange Diameter (DF) | Flange Width (BF) |
Indicative Image |
|---|---|---|---|---|---|---|
| Single Row Ball Bearings - 1.191x3.967x1.588 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.191
mm + 0.000 / - 0.0075
(Equiv. 0.047 in.) |
OD (D)
3.967
mm + 0.000 / - 0.0075 (Equiv. 0.156 in.) |
Width (B)
1.588
mm + 0.000 / - 0.125 (Equiv. 0.063 in.) |
Flange Diameter (DF)
5.156
mm |
Flange Width (BF)
0.330
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision Deleted Item. Available while stocks last. |
||||||
|
Part Number: SFR0-MC3 (Each)
10 Available Now | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$4.24 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| ID (d) | OD (D) | Width (B) | Inner Ring Width (Bn) |
Indicative Image |
||
| Single Row Ball Bearings - 1.191x3.967x1.588 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.191
mm + 0.000 / - 0.0075 (Equiv. 0.047 in.) |
OD (D)
3.967
mm + 0.000 / - 0.0075 (Equiv. 0.156 in.) |
Width (B)
1.588
mm + 0.000 / - 0.125 (Equiv. 0.063 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 5.156 mm
Flange Width (BF): 0.330 mm
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision Deleted Item. Available while stocks last. |
||||||
|
Part Number: SFR0-MC3 (Each)
10 Available Now | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$4.24 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

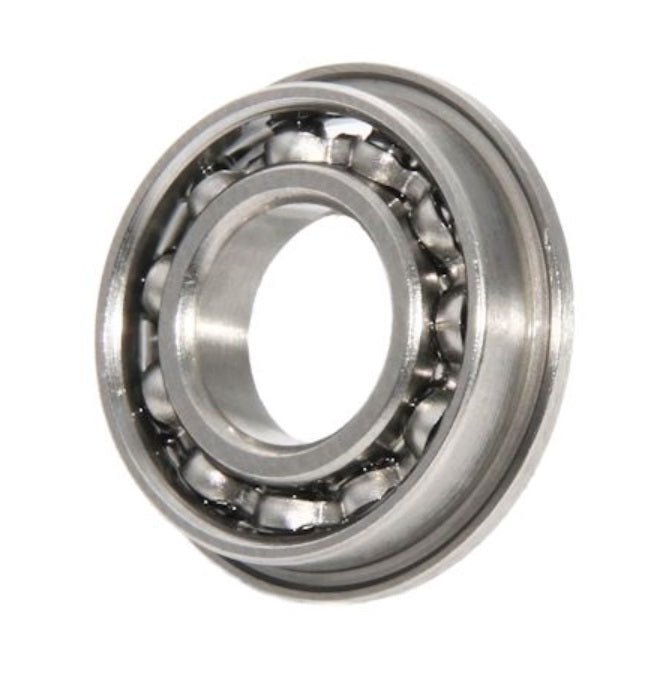

| Single Row Ball Bearings - 1.5x4x1.2 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.500
mm + 0.000 / - 0.004
(Equiv. 0.059 in.) |
OD (D)
4.000
mm + 0.000 / - 0.005 (Equiv. 0.157 in.) |
Width (B)
1.200
mm + 0.000 / - 0.040 (Equiv. 0.047 in.) |
Flange Diameter (DF)
5.000
mm |
Flange Width (BF)
0.400
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 7
Category: Bearings - Single Row Ball - Flanged - High Precision Deleted Item. Available while stocks last. |
||||||
|
Part Number: SF681X-MC34-GR7-R-L23 (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$32.44 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 1.5x4x1.2 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.500
mm + 0.000 / - 0.004 (Equiv. 0.059 in.) |
OD (D)
4.000
mm + 0.000 / - 0.005 (Equiv. 0.157 in.) |
Width (B)
1.200
mm + 0.000 / - 0.040 (Equiv. 0.047 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 5.000 mm
Flange Width (BF): 0.400 mm
Precision Grade: Abec 7
Category: Bearings - Single Row Ball - Flanged - High Precision Deleted Item. Available while stocks last. |
||||||
|
Part Number: SF681X-MC34-GR7-R-L23 (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$32.44 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 1.5x4x2 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.500
mm + 0.000 / - 0.0075
(Equiv. 0.059 in.) |
OD (D)
4.000
mm + 0.000 / - 0.0075 (Equiv. 0.157 in.) |
Width (B)
2.000
mm + 0.000 / - 0.125 (Equiv. 0.079 in.) |
Flange Diameter (DF)
5.000
mm |
Flange Width (BF)
0.600
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SF681XA-ZZ-MC3 (Each)
14 Available Now | Further orders can be expected around Thu, Feb 12, 2026 Regular price
$3.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 1.5x4x2 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.500
mm + 0.000 / - 0.0075 (Equiv. 0.059 in.) |
OD (D)
4.000
mm + 0.000 / - 0.0075 (Equiv. 0.157 in.) |
Width (B)
2.000
mm + 0.000 / - 0.125 (Equiv. 0.079 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 5.000 mm
Flange Width (BF): 0.600 mm
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SF681XA-ZZ-MC3 (Each)
14 Available Now | Further orders can be expected around Thu, Feb 12, 2026 Regular price
$3.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 1.5x5x2.6 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.500
mm + 0.000 / - 0.0075
(Equiv. 0.059 in.) |
OD (D)
5.000
mm + 0.000 / - 0.0075 (Equiv. 0.197 in.) |
Width (B)
2.600
mm + 0.000 / - 0.125 (Equiv. 0.102 in.) |
Flange Diameter (DF)
6.500
mm |
Flange Width (BF)
0.800
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision Deleted Item. Available while stocks last. |
||||||
|
Part Number: SF691XA-ZZ-MC3 (Each)
46 Available Now | Item Discontinued - Up to 46 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$5.29 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 1.5x5x2.6 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.500
mm + 0.000 / - 0.0075 (Equiv. 0.059 in.) |
OD (D)
5.000
mm + 0.000 / - 0.0075 (Equiv. 0.197 in.) |
Width (B)
2.600
mm + 0.000 / - 0.125 (Equiv. 0.102 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 6.500 mm
Flange Width (BF): 0.800 mm
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision Deleted Item. Available while stocks last. |
||||||
|
Part Number: SF691XA-ZZ-MC3 (Each)
46 Available Now | Item Discontinued - Up to 46 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$5.29 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 1.984x6.35x2.381 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.984
mm + 0.000 / - 0.0075
(Equiv. 0.078 in.) |
OD (D)
6.350
mm + 0.000 / - 0.0075 (Equiv. 0.25 in.) |
Width (B)
2.381
mm + 0.000 / - 0.125 (Equiv. 0.094 in.) |
Flange Diameter (DF)
7.518
mm |
Flange Width (BF)
0.584
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision Deleted Item. Available while stocks last. |
||||||
|
Part Number: SFR1-4-MC3 (Each)
10 Available Now | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$5.74 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 1.984x6.35x2.381 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.984
mm + 0.000 / - 0.0075 (Equiv. 0.078 in.) |
OD (D)
6.350
mm + 0.000 / - 0.0075 (Equiv. 0.25 in.) |
Width (B)
2.381
mm + 0.000 / - 0.125 (Equiv. 0.094 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 7.518 mm
Flange Width (BF): 0.584 mm
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision Deleted Item. Available while stocks last. |
||||||
|
Part Number: SFR1-4-MC3 (Each)
10 Available Now | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$5.74 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 1.984x6.35x3.571 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.984
mm + 0.000 / - 0.0075
(Equiv. 0.078 in.) |
OD (D)
6.350
mm + 0.000 / - 0.0075 (Equiv. 0.25 in.) |
Width (B)
3.571
mm + 0.000 / - 0.125 (Equiv. 0.141 in.) |
Flange Diameter (DF)
7.518
mm |
Flange Width (BF)
0.787
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SFR1-4B-ZZS-MC3 (Each)
5 Available Now | Further orders can be expected around Wed, Feb 04, 2026 Regular price
$41.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 1.984x6.35x3.571 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.984
mm + 0.000 / - 0.0075 (Equiv. 0.078 in.) |
OD (D)
6.350
mm + 0.000 / - 0.0075 (Equiv. 0.25 in.) |
Width (B)
3.571
mm + 0.000 / - 0.125 (Equiv. 0.141 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 7.518 mm
Flange Width (BF): 0.787 mm
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SFR1-4B-ZZS-MC3 (Each)
5 Available Now | Further orders can be expected around Wed, Feb 04, 2026 Regular price
$41.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 2x5x1.5 mm Flanged - Stainless Steel AISI 440C - Ceramic Si3N4 Balls Bearing | ||||||
|
ID (d)
2.000
mm + 0.000 / - 0.005
(Equiv. 0.079 in.) |
OD (D)
5.000
mm + 0.000 / - 0.005 (Equiv. 0.197 in.) |
Width (B)
1.500
mm + 0.000 / - 0.040 (Equiv. 0.059 in.) |
Flange Diameter (DF)
6.100
mm |
Flange Width (BF)
0.500
mm |
|
|
|
Material: Stainless Steel AISI 440C - Ceramic Si3N4 Balls
Precision Grade: Abec 5
Category: Bearings - Single Row Ball - Flanged - High Precision Deleted Item. Available while stocks last. |
||||||
|
Part Number: SF682-CSN-MC3-U5-L23 (Each)
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$28.01 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 2x5x1.5 mm Flanged - Stainless Steel AISI 440C - Ceramic Si3N4 Balls Bearing | ||||||
|
ID (d)
2.000
mm + 0.000 / - 0.005 (Equiv. 0.079 in.) |
OD (D)
5.000
mm + 0.000 / - 0.005 (Equiv. 0.197 in.) |
Width (B)
1.500
mm + 0.000 / - 0.040 (Equiv. 0.059 in.) |
|
|||
|
Material: Stainless Steel AISI 440C - Ceramic Si3N4 Balls
Flange Diameter (DF): 6.100 mm
Flange Width (BF): 0.500 mm
Precision Grade: Abec 5
Category: Bearings - Single Row Ball - Flanged - High Precision Deleted Item. Available while stocks last. |
||||||
|
Part Number: SF682-CSN-MC3-U5-L23 (Each)
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$28.01 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 2x5x1.5 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.000
mm + 0.000 / - 0.007
(Equiv. 0.079 in.) |
OD (D)
5.000
mm + 0.000 / - 0.007 (Equiv. 0.197 in.) |
Width (B)
1.500
mm + 0.000 / - 0.040 (Equiv. 0.059 in.) |
Flange Diameter (DF)
6.100
mm |
Flange Width (BF)
0.500
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: P6
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SF682-MC3-JP6-AF12 (Each)
152 Available Now | Further orders can be expected around Thu, Feb 12, 2026 Regular price
$4.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 2x5x1.5 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.000
mm + 0.000 / - 0.007 (Equiv. 0.079 in.) |
OD (D)
5.000
mm + 0.000 / - 0.007 (Equiv. 0.197 in.) |
Width (B)
1.500
mm + 0.000 / - 0.040 (Equiv. 0.059 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 6.100 mm
Flange Width (BF): 0.500 mm
Precision Grade: P6
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SF682-MC3-JP6-AF12 (Each)
152 Available Now | Further orders can be expected around Thu, Feb 12, 2026 Regular price
$4.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 2x5x2.3 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.000
mm (Equiv. 0.079 in.) |
OD (D)
5.000
mm (Equiv. 0.197 in.) |
Width (B)
2.300
mm (Equiv. 0.091 in.) |
Flange Diameter (DF)
6.100
mm |
Flange Width (BF)
0.600
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Economy
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SF682A-ZZ-ECO (Each)
1 Available Now | Further orders can be expected around Sat, Feb 07, 2026 Regular price
$41.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 2x5x2.3 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.000
mm (Equiv. 0.079 in.) |
OD (D)
5.000
mm (Equiv. 0.197 in.) |
Width (B)
2.300
mm (Equiv. 0.091 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 6.100 mm
Flange Width (BF): 0.600 mm
Precision Grade: Economy
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SF682A-ZZ-ECO (Each)
1 Available Now | Further orders can be expected around Sat, Feb 07, 2026 Regular price
$41.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 2x5x2.5 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.000
mm + 0.000 / - 0.0075
(Equiv. 0.079 in.) |
OD (D)
5.000
mm + 0.000 / - 0.0075 (Equiv. 0.197 in.) |
Width (B)
2.500
mm + 0.000 / - 0.125 (Equiv. 0.098 in.) |
Flange Diameter (DF)
6.200
mm |
Flange Width (BF)
0.600
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SFMR52A-ZZ-MC3 (Each)
100 Available Now | Further orders can be expected around Thu, Feb 12, 2026 Regular price
$5.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 2x5x2.5 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.000
mm + 0.000 / - 0.0075 (Equiv. 0.079 in.) |
OD (D)
5.000
mm + 0.000 / - 0.0075 (Equiv. 0.197 in.) |
Width (B)
2.500
mm + 0.000 / - 0.125 (Equiv. 0.098 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 6.200 mm
Flange Width (BF): 0.600 mm
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SFMR52A-ZZ-MC3 (Each)
100 Available Now | Further orders can be expected around Thu, Feb 12, 2026 Regular price
$5.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 2x6x2.3 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.000
mm + 0.000 / - 0.005
(Equiv. 0.079 in.) |
OD (D)
6.000
mm + 0.000 / - 0.005 (Equiv. 0.236 in.) |
Width (B)
2.300
mm + 0.000 / - 0.040 (Equiv. 0.091 in.) |
Flange Diameter (DF)
7.500
mm |
Flange Width (BF)
0.600
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 5
Category: Bearings - Single Row Ball - Flanged - High Precision |
||||||
|
Part Number: SF692-MC34-GR5-R-L23 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 22, 2026 Regular price
$1,105.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 2x6x2.3 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.000
mm + 0.000 / - 0.005 (Equiv. 0.079 in.) |
OD (D)
6.000
mm + 0.000 / - 0.005 (Equiv. 0.236 in.) |
Width (B)
2.300
mm + 0.000 / - 0.040 (Equiv. 0.091 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 7.500 mm
Flange Width (BF): 0.600 mm
Precision Grade: Abec 5
Category: Bearings - Single Row Ball - Flanged - High Precision |
||||||
|
Part Number: SF692-MC34-GR5-R-L23 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 22, 2026 Regular price
$1,105.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 2x6x3 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.000
mm + 0.000 / - 0.0075
(Equiv. 0.079 in.) |
OD (D)
6.000
mm + 0.000 / - 0.0075 (Equiv. 0.236 in.) |
Width (B)
3.000
mm + 0.000 / - 0.125 (Equiv. 0.118 in.) |
Flange Diameter (DF)
7.500
mm |
Flange Width (BF)
0.800
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SF692A-ZZ-MC3 (Each)
84 Available Now | Further orders can be expected around Thu, Feb 12, 2026 Regular price
$4.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 2x6x3 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.000
mm + 0.000 / - 0.0075 (Equiv. 0.079 in.) |
OD (D)
6.000
mm + 0.000 / - 0.0075 (Equiv. 0.236 in.) |
Width (B)
3.000
mm + 0.000 / - 0.125 (Equiv. 0.118 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 7.500 mm
Flange Width (BF): 0.800 mm
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SF692A-ZZ-MC3 (Each)
84 Available Now | Further orders can be expected around Thu, Feb 12, 2026 Regular price
$4.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 2x7x3.5 mm Flanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
2.000
mm + 0.000 / - 0.0075
(Equiv. 0.079 in.) |
OD (D)
7.000
mm + 0.000 / - 0.0075 (Equiv. 0.276 in.) |
Width (B)
3.500
mm + 0.000 / - 0.125 (Equiv. 0.138 in.) |
Flange Diameter (DF)
8.500
mm |
Flange Width (BF)
0.900
mm |
|
|
|
Material: Chrome Steel SAE 52100
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision Deleted Item. Available while stocks last. |
||||||
|
Part Number: F602A-ZZS-MC3 (Each)
14 Available Now | Item Discontinued - Up to 14 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$4.16 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 2x7x3.5 mm Flanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
2.000
mm + 0.000 / - 0.0075 (Equiv. 0.079 in.) |
OD (D)
7.000
mm + 0.000 / - 0.0075 (Equiv. 0.276 in.) |
Width (B)
3.500
mm + 0.000 / - 0.125 (Equiv. 0.138 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Flange Diameter (DF): 8.500 mm
Flange Width (BF): 0.900 mm
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision Deleted Item. Available while stocks last. |
||||||
|
Part Number: F602A-ZZS-MC3 (Each)
14 Available Now | Item Discontinued - Up to 14 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$4.16 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 2.381x4.763x1.588 mm Flanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
2.381
mm + 0.000 / - 0.0075
(Equiv. 0.094 in.) |
OD (D)
4.763
mm + 0.000 / - 0.0075 (Equiv. 0.188 in.) |
Width (B)
1.588
mm + 0.000 / - 0.125 (Equiv. 0.063 in.) |
Flange Diameter (DF)
5.944
mm |
Flange Width (BF)
0.457
mm |
|
|
|
Material: Chrome Steel SAE 52100
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision Deleted Item. Available while stocks last. |
||||||
|
Part Number: FR133-MC3-AF12 (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$4.39 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 2.381x4.763x1.588 mm Flanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
2.381
mm + 0.000 / - 0.0075 (Equiv. 0.094 in.) |
OD (D)
4.763
mm + 0.000 / - 0.0075 (Equiv. 0.188 in.) |
Width (B)
1.588
mm + 0.000 / - 0.125 (Equiv. 0.063 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Flange Diameter (DF): 5.944 mm
Flange Width (BF): 0.457 mm
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision Deleted Item. Available while stocks last. |
||||||
|
Part Number: FR133-MC3-AF12 (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$4.39 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 2.381x4.763x2.381 mm Flanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
2.381
mm + 0.000 / - 0.0075
(Equiv. 0.094 in.) |
OD (D)
4.763
mm + 0.000 / - 0.0075 (Equiv. 0.188 in.) |
Width (B)
2.381
mm + 0.000 / - 0.125 (Equiv. 0.094 in.) |
Flange Diameter (DF)
5.944
mm |
Flange Width (BF)
0.787
mm |
|
|
|
Material: Chrome Steel SAE 52100
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: FR133A-ZZS-MC3 (Each)
58 Available Now | Further orders can be expected around Wed, Feb 11, 2026 Regular price
$9.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 2.381x4.763x2.381 mm Flanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
2.381
mm + 0.000 / - 0.0075 (Equiv. 0.094 in.) |
OD (D)
4.763
mm + 0.000 / - 0.0075 (Equiv. 0.188 in.) |
Width (B)
2.381
mm + 0.000 / - 0.125 (Equiv. 0.094 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Flange Diameter (DF): 5.944 mm
Flange Width (BF): 0.787 mm
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: FR133A-ZZS-MC3 (Each)
58 Available Now | Further orders can be expected around Wed, Feb 11, 2026 Regular price
$9.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 2.381x6x2.5 mm Flanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
2.381
mm (Equiv. 0.094 in.) |
OD (D)
6.000
mm (Equiv. 0.236 in.) |
Width (B)
2.500
mm (Equiv. 0.098 in.) |
Flange Diameter (DF)
7.200
mm |
Flange Width (BF)
0.600
mm |
|
|
|
Material: Chrome Steel SAE 52100
Precision Grade: Economy
Category: Bearings - Single Row Ball - Flanged - Precision Deleted Item. Available while stocks last. Deleted Item. Available while stocks last. |
||||||
|
Part Number: FMR6-238-AF12-ECO (Each)
180 Available Now | Item Discontinued - Up to 180 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 2.381x6x2.5 mm Flanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
2.381
mm (Equiv. 0.094 in.) |
OD (D)
6.000
mm (Equiv. 0.236 in.) |
Width (B)
2.500
mm (Equiv. 0.098 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Flange Diameter (DF): 7.200 mm
Flange Width (BF): 0.600 mm
Precision Grade: Economy
Category: Bearings - Single Row Ball - Flanged - Precision Deleted Item. Available while stocks last. Deleted Item. Available while stocks last. |
||||||
|
Part Number: FMR6-238-AF12-ECO (Each)
180 Available Now | Item Discontinued - Up to 180 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 2.381x7.938x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.381
mm + 0.000 / - 0.005
(Equiv. 0.094 in.) |
OD (D)
7.938
mm + 0.000 / - 0.005 (Equiv. 0.313 in.) |
Width (B)
2.779
mm + 0.000 / - 0.040 (Equiv. 0.109 in.) |
Inner Ring Width (Bn)
3.571
mm |
Flange Diameter (DF)
9.119
mm |
Flange Width (BF)
0.584
mm |
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 5
Category: Bearings - Single Row Ball - Flanged - High Precision |
||||||
|
Part Number: SFWR1-5-MC34-GR5-R-L23 (Each)
17 Available Now | Further orders can be expected around Sun, Feb 22, 2026 Regular price
$38.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 2.381x7.938x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.381
mm + 0.000 / - 0.005 (Equiv. 0.094 in.) |
OD (D)
7.938
mm + 0.000 / - 0.005 (Equiv. 0.313 in.) |
Width (B)
2.779
mm + 0.000 / - 0.040 (Equiv. 0.109 in.) |
Inner Ring Width (Bn)
3.571
mm |
|
||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 9.119 mm
Flange Width (BF): 0.584 mm
Precision Grade: Abec 5
Category: Bearings - Single Row Ball - Flanged - High Precision |
||||||
|
Part Number: SFWR1-5-MC34-GR5-R-L23 (Each)
17 Available Now | Further orders can be expected around Sun, Feb 22, 2026 Regular price
$38.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 2.381x7.938x3.571 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.381
mm + 0.000 / - 0.0075
(Equiv. 0.094 in.) |
OD (D)
7.938
mm + 0.000 / - 0.0075 (Equiv. 0.313 in.) |
Width (B)
3.571
mm + 0.000 / - 0.125 (Equiv. 0.141 in.) |
Flange Diameter (DF)
9.119
mm |
Flange Width (BF)
0.787
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SFR1-5A-ZZS-MC3 (Each)
61 Available Now | Further orders can be expected around Thu, Feb 12, 2026 Regular price
$11.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 2.381x7.938x3.571 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.381
mm + 0.000 / - 0.0075 (Equiv. 0.094 in.) |
OD (D)
7.938
mm + 0.000 / - 0.0075 (Equiv. 0.313 in.) |
Width (B)
3.571
mm + 0.000 / - 0.125 (Equiv. 0.141 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 9.119 mm
Flange Width (BF): 0.787 mm
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SFR1-5A-ZZS-MC3 (Each)
61 Available Now | Further orders can be expected around Thu, Feb 12, 2026 Regular price
$11.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 2.5x6x2.6 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.500
mm + 0.000 / - 0.0075
(Equiv. 0.098 in.) |
OD (D)
6.000
mm + 0.000 / - 0.0075 (Equiv. 0.236 in.) |
Width (B)
2.600
mm + 0.000 / - 0.125 (Equiv. 0.102 in.) |
Flange Diameter (DF)
7.100
mm |
Flange Width (BF)
0.800
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SF682XA-ZZ-MC3 (Each)
4 Available Now | Further orders can be expected around Thu, Feb 12, 2026 Regular price
$4.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 2.5x6x2.6 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.500
mm + 0.000 / - 0.0075 (Equiv. 0.098 in.) |
OD (D)
6.000
mm + 0.000 / - 0.0075 (Equiv. 0.236 in.) |
Width (B)
2.600
mm + 0.000 / - 0.125 (Equiv. 0.102 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 7.100 mm
Flange Width (BF): 0.800 mm
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SF682XA-ZZ-MC3 (Each)
4 Available Now | Further orders can be expected around Thu, Feb 12, 2026 Regular price
$4.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 2.5x7x3.5 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.500
mm + 0.000 / - 0.0075
(Equiv. 0.098 in.) |
OD (D)
7.000
mm + 0.000 / - 0.0075 (Equiv. 0.276 in.) |
Width (B)
3.500
mm + 0.000 / - 0.125 (Equiv. 0.138 in.) |
Flange Diameter (DF)
8.500
mm |
Flange Width (BF)
0.900
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SF692XA-ZZ-MC3 (Each)
3 Available Now | Further orders can be expected around Thu, Feb 12, 2026 Regular price
$10.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 2.5x7x3.5 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.500
mm + 0.000 / - 0.0075 (Equiv. 0.098 in.) |
OD (D)
7.000
mm + 0.000 / - 0.0075 (Equiv. 0.276 in.) |
Width (B)
3.500
mm + 0.000 / - 0.125 (Equiv. 0.138 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 8.500 mm
Flange Width (BF): 0.900 mm
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SF692XA-ZZ-MC3 (Each)
3 Available Now | Further orders can be expected around Thu, Feb 12, 2026 Regular price
$10.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 3x6x2 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
3.000
mm (Equiv. 0.118 in.) |
OD (D)
6.000
mm (Equiv. 0.236 in.) |
Width (B)
2.000
mm (Equiv. 0.079 in.) |
Flange Diameter (DF)
7.200
mm |
Flange Width (BF)
0.600
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Economy
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SFMR63-ACO-ECO (Each)
4 Available Now | Further orders can be expected around Sat, Feb 07, 2026 Regular price
$12.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 3x6x2 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
3.000
mm (Equiv. 0.118 in.) |
OD (D)
6.000
mm (Equiv. 0.236 in.) |
Width (B)
2.000
mm (Equiv. 0.079 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 7.200 mm
Flange Width (BF): 0.600 mm
Precision Grade: Economy
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SFMR63-ACO-ECO (Each)
4 Available Now | Further orders can be expected around Sat, Feb 07, 2026 Regular price
$12.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 3x6x2.5 mm Flanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
3.000
mm + 0.000 / - 0.0075
(Equiv. 0.118 in.) |
OD (D)
6.000
mm + 0.000 / - 0.0075 (Equiv. 0.236 in.) |
Width (B)
2.500
mm + 0.000 / - 0.125 (Equiv. 0.098 in.) |
Flange Diameter (DF)
7.200
mm |
Flange Width (BF)
0.600
mm |
|
|
|
Material: Chrome Steel SAE 52100
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: FMR63A-ZZ-MC3 (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Wed, Feb 11, 2026 Regular price
$1,190.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 3x6x2.5 mm Flanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
3.000
mm + 0.000 / - 0.0075 (Equiv. 0.118 in.) |
OD (D)
6.000
mm + 0.000 / - 0.0075 (Equiv. 0.236 in.) |
Width (B)
2.500
mm + 0.000 / - 0.125 (Equiv. 0.098 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Flange Diameter (DF): 7.200 mm
Flange Width (BF): 0.600 mm
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: FMR63A-ZZ-MC3 (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Wed, Feb 11, 2026 Regular price
$1,190.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 3x6x2.5 mm Flanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
3.000
mm (Equiv. 0.118 in.) |
OD (D)
6.000
mm (Equiv. 0.236 in.) |
Width (B)
2.500
mm (Equiv. 0.098 in.) |
Flange Diameter (DF)
7.200
mm |
Flange Width (BF)
0.600
mm |
|
|
|
Material: Chrome Steel SAE 52100
Precision Grade: Economy
Category: Bearings - Single Row Ball - Flanged - Precision Deleted Item. Available while stocks last. |
||||||
|
Part Number: FMR63A-2RG-ECO (PK-10)
182 units (1820 pcs) Available Now | Item Discontinued - Up to 182 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 3x6x2.5 mm Flanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
3.000
mm (Equiv. 0.118 in.) |
OD (D)
6.000
mm (Equiv. 0.236 in.) |
Width (B)
2.500
mm (Equiv. 0.098 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Flange Diameter (DF): 7.200 mm
Flange Width (BF): 0.600 mm
Precision Grade: Economy
Category: Bearings - Single Row Ball - Flanged - Precision Deleted Item. Available while stocks last. |
||||||
|
Part Number: FMR63A-2RG-ECO (PK-10)
182 units (1820 pcs) Available Now | Item Discontinued - Up to 182 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 3x6x2.5 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
3.000
mm + 0.000 / - 0.0075
(Equiv. 0.118 in.) |
OD (D)
6.000
mm + 0.000 / - 0.0075 (Equiv. 0.236 in.) |
Width (B)
2.500
mm + 0.000 / - 0.125 (Equiv. 0.098 in.) |
Flange Diameter (DF)
7.200
mm |
Flange Width (BF)
0.600
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SFMR63A-ZZ-MC3 (Each)
1 Available Now | Further orders can be expected around Thu, Feb 12, 2026 Regular price
$3.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 3x6x2.5 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
3.000
mm + 0.000 / - 0.0075 (Equiv. 0.118 in.) |
OD (D)
6.000
mm + 0.000 / - 0.0075 (Equiv. 0.236 in.) |
Width (B)
2.500
mm + 0.000 / - 0.125 (Equiv. 0.098 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 7.200 mm
Flange Width (BF): 0.600 mm
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged - Precision |
||||||
|
Part Number: SFMR63A-ZZ-MC3 (Each)
1 Available Now | Further orders can be expected around Thu, Feb 12, 2026 Regular price
$3.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
