Collection: Bearings - Single Row Ball - Flanged - High Precision
Bearings -> Single Row Ball -> Flanged -> High PrecisionThere are 12 products in the sub-categories of Bearings - Single Row Ball - Flanged - High Precision. Browse the Bearings - Single Row Ball - Flanged - High Precision products table. To narrow down the selection, please choose a sub-category from the links below.

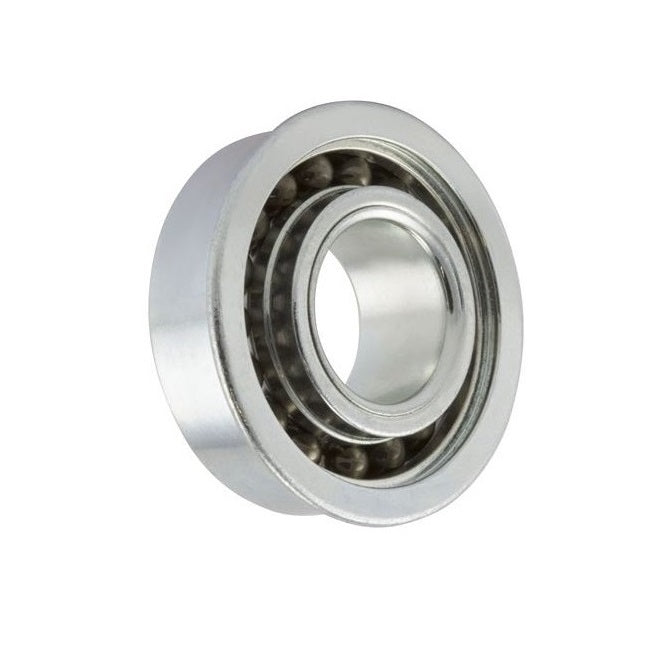

Bearings - Single Row Ball - Flanged - High Precision - Extended Inner
A selection of Extended Inner High Precision Flanged Single Row Ball Bearings....

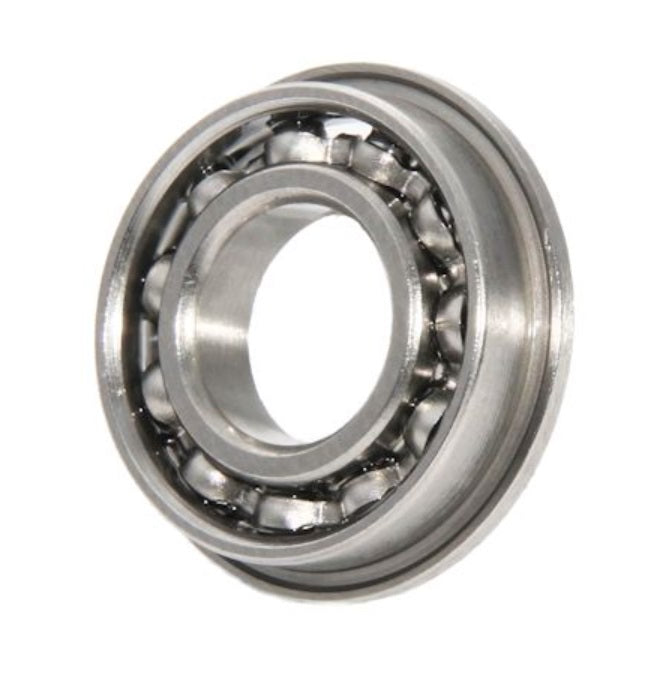

Bearings - Single Row Ball - Flanged - High Precision - Standard
A selection of Standard High Precision Flanged Single Row Ball Bearings. Stainless...
Category Details
This category includes various types of single row ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Small Parts & Bearings
Additional resources:
A more comprehensive listing may be found in the Bearings - Single Row Ball - Flanged - High Precision category on the MBA Minibearings main store.
| ID (d) | OD (D) | Width (B) | Inner Ring Width (Bn) | Flange Diameter (DF) | Flange Width (BF) |
Indicative Image |
|---|---|---|---|---|---|---|
| Single Row Ball Bearings - 1.5x4x1.2 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.500
mm + 0.000 / - 0.004
(Equiv. 0.059 in.) |
OD (D)
4.000
mm + 0.000 / - 0.005 (Equiv. 0.157 in.) |
Width (B)
1.200
mm + 0.000 / - 0.040 (Equiv. 0.047 in.) |
Flange Diameter (DF)
5.000
mm |
Flange Width (BF)
0.400
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 7
Closure Type: Open
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard Deleted Item. Available while stocks last. |
||||||
|
Part Number: SF681X-MC34-GR7-R-L23 (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$32.44 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| ID (d) | OD (D) | Width (B) | Inner Ring Width (Bn) |
Indicative Image |
||
| Single Row Ball Bearings - 1.5x4x1.2 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.500
mm + 0.000 / - 0.004 (Equiv. 0.059 in.) |
OD (D)
4.000
mm + 0.000 / - 0.005 (Equiv. 0.157 in.) |
Width (B)
1.200
mm + 0.000 / - 0.040 (Equiv. 0.047 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 5.000 mm
Flange Width (BF): 0.400 mm
Precision Grade: Abec 7
Closure Type: Open
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard Deleted Item. Available while stocks last. |
||||||
|
Part Number: SF681X-MC34-GR7-R-L23 (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$32.44 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 2x5x1.5 mm Flanged - Stainless Steel AISI 440C - Ceramic Si3N4 Balls Bearing | ||||||
|
ID (d)
2.000
mm + 0.000 / - 0.005
(Equiv. 0.079 in.) |
OD (D)
5.000
mm + 0.000 / - 0.005 (Equiv. 0.197 in.) |
Width (B)
1.500
mm + 0.000 / - 0.040 (Equiv. 0.059 in.) |
Flange Diameter (DF)
6.100
mm |
Flange Width (BF)
0.500
mm |
|
|
|
Material: Stainless Steel AISI 440C - Ceramic Si3N4 Balls
Precision Grade: Abec 5
Closure Type: Open
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard Deleted Item. Available while stocks last. |
||||||
|
Part Number: SF682-CSN-MC3-U5-L23 (Each)
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$28.01 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 2x5x1.5 mm Flanged - Stainless Steel AISI 440C - Ceramic Si3N4 Balls Bearing | ||||||
|
ID (d)
2.000
mm + 0.000 / - 0.005 (Equiv. 0.079 in.) |
OD (D)
5.000
mm + 0.000 / - 0.005 (Equiv. 0.197 in.) |
Width (B)
1.500
mm + 0.000 / - 0.040 (Equiv. 0.059 in.) |
|
|||
|
Material: Stainless Steel AISI 440C - Ceramic Si3N4 Balls
Flange Diameter (DF): 6.100 mm
Flange Width (BF): 0.500 mm
Precision Grade: Abec 5
Closure Type: Open
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard Deleted Item. Available while stocks last. |
||||||
|
Part Number: SF682-CSN-MC3-U5-L23 (Each)
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$28.01 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 2x6x2.3 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.000
mm + 0.000 / - 0.005
(Equiv. 0.079 in.) |
OD (D)
6.000
mm + 0.000 / - 0.005 (Equiv. 0.236 in.) |
Width (B)
2.300
mm + 0.000 / - 0.040 (Equiv. 0.091 in.) |
Flange Diameter (DF)
7.500
mm |
Flange Width (BF)
0.600
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 5
Closure Type: Open
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard |
||||||
|
Part Number: SF692-MC34-GR5-R-L23 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Sat, Feb 21, 2026 Regular price
$1,105.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 2x6x2.3 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.000
mm + 0.000 / - 0.005 (Equiv. 0.079 in.) |
OD (D)
6.000
mm + 0.000 / - 0.005 (Equiv. 0.236 in.) |
Width (B)
2.300
mm + 0.000 / - 0.040 (Equiv. 0.091 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 7.500 mm
Flange Width (BF): 0.600 mm
Precision Grade: Abec 5
Closure Type: Open
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard |
||||||
|
Part Number: SF692-MC34-GR5-R-L23 (PK-20)
Out of Stock | Backorder Now | Orders can be expected around Sat, Feb 21, 2026 Regular price
$1,105.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 2.381x7.938x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.381
mm + 0.000 / - 0.005
(Equiv. 0.094 in.) |
OD (D)
7.938
mm + 0.000 / - 0.005 (Equiv. 0.313 in.) |
Width (B)
2.779
mm + 0.000 / - 0.040 (Equiv. 0.109 in.) |
Inner Ring Width (Bn)
3.571
mm |
Flange Diameter (DF)
9.119
mm |
Flange Width (BF)
0.584
mm |
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 5
Closure Type: Open
Bearing Type: Radial Flanged with Extended Inner
Category: Bearings - Single Row Ball - Flanged - High Precision - Extended Inner |
||||||
|
Part Number: SFWR1-5-MC34-GR5-R-L23 (Each)
17 Available Now | Further orders can be expected around Sat, Feb 21, 2026 Regular price
$38.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 2.381x7.938x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
2.381
mm + 0.000 / - 0.005 (Equiv. 0.094 in.) |
OD (D)
7.938
mm + 0.000 / - 0.005 (Equiv. 0.313 in.) |
Width (B)
2.779
mm + 0.000 / - 0.040 (Equiv. 0.109 in.) |
Inner Ring Width (Bn)
3.571
mm |
|
||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 9.119 mm
Flange Width (BF): 0.584 mm
Precision Grade: Abec 5
Closure Type: Open
Bearing Type: Radial Flanged with Extended Inner
Category: Bearings - Single Row Ball - Flanged - High Precision - Extended Inner |
||||||
|
Part Number: SFWR1-5-MC34-GR5-R-L23 (Each)
17 Available Now | Further orders can be expected around Sat, Feb 21, 2026 Regular price
$38.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 3.175x6.35x2.779 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
3.175
mm + 0.000 / - 0.004
(Equiv. 0.125 in.) |
OD (D)
6.350
mm + 0.000 / - 0.005 (Equiv. 0.25 in.) |
Width (B)
2.779
mm + 0.000 / - 0.040 (Equiv. 0.109 in.) |
Flange Diameter (DF)
7.518
mm |
Flange Width (BF)
0.787
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 7
Closure Type: ZZS
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard Deleted Item. Available while stocks last. |
||||||
|
Part Number: SFR144A-ZZS-MC34-GR7-R-DRY (Each)
19 Available Now | Item Discontinued - Up to 19 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$25.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 3.175x6.35x2.779 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
3.175
mm + 0.000 / - 0.004 (Equiv. 0.125 in.) |
OD (D)
6.350
mm + 0.000 / - 0.005 (Equiv. 0.25 in.) |
Width (B)
2.779
mm + 0.000 / - 0.040 (Equiv. 0.109 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 7.518 mm
Flange Width (BF): 0.787 mm
Precision Grade: Abec 7
Closure Type: ZZS
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard Deleted Item. Available while stocks last. |
||||||
|
Part Number: SFR144A-ZZS-MC34-GR7-R-DRY (Each)
19 Available Now | Item Discontinued - Up to 19 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$25.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 3.175x6.35x2.779 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
3.175
mm + 0.000 / - 0.004
(Equiv. 0.125 in.) |
OD (D)
6.350
mm + 0.000 / - 0.005 (Equiv. 0.25 in.) |
Width (B)
2.779
mm + 0.000 / - 0.040 (Equiv. 0.109 in.) |
Flange Diameter (DF)
7.518
mm |
Flange Width (BF)
0.787
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 7
Closure Type: ZZS
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard Deleted Item. Available while stocks last. |
||||||
|
Part Number: SFR144A-ZZS-MC34-GR7-R-G21 (Each)
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$15.80 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 3.175x6.35x2.779 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
3.175
mm + 0.000 / - 0.004 (Equiv. 0.125 in.) |
OD (D)
6.350
mm + 0.000 / - 0.005 (Equiv. 0.25 in.) |
Width (B)
2.779
mm + 0.000 / - 0.040 (Equiv. 0.109 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 7.518 mm
Flange Width (BF): 0.787 mm
Precision Grade: Abec 7
Closure Type: ZZS
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard Deleted Item. Available while stocks last. |
||||||
|
Part Number: SFR144A-ZZS-MC34-GR7-R-G21 (Each)
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$15.80 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 4.763x9.525x3.175 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
4.763
mm + 0.000 / - 0.004
(Equiv. 0.188 in.) |
OD (D)
9.525
mm + 0.000 / - 0.005 (Equiv. 0.375 in.) |
Width (B)
3.175
mm + 0.000 / - 0.040 (Equiv. 0.125 in.) |
Flange Diameter (DF)
10.719
mm |
Flange Width (BF)
0.787
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 7
Closure Type: ZZS
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard Deleted Item. Available while stocks last. |
||||||
|
Part Number: SFR166-ZZS-MC3-GR7-35400D-L23 (Each)
11 Available Now | Item Discontinued - Up to 11 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$82.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 4.763x9.525x3.175 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
4.763
mm + 0.000 / - 0.004 (Equiv. 0.188 in.) |
OD (D)
9.525
mm + 0.000 / - 0.005 (Equiv. 0.375 in.) |
Width (B)
3.175
mm + 0.000 / - 0.040 (Equiv. 0.125 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 10.719 mm
Flange Width (BF): 0.787 mm
Precision Grade: Abec 7
Closure Type: ZZS
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard Deleted Item. Available while stocks last. |
||||||
|
Part Number: SFR166-ZZS-MC3-GR7-35400D-L23 (Each)
11 Available Now | Item Discontinued - Up to 11 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$82.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 4.763x9.525x3.175 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
4.763
mm + 0.000 / - 0.004
(Equiv. 0.188 in.) |
OD (D)
9.525
mm + 0.000 / - 0.005 (Equiv. 0.375 in.) |
Width (B)
3.175
mm + 0.000 / - 0.040 (Equiv. 0.125 in.) |
Flange Diameter (DF)
10.719
mm |
Flange Width (BF)
0.787
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 7
Closure Type: ZZS
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard Deleted Item. Available while stocks last. |
||||||
|
Part Number: SFR166-ZZS-MC34-GR7-R-DRY (Each)
16 Available Now | Item Discontinued - Up to 16 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$15.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 4.763x9.525x3.175 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
4.763
mm + 0.000 / - 0.004 (Equiv. 0.188 in.) |
OD (D)
9.525
mm + 0.000 / - 0.005 (Equiv. 0.375 in.) |
Width (B)
3.175
mm + 0.000 / - 0.040 (Equiv. 0.125 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 10.719 mm
Flange Width (BF): 0.787 mm
Precision Grade: Abec 7
Closure Type: ZZS
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard Deleted Item. Available while stocks last. |
||||||
|
Part Number: SFR166-ZZS-MC34-GR7-R-DRY (Each)
16 Available Now | Item Discontinued - Up to 16 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$15.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 4.763x9.525x3.175 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
4.763
mm + 0.000 / - 0.005
(Equiv. 0.188 in.) |
OD (D)
9.525
mm + 0.000 / - 0.005 (Equiv. 0.375 in.) |
Width (B)
3.175
mm + 0.000 / - 0.040 (Equiv. 0.125 in.) |
Flange Diameter (DF)
10.719
mm |
Flange Width (BF)
0.787
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 5
Closure Type: Z
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard |
||||||
|
Part Number: SFR166-ZS-MC34-GR5-R-AF12 (Each)
11 Available Now | Further orders can be expected around Sat, Feb 21, 2026 Regular price
$30.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 4.763x9.525x3.175 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
4.763
mm + 0.000 / - 0.005 (Equiv. 0.188 in.) |
OD (D)
9.525
mm + 0.000 / - 0.005 (Equiv. 0.375 in.) |
Width (B)
3.175
mm + 0.000 / - 0.040 (Equiv. 0.125 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 10.719 mm
Flange Width (BF): 0.787 mm
Precision Grade: Abec 5
Closure Type: Z
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard |
||||||
|
Part Number: SFR166-ZS-MC34-GR5-R-AF12 (Each)
11 Available Now | Further orders can be expected around Sat, Feb 21, 2026 Regular price
$30.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 5x11x3 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
5.000
mm + 0.000 / - 0.005
(Equiv. 0.197 in.) |
OD (D)
11.000
mm + 0.000 / - 0.005 (Equiv. 0.433 in.) |
Width (B)
3.000
mm + 0.000 / - 0.040 (Equiv. 0.118 in.) |
Flange Diameter (DF)
12.500
mm |
Flange Width (BF)
0.800
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 5
Closure Type: Open
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard Deleted Item. Available while stocks last. |
||||||
|
Part Number: SF685-MC34-GR5-R-L23 (Each)
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$23.29 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 5x11x3 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
5.000
mm + 0.000 / - 0.005 (Equiv. 0.197 in.) |
OD (D)
11.000
mm + 0.000 / - 0.005 (Equiv. 0.433 in.) |
Width (B)
3.000
mm + 0.000 / - 0.040 (Equiv. 0.118 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 12.500 mm
Flange Width (BF): 0.800 mm
Precision Grade: Abec 5
Closure Type: Open
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard Deleted Item. Available while stocks last. |
||||||
|
Part Number: SF685-MC34-GR5-R-L23 (Each)
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$23.29 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 5x11x5 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
5.000
mm + 0.000 / - 0.005
(Equiv. 0.197 in.) |
OD (D)
11.000
mm + 0.000 / - 0.005 (Equiv. 0.433 in.) |
Width (B)
5.000
mm + 0.000 / - 0.040 (Equiv. 0.197 in.) |
Flange Diameter (DF)
12.500
mm |
Flange Width (BF)
1.000
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: P5
Closure Type: ZZS
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard |
||||||
|
Part Number: SF685A-ZZS-P5P-MC34-R-G48 (Each)
11 Available Now | Further orders can be expected around Sat, Feb 21, 2026 Regular price
$65.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 5x11x5 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
5.000
mm + 0.000 / - 0.005 (Equiv. 0.197 in.) |
OD (D)
11.000
mm + 0.000 / - 0.005 (Equiv. 0.433 in.) |
Width (B)
5.000
mm + 0.000 / - 0.040 (Equiv. 0.197 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 12.500 mm
Flange Width (BF): 1.000 mm
Precision Grade: P5
Closure Type: ZZS
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard |
||||||
|
Part Number: SF685A-ZZS-P5P-MC34-R-G48 (Each)
11 Available Now | Further orders can be expected around Sat, Feb 21, 2026 Regular price
$65.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 8x16x6 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
8.000
mm + 0.000 / - 0.004
(Equiv. 0.315 in.) |
OD (D)
16.000
mm + 0.000 / - 0.005 (Equiv. 0.63 in.) |
Width (B)
6.000
mm + 0.000 / - 0.040 (Equiv. 0.236 in.) |
Flange Diameter (DF)
18.000
mm |
Flange Width (BF)
1.300
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 7
Closure Type: ZZS
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard Deleted Item. Available while stocks last. |
||||||
|
Part Number: SF688B-ZZS-MC34-GR7-R-G48 (Each)
6 Available Now | Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$40.46 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 8x16x6 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
8.000
mm + 0.000 / - 0.004 (Equiv. 0.315 in.) |
OD (D)
16.000
mm + 0.000 / - 0.005 (Equiv. 0.63 in.) |
Width (B)
6.000
mm + 0.000 / - 0.040 (Equiv. 0.236 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 18.000 mm
Flange Width (BF): 1.300 mm
Precision Grade: Abec 7
Closure Type: ZZS
Bearing Type: Radial Flanged
Category: Bearings - Single Row Ball - Flanged - High Precision - Standard Deleted Item. Available while stocks last. |
||||||
|
Part Number: SF688B-ZZS-MC34-GR7-R-G48 (Each)
6 Available Now | Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$40.46 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
