Ball Transfer Units - Flange Mount - Standard

Ball Transfer Units -> Flange Mount -> Standard

There are 4 products in the sub-categories of Ball Transfer Units - Flange Mount - Standard. Browse the Ball Transfer Units - Flange Mount - Standard products table. To narrow down the selection, please choose a sub-category from the links below.

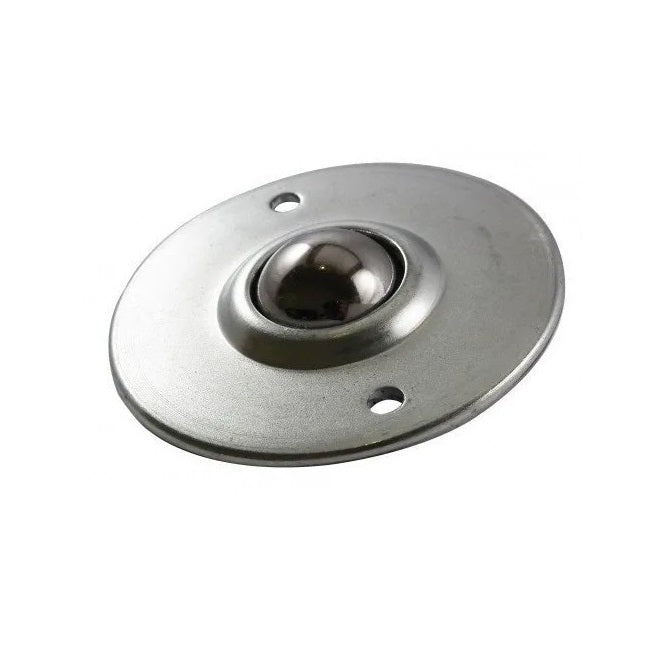

Flange Mount Ball Transfer Units - 54 kg - 12x46.5 mm - Stainless Steel AISI 420C Rc 46-52

Ball Transfer Units - Flange Mount - Standard - Stainless

This category includes various types of flange mount ball transfer units. Single...

Ball Transfer Units - Flange Mount - Standard - Stainless

Flange Mount Ball Transfer Units - 15 kg - 10.2x22.2 mm - Carbon Steel

Ball Transfer Units - Flange Mount - Standard - Steel

This category includes various types of flange mount ball transfer units. Single...

Ball Transfer Units - Flange Mount - Standard - Steel

Category Details

This category includes various types of flange mount ball transfer units.
  • Single ball bearing units for conveyor systems
  • Max Load is applicable when used as a transfer, not as a castor

Small Parts & Bearings

Additional resources:


A more comprehensive listing may be found in the Ball Transfer Units - Flange Mount - Standard category on the MBA Minibearings main store.
Max Load Ball Height from Flange (B) Body Diameter (D) Overall Height (L) Ball Diameter Indicative
Flange Mount Ball Transfer Units - 15 kg - 10.2x22.2 mm Standard - Carbon Steel
Max Load
15
kg
Ball Height from Flange (B)
10.2
mm

(Equiv. 0.402 in.)
Body Diameter (D)
22.2
mm
+/- 0.2
(Equiv. 0.874 in.)
Overall Height (L)
18.5
mm
Ball Diameter
15.8
mm
Flange Mount Ball Transfer Units - 15 kg - 10.2x22.2 mm - Carbon Steel
Material: Carbon Steel    Body Height (E): 8.3 mm    Flange Diameter (A): 41.3 mm
Category: Ball Transfer Units - Flange Mount - Standard - Steel
Part Number: BTU0012-010-F-C (Each)
1 Available Now | Further orders can be expected around Tue, Jan 20, 2026
$22.32 AUD
$26.78 AUD $22.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 1 available can be backordered.
Max Load Ball Height from Flange (B) Body Diameter (D) Overall Height (L) Indicative
Flange Mount Ball Transfer Units - 15 kg - 10.2x22.2 mm Standard - Carbon Steel
Max Load
15
kg
Ball Height from Flange (B)
10.2
mm

(Equiv. 0.402 in.)
Body Diameter (D)
22.2
mm
+/- 0.2
(Equiv. 0.874 in.)
Overall Height (L)
18.5
mm
Flange Mount Ball Transfer Units - 15 kg - 10.2x22.2 mm - Carbon Steel
Material: Carbon Steel    Ball Diameter: 15.8 mm    Body Height (E): 8.3 mm    Flange Diameter (A): 41.3 mm
Category: Ball Transfer Units - Flange Mount - Standard - Steel
Part Number: BTU0012-010-F-C (Each)
1 Available Now | Further orders can be expected around Tue, Jan 20, 2026
$22.32 AUD
$26.78 AUD $22.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Flange Mount Ball Transfer Units - 25 kg - 10x61 mm Standard - Carbon Steel
Max Load
25
kg
Ball Height from Flange (B)
10
mm

(Equiv. 0.394 in.)
Body Diameter (D)
61.0
mm
+/- 0.2
(Equiv. 2.402 in.)
Overall Height (L)
22.0
mm
Ball Diameter
19.0
mm
Flange Mount Ball Transfer Units - 25 kg - 10x61 mm - Carbon Steel
Material: Carbon Steel    Body Height (E): 12.0 mm    Flange Diameter (A): 61.0 mm +/- 0.2
Category: Ball Transfer Units - Flange Mount - Standard - Steel
Deleted Item. Available while stocks last.
Part Number: BTU0025-010-F-C (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.00 AUD
$9.50 AUD $5.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Flange Mount Ball Transfer Units - 25 kg - 10x61 mm Standard - Carbon Steel
Max Load
25
kg
Ball Height from Flange (B)
10
mm

(Equiv. 0.394 in.)
Body Diameter (D)
61.0
mm
+/- 0.2
(Equiv. 2.402 in.)
Overall Height (L)
22.0
mm
Flange Mount Ball Transfer Units - 25 kg - 10x61 mm - Carbon Steel
Material: Carbon Steel    Ball Diameter: 19.0 mm    Body Height (E): 12.0 mm    Flange Diameter (A): 61.0 mm +/- 0.2
Category: Ball Transfer Units - Flange Mount - Standard - Steel
Deleted Item. Available while stocks last.
Part Number: BTU0025-010-F-C (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.00 AUD
$9.50 AUD $5.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Flange Mount Ball Transfer Units - 54 kg - 12x46.5 mm Standard - Stainless Steel AISI 420C Rc 46-52
Max Load
54
kg
Ball Height from Flange (B)
12.0
mm
+/- 0.2
(Equiv. 0.472 in.)
Body Diameter (D)
46.5
mm
+/- 0.065
(Equiv. 1.831 in.)
Overall Height (L)
36.1
mm
Ball Diameter
31.7
mm
Flange Mount Ball Transfer Units - 54 kg - 12x46.5 mm - Stainless Steel AISI 420C Rc 46-52
Material: Stainless Steel AISI 420C Rc 46-52    Body Height (E): 19.9 mm    Flange Diameter (A): 73.7 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless
Deleted Item. Available while stocks last.
Part Number: BTU0060-010-F-SS-SL (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$28.00 AUD
$53.20 AUD $28.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Flange Mount Ball Transfer Units - 54 kg - 12x46.5 mm Standard - Stainless Steel AISI 420C Rc 46-52
Max Load
54
kg
Ball Height from Flange (B)
12.0
mm
+/- 0.2
(Equiv. 0.472 in.)
Body Diameter (D)
46.5
mm
+/- 0.065
(Equiv. 1.831 in.)
Overall Height (L)
36.1
mm
Flange Mount Ball Transfer Units - 54 kg - 12x46.5 mm - Stainless Steel AISI 420C Rc 46-52
Material: Stainless Steel AISI 420C Rc 46-52    Ball Diameter: 31.7 mm    Body Height (E): 19.9 mm    Flange Diameter (A): 73.7 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless
Deleted Item. Available while stocks last.
Part Number: BTU0060-010-F-SS-SL (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$28.00 AUD
$53.20 AUD $28.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Flange Mount Ball Transfer Units - 610 kg - 19x62 mm Standard - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Max Load
610
kg
Ball Height from Flange (B)
19
mm
+/- 0.4
(Equiv. 0.748 in.)
Body Diameter (D)
62
mm
+/- 0.095
(Equiv. 2.441 in.)
Overall Height (L)
53.5
mm
Ball Diameter
30.0
mm
Flange Mount Ball Transfer Units - 610 kg - 19x62 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel    Body Height (E): 34.5 mm    Flange Diameter (A): 55.0 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless
Part Number: BTU0610-019-F-SS (Each)
4 Available Now | Further orders can be expected around Sun, Jan 18, 2026
$236.95 AUD
$284.35 AUD $236.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 4 available can be backordered.
Flange Mount Ball Transfer Units - 610 kg - 19x62 mm Standard - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Max Load
610
kg
Ball Height from Flange (B)
19
mm
+/- 0.4
(Equiv. 0.748 in.)
Body Diameter (D)
62
mm
+/- 0.095
(Equiv. 2.441 in.)
Overall Height (L)
53.5
mm
Flange Mount Ball Transfer Units - 610 kg - 19x62 mm - Stainless Steel AISI 420C and Zinc Plated Mild Steel
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel    Ball Diameter: 30.0 mm    Body Height (E): 34.5 mm    Flange Diameter (A): 55.0 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless
Part Number: BTU0610-019-F-SS (Each)
4 Available Now | Further orders can be expected around Sun, Jan 18, 2026
$236.95 AUD
$284.35 AUD $236.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. Backorder if more than 4.
