| Max Load | Ball Height from Flange (B) | Body Diameter (D) | Overall Height (L) | Ball Diameter |
Indicative Image |
|---|---|---|---|---|---|
|
54 kg |
12.0 mm +/- 0.2 |
46.5 mm +/- 0.065 |
36.1 mm |
31.7 mm |
|
|
Material: Stainless Steel AISI 420C Rc 46-52
Body Height: 19.9 mm
Flange Diameter: 73.7 mm
Flange Thickness: 4.2 mm
Fixing Hole Size: M5 (5x0.8mm) mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Slim |
|||||
|
Part Number: BTU0060-010-F-SS-SL Flange Mount Ball Transfer Units - 54 kg x 12 mm x 46.5 mm
2 Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$28.00 AUD
Regular price
Unit price
per
Each
|
|||||
| Max Load | Ball Height from Flange (B) | Body Diameter (D) | Overall Height (L) |
Indicative Image |
|
|
54 kg |
12.0 mm +/- 0.2 |
46.5 mm +/- 0.065 |
36.1 mm |
|
|
|
Material: Stainless Steel AISI 420C Rc 46-52
Ball Diameter: 31.7 mm
Body Height: 19.9 mm
Flange Diameter: 73.7 mm
Flange Thickness: 4.2 mm
Fixing Hole Size: M5 (5x0.8mm) mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Slim |
|||||
|
Part Number: BTU0060-010-F-SS-SL Flange Mount Ball Transfer Units - 54 kg x 12 mm x 46.5 mm
2 Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$28.00 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
55 kg |
6.7 mm +/- 0.2 |
24 mm +/- 0.065 |
21.0 mm |
15.0 mm |
|
|
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel
Body Height: 11.5 mm
Flange Diameter: 31.0 mm
Flange Thickness: 2.8 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep |
|||||
|
Part Number: BTU0060-010-F-SS Flange Mount Ball Transfer Units - 55 kg x 6.7 mm x 24 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Wed, Feb 05, 2025 Regular price
$47.32 AUD
Regular price
Unit price
per
Each
|
|||||
|
55 kg |
6.7 mm +/- 0.2 |
24 mm +/- 0.065 |
21.0 mm |
|
|
|
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel
Ball Diameter: 15.0 mm
Body Height: 11.5 mm
Flange Diameter: 31.0 mm
Flange Thickness: 2.8 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep |
|||||
|
Part Number: BTU0060-010-F-SS Flange Mount Ball Transfer Units - 55 kg x 6.7 mm x 24 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Wed, Feb 05, 2025 Regular price
$47.32 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
160 kg |
9.8 mm +/- 0.2 |
36 mm +/- 0.080 |
30.0 mm |
15.0 mm |
|
|
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel
Body Height: 20.2 mm
Flange Diameter: 31.0 mm
Flange Thickness: 2.8 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep |
|||||
|
Part Number: BTU0160-010-F-SS Flange Mount Ball Transfer Units - 160 kg x 9.8 mm x 36 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Wed, Feb 05, 2025 Regular price
$65.05 AUD
Regular price
Unit price
per
Each
|
|||||
|
160 kg |
9.8 mm +/- 0.2 |
36 mm +/- 0.080 |
30.0 mm |
|
|
|
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel
Ball Diameter: 15.0 mm
Body Height: 20.2 mm
Flange Diameter: 31.0 mm
Flange Thickness: 2.8 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep |
|||||
|
Part Number: BTU0160-010-F-SS Flange Mount Ball Transfer Units - 160 kg x 9.8 mm x 36 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Wed, Feb 05, 2025 Regular price
$65.05 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
295 kg |
13.8 mm +/- 0.3 |
45 mm +/- 0.080 |
37.0 mm |
22.0 mm |
|
|
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel
Body Height: 23.2 mm
Flange Diameter: 45.0 mm
Flange Thickness: 4.0 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep |
|||||
|
Part Number: BTU0295-014-F-SS Flange Mount Ball Transfer Units - 295 kg x 13.8 mm x 45 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Wed, Feb 05, 2025 Regular price
$123.05 AUD
Regular price
Unit price
per
Each
|
|||||
|
295 kg |
13.8 mm +/- 0.3 |
45 mm +/- 0.080 |
37.0 mm |
|
|
|
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel
Ball Diameter: 22.0 mm
Body Height: 23.2 mm
Flange Diameter: 45.0 mm
Flange Thickness: 4.0 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep |
|||||
|
Part Number: BTU0295-014-F-SS Flange Mount Ball Transfer Units - 295 kg x 13.8 mm x 45 mm
Out of Stock | Backorder Now | Backorders for more can be expected around Wed, Feb 05, 2025 Regular price
$123.05 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
610 kg |
19 mm +/- 0.4 |
62 mm +/- 0.095 |
53.5 mm |
30.0 mm |
|
|
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel
Body Height: 34.5 mm
Flange Diameter: 55.0 mm
Flange Thickness: 4.0 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep |
|||||
|

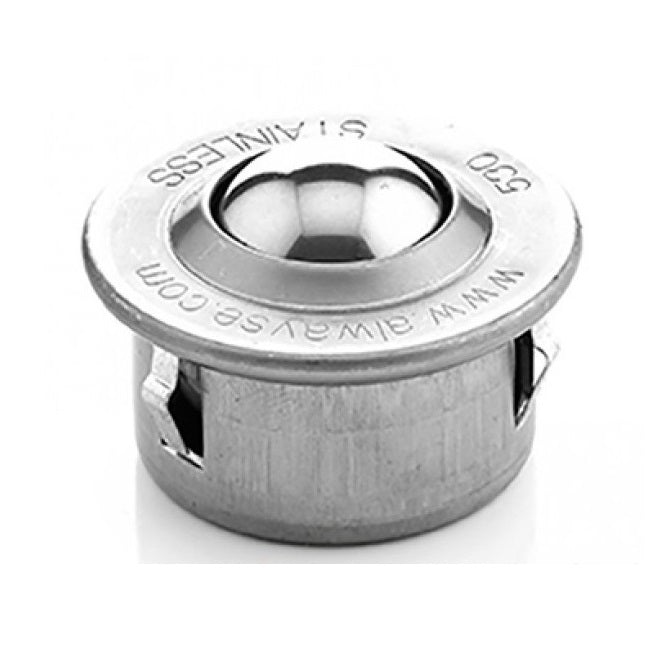

Part Number: BTU0610-019-F-SS Flange Mount Ball Transfer Units - 610 kg x 19 mm x 62 mm
4 Available | Backorders for more can be expected around Wed, Feb 05, 2025 Regular price
$216.77 AUD
Regular price
Unit price
per
Each
|
|||||
|
610 kg |
19 mm +/- 0.4 |
62 mm +/- 0.095 |
53.5 mm |
|
|
|
Material: Stainless Steel AISI 420C and Zinc Plated Mild Steel
Ball Diameter: 30.0 mm
Body Height: 34.5 mm
Flange Diameter: 55.0 mm
Flange Thickness: 4.0 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep |
|||||
|
Part Number: BTU0610-019-F-SS Flange Mount Ball Transfer Units - 610 kg x 19 mm x 62 mm
4 Available | Backorders for more can be expected around Wed, Feb 05, 2025 Regular price
$216.77 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
