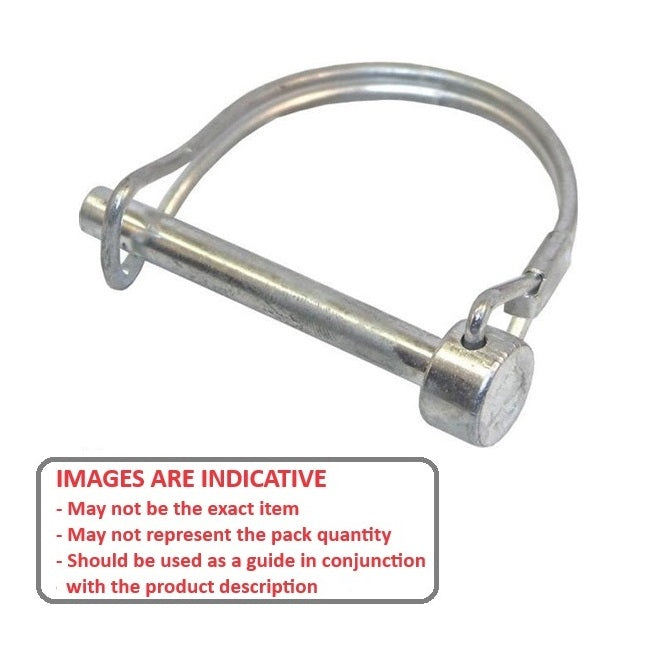

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

LYP-R2-064-044-CZ

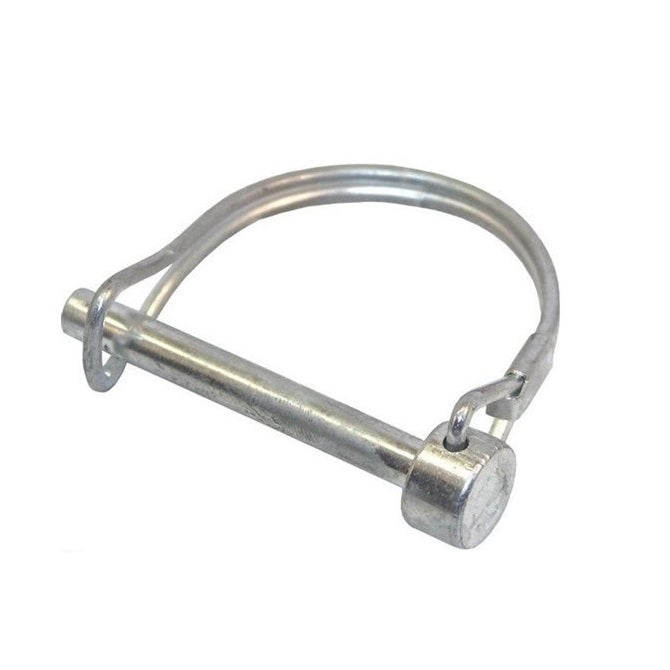

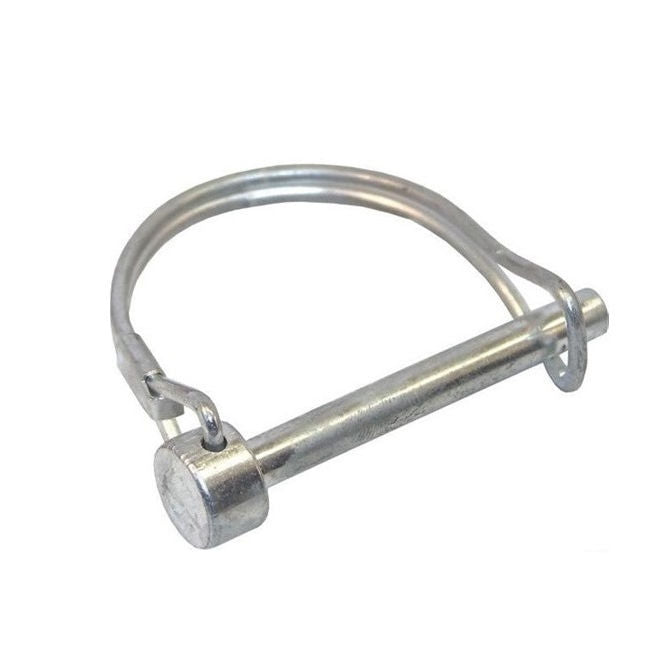

Wire Lock Lynch Pins - 6.35 mm x 44.45 mm x 2.3 mm

Name: 1074873 | LYP-R2-064-044-CZ --- Wire Lock Lynch Pins - 6.35 mm x 44.45 mm x 2.3 mm
Brand: MBA
SKU: LYPR2064044CZ
Price: 5.23 AUD
Availability: InStock

MBA

Category: Pins - Wire Lock Lynch - Double Wire - Round - Carbon Steel

Additional resources:
Master Pins Catalogue PDF

Price:

$5.23 AUD

Each
Qty: 1 available now
Order 50 or more for $4.71 AUD Each

Special Offer: If you purchase the remaining quantity of this item, you will receive the bulk price.

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Mar 02, 2025

Quantity

Base Category: Pins - Wire Lock Lynch

Top Level Category: Pins - Wire Lock Lynch - Double Wire - Round - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 213

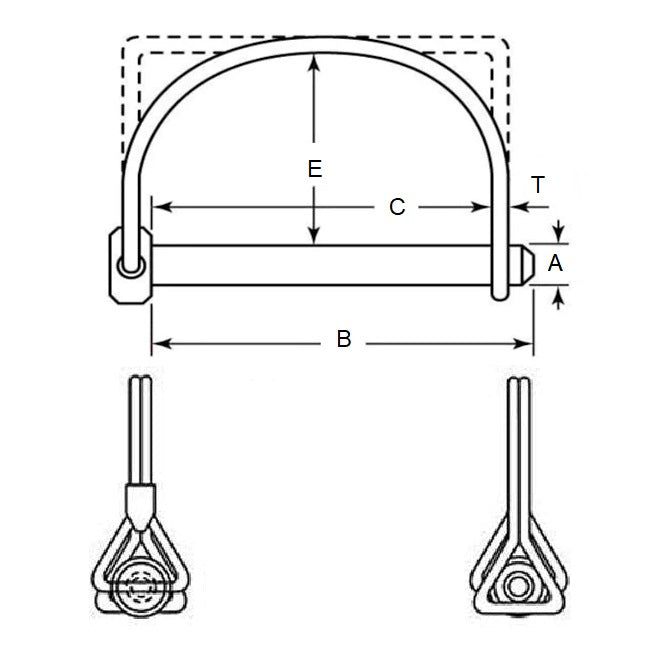

Pin Diameter (A): 6.35mm
_{-0.051 / -0.178}

Carbon Steel Spring Wire Zinc Plated

Grip Length (C): 44.45mm
_+0.00/-6.35
Wire Thickness (T): 2.3mm
_+/-3.18
Clearance To Wire (E): 41.3mm
Pin Length (B): 50.8mm
Weight Per Piece: 32g
Finish: Zinc Plated

Brand: MBA
Country of Origin: US

Alternatives: 98416A568, SNAP-250-1750R, WMG-55

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
