Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

SS032C-0032-S4 (100 Pcs)

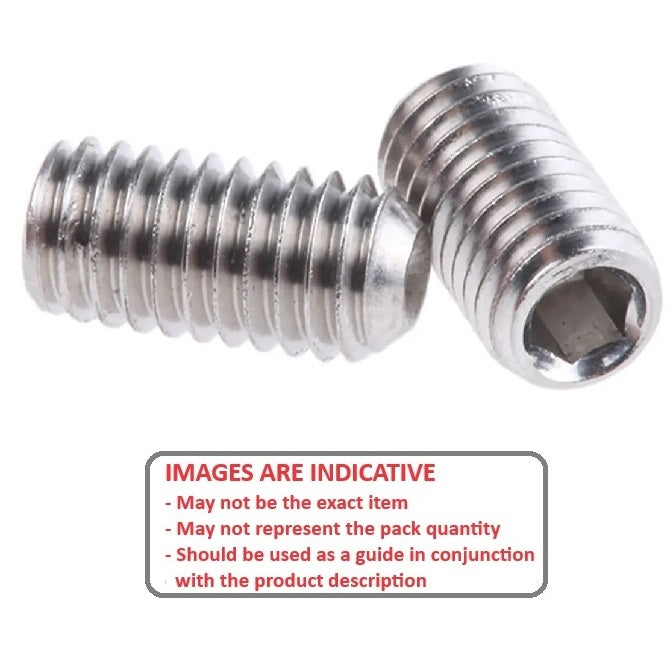

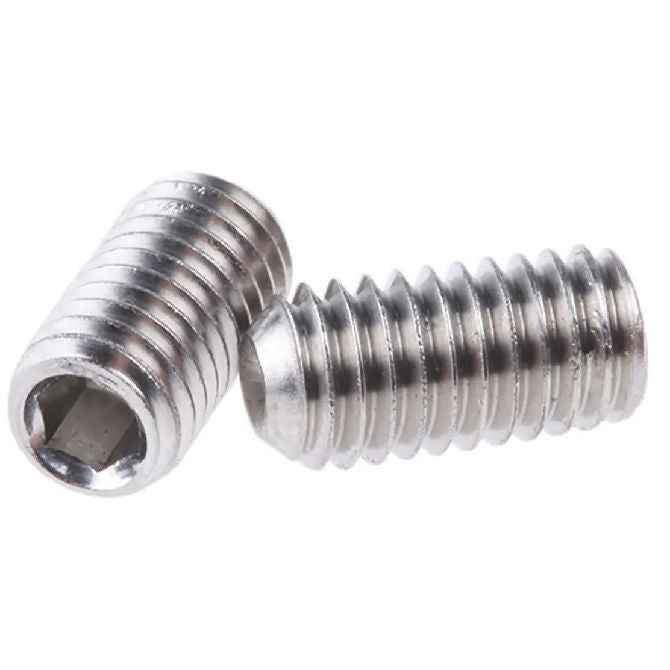

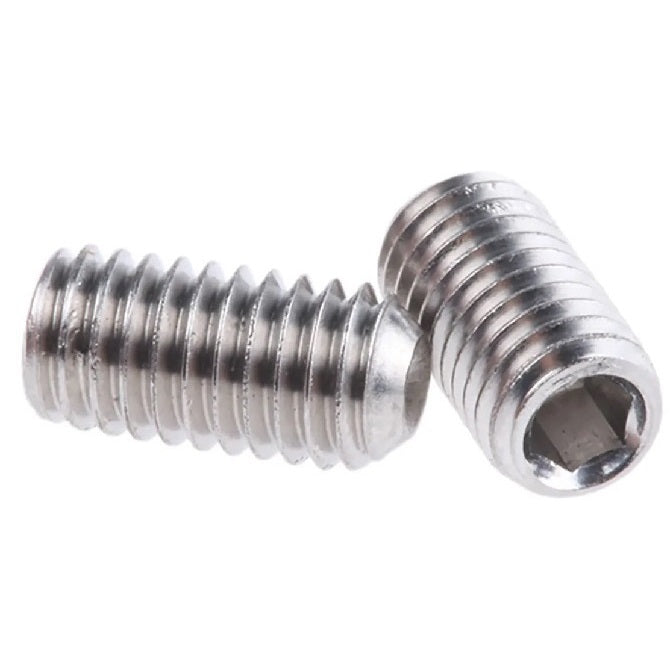

Cup Point Socket Set Screws - 5-40 UNC (3.18mm) x 3.2 mm Standard Cup Point

MBA

Additional resources:
Socket Set Screws Master PDF
Price:
$12.05 AUD
$12.05 AUD
per 100
Qty: 7 available now (700 pcs)
Order 50 or more (5000 pcs) for $10.85 AUD per 100
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Mar 13, 2025

Base Category: Socket Set Screws - Cup Point

Top Level Category: Socket Set Screws - Cup Point - Standard - 304 Stainless Steel - DIN916

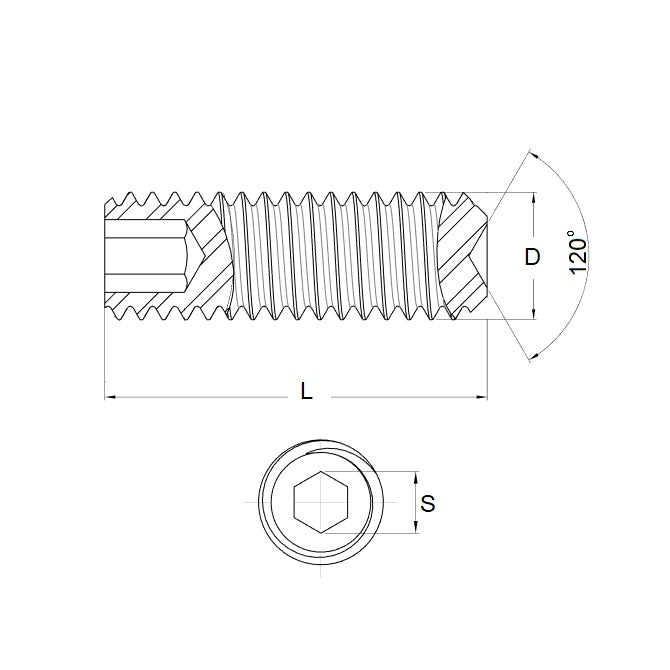

Product Details:

Thread Size: 5-40 UNC (3.18mm)
304 Stainless Steel (A2, 18-8)
  • Thread Length (L): 3.2mm
  • Type: Standard Cup Point
  • Hex Key Size: 1.59 (1/16)
  • Pitch: 0.635mm
  • Threads Per Inch: 40TPI

Brand: MBA
Country of Origin: TW

Alternatives: 602072, 92311A1

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
