RP030-0400-C (10 Pcs)

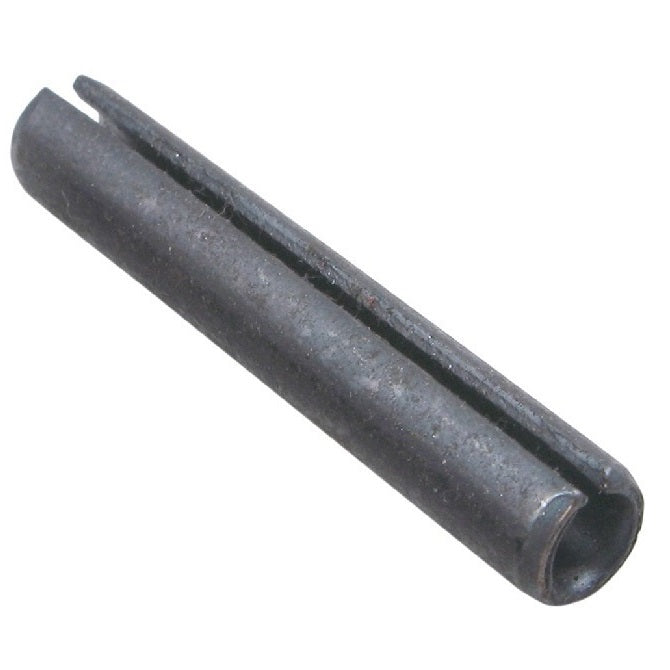

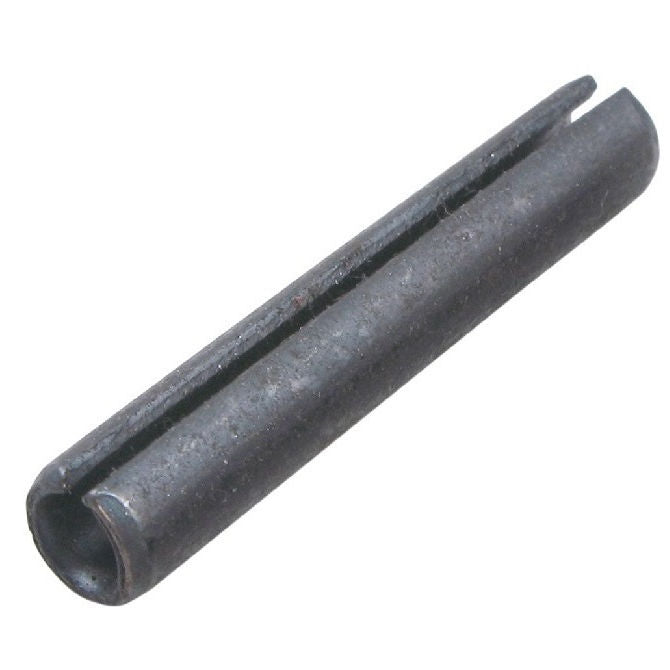

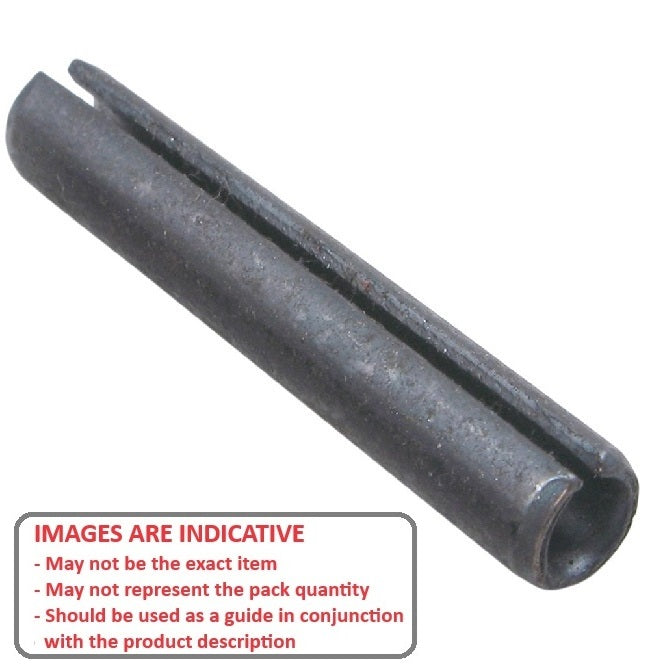

Roll Pins - 3 mm x 40 mm x 3.3 mm
MBA
Master Pins Catalogue PDF
Roll Pins Catalogue PDF
Coiled Pins
Qty: 7 available now (70 pcs)
Order 50 or more (500 pcs) for $3.47 AUD per 10
Special Offer: If you purchase the remaining quantity of this item, you will receive the bulk price.
Couldn't load pickup availability
Base Category: Pins - Roll
Top Level Category: Pins - Roll - Carbon Steel

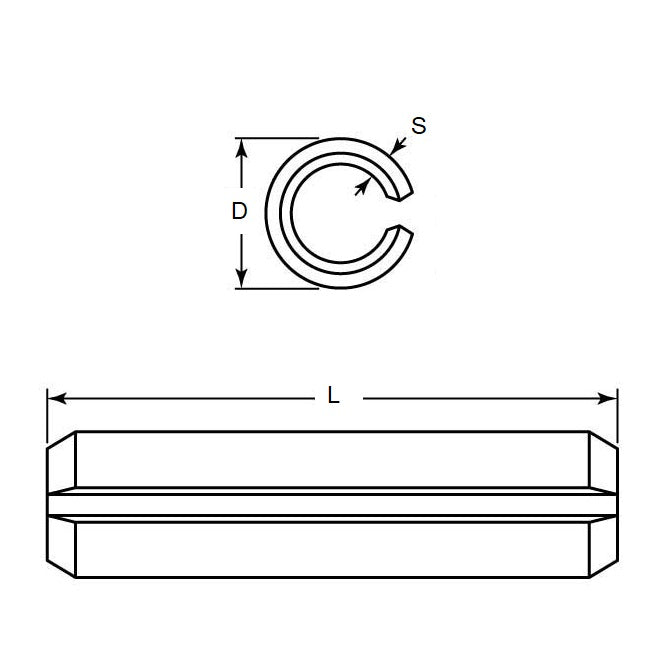

Product Details:Nominal Diameter (D): 3.00mm
Carbon Spring Steel
- Length (L): 40.00mm
- Free Diameter: 3.30mm
- Thickness (S): 0.60mm
- Chamfer Length (cL): 0.50-0.70mm
- Standard: DIN1481 / ISO8752
- Type: Standard
Brand: MBA
Country of Origin: DE
Alternatives: 802144, 91611A175, SAP3-40, SPM-030-040
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
