CFS-0010-0406-064-S1 (10 Pcs)

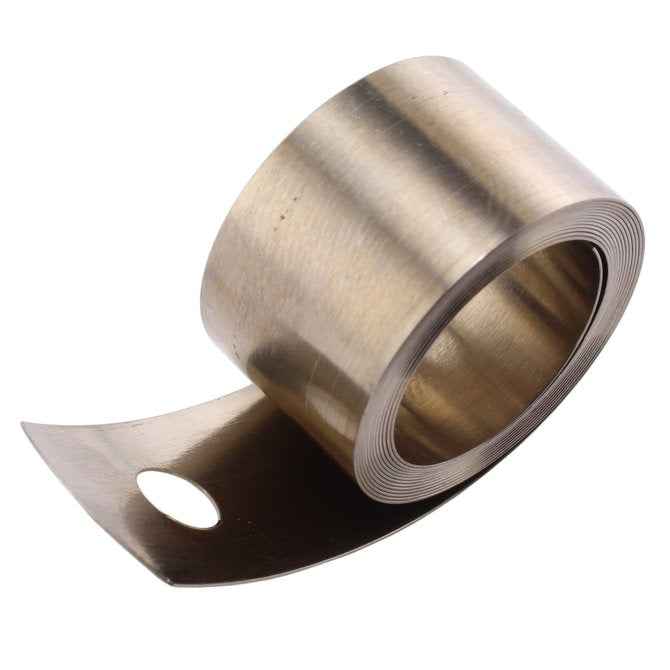

Constant Force Springs - 1 Newtons x 406.4 mm x 0.102 mm
MBA
Qty: 54 available now (540 pcs)
Order 50 or more (500 pcs) for $18.00 AUD per 10
Couldn't load pickup availability
Base Category: Springs - Constant Force
Top Level Category: Springs - Constant Force
Product Details:Load: 1.0Newtons
+/- 10%
Spring Steel Music Wire

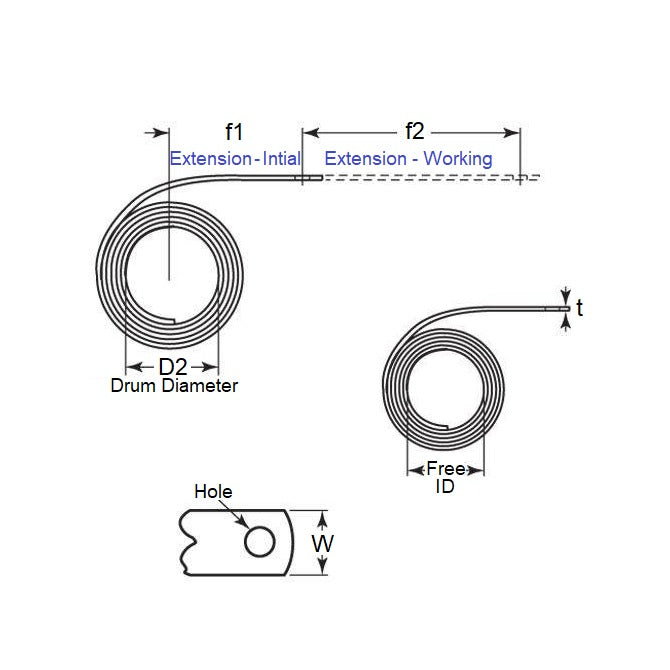

- Band Length: 406.4mm
- Thickness (t): 0.102mm
- Band Width (W): 6.35mm
- Free ID (Ref. Only): 13.10mm
- Drum Diameter: 16.0
- Cycles Life: 20000
- Mounting Holes: 1mm
- Initial Extension (f1): 24130.0mm
- Max. Working Deflection (f2): 304.8
Brand: MBA
Country of Origin: US
Alternatives: 150-135775
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
