Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

DDSS-008-18-M6
Double Studded Silicone Dampers - 0.8 to 2.0 14 to 12 13 to 12

MBA

Price:
$25.00 AUD
$41.25 AUD $25.00 AUD
Each
Qty: 1 available now
Only 1 pack may be ordered online. If you need a large quantity, please contact us.

Base Category: Dampers - Double Studded Silicone

Top Level Category: Dampers - Double Studded Silicone

Product Details:

Optimum Load: 0.8 to 2.0kg
  • Resonance Point: 14 to 12Hz
  • Resonance Magnification: 13 to 12dB
  • Recommended Frequency: 20.00Hz

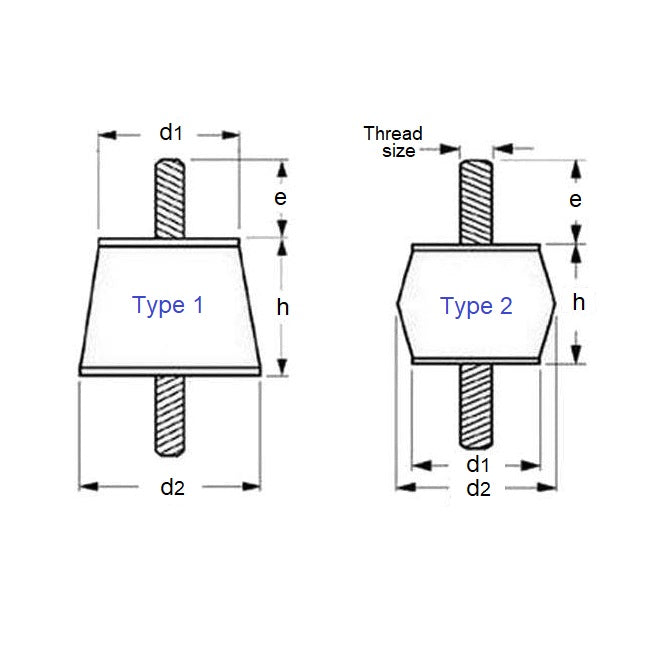

  • Body Height (h): 18.00mm
  • Body End Dia. (d1/d2): 20 ~ 25mm
  • Thread: M6
  • Thread Length (e): 20.00mm
  • Stud Material: Brass Nickle Plate

Brand: MBA
Country of Origin: DE

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Alternatives: A10Z61MT

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
