Collection: Washers - Disc Spring - Ball Bearing Type

Washers (With Images)

Disc Spring

Ball Bearing Type
Flange Locking Type
Standard

6 Products in this selection

Specially designed for preloading the outer ring of ball bearings. C1075 steel. Includes disc springs to DIN 2093.
Ensures perfect bearing positioning with no sideways play
May be used to provide bearing preload
Load tolerance +/- 20% of load shown.

Additional resources:
Disc Spring Washers PDF
Screws

A more comprehensive listing may be found on the MBA Minibearings main store at Washers - Disc Spring - Ball Bearing Type.

Nominal OD (A)	Nominal ID (B)	Thickness (C)	Load to flatten	Indicative Image
12.80 mm	7.00 mm + 0.20 / - 0.00	0.25 mm
Material: Carbon Steel Suits Bearing Size: 624 / EL-4 Load at 0.75 height: 3.04 Kg Free Height (E): 0.50 mm Inside Height (D): 0.25 mm
Part Number: W0072-D-013-002-BB-C (2 Pcs) Disc Spring Washers - 12.8x7x0.25 mm - Carbon Steel 10 units (20 pcs) Available Now \| Further orders can be expected around Thu, May 29, 2025 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Per 2
Nominal OD (A)	Nominal ID (B)	Thickness (C)	Load to flatten	Indicative Image
12.80 mm	7.00 mm + 0.20 / - 0.00	0.25 mm
Material: Carbon Steel Suits Bearing Size: 624 / EL-4 Load at 0.75 height: 3.04 Kg Free Height (E): 0.50 mm Inside Height (D): 0.25 mm
Part Number: W0072-D-013-002-BB-C (2 Pcs) Disc Spring Washers - 12.8x7x0.25 mm - Carbon Steel 10 units (20 pcs) Available Now \| Further orders can be expected around Thu, May 29, 2025 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Per 2 View the product page first if you are unsure.
W0072-D-013-002-BB-C (2 Pcs) --- Disc Spring Washers - 12.8x7x0.25 mm - Carbon Steel W0072-D-013-002-BB-C (2 Pcs) --- Disc Spring Washers - 12.8x7x0.25 mm - Carbon Steel Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per 10 Available Now
34.50 mm	25.00 mm + 0.40 / - 0.00	0.50 mm
Material: Carbon Steel Suits Bearing Size: R10 Load at 0.75 height: 15.78 Kg Free Height (E): 1.88 mm Inside Height (D): 0.70 mm
Part Number: W0254-D-035-005-BB-C Disc Spring Washers - 34.5x25x0.5 mm - Carbon Steel 416 Available Now \| Further orders can be expected around Tue, May 13, 2025 Regular price $5.68 AUD Regular price ~~$6.82 AUD~~ Sale price $5.68 AUD Unit price per Each
34.50 mm	25.00 mm + 0.40 / - 0.00	0.50 mm
Material: Carbon Steel Suits Bearing Size: R10 Load at 0.75 height: 15.78 Kg Free Height (E): 1.88 mm Inside Height (D): 0.70 mm
Part Number: W0254-D-035-005-BB-C Disc Spring Washers - 34.5x25x0.5 mm - Carbon Steel 416 Available Now \| Further orders can be expected around Tue, May 13, 2025 Regular price $5.68 AUD Regular price ~~$6.82 AUD~~ Sale price $5.68 AUD Unit price per Each View the product page first if you are unsure.

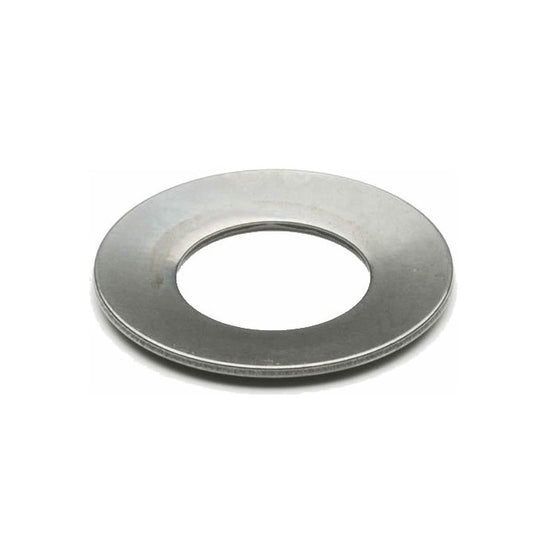

W0254-D-035-005-BB-C --- Disc Spring Washers - 34.5x25x0.5 mm - Carbon Steel Sale W0254-D-035-005-BB-C --- Disc Spring Washers - 34.5x25x0.5 mm - Carbon Steel Regular price $5.68 AUD Regular price ~~$6.82 AUD~~ Sale price $5.68 AUD Unit price per 416 Available Now Sale
34.60 mm	20.00 mm + 0.40 / - 0.00	0.40 mm
Material: Carbon Steel Suits Bearing Size: 6300 Inside Height (D): 1.60 mm
Part Number: W0204-D-035-040-BB-C Disc Spring Washers - 34.6x20x0.4 mm - Carbon Steel 5 Available Now \| Further orders can be expected around Thu, May 29, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Each
34.60 mm	20.00 mm + 0.40 / - 0.00	0.40 mm
Material: Carbon Steel Suits Bearing Size: 6300 Inside Height (D): 1.60 mm
Part Number: W0204-D-035-040-BB-C Disc Spring Washers - 34.6x20x0.4 mm - Carbon Steel 5 Available Now \| Further orders can be expected around Thu, May 29, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Each View the product page first if you are unsure.
W0204-D-035-040-BB-C --- Disc Spring Washers - 34.6x20x0.4 mm - Carbon Steel W0204-D-035-040-BB-C --- Disc Spring Washers - 34.6x20x0.4 mm - Carbon Steel Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per 5 Available Now
39.60 mm	25.00 mm + 0.40 / - 0.00	0.50 mm
Material: Carbon Steel Suits Bearing Size: 6203 Load at 0.75 height: 11.47 Kg Free Height (E): 1.30 mm Inside Height (D): 0.80 mm
Part Number: W0255-D-040-005-BB-C Disc Spring Washers - 39.6x25x0.5 mm - Carbon Steel 10 Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.00 AUD Regular price ~~$7.60 AUD~~ Sale price $4.00 AUD Unit price per Each
39.60 mm	25.00 mm + 0.40 / - 0.00	0.50 mm
Material: Carbon Steel Suits Bearing Size: 6203 Load at 0.75 height: 11.47 Kg Free Height (E): 1.30 mm Inside Height (D): 0.80 mm
Part Number: W0255-D-040-005-BB-C Disc Spring Washers - 39.6x25x0.5 mm - Carbon Steel 10 Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.00 AUD Regular price ~~$7.60 AUD~~ Sale price $4.00 AUD Unit price per Each
W0255-D-040-005-BB-C --- Disc Spring Washers - 39.6x25x0.5 mm - Carbon Steel Sale W0255-D-040-005-BB-C --- Disc Spring Washers - 39.6x25x0.5 mm - Carbon Steel Regular price $4.00 AUD Regular price ~~$7.60 AUD~~ Sale price $4.00 AUD Unit price per 10 Available Now Sale
41.60 mm	25.00 mm + 0.40 / - 0.00	0.50 mm
Material: Carbon Steel Suits Bearing Size: 6004 / 6302 Load at 0.75 height: 11.83 Kg Free Height (E): 1.40 mm Inside Height (D): 0.90 mm
Part Number: W0255-D-042-005-BB-C Disc Spring Washers - 41.6x25x0.5 mm - Carbon Steel 48 Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $1.32 AUD Regular price ~~$2.50 AUD~~ Sale price $1.32 AUD Unit price per Each
41.60 mm	25.00 mm + 0.40 / - 0.00	0.50 mm
Material: Carbon Steel Suits Bearing Size: 6004 / 6302 Load at 0.75 height: 11.83 Kg Free Height (E): 1.40 mm Inside Height (D): 0.90 mm
Part Number: W0255-D-042-005-BB-C Disc Spring Washers - 41.6x25x0.5 mm - Carbon Steel 48 Available Now \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $1.32 AUD Regular price ~~$2.50 AUD~~ Sale price $1.32 AUD Unit price per Each
W0255-D-042-005-BB-C --- Disc Spring Washers - 41.6x25x0.5 mm - Carbon Steel Sale W0255-D-042-005-BB-C --- Disc Spring Washers - 41.6x25x0.5 mm - Carbon Steel Regular price $1.32 AUD Regular price ~~$2.50 AUD~~ Sale price $1.32 AUD Unit price per 48 Available Now Sale
99.00 mm	65.50 mm + 0.50 / - 0.00	1.00 mm
Material: Carbon Steel Suits Bearing Size: 6309 Free Height (E): 2.60 mm Inside Height (D): 1.60 mm
Part Number: W0665-D-099-010-BB-C Disc Spring Washers - 99x65.5x1 mm - Carbon Steel 21 Available Now \| Further orders can be expected around Thu, Jul 24, 2025 Regular price $10.50 AUD Regular price Sale price $10.50 AUD Unit price per Each
99.00 mm	65.50 mm + 0.50 / - 0.00	1.00 mm
Material: Carbon Steel Suits Bearing Size: 6309 Free Height (E): 2.60 mm Inside Height (D): 1.60 mm
Part Number: W0665-D-099-010-BB-C Disc Spring Washers - 99x65.5x1 mm - Carbon Steel 21 Available Now \| Further orders can be expected around Thu, Jul 24, 2025 Regular price $10.50 AUD Regular price Sale price $10.50 AUD Unit price per Each View the product page first if you are unsure.
W0665-D-099-010-BB-C --- Disc Spring Washers - 99x65.5x1 mm - Carbon Steel W0665-D-099-010-BB-C --- Disc Spring Washers - 99x65.5x1 mm - Carbon Steel Regular price $10.50 AUD Regular price Sale price $10.50 AUD Unit price per 21 Available Now
