Tube - Round - Sintered Bronze

5 Products in this selection
  • Oil impregnated sintered bronze tubing - self lubricating. Product will machine to the sizes listed and is supplied will be larger on OD and smaller on bore.
  • Sizes listed are FINISHED SIZE. Product supplied will be larger on OD and smaller on ID to allow for machining.
  • B438 grade 1, Type 2 - AMS4805-D
  • SAE 841 Type 1, Class A
Additional resources:

A more comprehensive listing may be found on the MBA Minibearings main store at Tube - Round - Sintered Bronze.
Nom. OD Nom. ID Length (L) Info Indicative
25.40
mm
+ 0.80 / + 3.20 		12.70
mm
- 0.80 / - 3.20 		165.1

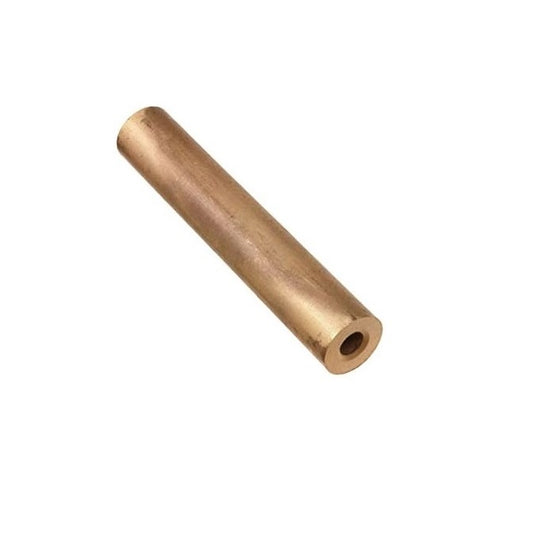

mm 		1135153 | 0T-0254-0127-0165-SB --- Round Tube - 25.4x12.7x165.1 mm - Bronze SAE 841 Sintered
Material: Bronze SAE 841 Sintered
Part Number: 0T-0254-0127-0165-SB Round Tube - 25.4x12.7x165.1 mm - Bronze SAE 841 Sintered
1 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$159.86 AUD
$191.84 AUD $159.86 AUD
Each
Nom. OD Nom. ID Length (L) Info Indicative
25.40
mm
+ 0.80 / + 3.20 		12.70
mm
- 0.80 / - 3.20 		165.1
mm 		1135153 | 0T-0254-0127-0165-SB --- Round Tube - 25.4x12.7x165.1 mm - Bronze SAE 841 Sintered
Material: Bronze SAE 841 Sintered
Part Number: 0T-0254-0127-0165-SB Round Tube - 25.4x12.7x165.1 mm - Bronze SAE 841 Sintered
1 Available Now | Further orders can be expected around Tue, Apr 29, 2025
$159.86 AUD
$191.84 AUD $159.86 AUD
Each
View the product page first if you are unsure.
34.93
mm
+ 0.80 / + 3.20 		22.23
mm
- 0.80 / - 3.20 		165.1
mm 		1147435 | 0T-0349-0222-0165-SB --- Round Tube - 34.93x22.23x165.1 mm - Bronze SAE 841 Sintered
Material: Bronze SAE 841 Sintered
Part Number: 0T-0349-0222-0165-SB Round Tube - 34.93x22.23x165.1 mm - Bronze SAE 841 Sintered
2 Available Now | Further orders can be expected around Sun, May 25, 2025
$195.50 AUD
$234.60 AUD $195.50 AUD
Each
34.93
mm
+ 0.80 / + 3.20 		22.23
mm
- 0.80 / - 3.20 		165.1
mm 		1147435 | 0T-0349-0222-0165-SB --- Round Tube - 34.93x22.23x165.1 mm - Bronze SAE 841 Sintered
Material: Bronze SAE 841 Sintered
Part Number: 0T-0349-0222-0165-SB Round Tube - 34.93x22.23x165.1 mm - Bronze SAE 841 Sintered
2 Available Now | Further orders can be expected around Sun, May 25, 2025
$195.50 AUD
$234.60 AUD $195.50 AUD
Each
View the product page first if you are unsure.
50.80
mm
+ 0.80 / + 3.20 		31.75
mm
- 0.80 / - 3.20 		165.1
mm 		1163391 | 0T-0508-0318-0165-SB --- Round Tube - 50.8x31.75x165.1 mm - Bronze SAE 841 Sintered
Material: Bronze SAE 841 Sintered
Part Number: 0T-0508-0318-0165-SB Round Tube - 50.8x31.75x165.1 mm - Bronze SAE 841 Sintered
1 Available Now | Further orders can be expected around Sun, May 25, 2025
$415.95 AUD
$499.15 AUD $415.95 AUD
Each
50.80
mm
+ 0.80 / + 3.20 		31.75
mm
- 0.80 / - 3.20 		165.1
mm 		1163391 | 0T-0508-0318-0165-SB --- Round Tube - 50.8x31.75x165.1 mm - Bronze SAE 841 Sintered
Material: Bronze SAE 841 Sintered
Part Number: 0T-0508-0318-0165-SB Round Tube - 50.8x31.75x165.1 mm - Bronze SAE 841 Sintered
1 Available Now | Further orders can be expected around Sun, May 25, 2025
$415.95 AUD
$499.15 AUD $415.95 AUD
Each
View the product page first if you are unsure.
110.00
mm
+ 0.80 / + 3.20 		57.15
mm
- 0.80 / - 3.20 		165.1
mm 		This is 4.5 inch OD with a small dent. Suitable to machine to 110mm or less
1190979 | 0T-1100-0572-0165-SB --- Round Tube - 110x57.15x165.1 mm - Bronze SAE 841 Sintered
Material: Bronze SAE 841 Sintered
Part Number: 0T-1100-0572-0165-SB Round Tube - 110x57.15x165.1 mm - Bronze SAE 841 Sintered
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$500.00 AUD
$950.00 AUD $500.00 AUD
Each
110.00
mm
+ 0.80 / + 3.20 		57.15
mm
- 0.80 / - 3.20 		165.1
mm 		This is 4.5 inch OD with a small dent. Suitable to machine to 110mm or less
1190979 | 0T-1100-0572-0165-SB --- Round Tube - 110x57.15x165.1 mm - Bronze SAE 841 Sintered
Material: Bronze SAE 841 Sintered
Part Number: 0T-1100-0572-0165-SB Round Tube - 110x57.15x165.1 mm - Bronze SAE 841 Sintered
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$500.00 AUD
$950.00 AUD $500.00 AUD
Each
150.00
mm
+ 0.80 / + 3.20 		76.20
mm
- 0.80 / - 3.20 		165.1
mm 		This is 6 inch OD with a small dent. Suitable to machine to 150mm or less
1200698 | 0T-1500-0762-0165-SB --- Round Tube - 150x76.2x165.1 mm - Bronze SAE 841 Sintered
Material: Bronze SAE 841 Sintered
Part Number: 0T-1500-0762-0165-SB Round Tube - 150x76.2x165.1 mm - Bronze SAE 841 Sintered
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$800.00 AUD
$1,520.00 AUD $800.00 AUD
Each
150.00
mm
+ 0.80 / + 3.20 		76.20
mm
- 0.80 / - 3.20 		165.1
mm 		This is 6 inch OD with a small dent. Suitable to machine to 150mm or less
1200698 | 0T-1500-0762-0165-SB --- Round Tube - 150x76.2x165.1 mm - Bronze SAE 841 Sintered
Material: Bronze SAE 841 Sintered
Part Number: 0T-1500-0762-0165-SB Round Tube - 150x76.2x165.1 mm - Bronze SAE 841 Sintered
1 Available Now | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$800.00 AUD
$1,520.00 AUD $800.00 AUD
Each
