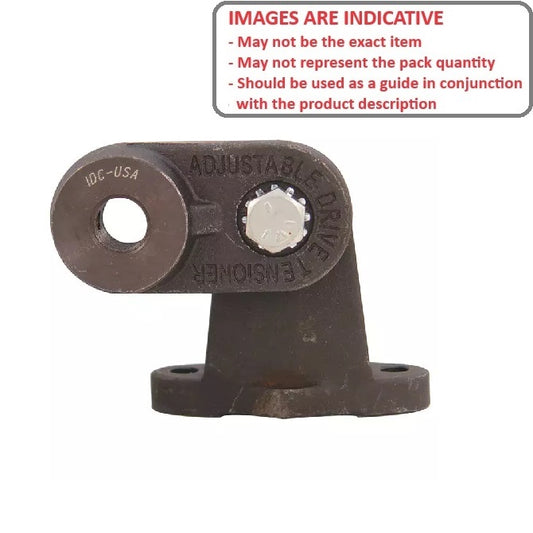

Tensioner - Drive - Adjustable Angle

2 Products in this selection
  • Use with idler shafts and idler pulleys. Fixed base with adjustable arm through 360o.
  • Idler shaft and pulleys not included with tensioner
Bore (C) Arm Width (D) E Plate Width (F) Overall Height (G) Overall Width (H) Indicative
25.400
mm 		31.750
mm 		38.100
mm 		50.800
mm 		101.600
mm 		101.600

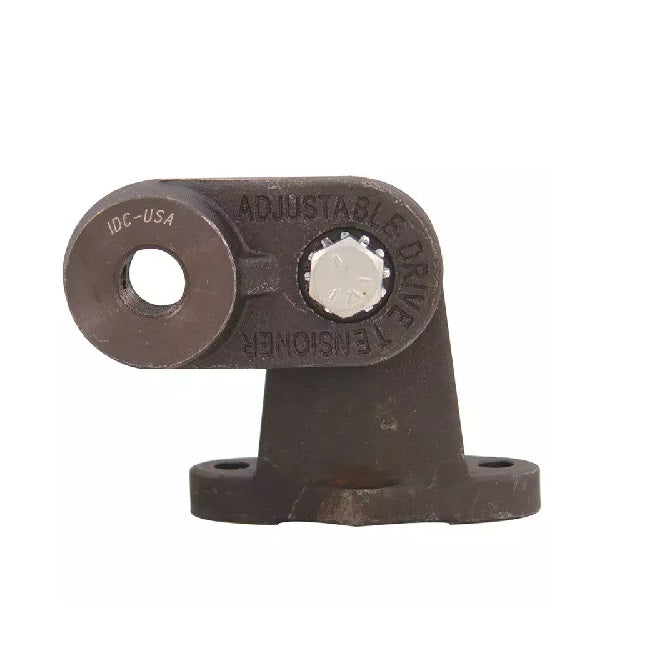

mm 		1135614 | IDC-67RS --- Tensioner - 25.4 mm x 31.75 mm x 38.1 mm
Bolt Centres (I): 76.200 mm    Centre of Mount to End (J): 76.200 mm    Centre of Mount to Bore (K): 50.800 mm    Bolt Size (L): 3/4-16 x 9.53    M / N: 12.7 / 63.5 mm    Approx Weight: 1.42 Kg
Part Number: IDC-67RS Tensioner - 25.4 mm x 31.75 mm x 38.1 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$242.77 AUD
$242.77 AUD
Each
Bore (C) Arm Width (D) E Plate Width (F) Indicative
25.400
mm 		31.750
mm 		38.100
mm 		50.800
mm 		1135614 | IDC-67RS --- Tensioner - 25.4 mm x 31.75 mm x 38.1 mm
Overall Height (G): 101.600 mm    Overall Width (H): 101.600 mm    Bolt Centres (I): 76.200 mm    Centre of Mount to End (J): 76.200 mm    Centre of Mount to Bore (K): 50.800 mm    Bolt Size (L): 3/4-16 x 9.53    M / N: 12.7 / 63.5 mm    Approx Weight: 1.42 Kg
Part Number: IDC-67RS Tensioner - 25.4 mm x 31.75 mm x 38.1 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$242.77 AUD
$242.77 AUD
Each
38.100
mm 		44.450
mm 		60.325
mm 		88.900
mm 		187.325
mm 		190.500
mm 		1151777 | IDC-69RS --- Tensioner - 38.1 mm x 44.45 mm x 60.325 mm
Bolt Centres (I): 152.400 mm    Centre of Mount to End (J): 165.100 mm    Centre of Mount to Bore (K): 127.000 mm    Bolt Size (L): 1-14 x 15.88    M / N: 19.05 / 130.175 mm    Approx Weight: 6.44 Kg
Part Number: IDC-69RS Tensioner - 38.1 mm x 44.45 mm x 60.325 mm
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$607.86 AUD
$607.86 AUD
Each
38.100
mm 		44.450
mm 		60.325
mm 		88.900
mm 		1151777 | IDC-69RS --- Tensioner - 38.1 mm x 44.45 mm x 60.325 mm
Overall Height (G): 187.325 mm    Overall Width (H): 190.500 mm    Bolt Centres (I): 152.400 mm    Centre of Mount to End (J): 165.100 mm    Centre of Mount to Bore (K): 127.000 mm    Bolt Size (L): 1-14 x 15.88    M / N: 19.05 / 130.175 mm    Approx Weight: 6.44 Kg
Part Number: IDC-69RS Tensioner - 38.1 mm x 44.45 mm x 60.325 mm
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$607.86 AUD
$607.86 AUD
Each
