Collection: Springs - Compression - Stainless Steel

Springs -> Compression -> Stainless Steel

There are 55 products in the sub-categories of Springs - Compression - Stainless Steel. Scroll down or follow the link to Springs - Compression - Stainless Steel in the products table to see all these items combined into a handy table with filters.

Category Details

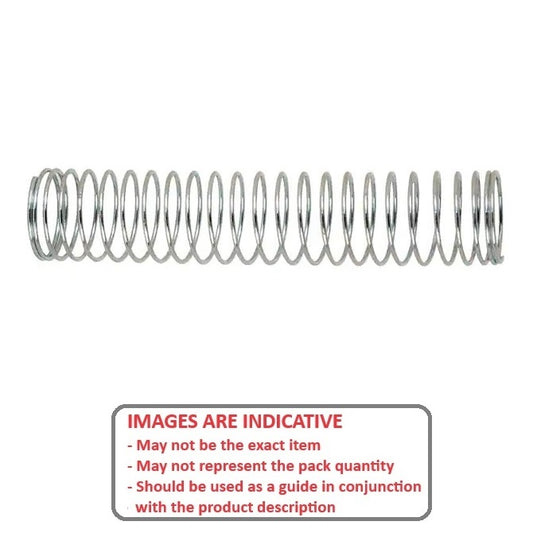

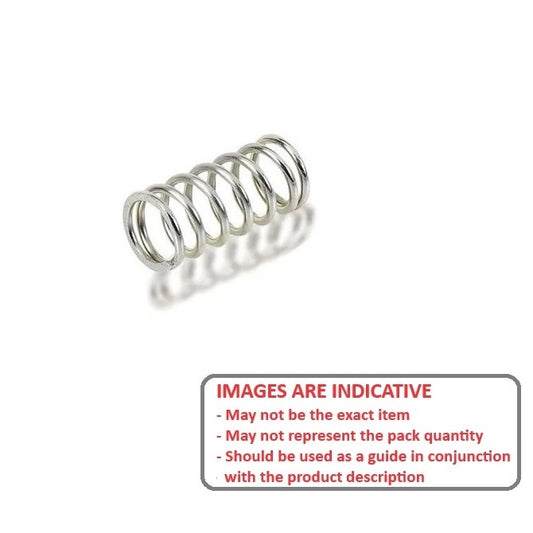

A selection of Stainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.

Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
This category includes short and long lengths.
If the end type is important to your application please contact us for more information or a special quote.

Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found in the Springs - Compression - Stainless Steel category on the MBA Minibearings main store.

Spring OD (D0)	Free Length (L0)	Wire Diameter (d)	Loaded Height (L1)	Load at L1	Rate (P/f)
Spring OD (D0) 1.80 mm _{+/- 0.076} (Equiv. 0.071 in.)	Free Length (L0) 3.0 mm _{+/- 0.38} (Equiv. 0.118 in.)	Wire Diameter (d) 0.20 mm _{+/- 0.13} (Equiv. 0.008 in.)	Loaded Height (L1) 1.50 mm	Load at L1 1.50 N	Rate (P/f) 1.0 N/mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Solid Height (Sh): 1.30 mm Approx. ID: 1.4 mm End Type: Closed Max Rod Dia. (A): 1.31 mm Deleted Item. Available while stocks last.
Part Number: CS-0180-0030-02-S2-C (Each) Compression Springs - 1.8x3x0.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $16.60 AUD Regular price ~~$31.54 AUD~~ Sale price $16.60 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Spring OD (D0)	Free Length (L0)	Wire Diameter (d)	Loaded Height (L1)	Indicative Image
Spring OD (D0) 1.80 mm _{+/- 0.076} (Equiv. 0.071 in.)	Free Length (L0) 3.0 mm _{+/- 0.38} (Equiv. 0.118 in.)	Wire Diameter (d) 0.20 mm _{+/- 0.13} (Equiv. 0.008 in.)	Loaded Height (L1) 1.50 mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Load at L1: 1.50 N Rate (P/f): 1.0 N/mm Solid Height (Sh): 1.30 mm Approx. ID: 1.4 mm End Type: Closed Max Rod Dia. (A): 1.31 mm Deleted Item. Available while stocks last.
Part Number: CS-0180-0030-02-S2-C (Each) Compression Springs - 1.8x3x0.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $16.60 AUD Regular price ~~$31.54 AUD~~ Sale price $16.60 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
CS-0180-0030-02-S2-C (Each) --- Compression Springs - 1.8x3x0.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Sale CS-0180-0030-02-S2-C (Each) --- Compression Springs - 1.8x3x0.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Regular price $16.60 AUD Regular price ~~$31.54 AUD~~ Sale price $16.60 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 1 Available Now Sale
Spring OD (D0) 2.00 mm (Equiv. 0.079 in.)	Free Length (L0) 5.0 mm (Equiv. 0.197 in.)	Wire Diameter (d) 0.13 mm (Equiv. 0.005 in.)	Loaded Height (L1) 2.00 mm	Load at L1 0.15 N	Rate (P/f) 0.0 N/mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Solid Height (Sh): 1.50 mm Approx. ID: 1.7 mm End Type: Closed Max Rod Dia. (A): 1.74 mm
Part Number: CS-0200-0050-013-S4-C (PK-5) Compression Springs - 2x5x0.13 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $11.32 AUD Regular price Sale price $11.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Spring OD (D0) 2.00 mm (Equiv. 0.079 in.)	Free Length (L0) 5.0 mm (Equiv. 0.197 in.)	Wire Diameter (d) 0.13 mm (Equiv. 0.005 in.)	Loaded Height (L1) 2.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load at L1: 0.15 N Rate (P/f): 0.0 N/mm Solid Height (Sh): 1.50 mm Approx. ID: 1.7 mm End Type: Closed Max Rod Dia. (A): 1.74 mm
Part Number: CS-0200-0050-013-S4-C (PK-5) Compression Springs - 2x5x0.13 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 12, 2026 Regular price $11.32 AUD Regular price Sale price $11.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CS-0200-0050-013-S4-C (PK-5) --- Compression Springs - 2x5x0.13 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring CS-0200-0050-013-S4-C (PK-5) --- Compression Springs - 2x5x0.13 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Regular price $11.32 AUD Regular price Sale price $11.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Spring OD (D0) 2.00 mm (Equiv. 0.079 in.)	Free Length (L0) 10.0 mm (Equiv. 0.394 in.)	Wire Diameter (d) 0.13 mm (Equiv. 0.005 in.)	Loaded Height (L1) 4.00 mm	Load at L1 0.29 N	Rate (P/f) 0.0 N/mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Solid Height (Sh): 1.50 mm Approx. ID: 1.7 mm End Type: Closed Max Rod Dia. (A): 1.74 mm
Part Number: CS-0200-0100-013-S4-C (PK-5) Compression Springs - 2x10x0.13 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 8 units (40 pcs) Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 8 units (40 pcs) Available Now. Backorder if more than 8.
Spring OD (D0) 2.00 mm (Equiv. 0.079 in.)	Free Length (L0) 10.0 mm (Equiv. 0.394 in.)	Wire Diameter (d) 0.13 mm (Equiv. 0.005 in.)	Loaded Height (L1) 4.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load at L1: 0.29 N Rate (P/f): 0.0 N/mm Solid Height (Sh): 1.50 mm Approx. ID: 1.7 mm End Type: Closed Max Rod Dia. (A): 1.74 mm
Part Number: CS-0200-0100-013-S4-C (PK-5) Compression Springs - 2x10x0.13 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 8 units (40 pcs) Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 8 units (40 pcs) Available Now. Backorder if more than 8.
CS-0200-0100-013-S4-C (PK-5) --- Compression Springs - 2x10x0.13 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring CS-0200-0100-013-S4-C (PK-5) --- Compression Springs - 2x10x0.13 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 8 Available Now
Spring OD (D0) 2.00 mm (Equiv. 0.079 in.)	Free Length (L0) 15.0 mm (Equiv. 0.591 in.)	Wire Diameter (d) 0.26 mm (Equiv. 0.01 in.)	Loaded Height (L1) 9.00 mm	Load at L1 2.94 N	Rate (P/f) 0.5 N/mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Solid Height (Sh): 5.07 mm Approx. ID: 1.5 mm End Type: Closed Max Rod Dia. (A): 1.48 mm
Part Number: CS-0200-0150-026-S4-C (PK-5) Compression Springs - 2x15x0.26 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 7 units (35 pcs) Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 7 units (35 pcs) Available Now. Backorder if more than 7.
Spring OD (D0) 2.00 mm (Equiv. 0.079 in.)	Free Length (L0) 15.0 mm (Equiv. 0.591 in.)	Wire Diameter (d) 0.26 mm (Equiv. 0.01 in.)	Loaded Height (L1) 9.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load at L1: 2.94 N Rate (P/f): 0.5 N/mm Solid Height (Sh): 5.07 mm Approx. ID: 1.5 mm End Type: Closed Max Rod Dia. (A): 1.48 mm
Part Number: CS-0200-0150-026-S4-C (PK-5) Compression Springs - 2x15x0.26 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 7 units (35 pcs) Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 7 units (35 pcs) Available Now. Backorder if more than 7.
CS-0200-0150-026-S4-C (PK-5) --- Compression Springs - 2x15x0.26 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring CS-0200-0150-026-S4-C (PK-5) --- Compression Springs - 2x15x0.26 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 7 Available Now
Spring OD (D0) 2.20 mm _{+/- 0.076} (Equiv. 0.087 in.)	Free Length (L0) 8.7 mm _{+/- 0.38} (Equiv. 0.343 in.)	Wire Diameter (d) 0.20 mm _{+/- 0.13} (Equiv. 0.008 in.)	Loaded Height (L1) 2.90 mm	Load at L1 1.24 N	Rate (P/f) 0.2 N/mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Solid Height (Sh): 2.30 mm Approx. ID: 1.8 mm End Type: Closed Max Rod Dia. (A): 1.69 mm Deleted Item. Available while stocks last.
Part Number: CS-0220-0087-02-S2-C (Each) Compression Springs - 2.2x8.7x0.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 328 Available Now \| Item Discontinued - Up to 328 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.49 AUD Regular price ~~$7.02 AUD~~ Sale price $3.49 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 328 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Spring OD (D0) 2.20 mm _{+/- 0.076} (Equiv. 0.087 in.)	Free Length (L0) 8.7 mm _{+/- 0.38} (Equiv. 0.343 in.)	Wire Diameter (d) 0.20 mm _{+/- 0.13} (Equiv. 0.008 in.)	Loaded Height (L1) 2.90 mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Load at L1: 1.24 N Rate (P/f): 0.2 N/mm Solid Height (Sh): 2.30 mm Approx. ID: 1.8 mm End Type: Closed Max Rod Dia. (A): 1.69 mm Deleted Item. Available while stocks last.
Part Number: CS-0220-0087-02-S2-C (Each) Compression Springs - 2.2x8.7x0.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 328 Available Now \| Item Discontinued - Up to 328 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.49 AUD Regular price ~~$7.02 AUD~~ Sale price $3.49 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 328 Available Now. These are priced to quit. Please contact us for a quote if you require more.
CS-0220-0087-02-S2-C (Each) --- Compression Springs - 2.2x8.7x0.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Sale CS-0220-0087-02-S2-C (Each) --- Compression Springs - 2.2x8.7x0.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Regular price $3.49 AUD Regular price ~~$7.02 AUD~~ Sale price $3.49 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 328 Available Now Sale
Spring OD (D0) 2.24 mm _{+/- 0.076} (Equiv. 0.088 in.)	Free Length (L0) 9.7 mm _{+/- 0.38} (Equiv. 0.382 in.)	Wire Diameter (d) 0.31 mm _{+/- 0.015} (Equiv. 0.012 in.)	Loaded Height (L1) 5.49 mm	Load at L1 3.89 N	Rate (P/f) 1.0 N/mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Solid Height (Sh): 4.369 mm Approx. ID: 1.6 mm End Type: Closed Ground Flush Max Rod Dia. (A): 1.51 mm Deleted Item. Available while stocks last.
Part Number: CS-0224-0097-03-S2-G (Each) Compression Springs - 2.24x9.7x0.31 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 371 Available Now \| Item Discontinued - Up to 371 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $6.04 AUD Regular price ~~$12.10 AUD~~ Sale price $6.04 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 371 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Spring OD (D0) 2.24 mm _{+/- 0.076} (Equiv. 0.088 in.)	Free Length (L0) 9.7 mm _{+/- 0.38} (Equiv. 0.382 in.)	Wire Diameter (d) 0.31 mm _{+/- 0.015} (Equiv. 0.012 in.)	Loaded Height (L1) 5.49 mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Load at L1: 3.89 N Rate (P/f): 1.0 N/mm Solid Height (Sh): 4.369 mm Approx. ID: 1.6 mm End Type: Closed Ground Flush Max Rod Dia. (A): 1.51 mm Deleted Item. Available while stocks last.
Part Number: CS-0224-0097-03-S2-G (Each) Compression Springs - 2.24x9.7x0.31 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 371 Available Now \| Item Discontinued - Up to 371 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $6.04 AUD Regular price ~~$12.10 AUD~~ Sale price $6.04 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 371 Available Now. These are priced to quit. Please contact us for a quote if you require more.
CS-0224-0097-03-S2-G (Each) --- Compression Springs - 2.24x9.7x0.31 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Sale CS-0224-0097-03-S2-G (Each) --- Compression Springs - 2.24x9.7x0.31 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Regular price $6.04 AUD Regular price ~~$12.10 AUD~~ Sale price $6.04 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 371 Available Now Sale
Spring OD (D0) 2.32 mm _{+/- 0.076} (Equiv. 0.091 in.)	Free Length (L0) 10.9 mm _{+/- 0.38} (Equiv. 0.429 in.)	Wire Diameter (d) 0.32 mm _{+/- 0.015} (Equiv. 0.013 in.)	Loaded Height (L1) 5.90 mm	Load at L1 4.69 N	Rate (P/f) 0.9 N/mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Solid Height (Sh): 5.00 mm Approx. ID: 1.7 mm End Type: Closed Max Rod Dia. (A): 1.56 mm Deleted Item. Available while stocks last.
Part Number: CS-0232-0109-03-S2-C (PK-2) Compression Springs - 2.32x10.9x0.32 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 157 units (314 pcs) Available Now \| Item Discontinued - Up to 157 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.91 AUD Regular price ~~$14.04 AUD~~ Sale price $4.91 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 157 units (314 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Spring OD (D0) 2.32 mm _{+/- 0.076} (Equiv. 0.091 in.)	Free Length (L0) 10.9 mm _{+/- 0.38} (Equiv. 0.429 in.)	Wire Diameter (d) 0.32 mm _{+/- 0.015} (Equiv. 0.013 in.)	Loaded Height (L1) 5.90 mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Load at L1: 4.69 N Rate (P/f): 0.9 N/mm Solid Height (Sh): 5.00 mm Approx. ID: 1.7 mm End Type: Closed Max Rod Dia. (A): 1.56 mm Deleted Item. Available while stocks last.
Part Number: CS-0232-0109-03-S2-C (PK-2) Compression Springs - 2.32x10.9x0.32 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 157 units (314 pcs) Available Now \| Item Discontinued - Up to 157 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.91 AUD Regular price ~~$14.04 AUD~~ Sale price $4.91 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 157 units (314 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
CS-0232-0109-03-S2-C (PK-2) --- Compression Springs - 2.32x10.9x0.32 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Sale CS-0232-0109-03-S2-C (PK-2) --- Compression Springs - 2.32x10.9x0.32 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Regular price $4.91 AUD Regular price ~~$14.04 AUD~~ Sale price $4.91 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 157 Available Now Sale
Spring OD (D0) 3.00 mm (Equiv. 0.118 in.)	Free Length (L0) 10.0 mm (Equiv. 0.394 in.)	Wire Diameter (d) 0.20 mm (Equiv. 0.008 in.)	Loaded Height (L1) 2.50 mm	Load at L1 0.74 N	Rate (P/f) 0.1 N/mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Solid Height (Sh): 2.00 mm Approx. ID: 2.6 mm End Type: Closed Max Rod Dia. (A): 2.60 mm
Part Number: CS-0300-0100-02-S4-C (PK-5) Compression Springs - 3x10x0.2 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 12 units (60 pcs) Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 12 units (60 pcs) Available Now. Backorder if more than 12.
Spring OD (D0) 3.00 mm (Equiv. 0.118 in.)	Free Length (L0) 10.0 mm (Equiv. 0.394 in.)	Wire Diameter (d) 0.20 mm (Equiv. 0.008 in.)	Loaded Height (L1) 2.50 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load at L1: 0.74 N Rate (P/f): 0.1 N/mm Solid Height (Sh): 2.00 mm Approx. ID: 2.6 mm End Type: Closed Max Rod Dia. (A): 2.60 mm
Part Number: CS-0300-0100-02-S4-C (PK-5) Compression Springs - 3x10x0.2 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 12 units (60 pcs) Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 12 units (60 pcs) Available Now. Backorder if more than 12.
CS-0300-0100-02-S4-C (PK-5) --- Compression Springs - 3x10x0.2 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring CS-0300-0100-02-S4-C (PK-5) --- Compression Springs - 3x10x0.2 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 12 Available Now
Spring OD (D0) 3.00 mm (Equiv. 0.118 in.)	Free Length (L0) 10.0 mm (Equiv. 0.394 in.)	Wire Diameter (d) 0.25 mm (Equiv. 0.01 in.)	Loaded Height (L1) 4.00 mm	Load at L1 1.80 N	Rate (P/f) 0.3 N/mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Solid Height (Sh): 2.10 mm Approx. ID: 2.5 mm End Type: Closed Max Rod Dia. (A): 2.50 mm
Part Number: CS-0300-0100-025-S4-C (PK-5) Compression Springs - 3x10x0.25 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 13 units (65 pcs) Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 13 units (65 pcs) Available Now. Backorder if more than 13.
Spring OD (D0) 3.00 mm (Equiv. 0.118 in.)	Free Length (L0) 10.0 mm (Equiv. 0.394 in.)	Wire Diameter (d) 0.25 mm (Equiv. 0.01 in.)	Loaded Height (L1) 4.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load at L1: 1.80 N Rate (P/f): 0.3 N/mm Solid Height (Sh): 2.10 mm Approx. ID: 2.5 mm End Type: Closed Max Rod Dia. (A): 2.50 mm
Part Number: CS-0300-0100-025-S4-C (PK-5) Compression Springs - 3x10x0.25 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 13 units (65 pcs) Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 13 units (65 pcs) Available Now. Backorder if more than 13.
CS-0300-0100-025-S4-C (PK-5) --- Compression Springs - 3x10x0.25 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring CS-0300-0100-025-S4-C (PK-5) --- Compression Springs - 3x10x0.25 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 13 Available Now
Spring OD (D0) 3.00 mm _{+/- 0.127} (Equiv. 0.118 in.)	Free Length (L0) 12.5 mm _{+/- 0.38} (Equiv. 0.492 in.)	Wire Diameter (d) 0.50 mm _{+/- 0.015} (Equiv. 0.02 in.)		Load at L1 17.08 N	Rate (P/f) 3.0 N/mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Solid Height (Sh): 6.76 mm Approx. ID: 2.0 mm End Type: Closed Ground Flush Max Rod Dia. (A): 1.85 mm
Part Number: CS-0300-0125-05-S2-G (Each) Compression Springs - 3x12.5x0.5 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 313 Available Now \| Further orders can be expected around Mon, Feb 02, 2026 Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 313 Available Now. Backorder if more than 313.
Spring OD (D0) 3.00 mm _{+/- 0.127} (Equiv. 0.118 in.)	Free Length (L0) 12.5 mm _{+/- 0.38} (Equiv. 0.492 in.)	Wire Diameter (d) 0.50 mm _{+/- 0.015} (Equiv. 0.02 in.)
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Load at L1: 17.08 N Rate (P/f): 3.0 N/mm Solid Height (Sh): 6.76 mm Approx. ID: 2.0 mm End Type: Closed Ground Flush Max Rod Dia. (A): 1.85 mm
Part Number: CS-0300-0125-05-S2-G (Each) Compression Springs - 3x12.5x0.5 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 313 Available Now \| Further orders can be expected around Mon, Feb 02, 2026 Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 313 Available Now. Backorder if more than 313.
CS-0300-0125-05-S2-G (Each) --- Compression Springs - 3x12.5x0.5 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring CS-0300-0125-05-S2-G (Each) --- Compression Springs - 3x12.5x0.5 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 313 Available Now
Spring OD (D0) 3.00 mm (Equiv. 0.118 in.)	Free Length (L0) 15.0 mm (Equiv. 0.591 in.)	Wire Diameter (d) 0.18 mm (Equiv. 0.007 in.)	Loaded Height (L1) 4.00 mm	Load at L1 0.53 N	Rate (P/f) 0.0 N/mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Solid Height (Sh): 2.50 mm Approx. ID: 2.6 mm End Type: Closed Max Rod Dia. (A): 2.64 mm
Part Number: CS-0300-0150-018-S4-C (PK-5) Compression Springs - 3x15x0.18 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 9 units (45 pcs) Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 9 units (45 pcs) Available Now. Backorder if more than 9.
Spring OD (D0) 3.00 mm (Equiv. 0.118 in.)	Free Length (L0) 15.0 mm (Equiv. 0.591 in.)	Wire Diameter (d) 0.18 mm (Equiv. 0.007 in.)	Loaded Height (L1) 4.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load at L1: 0.53 N Rate (P/f): 0.0 N/mm Solid Height (Sh): 2.50 mm Approx. ID: 2.6 mm End Type: Closed Max Rod Dia. (A): 2.64 mm
Part Number: CS-0300-0150-018-S4-C (PK-5) Compression Springs - 3x15x0.18 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 9 units (45 pcs) Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 9 units (45 pcs) Available Now. Backorder if more than 9.
CS-0300-0150-018-S4-C (PK-5) --- Compression Springs - 3x15x0.18 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Sale CS-0300-0150-018-S4-C (PK-5) --- Compression Springs - 3x15x0.18 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 9 Available Now Sale
Spring OD (D0) 3.05 mm _{+/- 0.127} (Equiv. 0.12 in.)	Free Length (L0) 6.4 mm _{+/- 0.38} (Equiv. 0.252 in.)	Wire Diameter (d) 0.41 mm _{+/- 0.015} (Equiv. 0.016 in.)	Loaded Height (L1) 3.68 mm	Load at L1 6.69 N	Rate (P/f) 2.7 N/mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Solid Height (Sh): 3.023 mm Approx. ID: 2.2 mm End Type: Closed Ground Flush Max Rod Dia. (A): 2.08 mm
Part Number: CS-0305-0064-04-S2-G (Each) Compression Springs - 3.05x6.4x0.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 1 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. Backorder if more than 1.
Spring OD (D0) 3.05 mm _{+/- 0.127} (Equiv. 0.12 in.)	Free Length (L0) 6.4 mm _{+/- 0.38} (Equiv. 0.252 in.)	Wire Diameter (d) 0.41 mm _{+/- 0.015} (Equiv. 0.016 in.)	Loaded Height (L1) 3.68 mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Load at L1: 6.69 N Rate (P/f): 2.7 N/mm Solid Height (Sh): 3.023 mm Approx. ID: 2.2 mm End Type: Closed Ground Flush Max Rod Dia. (A): 2.08 mm
Part Number: CS-0305-0064-04-S2-G (Each) Compression Springs - 3.05x6.4x0.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 1 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. Backorder if more than 1.
CS-0305-0064-04-S2-G (Each) --- Compression Springs - 3.05x6.4x0.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring CS-0305-0064-04-S2-G (Each) --- Compression Springs - 3.05x6.4x0.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 1 Available Now
Spring OD (D0) 3.05 mm _{+/- 0.127} (Equiv. 0.12 in.)	Free Length (L0) 9.7 mm _{+/- 0.38} (Equiv. 0.382 in.)	Wire Diameter (d) 0.46 mm _{+/- 0.015} (Equiv. 0.018 in.)	Loaded Height (L1) 6.02 mm	Load at L1 9.32 N	Rate (P/f) 0.1 N/mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Solid Height (Sh): 4.928 mm Approx. ID: 2.1 mm End Type: Closed Ground Flush Max Rod Dia. (A): 1.98 mm
Part Number: CS-0305-0097-04-S2-G (Each) Compression Springs - 3.05x9.7x0.46 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 16 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 16 Available Now. Backorder if more than 16.
Spring OD (D0) 3.05 mm _{+/- 0.127} (Equiv. 0.12 in.)	Free Length (L0) 9.7 mm _{+/- 0.38} (Equiv. 0.382 in.)	Wire Diameter (d) 0.46 mm _{+/- 0.015} (Equiv. 0.018 in.)	Loaded Height (L1) 6.02 mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Load at L1: 9.32 N Rate (P/f): 0.1 N/mm Solid Height (Sh): 4.928 mm Approx. ID: 2.1 mm End Type: Closed Ground Flush Max Rod Dia. (A): 1.98 mm
Part Number: CS-0305-0097-04-S2-G (Each) Compression Springs - 3.05x9.7x0.46 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 16 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 16 Available Now. Backorder if more than 16.
CS-0305-0097-04-S2-G (Each) --- Compression Springs - 3.05x9.7x0.46 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring CS-0305-0097-04-S2-G (Each) --- Compression Springs - 3.05x9.7x0.46 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 16 Available Now
Spring OD (D0) 3.05 mm _{+/- 0.127} (Equiv. 0.12 in.)	Free Length (L0) 12.7 mm _{+/- 0.38} (Equiv. 0.5 in.)	Wire Diameter (d) 0.59 mm _{+/- 0.015} (Equiv. 0.023 in.)			Rate (P/f) 4.7 N/mm
Approx. ID: 1.9 mm End Type: Closed Ground Flush
Part Number: CS-0305-0127-06-S6-G (Each) Compression Springs - 3.05x12.7x0.59 mm Stainless Steel 3 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $24.68 AUD Regular price Sale price $24.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 3 Available Now. Backorder if more than 3.
Spring OD (D0) 3.05 mm _{+/- 0.127} (Equiv. 0.12 in.)	Free Length (L0) 12.7 mm _{+/- 0.38} (Equiv. 0.5 in.)	Wire Diameter (d) 0.59 mm _{+/- 0.015} (Equiv. 0.023 in.)
Rate (P/f): 4.7 N/mm Approx. ID: 1.9 mm End Type: Closed Ground Flush
Part Number: CS-0305-0127-06-S6-G (Each) Compression Springs - 3.05x12.7x0.59 mm Stainless Steel 3 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $24.68 AUD Regular price Sale price $24.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 3 Available Now. Backorder if more than 3.
CS-0305-0127-06-S6-G (Each) --- Compression Springs - 3.05x12.7x0.59 mm Stainless Steel CS-0305-0127-06-S6-G (Each) --- Compression Springs - 3.05x12.7x0.59 mm Stainless Steel Regular price $24.68 AUD Regular price Sale price $24.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 3 Available Now
Spring OD (D0) 3.05 mm _{+/- 0.127} (Equiv. 0.12 in.)	Free Length (L0) 25.4 mm _{+/- 0.64} (Equiv. 1 in.)	Wire Diameter (d) 0.56 mm _{+/- 0.015} (Equiv. 0.022 in.)	Loaded Height (L1) 18.01 mm	Load at L1 16.32 N	Rate (P/f) 2.1 N/mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Solid Height (Sh): 15.240 mm Approx. ID: 1.9 mm End Type: Closed Ground Flush Max Rod Dia. (A): 1.78 mm Deleted Item. Available while stocks last.
Part Number: CS-0305-0254-06-S2-G (Each) Compression Springs - 3.05x25.4x0.56 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 86 Available Now \| Item Discontinued - Up to 86 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $6.19 AUD Regular price ~~$12.40 AUD~~ Sale price $6.19 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 86 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Spring OD (D0) 3.05 mm _{+/- 0.127} (Equiv. 0.12 in.)	Free Length (L0) 25.4 mm _{+/- 0.64} (Equiv. 1 in.)	Wire Diameter (d) 0.56 mm _{+/- 0.015} (Equiv. 0.022 in.)	Loaded Height (L1) 18.01 mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Load at L1: 16.32 N Rate (P/f): 2.1 N/mm Solid Height (Sh): 15.240 mm Approx. ID: 1.9 mm End Type: Closed Ground Flush Max Rod Dia. (A): 1.78 mm Deleted Item. Available while stocks last.
Part Number: CS-0305-0254-06-S2-G (Each) Compression Springs - 3.05x25.4x0.56 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 86 Available Now \| Item Discontinued - Up to 86 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $6.19 AUD Regular price ~~$12.40 AUD~~ Sale price $6.19 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 86 Available Now. These are priced to quit. Please contact us for a quote if you require more.
CS-0305-0254-06-S2-G (Each) --- Compression Springs - 3.05x25.4x0.56 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Sale CS-0305-0254-06-S2-G (Each) --- Compression Springs - 3.05x25.4x0.56 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Regular price $6.19 AUD Regular price ~~$12.40 AUD~~ Sale price $6.19 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 86 Available Now Sale
Spring OD (D0) 3.18 mm (Equiv. 0.125 in.)	Free Length (L0) 508 mm (Equiv. 20 in.)	Wire Diameter (d) 0.33 mm (Equiv. 0.013 in.)			Rate (P/f) 0.2 N/mm
Material: Stainless Steel Approx. ID: 2.5 mm End Type: Closed
Part Number: CS-0318-5080-03-S1 (Each) Compression Springs - 3.18x508x0.33 mm - Stainless Steel Spring 5 Available Now \| Further orders can be expected around Mon, Dec 29, 2025 Regular price $15.41 AUD Regular price ~~$29.34 AUD~~ Sale price $15.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 5 Available Now. Backorder if more than 5.
Spring OD (D0) 3.18 mm (Equiv. 0.125 in.)	Free Length (L0) 508 mm (Equiv. 20 in.)	Wire Diameter (d) 0.33 mm (Equiv. 0.013 in.)
Material: Stainless Steel Rate (P/f): 0.2 N/mm Approx. ID: 2.5 mm End Type: Closed
Part Number: CS-0318-5080-03-S1 (Each) Compression Springs - 3.18x508x0.33 mm - Stainless Steel Spring 5 Available Now \| Further orders can be expected around Mon, Dec 29, 2025 Regular price $15.41 AUD Regular price ~~$29.34 AUD~~ Sale price $15.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 5 Available Now. Backorder if more than 5.
CS-0318-5080-03-S1 (Each) --- Compression Springs - 3.18x508x0.33 mm - Stainless Steel Spring Sale CS-0318-5080-03-S1 (Each) --- Compression Springs - 3.18x508x0.33 mm - Stainless Steel Spring Regular price $15.41 AUD Regular price ~~$29.34 AUD~~ Sale price $15.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 5 Available Now Sale
Spring OD (D0) 3.83 mm _{+/- 0.127} (Equiv. 0.151 in.)	Free Length (L0) 5.5 mm _{+/- 0.38} (Equiv. 0.217 in.)	Wire Diameter (d) 0.63 mm _{+/- 0.015} (Equiv. 0.025 in.)	Loaded Height (L1) 4.00 mm	Load at L1 17.48 N	Rate (P/f) 11.7 N/mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Solid Height (Sh): 4.10 mm Approx. ID: 2.6 mm End Type: Closed Max Rod Dia. (A): 2.38 mm Deleted Item. Available while stocks last.
Part Number: CS-0383-0055-06-S2-C (PK-2) Compression Springs - 3.83x5.5x0.63 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 1 pack (2 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $12.00 AUD Regular price ~~$22.80 AUD~~ Sale price $12.00 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Spring OD (D0) 3.83 mm _{+/- 0.127} (Equiv. 0.151 in.)	Free Length (L0) 5.5 mm _{+/- 0.38} (Equiv. 0.217 in.)	Wire Diameter (d) 0.63 mm _{+/- 0.015} (Equiv. 0.025 in.)	Loaded Height (L1) 4.00 mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Load at L1: 17.48 N Rate (P/f): 11.7 N/mm Solid Height (Sh): 4.10 mm Approx. ID: 2.6 mm End Type: Closed Max Rod Dia. (A): 2.38 mm Deleted Item. Available while stocks last.
Part Number: CS-0383-0055-06-S2-C (PK-2) Compression Springs - 3.83x5.5x0.63 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 1 pack (2 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $12.00 AUD Regular price ~~$22.80 AUD~~ Sale price $12.00 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
CS-0383-0055-06-S2-C (PK-2) --- Compression Springs - 3.83x5.5x0.63 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Sale CS-0383-0055-06-S2-C (PK-2) --- Compression Springs - 3.83x5.5x0.63 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Regular price $12.00 AUD Regular price ~~$22.80 AUD~~ Sale price $12.00 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 1 Available Now Sale
Spring OD (D0) 3.97 mm _{+/- 0.127} (Equiv. 0.156 in.)	Free Length (L0) 25.4 mm _{+/- 0.64} (Equiv. 1 in.)	Wire Diameter (d) 0.36 mm _{+/- 0.015} (Equiv. 0.014 in.)			Rate (P/f) 0.2 N/mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Solid Height (Sh): 6.100 mm Approx. ID: 3.3 mm End Type: Closed
Part Number: CS-0397-0254-04-S4-C (Each) Compression Springs - 3.97x25.4x0.36 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 946 Available Now \| Further orders can be expected around Mon, Feb 02, 2026 Regular price $12.14 AUD Regular price Sale price $12.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 946 Available Now. Backorder if more than 946.
Spring OD (D0) 3.97 mm _{+/- 0.127} (Equiv. 0.156 in.)	Free Length (L0) 25.4 mm _{+/- 0.64} (Equiv. 1 in.)	Wire Diameter (d) 0.36 mm _{+/- 0.015} (Equiv. 0.014 in.)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Rate (P/f): 0.2 N/mm Solid Height (Sh): 6.100 mm Approx. ID: 3.3 mm End Type: Closed
Part Number: CS-0397-0254-04-S4-C (Each) Compression Springs - 3.97x25.4x0.36 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 946 Available Now \| Further orders can be expected around Mon, Feb 02, 2026 Regular price $12.14 AUD Regular price Sale price $12.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 946 Available Now. Backorder if more than 946.
CS-0397-0254-04-S4-C (Each) --- Compression Springs - 3.97x25.4x0.36 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring CS-0397-0254-04-S4-C (Each) --- Compression Springs - 3.97x25.4x0.36 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Regular price $12.14 AUD Regular price Sale price $12.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 946 Available Now
Spring OD (D0) 4.00 mm (Equiv. 0.157 in.)	Free Length (L0) 10.0 mm (Equiv. 0.394 in.)	Wire Diameter (d) 0.50 mm (Equiv. 0.02 in.)	Loaded Height (L1) 7.00 mm	Load at L1 8.80 N	Rate (P/f) 2.9 N/mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Solid Height (Sh): 3.80 mm Approx. ID: 3.0 mm End Type: Closed Max Rod Dia. (A): 3.00 mm
Part Number: CS-0400-0100-05-S4-C (PK-5) Compression Springs - 4x10x0.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 2 units (10 pcs) Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 2 units (10 pcs) Available Now. Backorder if more than 2.
Spring OD (D0) 4.00 mm (Equiv. 0.157 in.)	Free Length (L0) 10.0 mm (Equiv. 0.394 in.)	Wire Diameter (d) 0.50 mm (Equiv. 0.02 in.)	Loaded Height (L1) 7.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load at L1: 8.80 N Rate (P/f): 2.9 N/mm Solid Height (Sh): 3.80 mm Approx. ID: 3.0 mm End Type: Closed Max Rod Dia. (A): 3.00 mm
Part Number: CS-0400-0100-05-S4-C (PK-5) Compression Springs - 4x10x0.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 2 units (10 pcs) Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 2 units (10 pcs) Available Now. Backorder if more than 2.
CS-0400-0100-05-S4-C (PK-5) --- Compression Springs - 4x10x0.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring CS-0400-0100-05-S4-C (PK-5) --- Compression Springs - 4x10x0.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 2 Available Now
Spring OD (D0) 4.00 mm (Equiv. 0.157 in.)	Free Length (L0) 15.0 mm (Equiv. 0.591 in.)	Wire Diameter (d) 0.40 mm (Equiv. 0.016 in.)	Loaded Height (L1) 8.30 mm	Load at L1 3.20 N	Rate (P/f) 0.5 N/mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Solid Height (Sh): 5.20 mm Approx. ID: 3.2 mm End Type: Closed Max Rod Dia. (A): 3.20 mm
Part Number: CS-0400-0150-04-S4-C (PK-5) Compression Springs - 4x15x0.4 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 12 units (60 pcs) Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 12 units (60 pcs) Available Now. Backorder if more than 12.
Spring OD (D0) 4.00 mm (Equiv. 0.157 in.)	Free Length (L0) 15.0 mm (Equiv. 0.591 in.)	Wire Diameter (d) 0.40 mm (Equiv. 0.016 in.)	Loaded Height (L1) 8.30 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load at L1: 3.20 N Rate (P/f): 0.5 N/mm Solid Height (Sh): 5.20 mm Approx. ID: 3.2 mm End Type: Closed Max Rod Dia. (A): 3.20 mm
Part Number: CS-0400-0150-04-S4-C (PK-5) Compression Springs - 4x15x0.4 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 12 units (60 pcs) Available Now \| Further orders can be expected around Mon, Jan 12, 2026 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 12 units (60 pcs) Available Now. Backorder if more than 12.

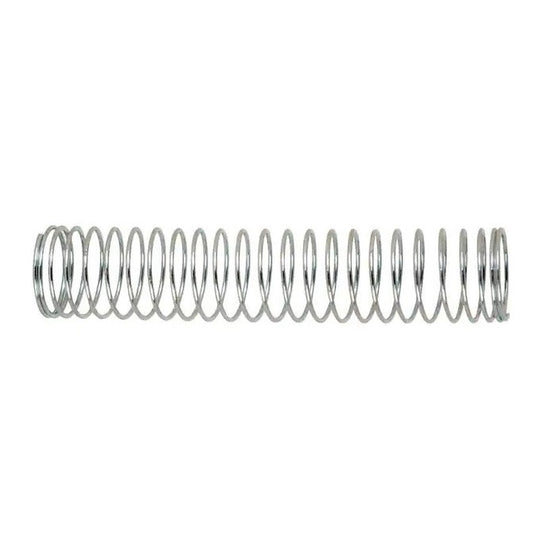

CS-0400-0150-04-S4-C (PK-5) --- Compression Springs - 4x15x0.4 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring CS-0400-0150-04-S4-C (PK-5) --- Compression Springs - 4x15x0.4 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 12 Available Now
Spring OD (D0) 4.32 mm _{+/- 0.127} (Equiv. 0.17 in.)	Free Length (L0) 8.7 mm _{+/- 0.38} (Equiv. 0.343 in.)	Wire Diameter (d) 0.32 mm _{+/- 0.015} (Equiv. 0.013 in.)	Loaded Height (L1) 3.50 mm	Load at L1 2.14 N	Rate (P/f) 0.3 N/mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Solid Height (Sh): 2.56 mm Approx. ID: 3.7 mm End Type: Closed Max Rod Dia. (A): 3.46 mm
Part Number: CS-0432-0087-03-S2-C (Each) Compression Springs - 4.32x8.7x0.32 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 43 Available Now \| Further orders can be expected around Mon, Feb 02, 2026 Regular price $7.41 AUD Regular price ~~$13.82 AUD~~ Sale price $7.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 43 Available Now. Backorder if more than 43.
Spring OD (D0) 4.32 mm _{+/- 0.127} (Equiv. 0.17 in.)	Free Length (L0) 8.7 mm _{+/- 0.38} (Equiv. 0.343 in.)	Wire Diameter (d) 0.32 mm _{+/- 0.015} (Equiv. 0.013 in.)	Loaded Height (L1) 3.50 mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Load at L1: 2.14 N Rate (P/f): 0.3 N/mm Solid Height (Sh): 2.56 mm Approx. ID: 3.7 mm End Type: Closed Max Rod Dia. (A): 3.46 mm
Part Number: CS-0432-0087-03-S2-C (Each) Compression Springs - 4.32x8.7x0.32 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 43 Available Now \| Further orders can be expected around Mon, Feb 02, 2026 Regular price $7.41 AUD Regular price ~~$13.82 AUD~~ Sale price $7.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 43 Available Now. Backorder if more than 43.
CS-0432-0087-03-S2-C (Each) --- Compression Springs - 4.32x8.7x0.32 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Sale CS-0432-0087-03-S2-C (Each) --- Compression Springs - 4.32x8.7x0.32 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Regular price $7.41 AUD Regular price ~~$13.82 AUD~~ Sale price $7.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 43 Available Now Sale
Spring OD (D0) 4.40 mm _{+/- 0.127} (Equiv. 0.173 in.)	Free Length (L0) 7.5 mm _{+/- 0.38} (Equiv. 0.295 in.)	Wire Diameter (d) 0.40 mm _{+/- 0.015} (Equiv. 0.016 in.)	Loaded Height (L1) 3.00 mm	Load at L1 4.37 N	Rate (P/f) 1.0 N/mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Solid Height (Sh): 2.60 mm Approx. ID: 3.6 mm End Type: Closed Max Rod Dia. (A): 3.38 mm
Part Number: CS-0440-0075-04-S2-C (Each) Compression Springs - 4.4x7.5x0.4 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 16 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $19.59 AUD Regular price Sale price $19.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 16 Available Now. Backorder if more than 16.
Spring OD (D0) 4.40 mm _{+/- 0.127} (Equiv. 0.173 in.)	Free Length (L0) 7.5 mm _{+/- 0.38} (Equiv. 0.295 in.)	Wire Diameter (d) 0.40 mm _{+/- 0.015} (Equiv. 0.016 in.)	Loaded Height (L1) 3.00 mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Load at L1: 4.37 N Rate (P/f): 1.0 N/mm Solid Height (Sh): 2.60 mm Approx. ID: 3.6 mm End Type: Closed Max Rod Dia. (A): 3.38 mm
Part Number: CS-0440-0075-04-S2-C (Each) Compression Springs - 4.4x7.5x0.4 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 16 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $19.59 AUD Regular price Sale price $19.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 16 Available Now. Backorder if more than 16.
CS-0440-0075-04-S2-C (Each) --- Compression Springs - 4.4x7.5x0.4 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring CS-0440-0075-04-S2-C (Each) --- Compression Springs - 4.4x7.5x0.4 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Regular price $19.59 AUD Regular price Sale price $19.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 16 Available Now
Spring OD (D0) 4.40 mm _{+/- 0.127} (Equiv. 0.173 in.)	Free Length (L0) 35.5 mm _{+/- 1.27} (Equiv. 1.398 in.)	Wire Diameter (d) 0.40 mm _{+/- 0.015} (Equiv. 0.016 in.)	Loaded Height (L1) 11.40 mm	Load at L1 4.37 N	Rate (P/f) 0.2 N/mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Solid Height (Sh): 8.60 mm Approx. ID: 3.6 mm End Type: Closed Max Rod Dia. (A): 3.38 mm Deleted Item. Available while stocks last.
Part Number: CS-0440-0355-04-S2-C (PK-2) Compression Springs - 4.4x35.5x0.4 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 1 pack (2 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $28.00 AUD Regular price ~~$53.20 AUD~~ Sale price $28.00 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Spring OD (D0) 4.40 mm _{+/- 0.127} (Equiv. 0.173 in.)	Free Length (L0) 35.5 mm _{+/- 1.27} (Equiv. 1.398 in.)	Wire Diameter (d) 0.40 mm _{+/- 0.015} (Equiv. 0.016 in.)	Loaded Height (L1) 11.40 mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Load at L1: 4.37 N Rate (P/f): 0.2 N/mm Solid Height (Sh): 8.60 mm Approx. ID: 3.6 mm End Type: Closed Max Rod Dia. (A): 3.38 mm Deleted Item. Available while stocks last.
Part Number: CS-0440-0355-04-S2-C (PK-2) Compression Springs - 4.4x35.5x0.4 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 1 pack (2 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $28.00 AUD Regular price ~~$53.20 AUD~~ Sale price $28.00 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
CS-0440-0355-04-S2-C (PK-2) --- Compression Springs - 4.4x35.5x0.4 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Sale CS-0440-0355-04-S2-C (PK-2) --- Compression Springs - 4.4x35.5x0.4 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Regular price $28.00 AUD Regular price ~~$53.20 AUD~~ Sale price $28.00 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 1 Available Now Sale

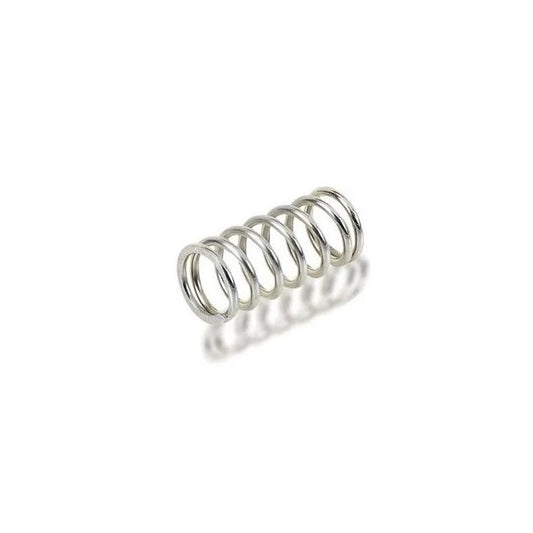

Spring OD (D0) 4.57 mm _{+/- 0.127} (Equiv. 0.18 in.)	Free Length (L0) 12.7 mm _{+/- 0.38} (Equiv. 0.5 in.)	Wire Diameter (d) 0.61 mm _{+/- 0.015} (Equiv. 0.024 in.)	Loaded Height (L1) 7.57 mm	Load at L1 13.87 N	Rate (P/f) 2.8 N/mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Solid Height (Sh): 5.893 mm Approx. ID: 3.4 mm End Type: Closed Ground Flush Max Rod Dia. (A): 3.12 mm
Part Number: CS-0457-0127-06-S2-G (Each) Compression Springs - 4.57x12.7x0.61 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 4 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 4 Available Now. Backorder if more than 4.
Spring OD (D0) 4.57 mm _{+/- 0.127} (Equiv. 0.18 in.)	Free Length (L0) 12.7 mm _{+/- 0.38} (Equiv. 0.5 in.)	Wire Diameter (d) 0.61 mm _{+/- 0.015} (Equiv. 0.024 in.)	Loaded Height (L1) 7.57 mm
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Load at L1: 13.87 N Rate (P/f): 2.8 N/mm Solid Height (Sh): 5.893 mm Approx. ID: 3.4 mm End Type: Closed Ground Flush Max Rod Dia. (A): 3.12 mm
Part Number: CS-0457-0127-06-S2-G (Each) Compression Springs - 4.57x12.7x0.61 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 4 Available Now \| Further orders can be expected around Wed, Jan 14, 2026 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 4 Available Now. Backorder if more than 4.
CS-0457-0127-06-S2-G (Each) --- Compression Springs - 4.57x12.7x0.61 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring CS-0457-0127-06-S2-G (Each) --- Compression Springs - 4.57x12.7x0.61 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 4 Available Now

Country/region

Small Parts & Bearings

Collection: Springs - Compression - Stainless Steel

Category Details

Filter

Filter

Subscribe to our emails
