Slides - Dovetail

1 Item Available

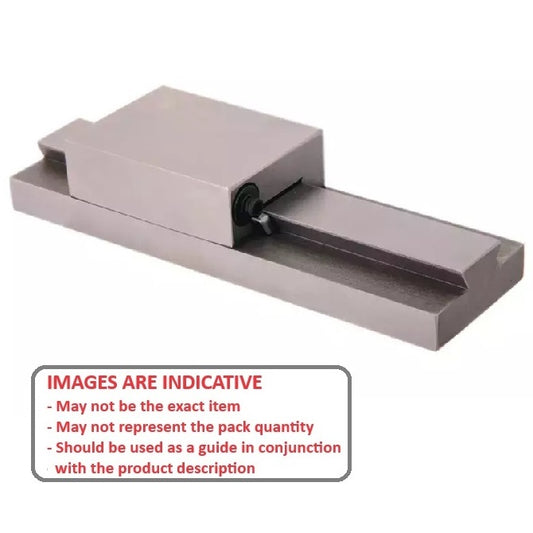

A selection of Dovetail Slides. Used for work feeders for production milling, positioning fixutres, work holding devices, checking fixtures, shuttle devices, assembly equipment, etc.

  • Dovetail slides are a type of linear bearing with a dovetail-shaped (or V-shaped) channel that guides and supports a moving component (saddle) against a fixed base.
  • Provide high stiffness and load-bearing capacity, making them ideal for heavy-duty industrial applications, machine and fixture construction, and metrology devices.
  • Offers good resistance to shock and contamination but have higher stiction, requiring more force to move and limiting precise, high-acceleration motion compared to other bearing types.
  • Tapered gibs are adjusted with a single screw that moves the gib on the taper. This type remains parallel and wears less as it occurs over the entire surface.
  • Made of continuous cast GS 40,000 PSI pearlitic grey iron. Able to be milled, drilled, tapped, etc.
Small Parts & Bearings

Additional resources:

A more comprehensive listing may be found on the MBA Minibearings main store at Slides - Dovetail.
Width (A) Height (B) Length (C) Carriage Length (D) Travel Length Indicative
Width (A)
38.10
mm
Height (B)
25.40
Length (C)
304.80
Carriage Length (D)
50.80
Travel Length
254.00
Dovetail Slides - 38.1 mm - 25.4 - 304.8
Part Number: DV100RS (Each) Dovetail Slides - 38.1 mm - 25.4 - 304.8
Out of Stock | Backorder Now | Orders can be expected around Sat, Jul 25, 2026
$1,758.41 AUD
$1,758.41 AUD
Each
Width (A) Height (B) Length (C) Carriage Length (D) Indicative
Width (A)
38.10
mm
Height (B)
25.40
Length (C)
304.80
Carriage Length (D)
50.80
Dovetail Slides - 38.1 mm - 25.4 - 304.8
Travel Length: 254.00
Part Number: DV100RS (Each) Dovetail Slides - 38.1 mm - 25.4 - 304.8
Out of Stock | Backorder Now | Orders can be expected around Sat, Jul 25, 2026
$1,758.41 AUD
$1,758.41 AUD
Each
View the product page first if you are unsure.
