Screws - Socket Cap - Titanium - Ti-Gr5 Ti-6Al4v DIN912

Screws -> Socket Cap -> Titanium -> Ti-Gr5 Ti-6Al4v DIN912

There are 2 products in the sub-categories of Screws - Socket Cap - Titanium - Ti-Gr5 Ti-6Al4v DIN912. Browse the Screws - Socket Cap - Titanium - Ti-Gr5 Ti-6Al4v DIN912 products table.

Category Details

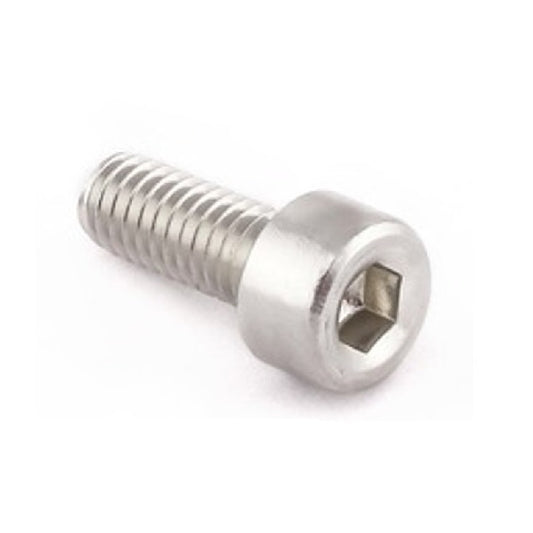

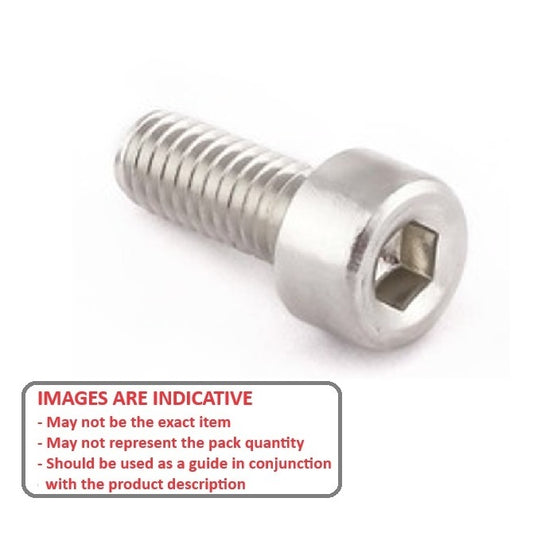

A selection of Ti-Gr5 Ti-6Al4v DIN912 Titanium Socket Cap Screws. Metric Sizes to DIN912. Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.

  • An expanded range may be available on special order. Please enquire.
  • Used in critical aircraft structural components. UNS R56400.
  • Composition Percentage: Al 5.5-6.75, V 3.5-4.5, N 0.05, C 0.08, H 0.015, Fe 0.40, O 0.2, Ti Balance
  • Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.
