Collection: Screws - Socket Cap - Stainless - 303-304

Screws (With Images)

Socket Cap

Stainless

303-304
316

188 Products in this selection

UNC - UNF - METRIC - Stainless Steel.
Imperial Sizes to ANSI B18.3.
Metric Sizes to DIN912.

Additional resources:
PDF Screws Catalogue
Washers
Nuts

A more comprehensive listing may be found on the MBA Minibearings main store at Screws - Socket Cap - Stainless - 303-304.

Thread Size (C)	Thread Length (L)	Material	Head Length (B Max.)	Head Diameter (A Max.)	Drive Depth (E)	Indicative Image
0-80 UNF (1.52mm)	3.2 mm	304 Stainless	1.5 mm	2.5 mm	0.64 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.44 - 1.52 mm Hex Key (D): 1.27 (0.05in.) mm Pitch: 0.318 mm Threads Per Inch: 80 TPI Min thread Length: 3.2 mm
Part Number: SC015F-003-C-SK-S4 (50 Pcs) Socket Cap Screws - 0-80 UNF -1.52mm- 3.2 mm - 304 Stainless 2 units (100 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $27.59 AUD Regular price Sale price $27.59 AUD Unit price per Per 50
Thread Size (C)	Thread Length (L)	Material	Head Length (B Max.)	Indicative Image
0-80 UNF (1.52mm)	3.2 mm	304 Stainless	1.5 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 2.5 mm Drive Depth (E): 0.64 mm Shank Diameter (C): 1.44 - 1.52 mm Hex Key (D): 1.27 (0.05in.) mm Pitch: 0.318 mm Threads Per Inch: 80 TPI Min thread Length: 3.2 mm
Part Number: SC015F-003-C-SK-S4 (50 Pcs) Socket Cap Screws - 0-80 UNF -1.52mm- 3.2 mm - 304 Stainless 2 units (100 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $27.59 AUD Regular price Sale price $27.59 AUD Unit price per Per 50 View the product page first if you are unsure.
SC015F-003-C-SK-S4 (50 Pcs) --- Socket Cap Screws - 0-80 UNF -1.52mm- 3.2 mm - 304 Stainless SC015F-003-C-SK-S4 (50 Pcs) --- Socket Cap Screws - 0-80 UNF -1.52mm- 3.2 mm - 304 Stainless Regular price $27.59 AUD Regular price Sale price $27.59 AUD Unit price per 2 Available Now

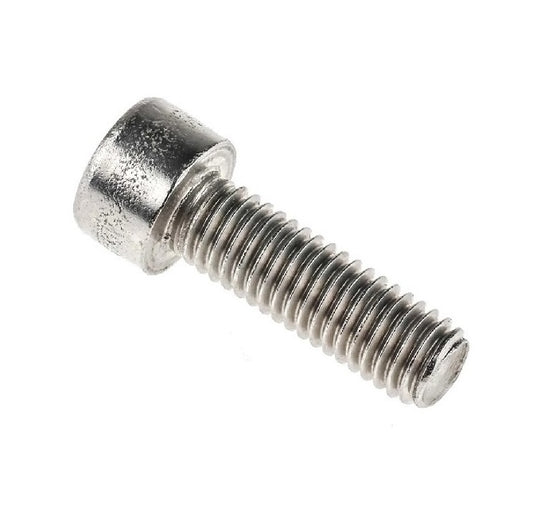

0-80 UNF (1.52mm)	4.8 mm	304 Stainless	1.5 mm	2.5 mm	0.64 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.44 - 1.52 mm Hex Key (D): 1.27 (0.05in.) mm Pitch: 0.318 mm Threads Per Inch: 80 TPI Min thread Length: 4.8 mm
Part Number: SC015F-005-C-SK-S4 (50 Pcs) Socket Cap Screws - 0-80 UNF -1.52mm- 4.8 mm - 304 Stainless 5 units (250 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $27.59 AUD Regular price Sale price $27.59 AUD Unit price per Per 50
0-80 UNF (1.52mm)	4.8 mm	304 Stainless	1.5 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 2.5 mm Drive Depth (E): 0.64 mm Shank Diameter (C): 1.44 - 1.52 mm Hex Key (D): 1.27 (0.05in.) mm Pitch: 0.318 mm Threads Per Inch: 80 TPI Min thread Length: 4.8 mm
Part Number: SC015F-005-C-SK-S4 (50 Pcs) Socket Cap Screws - 0-80 UNF -1.52mm- 4.8 mm - 304 Stainless 5 units (250 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $27.59 AUD Regular price Sale price $27.59 AUD Unit price per Per 50 View the product page first if you are unsure.
SC015F-005-C-SK-S4 (50 Pcs) --- Socket Cap Screws - 0-80 UNF -1.52mm- 4.8 mm - 304 Stainless SC015F-005-C-SK-S4 (50 Pcs) --- Socket Cap Screws - 0-80 UNF -1.52mm- 4.8 mm - 304 Stainless Regular price $27.59 AUD Regular price Sale price $27.59 AUD Unit price per 5 Available Now
0-80 UNF (1.52mm)	6.4 mm	304 Stainless	1.5 mm	2.5 mm	0.64 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.44 - 1.52 mm Hex Key (D): 1.27 (0.05in.) mm Pitch: 0.318 mm Threads Per Inch: 80 TPI Min thread Length: 6.4 mm
Part Number: SC015F-006-C-SK-S4 (50 Pcs) Socket Cap Screws - 0-80 UNF -1.52mm- 6.4 mm - 304 Stainless 7 units (350 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $27.59 AUD Regular price Sale price $27.59 AUD Unit price per Per 50
0-80 UNF (1.52mm)	6.4 mm	304 Stainless	1.5 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 2.5 mm Drive Depth (E): 0.64 mm Shank Diameter (C): 1.44 - 1.52 mm Hex Key (D): 1.27 (0.05in.) mm Pitch: 0.318 mm Threads Per Inch: 80 TPI Min thread Length: 6.4 mm
Part Number: SC015F-006-C-SK-S4 (50 Pcs) Socket Cap Screws - 0-80 UNF -1.52mm- 6.4 mm - 304 Stainless 7 units (350 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $27.59 AUD Regular price Sale price $27.59 AUD Unit price per Per 50 View the product page first if you are unsure.
SC015F-006-C-SK-S4 (50 Pcs) --- Socket Cap Screws - 0-80 UNF -1.52mm- 6.4 mm - 304 Stainless SC015F-006-C-SK-S4 (50 Pcs) --- Socket Cap Screws - 0-80 UNF -1.52mm- 6.4 mm - 304 Stainless Regular price $27.59 AUD Regular price Sale price $27.59 AUD Unit price per 7 Available Now
0-80 UNF (1.52mm)	7.9 mm	304 Stainless	1.5 mm	2.5 mm	0.64 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.44 - 1.52 mm Hex Key (D): 1.27 (0.05in.) mm Pitch: 0.318 mm Threads Per Inch: 80 TPI Min thread Length: 7.9 mm
Part Number: SC015F-007-C-SK-S4 (20 Pcs) Socket Cap Screws - 0-80 UNF -1.52mm- 7.9 mm - 304 Stainless 2979 units (59580 pcs) Available Now \| Further orders can be expected around Tue, May 13, 2025 Regular price $11.59 AUD Regular price Sale price $11.59 AUD Unit price per Per 20
0-80 UNF (1.52mm)	7.9 mm	304 Stainless	1.5 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 2.5 mm Drive Depth (E): 0.64 mm Shank Diameter (C): 1.44 - 1.52 mm Hex Key (D): 1.27 (0.05in.) mm Pitch: 0.318 mm Threads Per Inch: 80 TPI Min thread Length: 7.9 mm
Part Number: SC015F-007-C-SK-S4 (20 Pcs) Socket Cap Screws - 0-80 UNF -1.52mm- 7.9 mm - 304 Stainless 2979 units (59580 pcs) Available Now \| Further orders can be expected around Tue, May 13, 2025 Regular price $11.59 AUD Regular price Sale price $11.59 AUD Unit price per Per 20 View the product page first if you are unsure.
SC015F-007-C-SK-S4 (20 Pcs) --- Socket Cap Screws - 0-80 UNF -1.52mm- 7.9 mm - 304 Stainless SC015F-007-C-SK-S4 (20 Pcs) --- Socket Cap Screws - 0-80 UNF -1.52mm- 7.9 mm - 304 Stainless Regular price $11.59 AUD Regular price Sale price $11.59 AUD Unit price per 2979 Available Now
0-80 UNF (1.52mm)	9.5 mm	303 Stainless	1.5 mm	2.5 mm	0.64 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.44 - 1.52 mm Hex Key (D): 1.27 (0.05in.) mm Pitch: 0.318 mm Threads Per Inch: 80 TPI Min thread Length: 9.5 mm
Part Number: SC015F-010-C-SK-S3 (20 Pcs) Socket Cap Screws - 0-80 UNF -1.52mm- 9.5 mm - 303 Stainless 14 units (280 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Per 20
0-80 UNF (1.52mm)	9.5 mm	303 Stainless	1.5 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 2.5 mm Drive Depth (E): 0.64 mm Shank Diameter (C): 1.44 - 1.52 mm Hex Key (D): 1.27 (0.05in.) mm Pitch: 0.318 mm Threads Per Inch: 80 TPI Min thread Length: 9.5 mm
Part Number: SC015F-010-C-SK-S3 (20 Pcs) Socket Cap Screws - 0-80 UNF -1.52mm- 9.5 mm - 303 Stainless 14 units (280 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Per 20 View the product page first if you are unsure.
SC015F-010-C-SK-S3 (20 Pcs) --- Socket Cap Screws - 0-80 UNF -1.52mm- 9.5 mm - 303 Stainless SC015F-010-C-SK-S3 (20 Pcs) --- Socket Cap Screws - 0-80 UNF -1.52mm- 9.5 mm - 303 Stainless Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per 14 Available Now
0-80 UNF (1.52mm)	15.9 mm	304 Stainless	1.5 mm	2.5 mm	0.64 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.44 - 1.52 mm Hex Key (D): 1.27 (0.05in.) mm Pitch: 0.318 mm Threads Per Inch: 80 TPI Min thread Length: 12.7 mm
Part Number: SC015F-016-C-SK-S4 (10 Pcs) Socket Cap Screws - 0-80 UNF -1.52mm- 15.9 mm - 304 Stainless 4 units (40 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per Per 10
0-80 UNF (1.52mm)	15.9 mm	304 Stainless	1.5 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 2.5 mm Drive Depth (E): 0.64 mm Shank Diameter (C): 1.44 - 1.52 mm Hex Key (D): 1.27 (0.05in.) mm Pitch: 0.318 mm Threads Per Inch: 80 TPI Min thread Length: 12.7 mm
Part Number: SC015F-016-C-SK-S4 (10 Pcs) Socket Cap Screws - 0-80 UNF -1.52mm- 15.9 mm - 304 Stainless 4 units (40 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per Per 10 View the product page first if you are unsure.
SC015F-016-C-SK-S4 (10 Pcs) --- Socket Cap Screws - 0-80 UNF -1.52mm- 15.9 mm - 304 Stainless SC015F-016-C-SK-S4 (10 Pcs) --- Socket Cap Screws - 0-80 UNF -1.52mm- 15.9 mm - 304 Stainless Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per 4 Available Now
M1.6 (1.6x0.35mm)	3 mm	304 Stainless	1.7 mm	3.0 mm	0.70 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.46 - 1.60 mm Hex Key (D): 1.50 mm Pitch: 0.350 mm Threads Per Inch: 72.57 TPI Min thread Length: 3.0 mm
Part Number: SC016M-003-C-SK-S4 (20 Pcs) Socket Cap Screws - M1.6 -1.6x0.35mm- 3 mm - 304 Stainless 16 units (320 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $10.14 AUD Regular price Sale price $10.14 AUD Unit price per Per 20
M1.6 (1.6x0.35mm)	3 mm	304 Stainless	1.7 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 3.0 mm Drive Depth (E): 0.70 mm Shank Diameter (C): 1.46 - 1.60 mm Hex Key (D): 1.50 mm Pitch: 0.350 mm Threads Per Inch: 72.57 TPI Min thread Length: 3.0 mm
Part Number: SC016M-003-C-SK-S4 (20 Pcs) Socket Cap Screws - M1.6 -1.6x0.35mm- 3 mm - 304 Stainless 16 units (320 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $10.14 AUD Regular price Sale price $10.14 AUD Unit price per Per 20 View the product page first if you are unsure.
SC016M-003-C-SK-S4 (20 Pcs) --- Socket Cap Screws - M1.6 -1.6x0.35mm- 3 mm - 304 Stainless SC016M-003-C-SK-S4 (20 Pcs) --- Socket Cap Screws - M1.6 -1.6x0.35mm- 3 mm - 304 Stainless Regular price $10.14 AUD Regular price Sale price $10.14 AUD Unit price per 16 Available Now
M1.6 (1.6x0.35mm)	4 mm	304 Stainless	1.7 mm	3.0 mm	0.70 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.46 - 1.60 mm Hex Key (D): 1.50 mm Pitch: 0.350 mm Threads Per Inch: 72.57 TPI Min thread Length: 4.0 mm
Part Number: SC016M-004-C-SK-S4 (20 Pcs) Socket Cap Screws - M1.6 -1.6x0.35mm- 4 mm - 304 Stainless 2 units (40 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 20
M1.6 (1.6x0.35mm)	4 mm	304 Stainless	1.7 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 3.0 mm Drive Depth (E): 0.70 mm Shank Diameter (C): 1.46 - 1.60 mm Hex Key (D): 1.50 mm Pitch: 0.350 mm Threads Per Inch: 72.57 TPI Min thread Length: 4.0 mm
Part Number: SC016M-004-C-SK-S4 (20 Pcs) Socket Cap Screws - M1.6 -1.6x0.35mm- 4 mm - 304 Stainless 2 units (40 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 20 View the product page first if you are unsure.
SC016M-004-C-SK-S4 (20 Pcs) --- Socket Cap Screws - M1.6 -1.6x0.35mm- 4 mm - 304 Stainless SC016M-004-C-SK-S4 (20 Pcs) --- Socket Cap Screws - M1.6 -1.6x0.35mm- 4 mm - 304 Stainless Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per 2 Available Now
M1.6 (1.6x0.35mm)	5 mm	304 Stainless	1.7 mm	3.0 mm	0.70 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.46 - 1.60 mm Hex Key (D): 1.50 mm Pitch: 0.350 mm Threads Per Inch: 72.57 TPI Min thread Length: 5.0 mm
Part Number: SC016M-005-C-SK-S4 (20 Pcs) Socket Cap Screws - M1.6 -1.6x0.35mm- 5 mm - 304 Stainless 34 units (680 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Per 20
M1.6 (1.6x0.35mm)	5 mm	304 Stainless	1.7 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 3.0 mm Drive Depth (E): 0.70 mm Shank Diameter (C): 1.46 - 1.60 mm Hex Key (D): 1.50 mm Pitch: 0.350 mm Threads Per Inch: 72.57 TPI Min thread Length: 5.0 mm
Part Number: SC016M-005-C-SK-S4 (20 Pcs) Socket Cap Screws - M1.6 -1.6x0.35mm- 5 mm - 304 Stainless 34 units (680 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Per 20 View the product page first if you are unsure.
SC016M-005-C-SK-S4 (20 Pcs) --- Socket Cap Screws - M1.6 -1.6x0.35mm- 5 mm - 304 Stainless SC016M-005-C-SK-S4 (20 Pcs) --- Socket Cap Screws - M1.6 -1.6x0.35mm- 5 mm - 304 Stainless Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per 34 Available Now

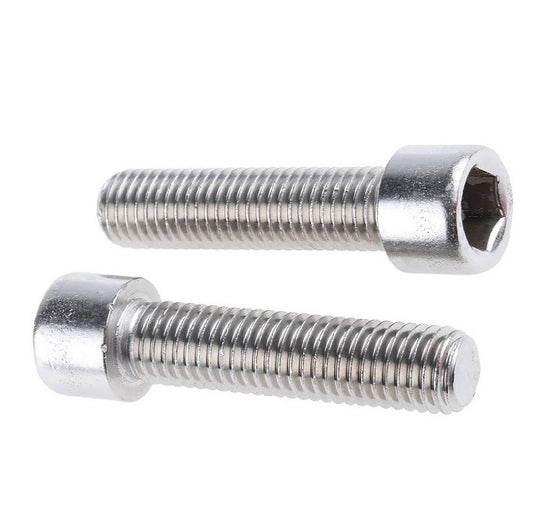

M1.6 (1.6x0.35mm)	10 mm	304 Stainless	1.7 mm	3.0 mm	0.70 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.46 - 1.60 mm Hex Key (D): 1.50 mm Pitch: 0.350 mm Threads Per Inch: 72.57 TPI Min thread Length: 10.0 mm
Part Number: SC016M-010-C-SK-S4 (5 Pcs) Socket Cap Screws - M1.6 -1.6x0.35mm- 10 mm - 304 Stainless 18 units (90 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Per 5
M1.6 (1.6x0.35mm)	10 mm	304 Stainless	1.7 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 3.0 mm Drive Depth (E): 0.70 mm Shank Diameter (C): 1.46 - 1.60 mm Hex Key (D): 1.50 mm Pitch: 0.350 mm Threads Per Inch: 72.57 TPI Min thread Length: 10.0 mm
Part Number: SC016M-010-C-SK-S4 (5 Pcs) Socket Cap Screws - M1.6 -1.6x0.35mm- 10 mm - 304 Stainless 18 units (90 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Per 5 View the product page first if you are unsure.
SC016M-010-C-SK-S4 (5 Pcs) --- Socket Cap Screws - M1.6 -1.6x0.35mm- 10 mm - 304 Stainless SC016M-010-C-SK-S4 (5 Pcs) --- Socket Cap Screws - M1.6 -1.6x0.35mm- 10 mm - 304 Stainless Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per 18 Available Now
M1.6 (1.6x0.35mm)	12 mm	304 Stainless	1.7 mm	3.0 mm	0.70 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.46 - 1.60 mm Hex Key (D): 1.50 mm Pitch: 0.350 mm Threads Per Inch: 72.57 TPI Min thread Length: 12.0 mm
Part Number: SC016M-012-C-SK-S4 (5 Pcs) Socket Cap Screws - M1.6 -1.6x0.35mm- 12 mm - 304 Stainless 16 units (80 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Per 5
M1.6 (1.6x0.35mm)	12 mm	304 Stainless	1.7 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 3.0 mm Drive Depth (E): 0.70 mm Shank Diameter (C): 1.46 - 1.60 mm Hex Key (D): 1.50 mm Pitch: 0.350 mm Threads Per Inch: 72.57 TPI Min thread Length: 12.0 mm
Part Number: SC016M-012-C-SK-S4 (5 Pcs) Socket Cap Screws - M1.6 -1.6x0.35mm- 12 mm - 304 Stainless 16 units (80 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Per 5 View the product page first if you are unsure.
SC016M-012-C-SK-S4 (5 Pcs) --- Socket Cap Screws - M1.6 -1.6x0.35mm- 12 mm - 304 Stainless SC016M-012-C-SK-S4 (5 Pcs) --- Socket Cap Screws - M1.6 -1.6x0.35mm- 12 mm - 304 Stainless Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per 16 Available Now
M1.6 (1.6x0.35mm)	16 mm	304 Stainless	1.7 mm	3.0 mm	0.70 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.46 - 1.60 mm Hex Key (D): 1.50 mm Pitch: 0.350 mm Threads Per Inch: 72.57 TPI Min thread Length: 15.0 mm
Part Number: SC016M-016-C-SK-S4 (5 Pcs) Socket Cap Screws - M1.6 -1.6x0.35mm- 16 mm - 304 Stainless 20 units (100 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $9.05 AUD Regular price Sale price $9.05 AUD Unit price per Per 5
M1.6 (1.6x0.35mm)	16 mm	304 Stainless	1.7 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 3.0 mm Drive Depth (E): 0.70 mm Shank Diameter (C): 1.46 - 1.60 mm Hex Key (D): 1.50 mm Pitch: 0.350 mm Threads Per Inch: 72.57 TPI Min thread Length: 15.0 mm
Part Number: SC016M-016-C-SK-S4 (5 Pcs) Socket Cap Screws - M1.6 -1.6x0.35mm- 16 mm - 304 Stainless 20 units (100 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $9.05 AUD Regular price Sale price $9.05 AUD Unit price per Per 5 View the product page first if you are unsure.
SC016M-016-C-SK-S4 (5 Pcs) --- Socket Cap Screws - M1.6 -1.6x0.35mm- 16 mm - 304 Stainless SC016M-016-C-SK-S4 (5 Pcs) --- Socket Cap Screws - M1.6 -1.6x0.35mm- 16 mm - 304 Stainless Regular price $9.05 AUD Regular price Sale price $9.05 AUD Unit price per 20 Available Now
1-72 UNF (1.85mm)	3.2 mm	304 Stainless	1.8 mm	3.0 mm	0.79 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.77 - 1.85 mm Hex Key (D): 1.59 (1/16) mm Pitch: 0.353 mm Threads Per Inch: 72 TPI Min thread Length: 3.2 mm
Part Number: SC019F-003-C-SK-S4 (10 Pcs) Socket Cap Screws - 1-72 UNF -1.85mm- 3.2 mm - 304 Stainless 4 units (40 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 10
1-72 UNF (1.85mm)	3.2 mm	304 Stainless	1.8 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 3.0 mm Drive Depth (E): 0.79 mm Shank Diameter (C): 1.77 - 1.85 mm Hex Key (D): 1.59 (1/16) mm Pitch: 0.353 mm Threads Per Inch: 72 TPI Min thread Length: 3.2 mm
Part Number: SC019F-003-C-SK-S4 (10 Pcs) Socket Cap Screws - 1-72 UNF -1.85mm- 3.2 mm - 304 Stainless 4 units (40 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 10 View the product page first if you are unsure.
SC019F-003-C-SK-S4 (10 Pcs) --- Socket Cap Screws - 1-72 UNF -1.85mm- 3.2 mm - 304 Stainless SC019F-003-C-SK-S4 (10 Pcs) --- Socket Cap Screws - 1-72 UNF -1.85mm- 3.2 mm - 304 Stainless Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per 4 Available Now
1-72 UNF (1.85mm)	7.9 mm	304 Stainless	1.8 mm	3.0 mm	0.79 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.77 - 1.85 mm Hex Key (D): 1.59 (1/16) mm Pitch: 0.353 mm Threads Per Inch: 72 TPI Min thread Length: 7.9 mm
Part Number: SC019F-007-C-SK-S4 (10 Pcs) Socket Cap Screws - 1-72 UNF -1.85mm- 7.9 mm - 304 Stainless 18 units (180 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 10
1-72 UNF (1.85mm)	7.9 mm	304 Stainless	1.8 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 3.0 mm Drive Depth (E): 0.79 mm Shank Diameter (C): 1.77 - 1.85 mm Hex Key (D): 1.59 (1/16) mm Pitch: 0.353 mm Threads Per Inch: 72 TPI Min thread Length: 7.9 mm
Part Number: SC019F-007-C-SK-S4 (10 Pcs) Socket Cap Screws - 1-72 UNF -1.85mm- 7.9 mm - 304 Stainless 18 units (180 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 10 View the product page first if you are unsure.
SC019F-007-C-SK-S4 (10 Pcs) --- Socket Cap Screws - 1-72 UNF -1.85mm- 7.9 mm - 304 Stainless SC019F-007-C-SK-S4 (10 Pcs) --- Socket Cap Screws - 1-72 UNF -1.85mm- 7.9 mm - 304 Stainless Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per 18 Available Now
M2 (2x0.4mm)	3 mm	304 Stainless	2.0 mm	3.8 mm	1.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 3.0 mm
Part Number: SC020M-003-C-SK-S4 (100 Pcs) Socket Cap Screws - M2 -2x0.4mm- 3 mm - 304 Stainless 2 units (200 pcs) Available Now \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Per 100
M2 (2x0.4mm)	3 mm	304 Stainless	2.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 3.8 mm Drive Depth (E): 1.00 mm Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 3.0 mm
Part Number: SC020M-003-C-SK-S4 (100 Pcs) Socket Cap Screws - M2 -2x0.4mm- 3 mm - 304 Stainless 2 units (200 pcs) Available Now \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Per 100 View the product page first if you are unsure.
SC020M-003-C-SK-S4 (100 Pcs) --- Socket Cap Screws - M2 -2x0.4mm- 3 mm - 304 Stainless SC020M-003-C-SK-S4 (100 Pcs) --- Socket Cap Screws - M2 -2x0.4mm- 3 mm - 304 Stainless Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per 2 Available Now
M2 (2x0.4mm)	4 mm	304 Stainless	2.0 mm	3.8 mm	1.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 4.0 mm
Part Number: SC020M-004-C-SK-S4 (100 Pcs) Socket Cap Screws - M2 -2x0.4mm- 4 mm - 304 Stainless 5 units (500 pcs) Available Now \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Per 100
M2 (2x0.4mm)	4 mm	304 Stainless	2.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 3.8 mm Drive Depth (E): 1.00 mm Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 4.0 mm
Part Number: SC020M-004-C-SK-S4 (100 Pcs) Socket Cap Screws - M2 -2x0.4mm- 4 mm - 304 Stainless 5 units (500 pcs) Available Now \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Per 100 View the product page first if you are unsure.
SC020M-004-C-SK-S4 (100 Pcs) --- Socket Cap Screws - M2 -2x0.4mm- 4 mm - 304 Stainless SC020M-004-C-SK-S4 (100 Pcs) --- Socket Cap Screws - M2 -2x0.4mm- 4 mm - 304 Stainless Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per 5 Available Now
M2 (2x0.4mm)	5 mm	304 Stainless	2 mm	3.800 mm	1.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.40 mm Threads Per Inch: 63.500 TPI Min thread Length: Fully Threaded mm
Part Number: SC020M-005-C-SK-4 Socket Cap Screws - M2 -2x0.4mm- 5 mm - 304 Stainless 100 Available Now \| Further orders can be expected around Sun, May 11, 2025 Regular price $1.41 AUD Regular price Sale price $1.41 AUD Unit price per Each
M2 (2x0.4mm)	5 mm	304 Stainless	2 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 3.800 mm Drive Depth (E): 1.00 mm Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.40 mm Threads Per Inch: 63.500 TPI Min thread Length: Fully Threaded mm
Part Number: SC020M-005-C-SK-4 Socket Cap Screws - M2 -2x0.4mm- 5 mm - 304 Stainless 100 Available Now \| Further orders can be expected around Sun, May 11, 2025 Regular price $1.41 AUD Regular price Sale price $1.41 AUD Unit price per Each View the product page first if you are unsure.
SC020M-005-C-SK-4 --- Socket Cap Screws - M2 -2x0.4mm- 5 mm - 304 Stainless SC020M-005-C-SK-4 --- Socket Cap Screws - M2 -2x0.4mm- 5 mm - 304 Stainless Regular price $1.41 AUD Regular price Sale price $1.41 AUD Unit price per 100 Available Now
M2 (2x0.4mm)	5 mm	304 Stainless	2.0 mm	3.8 mm	1.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 5.0 mm
Part Number: SC020M-005-C-SK-S4 (100 Pcs) Socket Cap Screws - M2 -2x0.4mm- 5 mm - 304 Stainless 7 units (700 pcs) Available Now \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Per 100
M2 (2x0.4mm)	5 mm	304 Stainless	2.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 3.8 mm Drive Depth (E): 1.00 mm Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 5.0 mm
Part Number: SC020M-005-C-SK-S4 (100 Pcs) Socket Cap Screws - M2 -2x0.4mm- 5 mm - 304 Stainless 7 units (700 pcs) Available Now \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Per 100 View the product page first if you are unsure.
SC020M-005-C-SK-S4 (100 Pcs) --- Socket Cap Screws - M2 -2x0.4mm- 5 mm - 304 Stainless SC020M-005-C-SK-S4 (100 Pcs) --- Socket Cap Screws - M2 -2x0.4mm- 5 mm - 304 Stainless Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per 7 Available Now
M2 (2x0.4mm)	6 mm	304 Stainless	2.0 mm	3.8 mm	1.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 6.0 mm
Part Number: SC020M-006-C-SK-S4 (100 Pcs) Socket Cap Screws - M2 -2x0.4mm- 6 mm - 304 Stainless 8 units (800 pcs) Available Now \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Per 100
M2 (2x0.4mm)	6 mm	304 Stainless	2.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 3.8 mm Drive Depth (E): 1.00 mm Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 6.0 mm
Part Number: SC020M-006-C-SK-S4 (100 Pcs) Socket Cap Screws - M2 -2x0.4mm- 6 mm - 304 Stainless 8 units (800 pcs) Available Now \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Per 100 View the product page first if you are unsure.
SC020M-006-C-SK-S4 (100 Pcs) --- Socket Cap Screws - M2 -2x0.4mm- 6 mm - 304 Stainless SC020M-006-C-SK-S4 (100 Pcs) --- Socket Cap Screws - M2 -2x0.4mm- 6 mm - 304 Stainless Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per 8 Available Now
M2 (2x0.4mm)	8 mm	304 Stainless	2.0 mm	3.8 mm	1.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 8.0 mm
Part Number: SC020M-008-C-SK-S4 (100 Pcs) Socket Cap Screws - M2 -2x0.4mm- 8 mm - 304 Stainless 12 units (1200 pcs) Available Now \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Per 100
M2 (2x0.4mm)	8 mm	304 Stainless	2.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 3.8 mm Drive Depth (E): 1.00 mm Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 8.0 mm
Part Number: SC020M-008-C-SK-S4 (100 Pcs) Socket Cap Screws - M2 -2x0.4mm- 8 mm - 304 Stainless 12 units (1200 pcs) Available Now \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Per 100 View the product page first if you are unsure.
SC020M-008-C-SK-S4 (100 Pcs) --- Socket Cap Screws - M2 -2x0.4mm- 8 mm - 304 Stainless SC020M-008-C-SK-S4 (100 Pcs) --- Socket Cap Screws - M2 -2x0.4mm- 8 mm - 304 Stainless Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per 12 Available Now
M2 (2x0.4mm)	10 mm	304 Stainless	2.0 mm	3.8 mm	1.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 10.0 mm
Part Number: SC020M-010-C-SK-S4 (50 Pcs) Socket Cap Screws - M2 -2x0.4mm- 10 mm - 304 Stainless 17 units (850 pcs) Available Now \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Per 50
M2 (2x0.4mm)	10 mm	304 Stainless	2.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 3.8 mm Drive Depth (E): 1.00 mm Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 10.0 mm
Part Number: SC020M-010-C-SK-S4 (50 Pcs) Socket Cap Screws - M2 -2x0.4mm- 10 mm - 304 Stainless 17 units (850 pcs) Available Now \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Per 50 View the product page first if you are unsure.
SC020M-010-C-SK-S4 (50 Pcs) --- Socket Cap Screws - M2 -2x0.4mm- 10 mm - 304 Stainless SC020M-010-C-SK-S4 (50 Pcs) --- Socket Cap Screws - M2 -2x0.4mm- 10 mm - 304 Stainless Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per 17 Available Now
M2 (2x0.4mm)	12 mm	304 Stainless	2.0 mm	3.8 mm	1.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 12.0 mm
Part Number: SC020M-012-C-SK-S4 (10 Pcs) Socket Cap Screws - M2 -2x0.4mm- 12 mm - 304 Stainless 151 units (1510 pcs) Available Now \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 10
M2 (2x0.4mm)	12 mm	304 Stainless	2.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 3.8 mm Drive Depth (E): 1.00 mm Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 12.0 mm
Part Number: SC020M-012-C-SK-S4 (10 Pcs) Socket Cap Screws - M2 -2x0.4mm- 12 mm - 304 Stainless 151 units (1510 pcs) Available Now \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 10 View the product page first if you are unsure.
SC020M-012-C-SK-S4 (10 Pcs) --- Socket Cap Screws - M2 -2x0.4mm- 12 mm - 304 Stainless SC020M-012-C-SK-S4 (10 Pcs) --- Socket Cap Screws - M2 -2x0.4mm- 12 mm - 304 Stainless Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 151 Available Now
M2 (2x0.4mm)	15 mm	304 Stainless	2 mm	3.800 mm	1.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.40 mm Threads Per Inch: 63.500 TPI Min thread Length: Fully Threaded mm
Part Number: SC020M-015-C-SK-4 Socket Cap Screws - M2 -2x0.4mm- 15 mm - 304 Stainless 30 Available Now \| Further orders can be expected around Sun, May 11, 2025 Regular price $1.50 AUD Regular price Sale price $1.50 AUD Unit price per Each
M2 (2x0.4mm)	15 mm	304 Stainless	2 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 3.800 mm Drive Depth (E): 1.00 mm Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.40 mm Threads Per Inch: 63.500 TPI Min thread Length: Fully Threaded mm
Part Number: SC020M-015-C-SK-4 Socket Cap Screws - M2 -2x0.4mm- 15 mm - 304 Stainless 30 Available Now \| Further orders can be expected around Sun, May 11, 2025 Regular price $1.50 AUD Regular price Sale price $1.50 AUD Unit price per Each View the product page first if you are unsure.
SC020M-015-C-SK-4 --- Socket Cap Screws - M2 -2x0.4mm- 15 mm - 304 Stainless SC020M-015-C-SK-4 --- Socket Cap Screws - M2 -2x0.4mm- 15 mm - 304 Stainless Regular price $1.50 AUD Regular price Sale price $1.50 AUD Unit price per 30 Available Now
M2 (2x0.4mm)	16 mm	304 Stainless	2.0 mm	3.8 mm	1.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 16.0 mm
Part Number: SC020M-016-C-SK-S4 (20 Pcs) Socket Cap Screws - M2 -2x0.4mm- 16 mm - 304 Stainless 9 units (180 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Per 20
M2 (2x0.4mm)	16 mm	304 Stainless	2.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Head Diameter (A Max.): 3.8 mm Drive Depth (E): 1.00 mm Shank Diameter (C): 1.86 - 2.00 mm Hex Key (D): 1.50 mm Pitch: 0.400 mm Threads Per Inch: 63.5 TPI Min thread Length: 16.0 mm
Part Number: SC020M-016-C-SK-S4 (20 Pcs) Socket Cap Screws - M2 -2x0.4mm- 16 mm - 304 Stainless 9 units (180 pcs) Available Now \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Per 20 View the product page first if you are unsure.

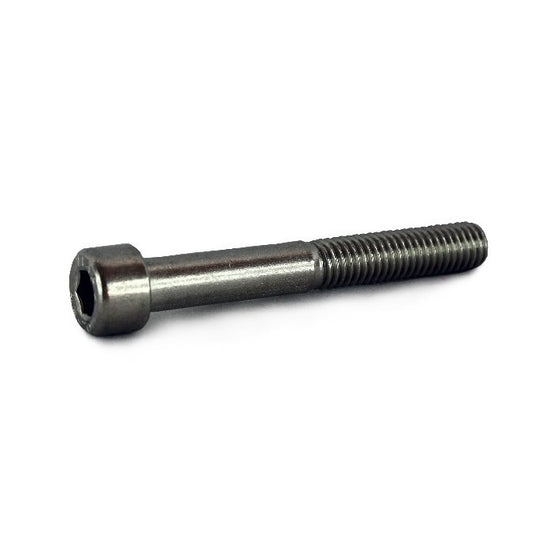

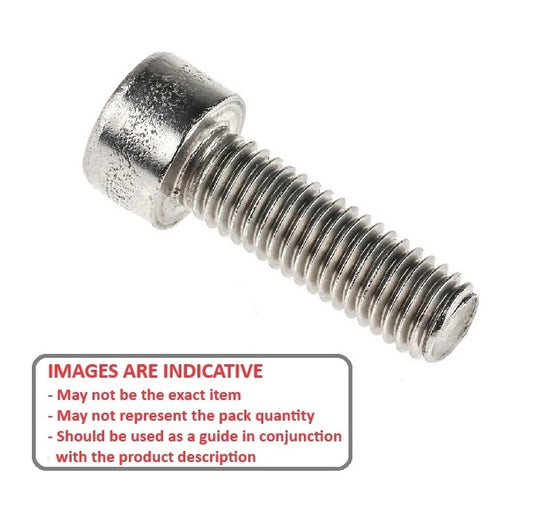

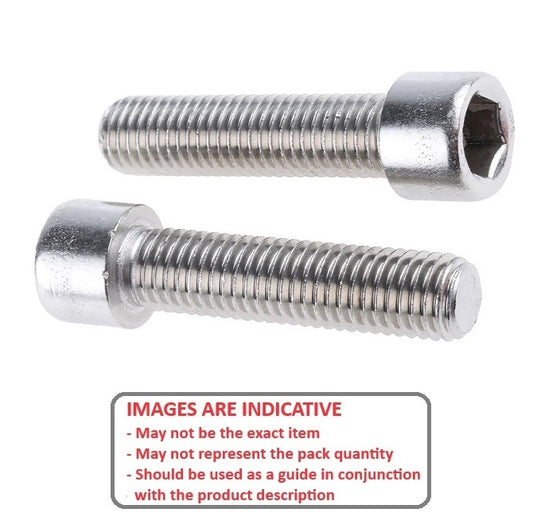

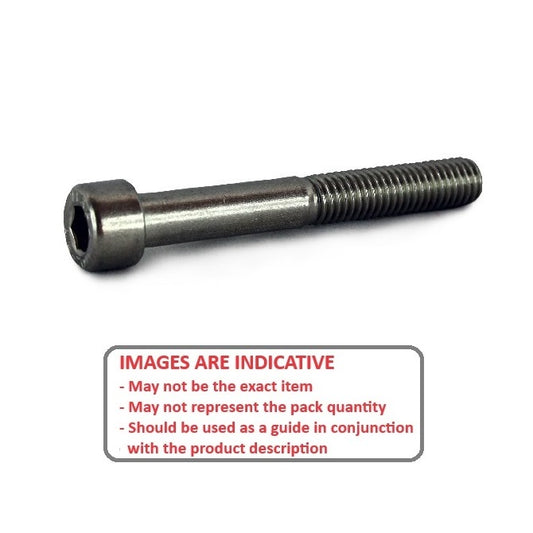

SC020M-016-C-SK-S4 (20 Pcs) --- Socket Cap Screws - M2 -2x0.4mm- 16 mm - 304 Stainless SC020M-016-C-SK-S4 (20 Pcs) --- Socket Cap Screws - M2 -2x0.4mm- 16 mm - 304 Stainless Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per 9 Available Now
