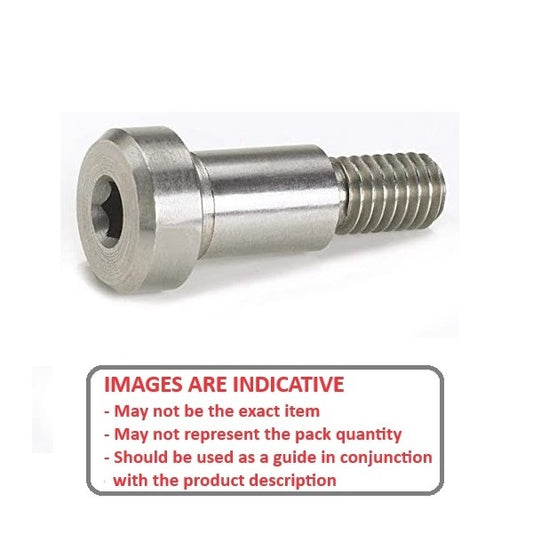

Screws - Shoulder - Socket Head - 316 Stainless

1 Item Available
  • Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw
  • 316 Stainless Steel
Additional resources:
PDF Screws Catalogue
Washers
Nuts

A more comprehensive listing may be found on the MBA Minibearings main store at Screws - Shoulder - Socket Head - 316 Stainless.
Shoulder Diameter (E) Shoulder Length (A) Thread (D) Max. Thread Length (C) Head Height (B) Head Diameter (F) Indicative
12.000
mm
- 0.072 / - 0.010 		50.000
mm 		M10x1.5
16.00
mm 		9.00
mm 		18.00

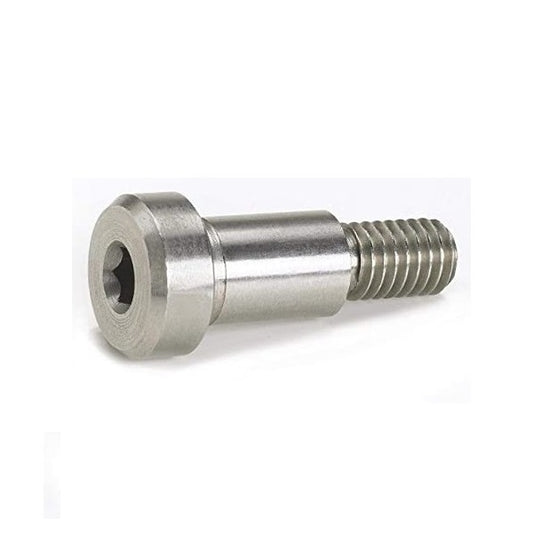

mm 		1100449 | SHLD120-050-SKT-S6 --- Shoulder Screws - 12x50 mm - M10x1.5 - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Allen Key Size: 6.00 mm
Part Number: SHLD120-050-SKT-S6 Shoulder Screws - 12x50 mm - M10x1.5 - Stainless Steel 316 (Similar to A4, 18-10)
185 Available Now | Further orders can be expected around Sun, May 25, 2025
$176.32 AUD
$176.32 AUD
Each
Shoulder Diameter (E) Shoulder Length (A) Thread (D) Max. Thread Length (C) Indicative
12.000
mm
- 0.072 / - 0.010 		50.000
mm 		M10x1.5
16.00
mm 		1100449 | SHLD120-050-SKT-S6 --- Shoulder Screws - 12x50 mm - M10x1.5 - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Head Height (B): 9.00 mm    Head Diameter (F): 18.00 mm    Allen Key Size: 6.00 mm
Part Number: SHLD120-050-SKT-S6 Shoulder Screws - 12x50 mm - M10x1.5 - Stainless Steel 316 (Similar to A4, 18-10)
185 Available Now | Further orders can be expected around Sun, May 25, 2025
$176.32 AUD
$176.32 AUD
Each
View the product page first if you are unsure.
